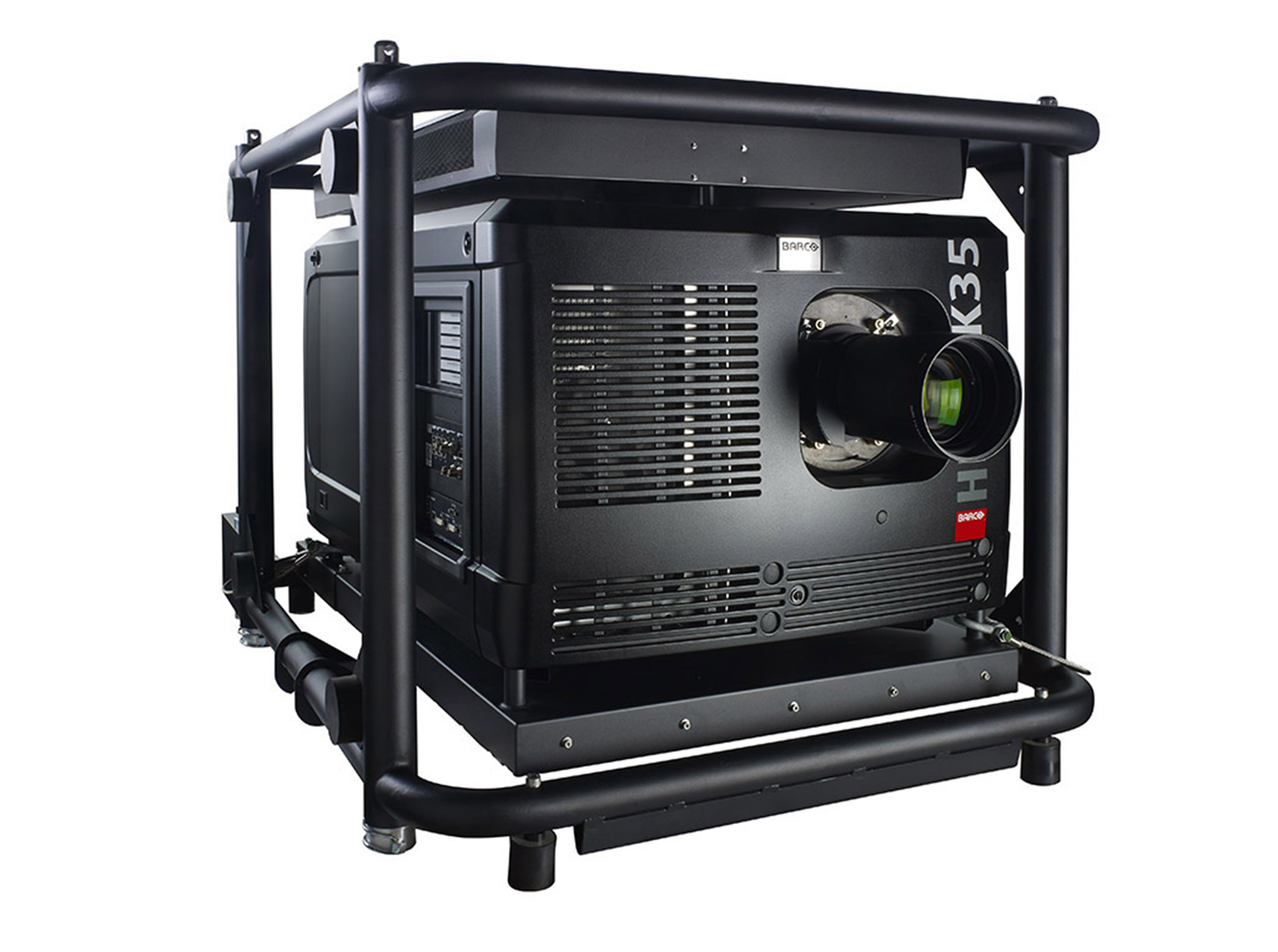

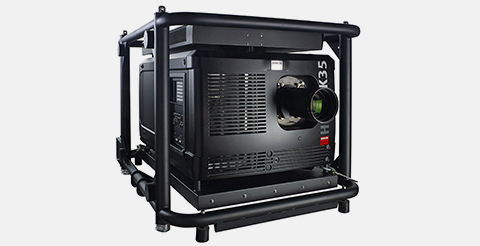

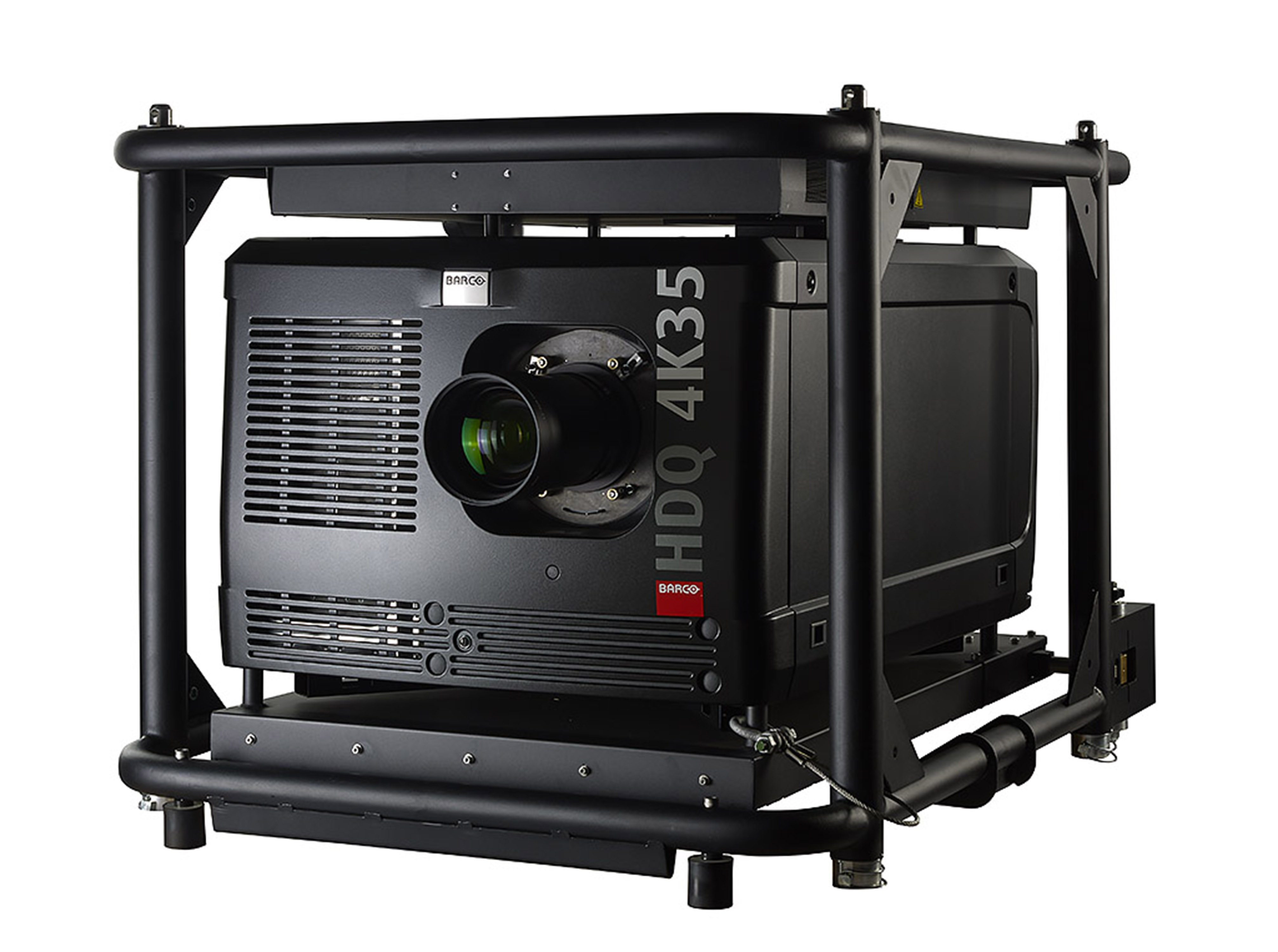

Offering a brightness level of 35,000 center lumens, the HDQ-4K35 projector is capable of showing native 4K content at 60 Hz frame rates. It features a unique integrated design with internal power supply, rental frame and no external chimney fan. What’s more, the HDQ-4K35 is fully ready to be combined with Barco’s groundbreaking 4K screen management system, which allows native 4K projector blending.

Stunning images

Thanks to its 4K (4,096 x 2,160) resolution, 60 Hz frame rate, Xenon 6.5kW lamp and high-contrast optical engine, the HDQ-4K35 delivers razor-sharp images to boost live events with stunning visuals in vibrant, rich colors. Rental companies that already own a fleet of HDQ-2K40 projectors can reuse their XLD lenses for the HDQ-4K35 projector or opt for dedicated 4K lenses if higher lens shifts are needed to achieve the right image.

A perfect match for E2

Offering native 4K input and output, the Barco E2 image processor is the only screen management system on the market able to manage a 32 projector blend using the HDQ-4K35 with refresh rates up to 60 Hz.

Designed for the road

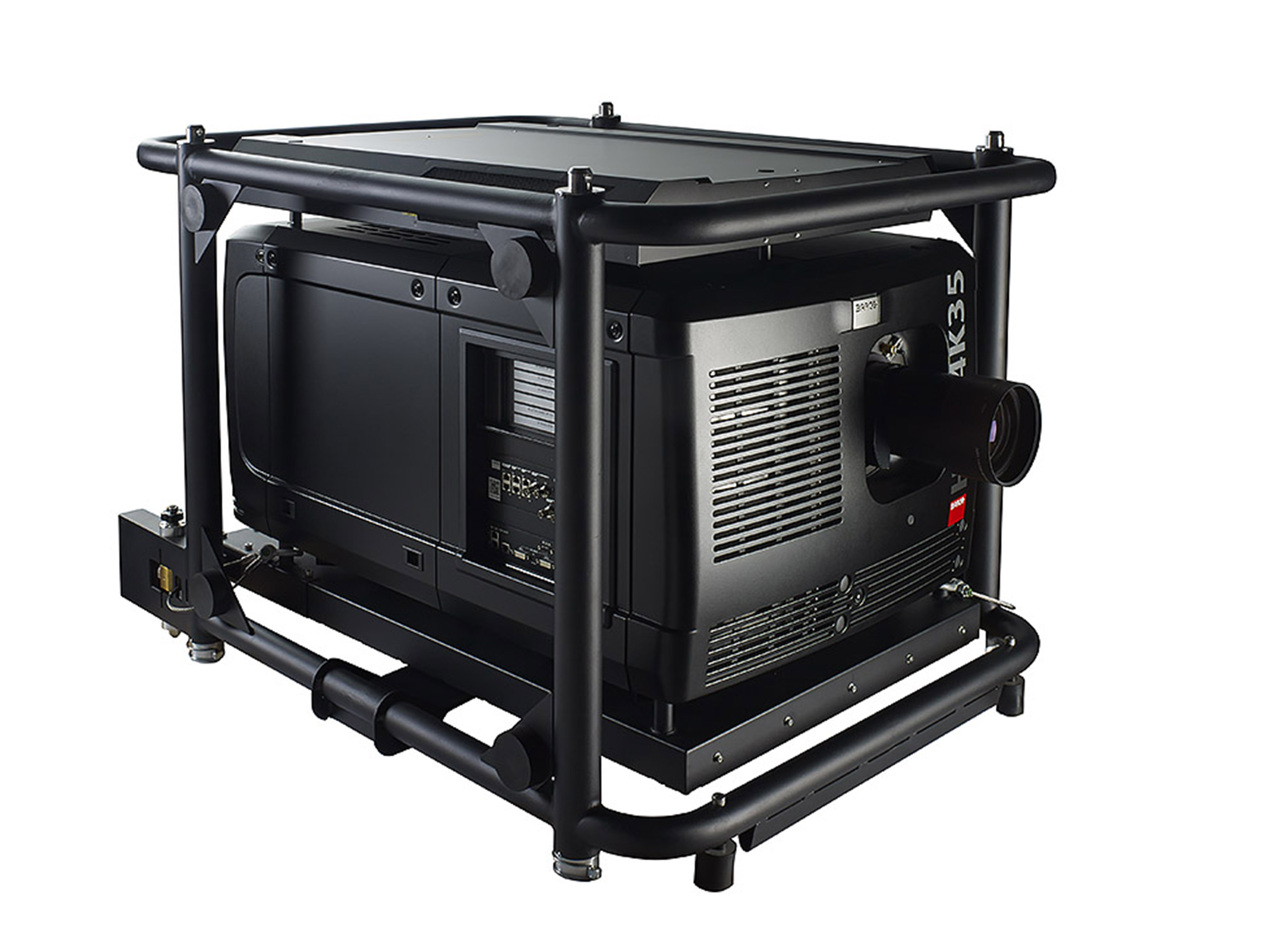

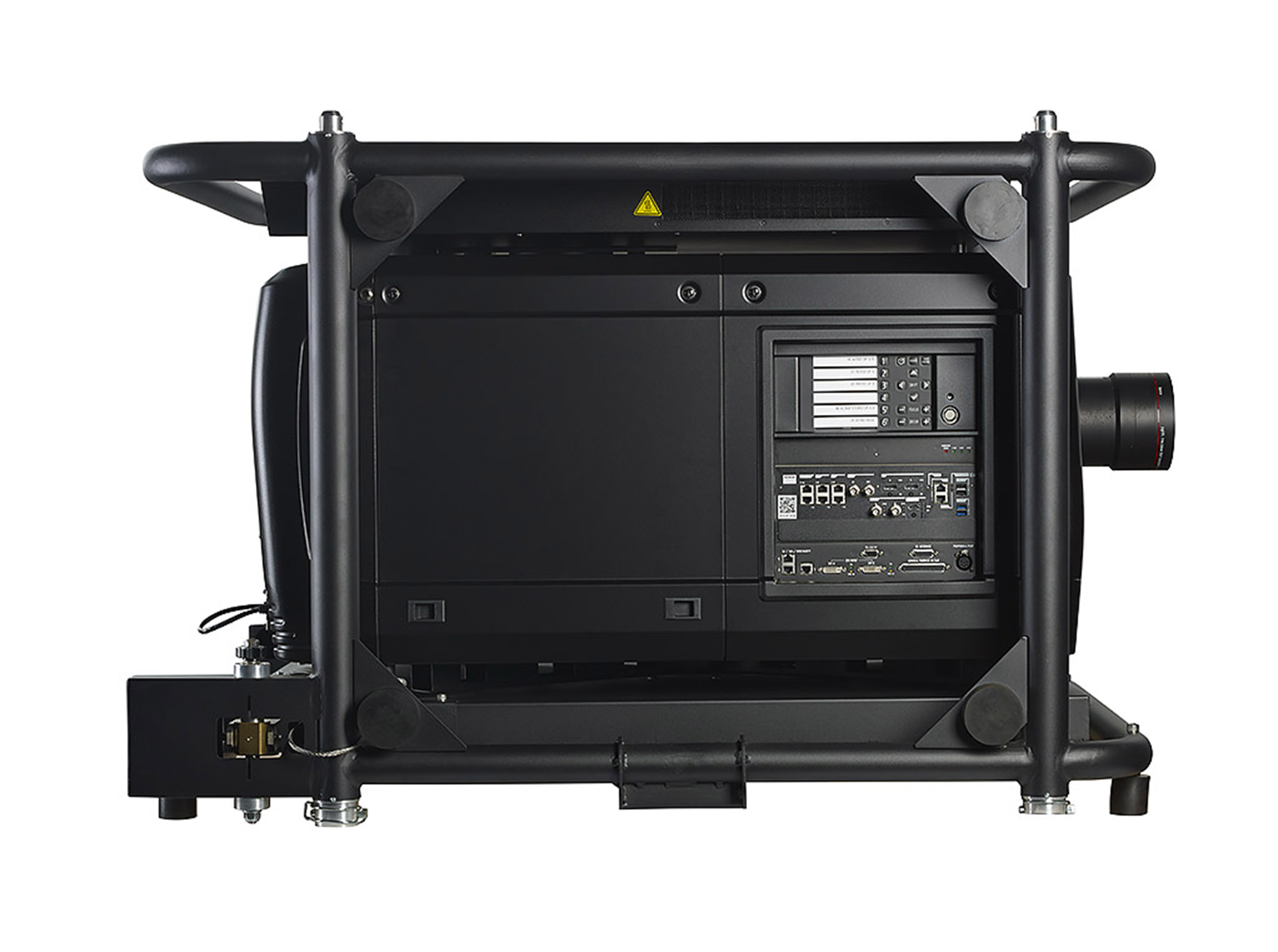

Perfect for a multitude of rental & staging applications, the HDQ-4K35 boasts a unique integrated design with internal power supply, rental frame and no external chimney fan. Designed with the road in mind, the HDQ-4K35 comes with a rugged metal chassis to withstand the challenging conditions of continuous shipping.

• Projector type

  4K 3-chip DLP digital projector

• Technology

  1.38" DMD™ x3

• Color wheel

  6S standard (RGBYCW)

• Resolution

  4,096 x 2,160

• Brightness

  35,000 center lumens / 33,000 ANSI lumens*

• Contrast ratio

  2000:1 (standard)

• Brightness uniformity

  90%

• Aspect ratio

  1896

• ScenergiX

  Horizontal and vertical edge blending

• Lens type

  XLD / XLD HD (4K lens)

• Lens range

  TLD 0.73:1 1.2:1 1.25-1.6:1 1.5-2.0:1 2.0-2.8:1 2.8-4.5:1 4.5-7.5:1 7.5-11.5:1

• Lenses

  lenses fixed 0.72 0.9 zoom lenses starts at 1.3: 1 till 7.2 :1(check lens calculator for full details)

• Optical lens shift

  Vertical: +/-70% / Horizontal: +/-30% depending on the lens type shift can be inferior

• Color correction

  P7

• CLO(constant light output)

  Standard

• Light source

  6.5 kW xenon

• Light source lifetime

  500 Hrs

• Lamp house, quick replace

  Yes

• Lamp warranty

  90 days, 300 hours / pro rata 300 hours

• Transport with lamp

  No

• Customer bulb replace

  Yes

• Sealed DLP™ core

  standard

• Optical dowser

  standard

• Advance Picture in Picture

  Two sources simultaneously**

• Orientation

  table - side (portrait)* * lamp door down/bottom

• Others

  can be controlled by DMX 512 console, warping

• DMX 512

  standard

• WARP

  external optional MCM warp

• Integrated web server

  yes (projector control board)

• 3D

  ready

• Image processing

  Embedded warp & blend engine

• Outputs

  2 x DP 1.1 only (2 x 2,048 by 2,160) HDMI ready 3GHDSDI ready

• Input resolutions

  Up to 4K 60p

• Max. pixel clock

  200 Mhz

• Software tools

  DC Communicator

• Control

  XLR wired + IR, RS232, Wifi, GSM (opt)

• Network connection

  10/100 base-T, RJ-45 connection, Wifi (optional)

• Power requirements

  200-240V /380-400V@50-60Hz

• Max. power consumption

  8,000W

• BTU per hour

  Max 6,000 BTU/h

• Dissipation BTU

  Max. 27,331 BTU/h

• Noise level (typical at 25°C/77°F)

  61 dB(A)

• Operating temperature

  0-35°C / 32°-104°F

• Operating humidity

  -20 - 60 °C

• Storage temperature

  0-80%（non condens）

• Storage temperature

  10 - 90%RH

• Dimensions (WxLxH)

  1,025 x 1,320 x 900mm / 40.35 x 51.96 x 35.43 inches

• Weight

  210kg (462.97lbs)

• Standard accessories

  Power cord adjustable frame/ clamps

• Shipping dimensions (WxLxH)

  (LxWxH) 1,522 x 1,242 x 1,215 mm / 59.92 x 48.90 x 47.83 inches

• Shipping Weight from Factory

  270kg (595.25lbs)

• Certifications

  Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS

• Warranty

  3 years standard, extendable up to 5 years

• 24-7documentation

  This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

•

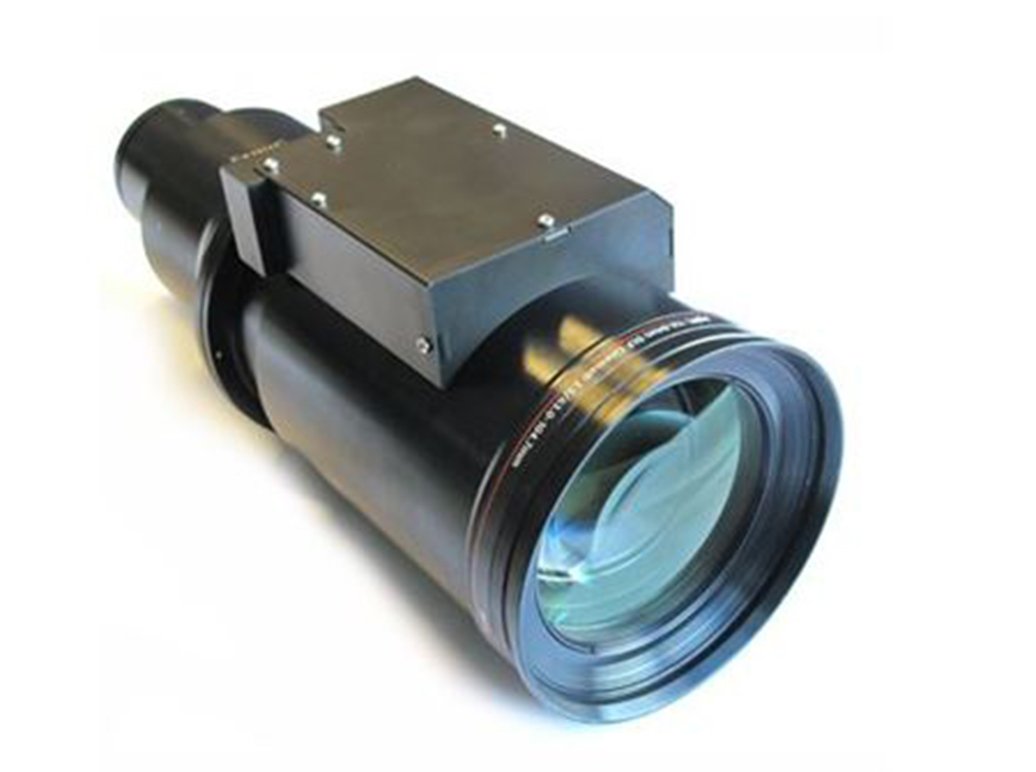

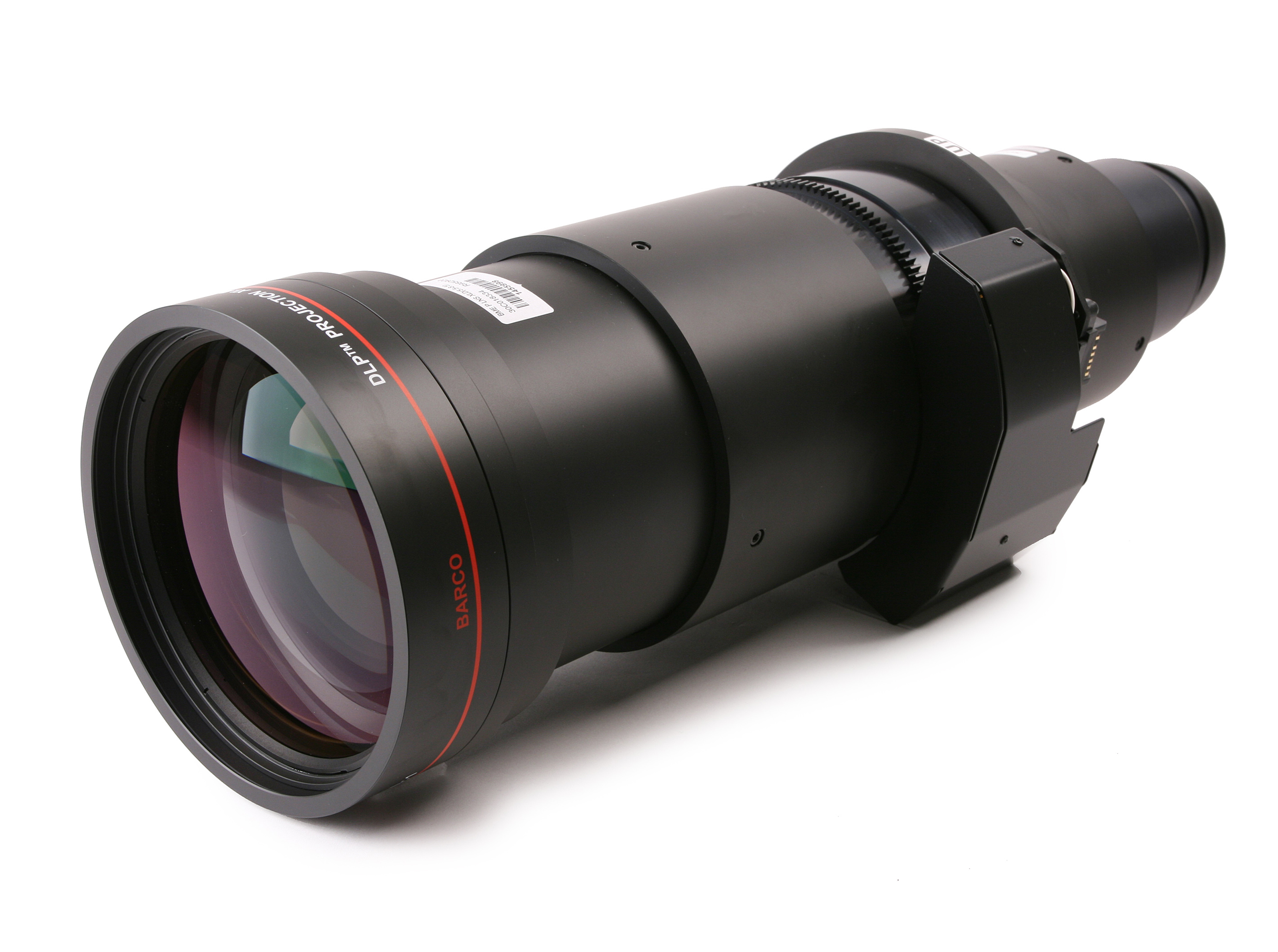

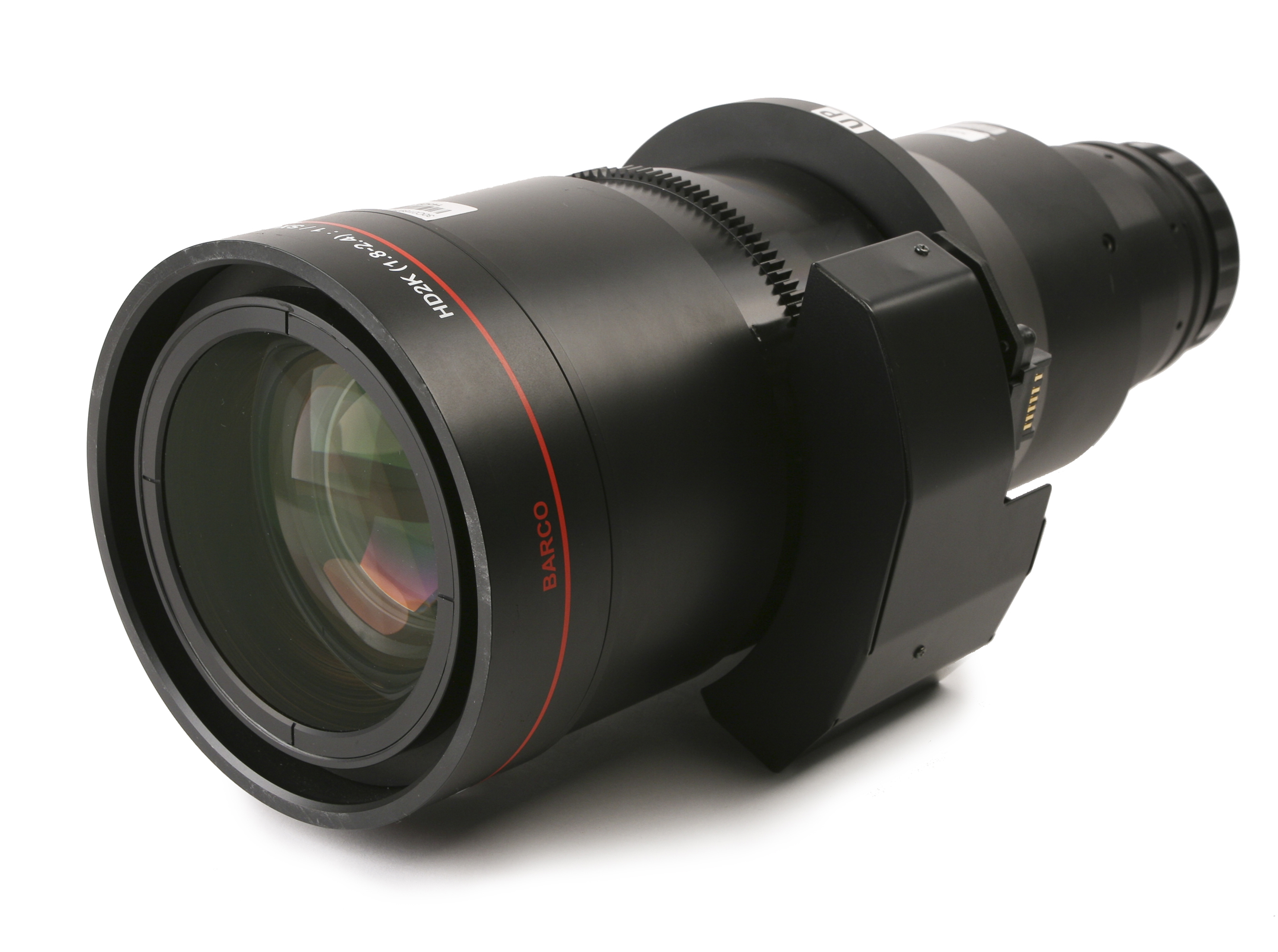

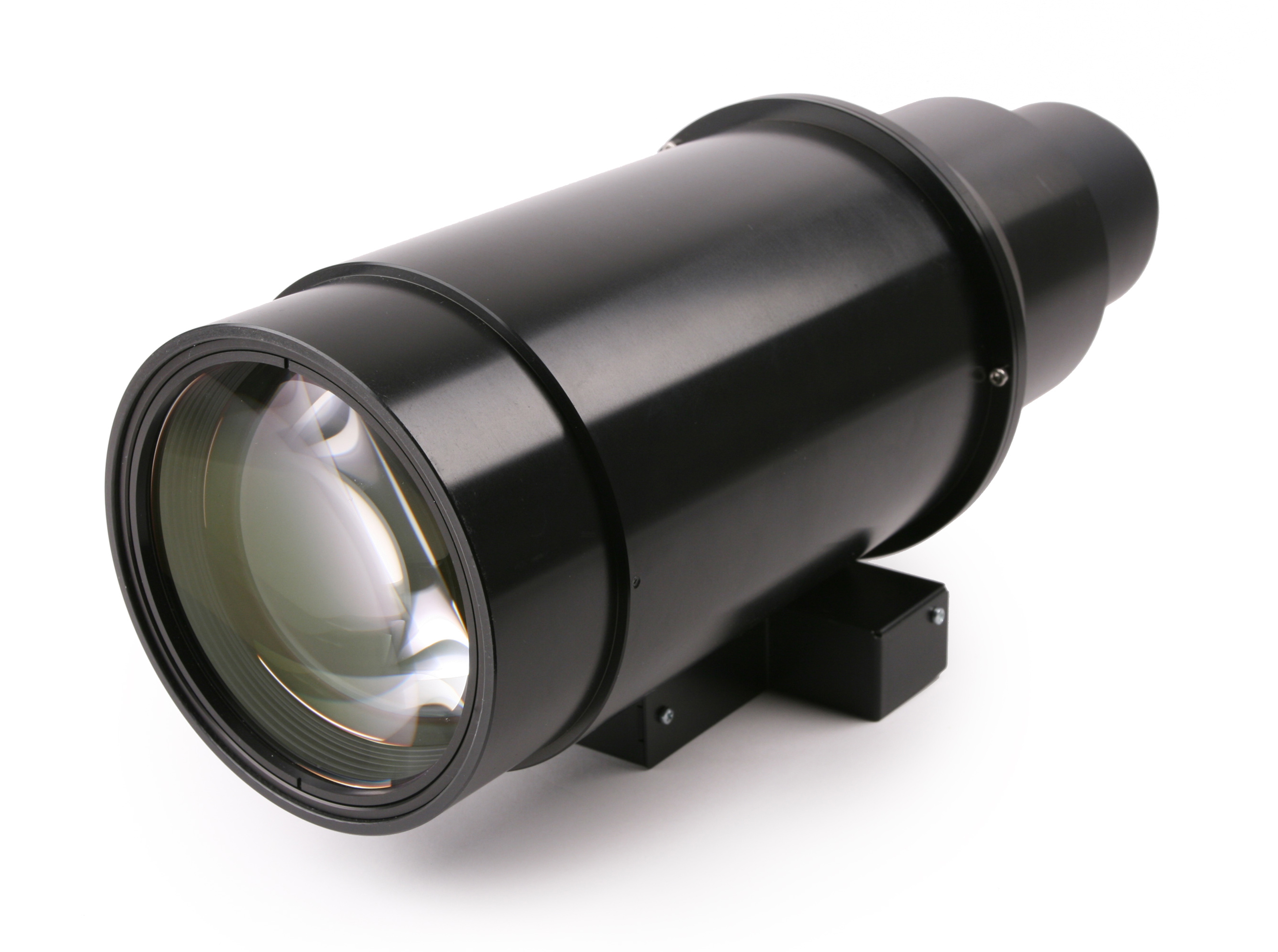

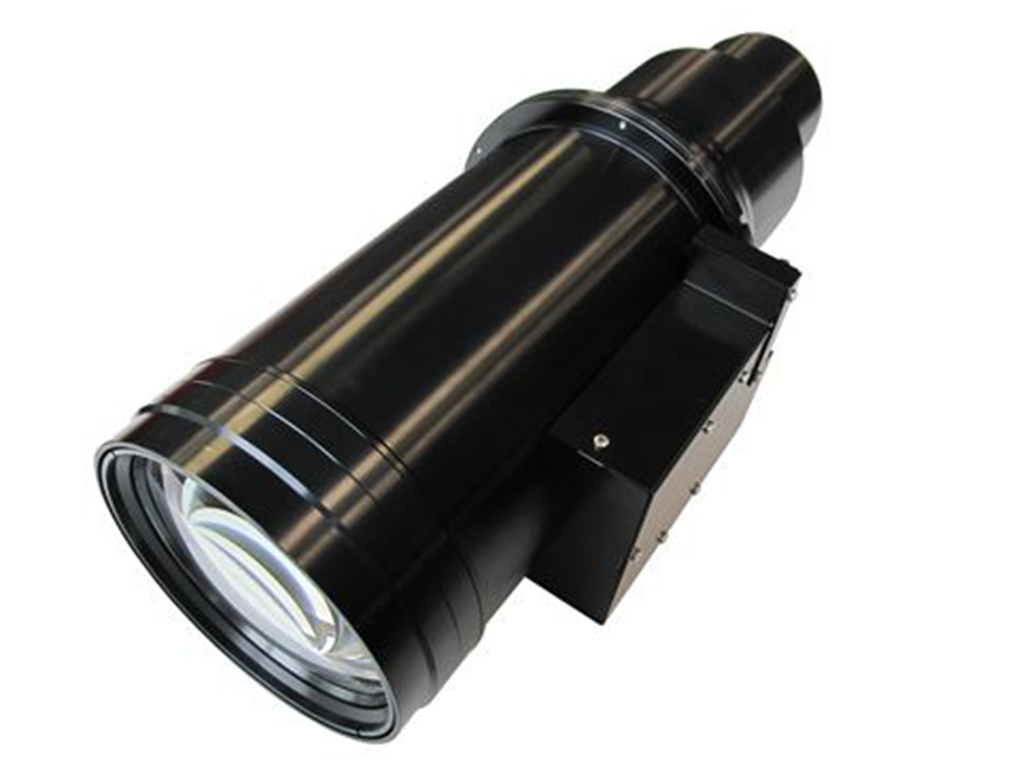

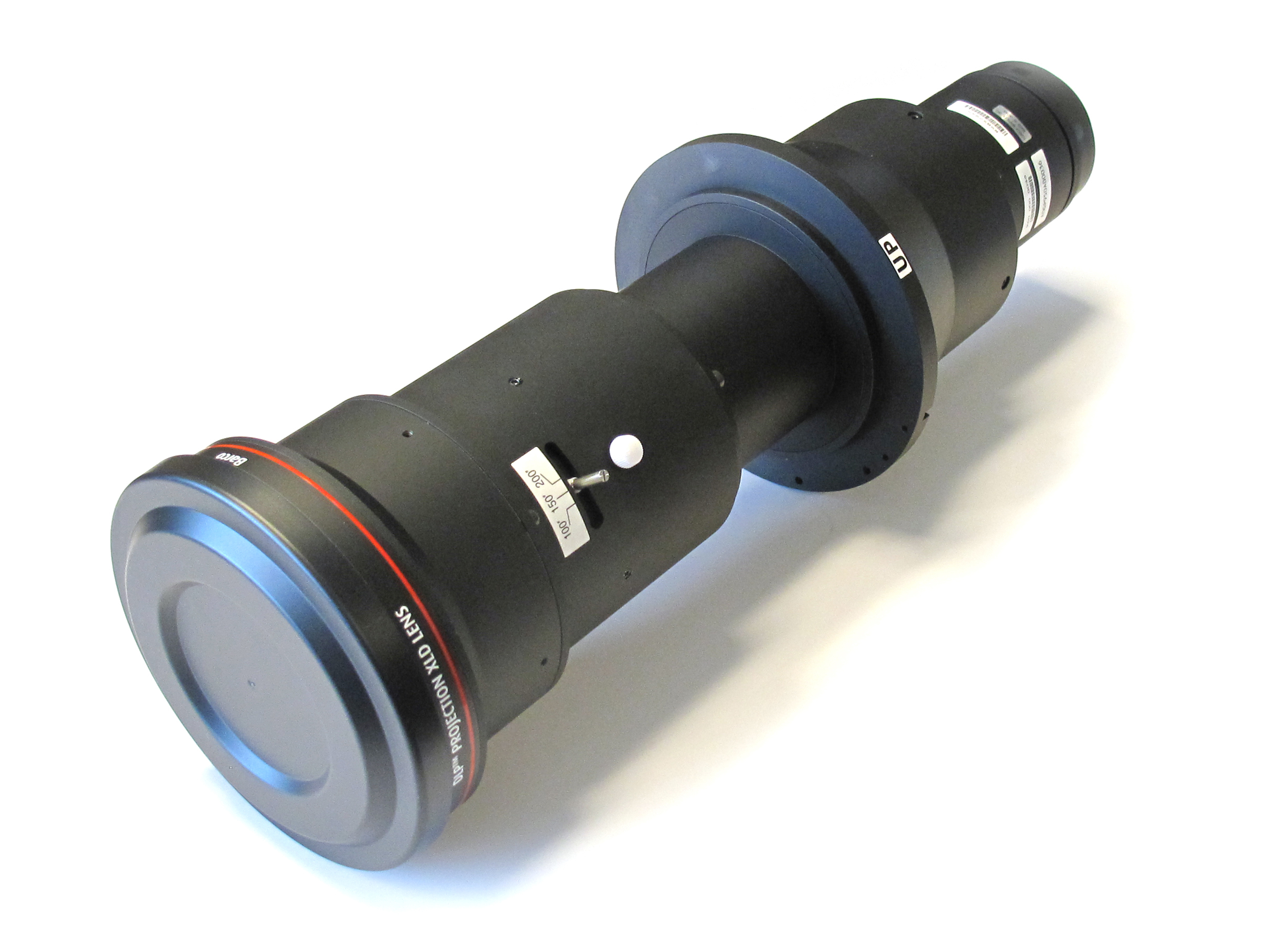

  XLD 2K:0.8:1/ 4K:0.72:1




  Article number：R9852945





•

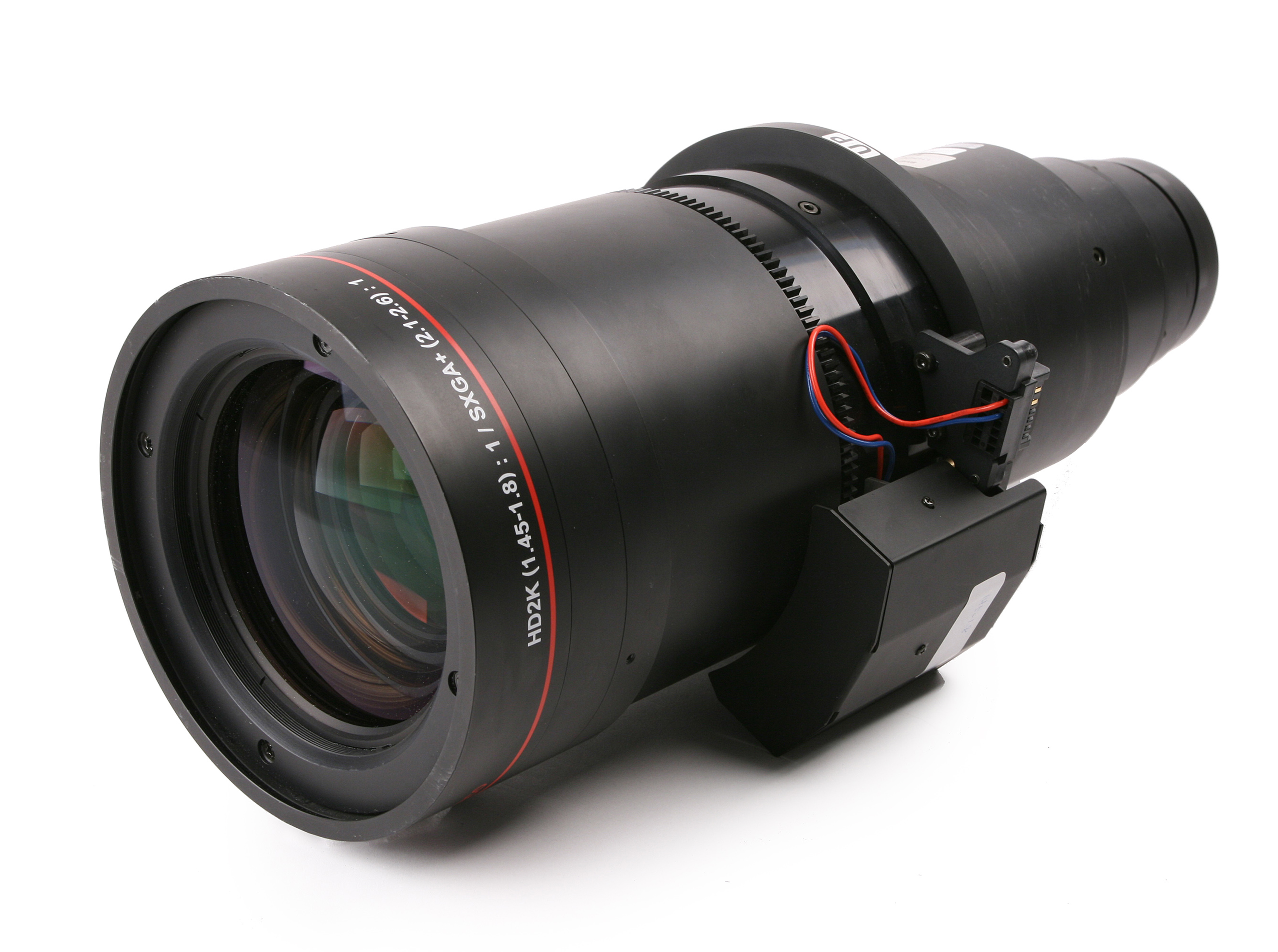

  XLD (1.45 - 1.8)




  Article number：R9852090





•

  XLD (1.8 - 2.4)




  Article number：R9852092





•

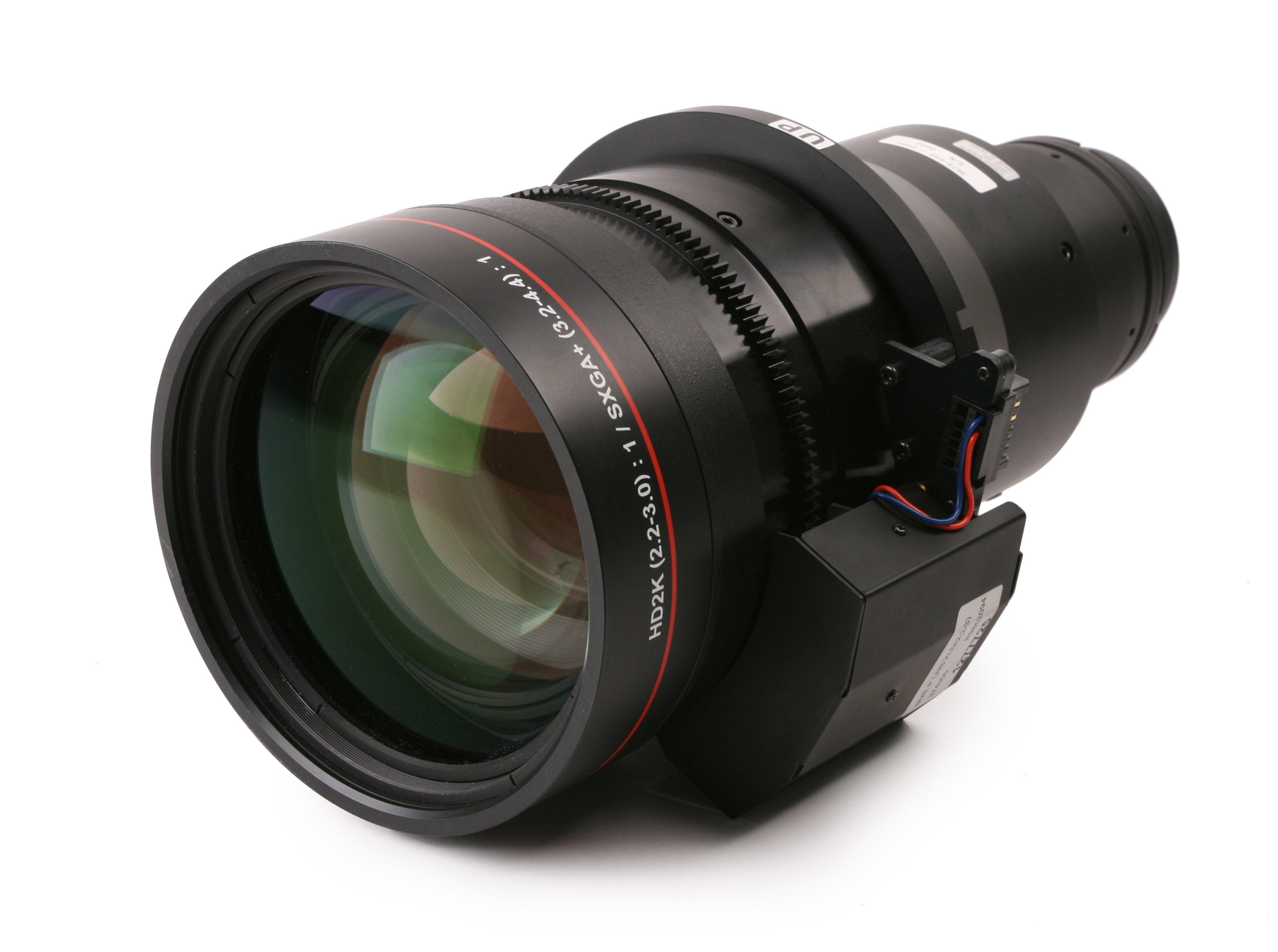

  XLD (2.2 - 3.0)




  Article number：R9852094





•

  XLD (2.8 - 5.5)




  Article number：R9852100





•

  XLD (5.5 - 8.5)




  Article number：R9852920





•

  1.38" DC4K (1.35-1.86)




  Article number：R9856294





•

  1.38" DC4K (1.46-2.10)




  Article number：R9856297





•

  1.38" DC4K (1.65-2.60)




  Article number：R9856300





•

  Zoom lens2K：2.21-3.70 / 4K 2.00-3.35 (1.38")




  Article number：R9856303






Product Manual

• HDQ-4K35.pdf
