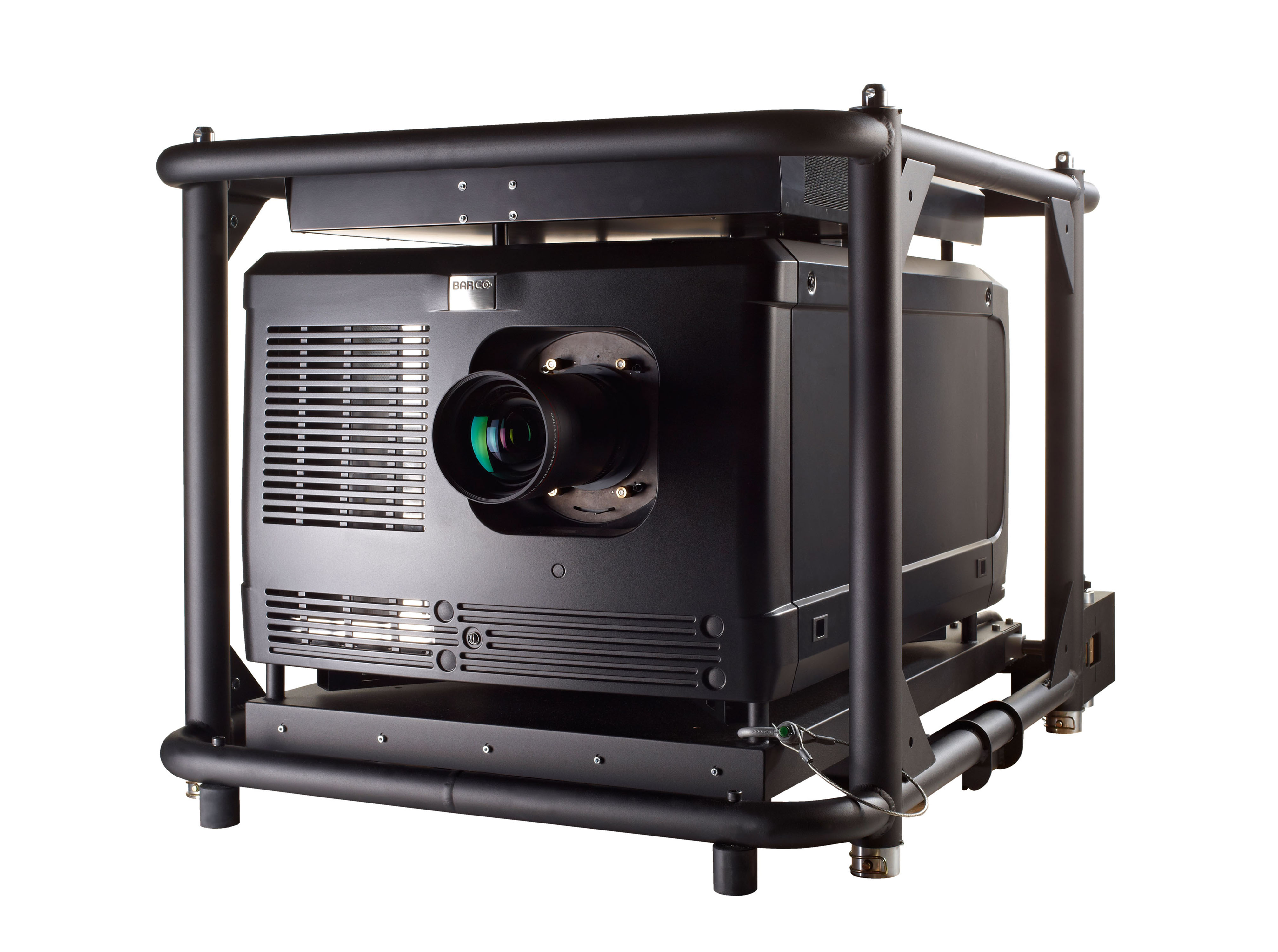

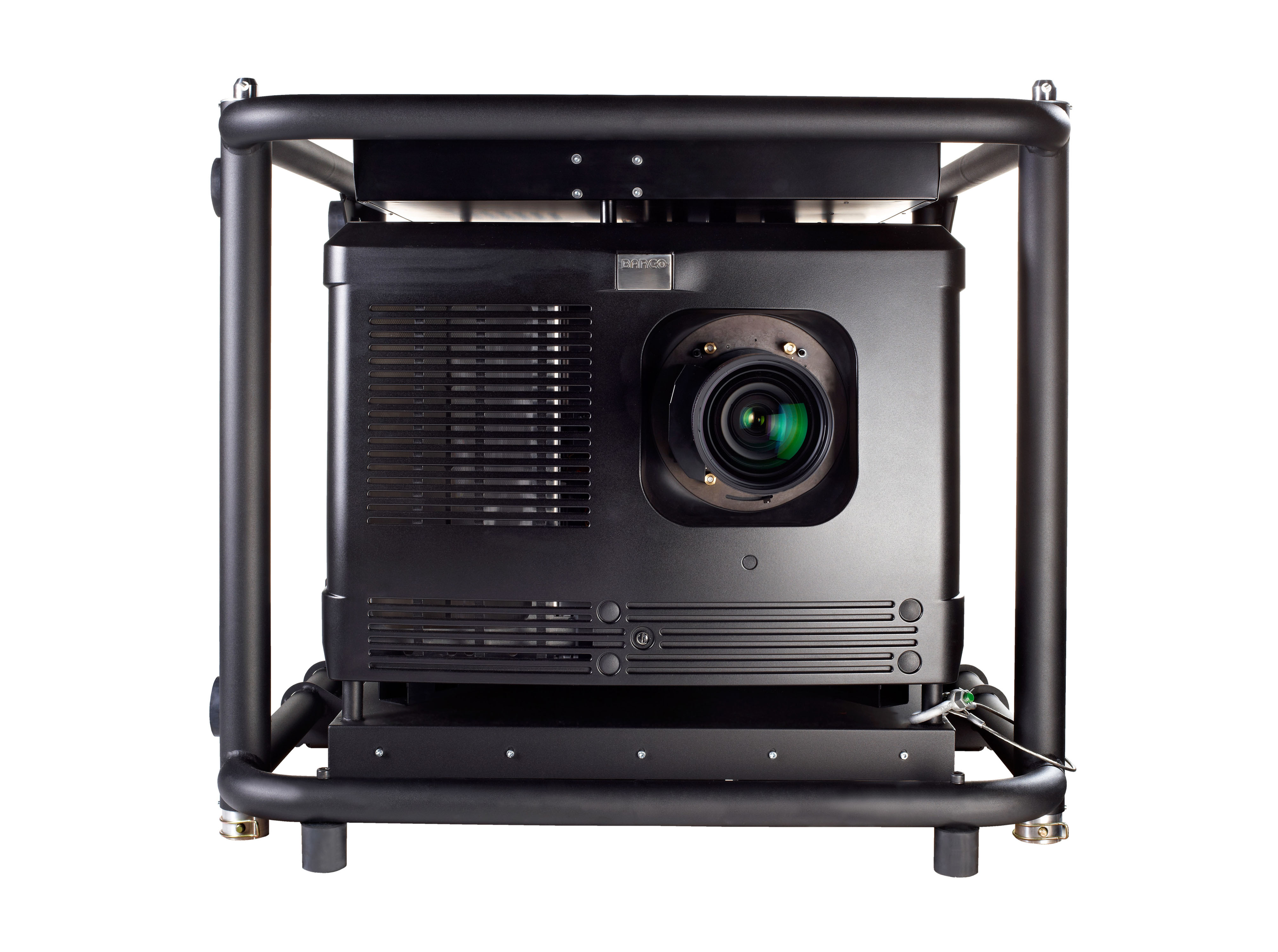

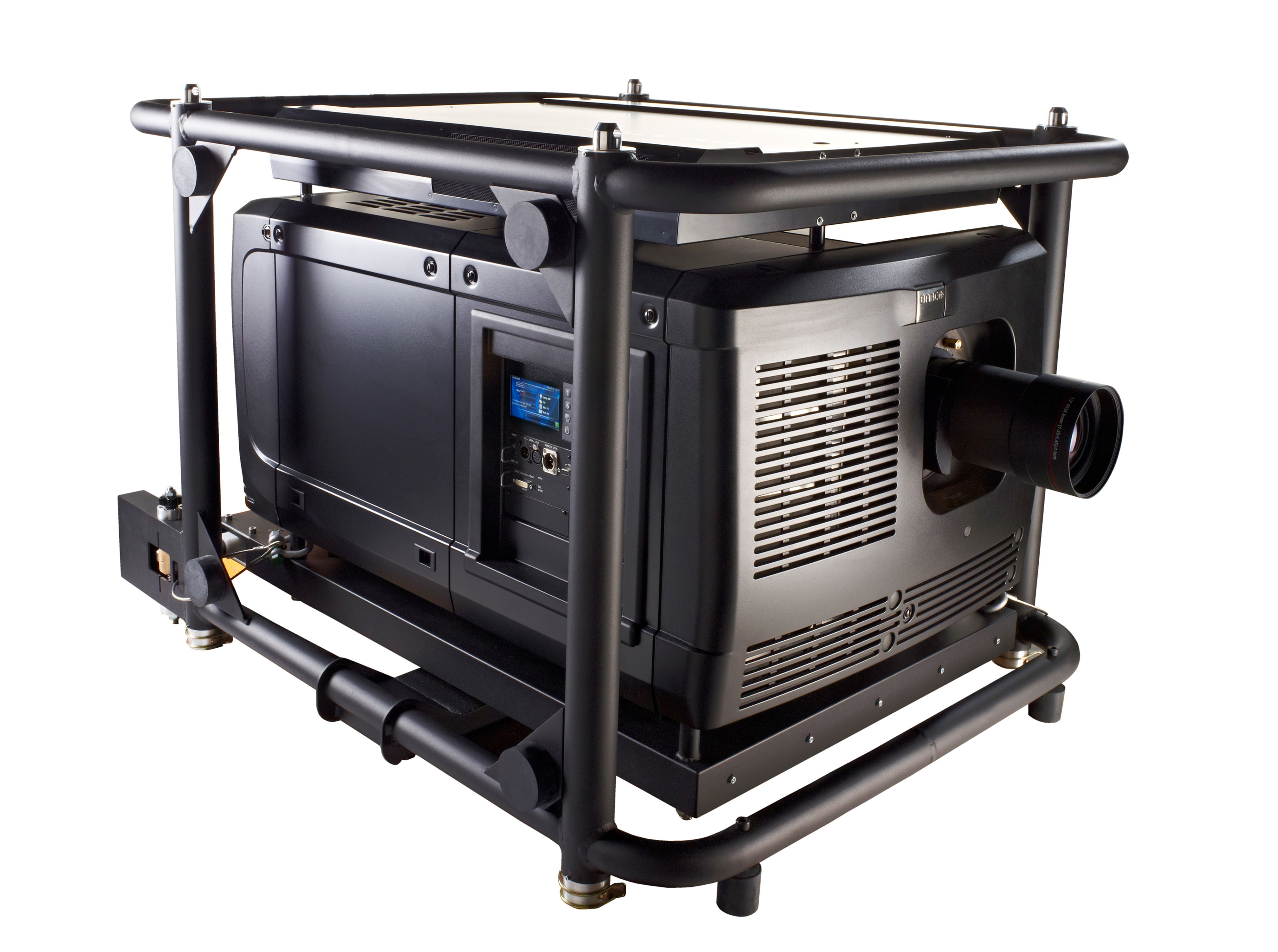

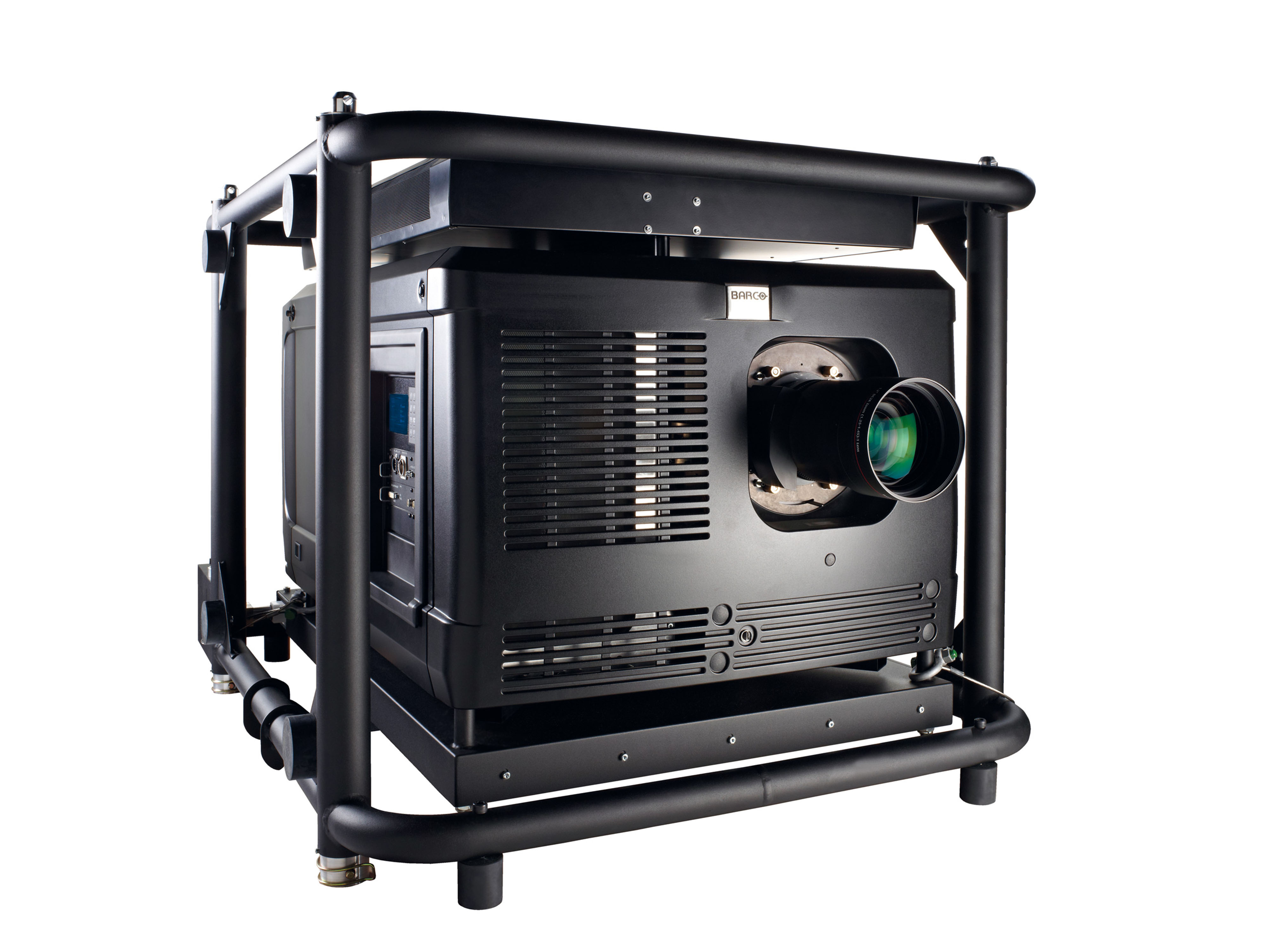

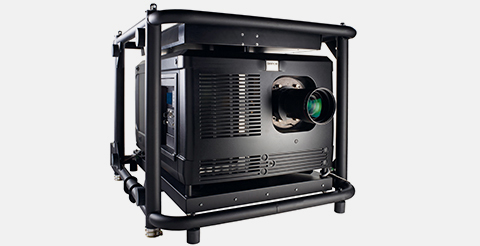

The world’s brightest projector for rental and staging, Barco’s HDQ-2K40 ensures razor-sharp, ultra-bright images, guaranteeing an unequaled event experience on every occasion. Thanks to its 40,000 lumens light output and 2K resolution, the HDQ-2K40 displays stunning images with rich vibrant colors time after time. What's more, the HDQ is also equipped with Barco’s high-end ImagePRO technology with Athena scaler for flexible scaling.

Wireless control and preview mode

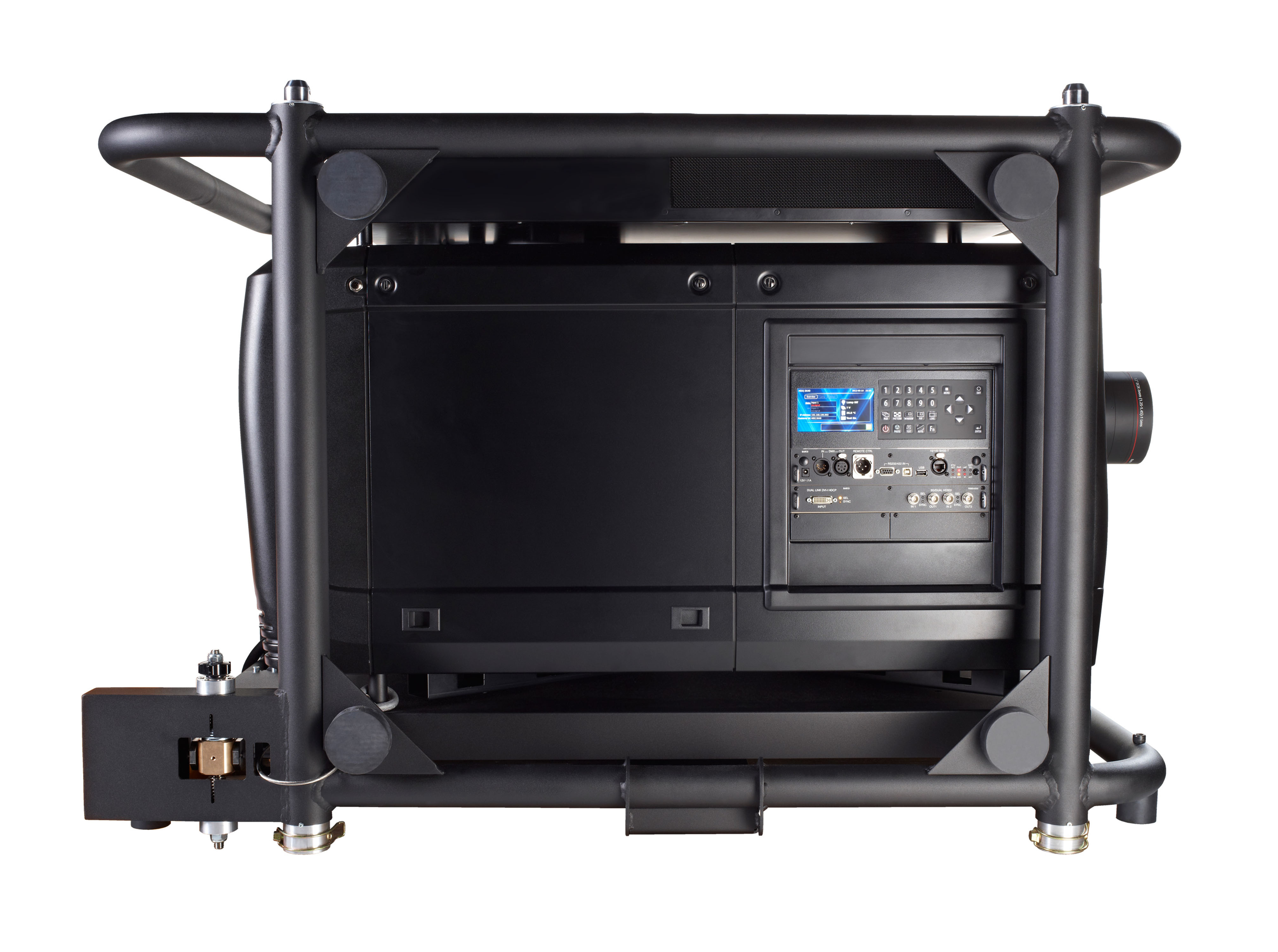

The HDQ-2K40’s built-in color LCD screen provides all the information you need on your projector's status, and allows you to preview your connected sources. In addition, you can easily control your HDQ-2K40 via your smart phone or tablet computer.

Designed for rental and staging

Building on Barco’s experience in the rental and staging market, the HDQ has been designed with the road in mind. Its modular design makes the HDQ simple to install and service. Equipped with a solid and adjustable frame, the projector can easily be stacked and rigged as well.

Fast signal distribution

Our proprietary BarcoLink technology guarantees swift signal distribution between Barco’s projectors and image processors. With BarcoLink, signals are distributed over a BNC coax cable, which is not only more durable but also enables you to lower your costs.

Choose your brightness with HDQ Flex

The HDQ-2K40 projector is also available with a light-on-demand option. Thanks to this technology, you can fully tune the light output of the projector to your event: it can be programmed to a light output of 26,000 lumens up to 40,000 lumens in 2,000 incremental steps. In this way, rental companies have more flexibility to offer their customers the light output they want.

Our HDQ-2K40 has been awarded as projector of the year by Live Design.

• Projector type

  2K 3-chip DLP digital projector

• Technology

  1.2" DMD™ x3

• Color wheel

  6S standard (RGBYCW)

• Resolution

  2048 x 1080

• Brightness

  40,000 center lumens / 37,000 ANSI lumens*

• Contrast ratio

  2000:1 (standard)

• Brightness uniformity

  90%

• Aspect ratio

  2048 : 1080

• ScenergiX

  Horizontal and vertical edge blending

• Lens type

  XLD，4K lenses

• Lens range

  TLD 0.73:1 1.2:1 1.25-1.6:1 1.5-2.0:1 2.0-2.8:1 2.8-4.5:1 4.5-7.5:1 7.5-11.5:1

• Lenses

  1:1 1.45-1.8:1 1.8-2.4:1 2.2-3.0:1 2.8-5.5 5.5-8.5-1

• Optical lens shift

  Vertical: -100% to + 110% / Horizontal: +/-30% (on zoom lenses memorised)

• Color correction

  P7

• CLO(constant light output)

  Standard

• Light source

  7 kW xenon

• Light source lifetime

  500 Hrs

• Lamp house, quick replace

  Yes

• Lamp warranty

  90 days, 300 hours / pro rata 300 hours

• Transport with lamp

  Yes

• Customer bulb replace

  Yes

• Sealed DLP™ core

  standard

• Optical dowser

  standard

• Advance Picture in Picture

  Two sources simultaneously**

• Orientation

  table - side (portrait)* * lamp door down/bottom

• Others

  can be controlled by DMX 512 console, warping

• DMX 512

  standard

• WARP

  direct adjust OSD + toolset

• Integrated web server

  Yes

• 3D

  Active eyewear (optional), passive Infitec (optional), passive circular (optional), triple flash up to 144 Hz

• Image processing

  Embedded warp & blend engine

• Outputs

  DVI-I (HDCP including analog RGB YUV), SDI/HDSDI/Dual HDSDI/3G/BarcoLink

• Input resolutions

  From NTSC up to QXGA (2,048 x 1,536)

• Max. pixel clock

  200 Mhz

• Software tools

  Projector Toolset + Android app + iOS app

• Control

  XLR wired + IR, RS232, Wifi, GSM (opt)

• Network connection

  10/100 base-T, RJ-45 connection, Wifi (optional)

• Power requirements

  200-240V /380-400V@50-60Hz

• Max. power consumption

  8,000 W

• BTU per hour

  Max 6,000 BTU/h

• Dissipation BTU

  Max. 27,331 BTU/h

• Noise level (typical at 25°C/77°F)

  61 dB(A)

• Operating temperature

  0-40°C / 32°-104°F

• Operating humidity

  -20 - 60 °C

• Storage temperature

  0-80% (non condens)

• Storage temperature

  10 - 90%RH

• Dimensions (WxLxH)

  1,025 x 1,320 x 900mm / 40.35 x 51.96 x 35.43 inches

• Weight

  210kg (462.97lbs)

• Standard accessories

  wireless/XLR wired rugged remote control adjustable frame/clamps

• Shipping dimensions (WxLxH)

  (LxWxH) 1,522 x 1,242 x 1,215 mm / 59.92 x 48.90 x 47.83 inches

• Shipping Weight from Factory

  270kg (595.25lbs)

• Certifications

  Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS

• Warranty

  3 years standard, extendable up to 5 years

• 24-7documentation

  This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

•

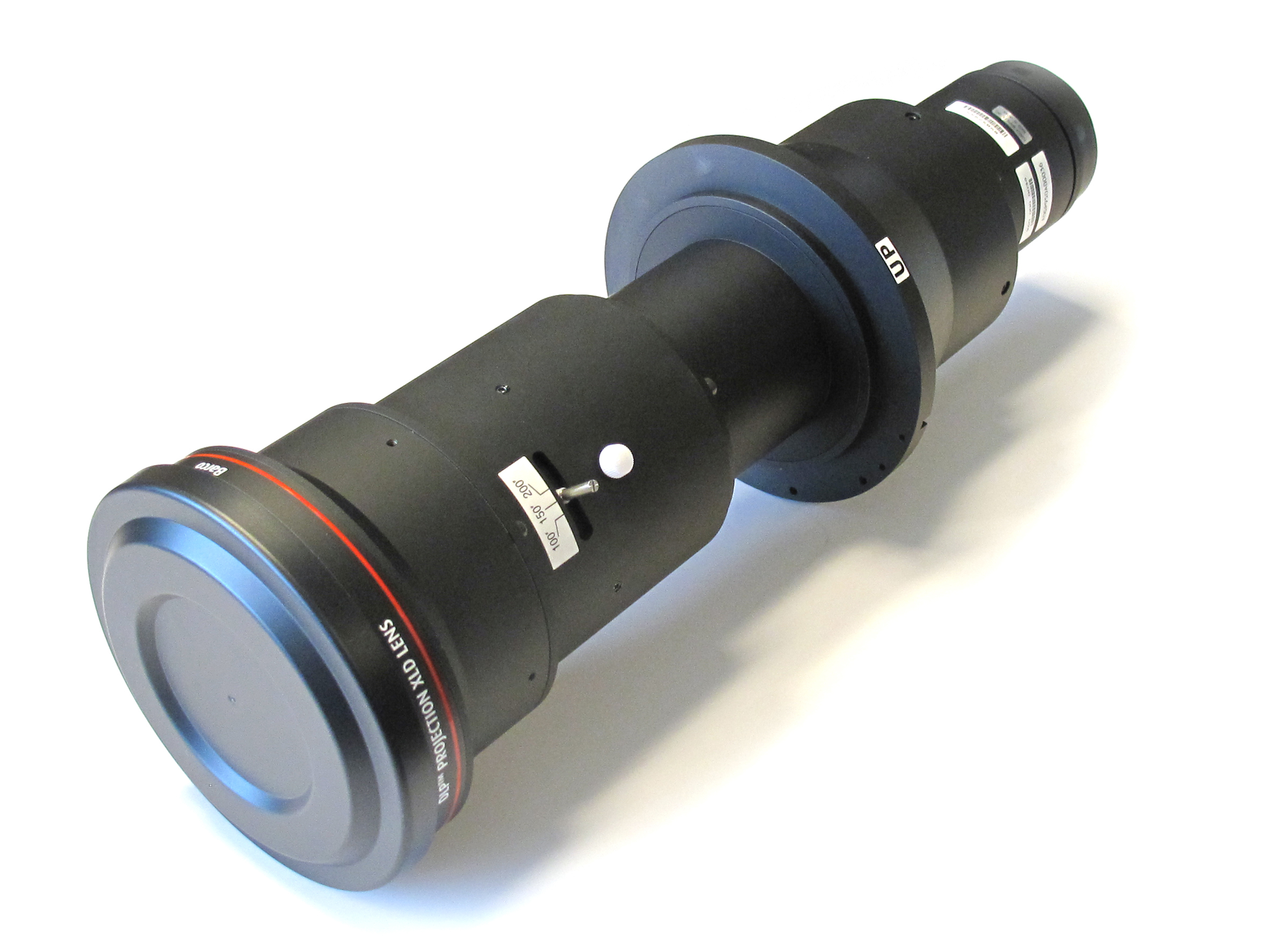

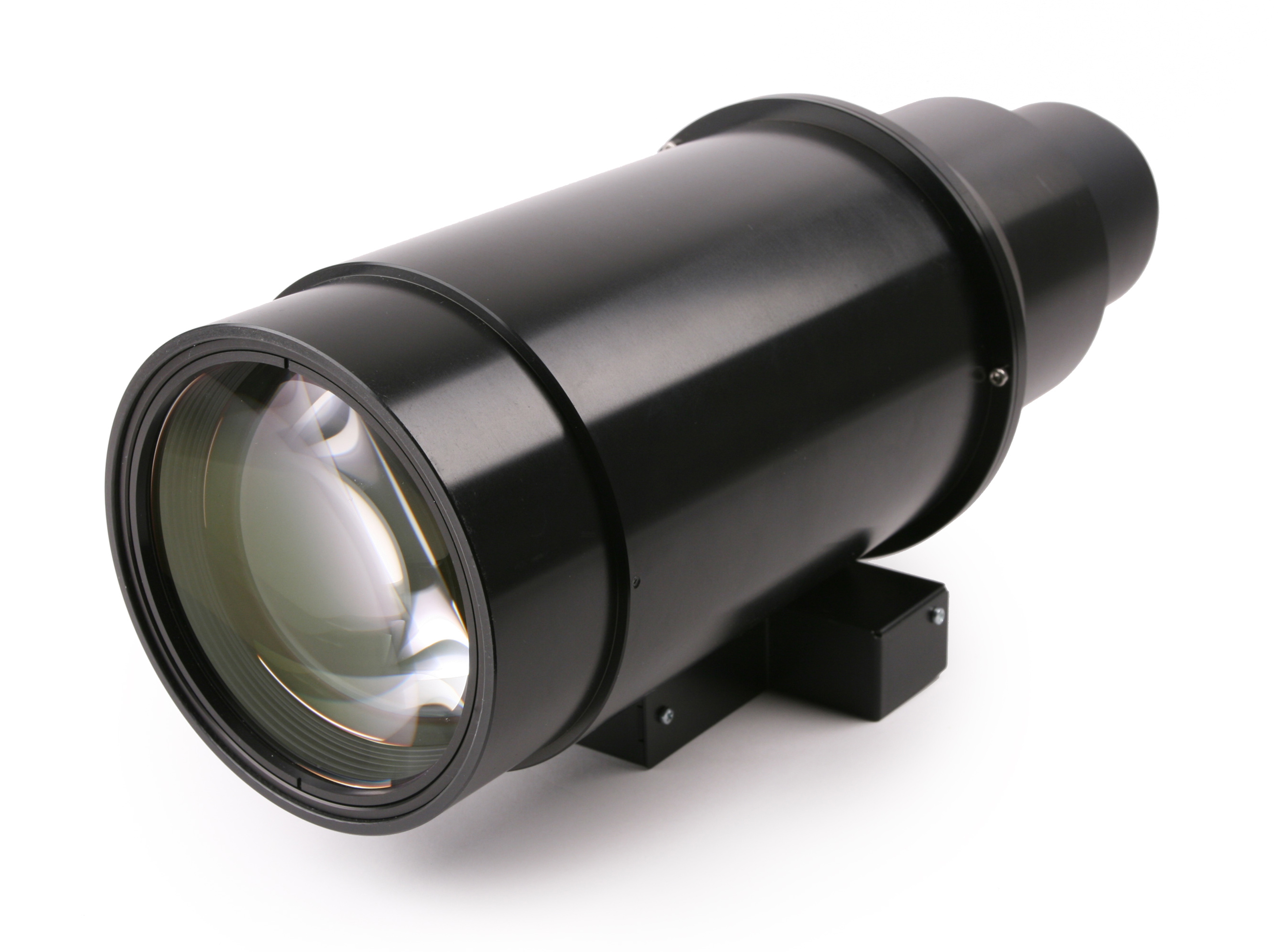

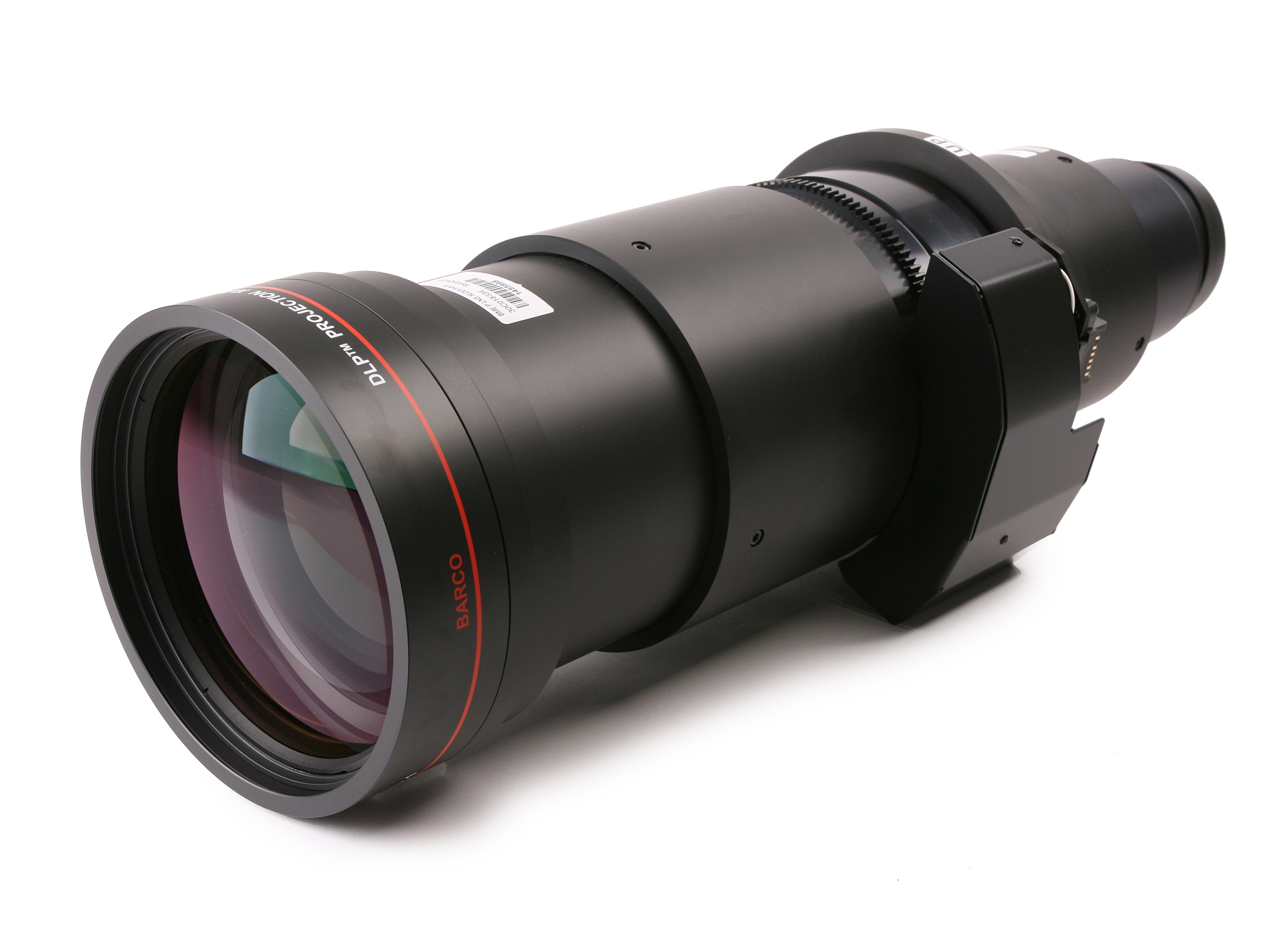

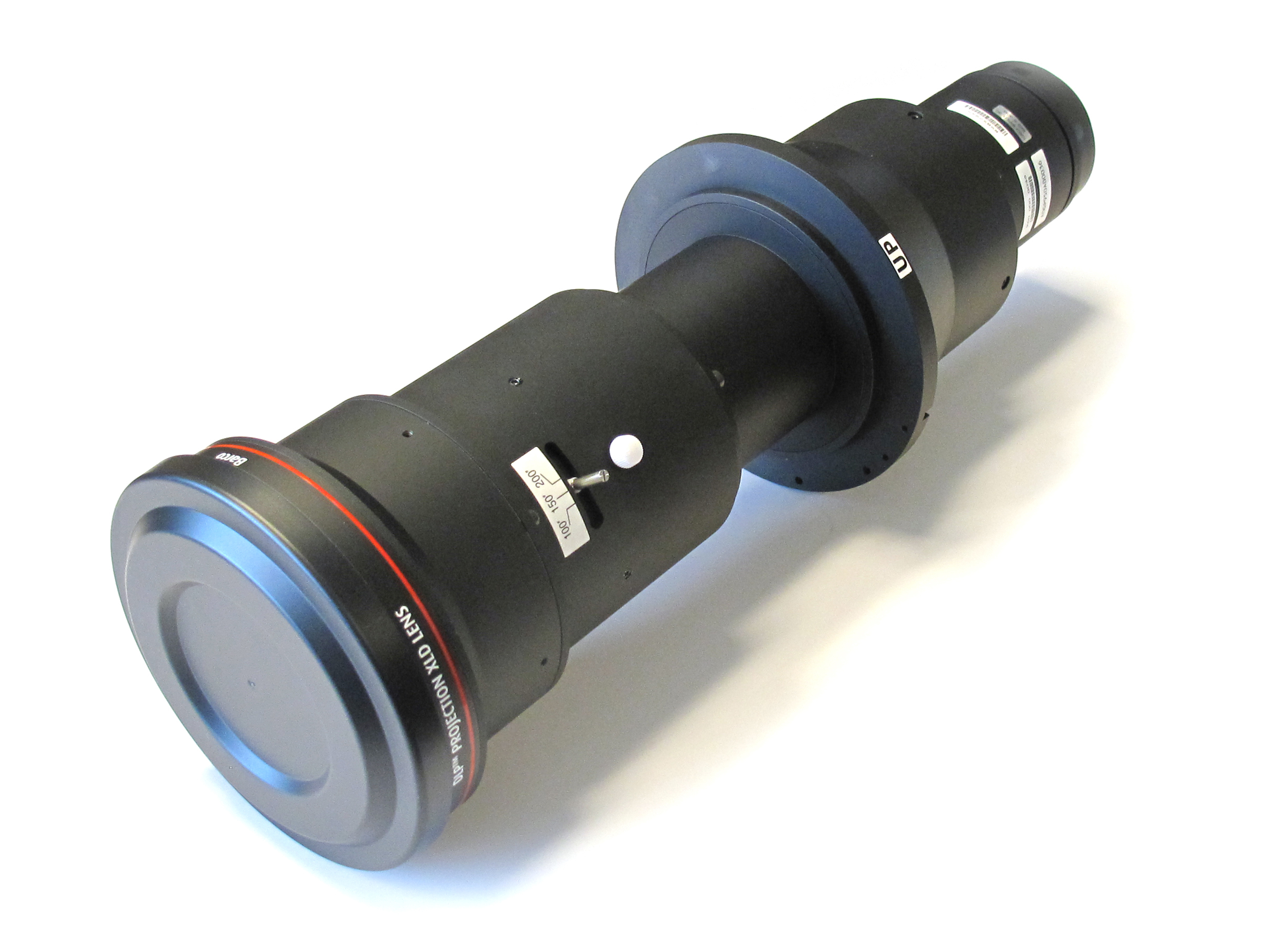

  XLD 2K:0.8:1/ 4K:0.72:1




  Article number：R9852945





•

  XLD (1.0)




  Article number：R9852950





•

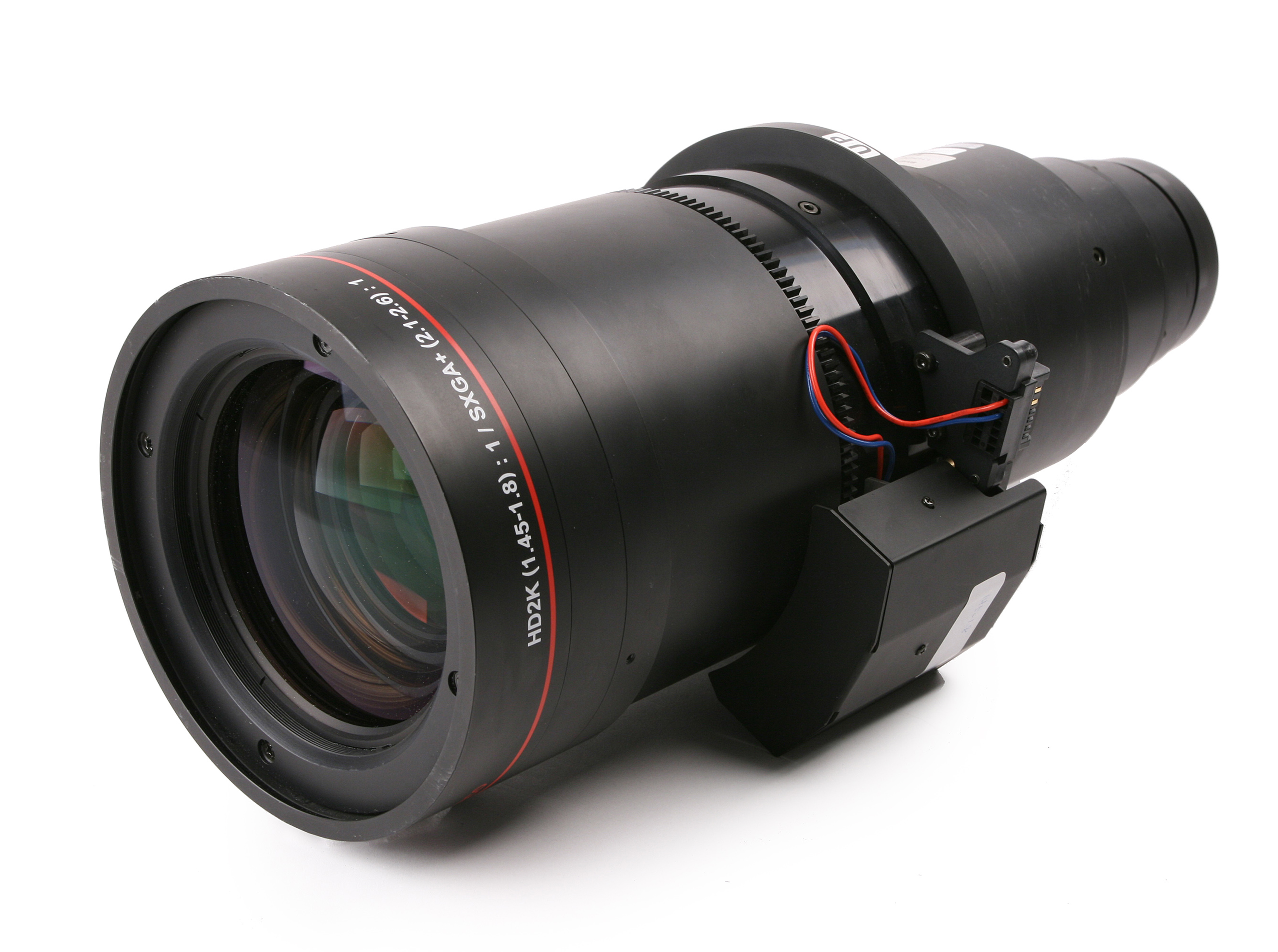

  XLD (1.45 - 1.8)




  Article number：R9852090





•

  XLD (1.8 - 2.4)




  Article number：R9852092





•

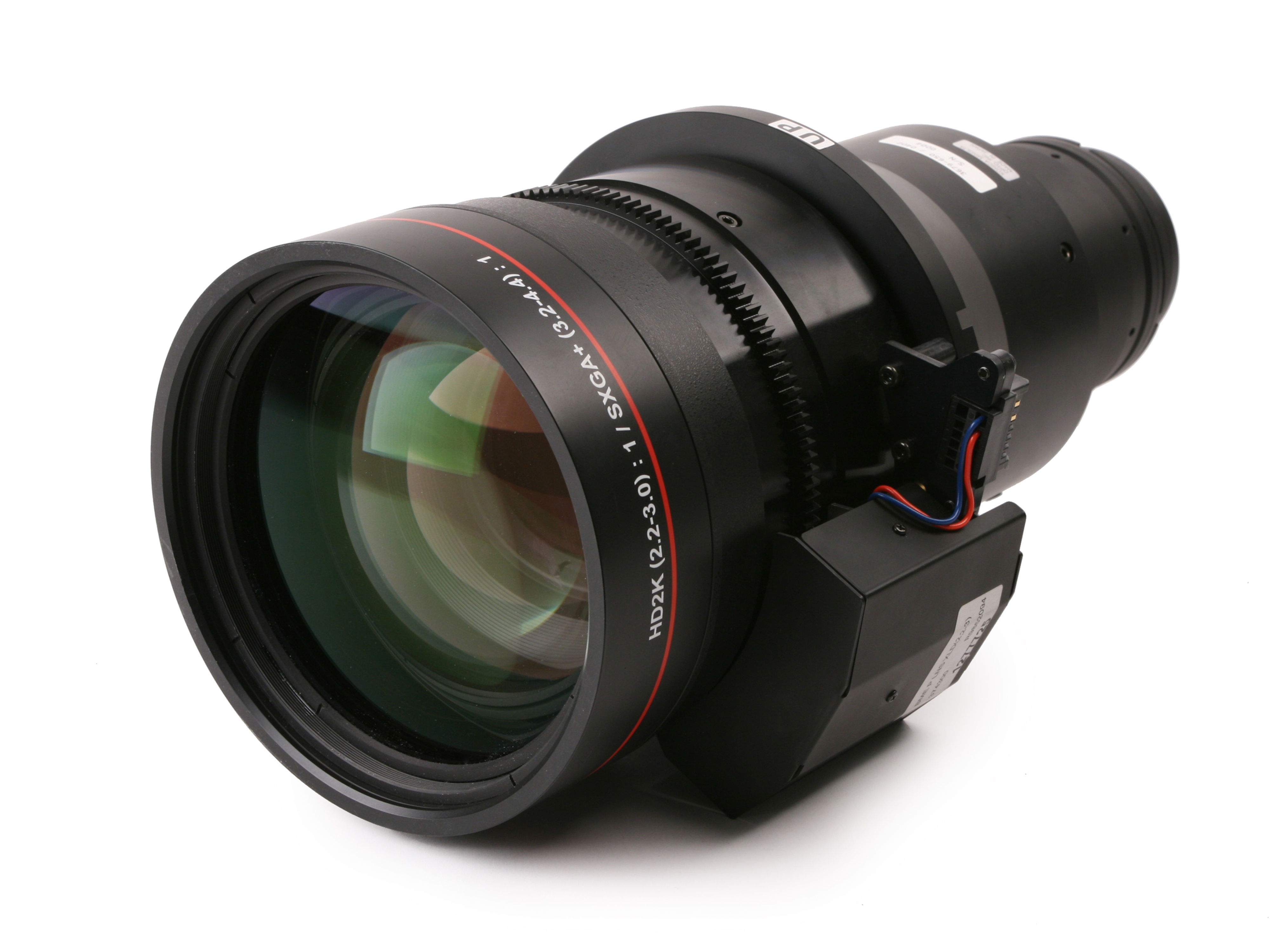

  XLD (2.2 - 3.0)




  Article number：R9852094





•

  XLD (2.8 - 5.5)




  Article number：R9852100





•

  XLD (5.5 - 8.5)




  Article number：R9852920






Product Manual

• HDQ-2K40.pdf
