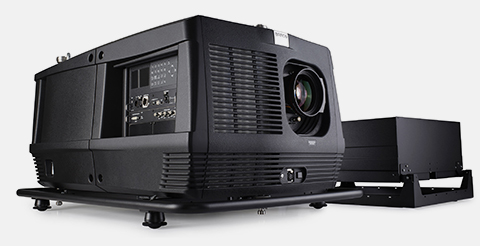

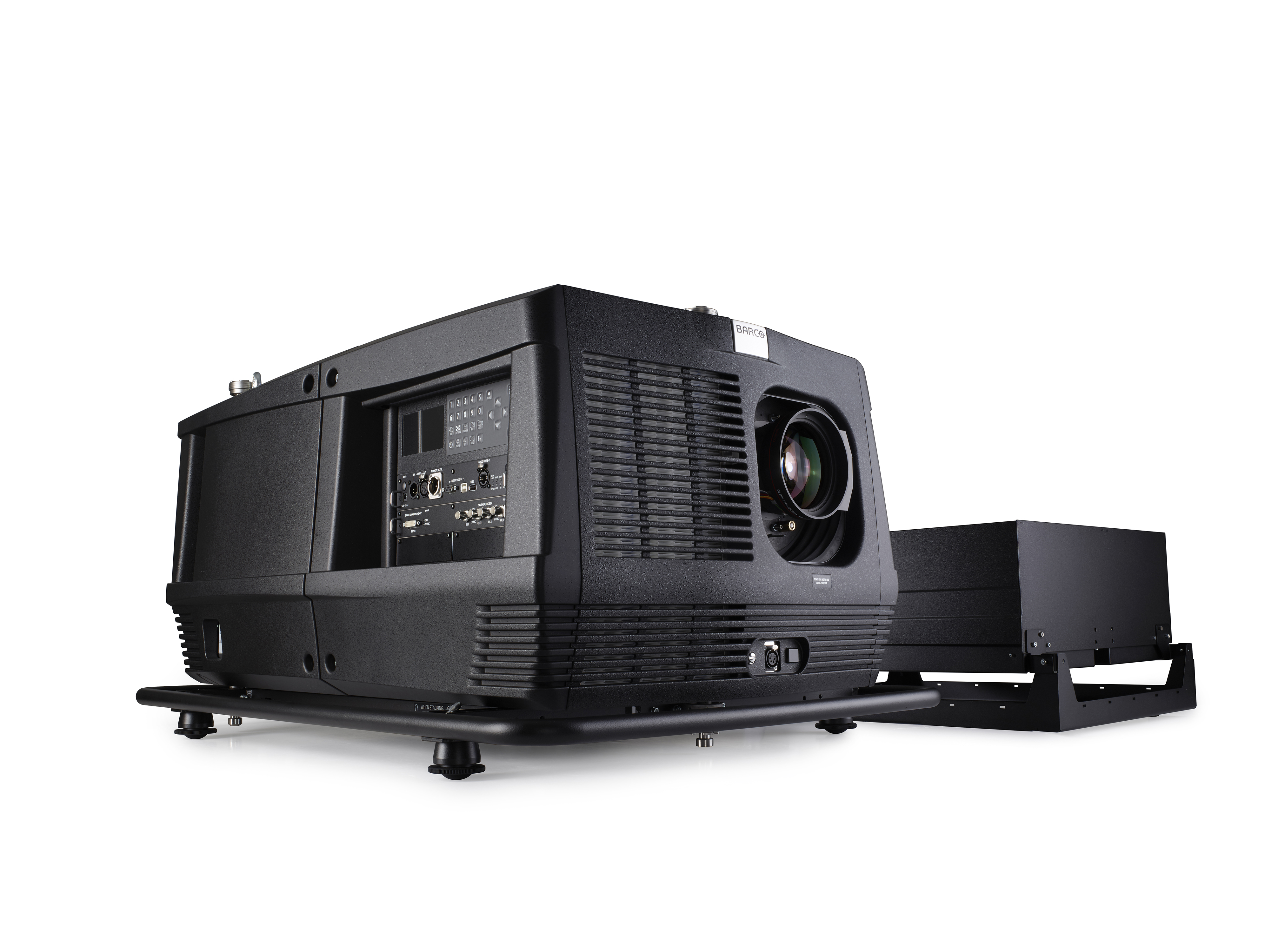

Thanks to its stunning brightness and laser phosphor light source, the HDF-W30LP FLEX projector delivers the ultimate performance that's required for premium large-screen projection while allowing you to save both time and money. Designed for venues and events, the rugged and modular projector is easy to install and service. And when equipped with a rental frame, it can easily be stacked or rigged. If you already own a Barco HDF-W30 FLEX projector you can now replace your current lamp house with the unique laser phosphor retrofit module.

Stunning images for large screens

Geared with laser phosphor illumination the HDF-W30LP FLEX offers constant light output for long-term, worry-free operation while its 3-chip DLP technology delivers sensational colors. Plus, the projector's also equipped with Barco’s cutting-edge ImagePRO technology for remarkable scaling power.

Considerable cost-savings

Did you know that the HDF-W30LP FLEX reduces operating costs with more than 50%? This projector enables you to increase uptime while driving costs down. Through its laser phosphor light source and advanced cooling design, it provides up to 30,000 hours of maintenance-free operating time - resulting in considerable cost-savings on maintenance and consumables.

Ultimate installation flexibility

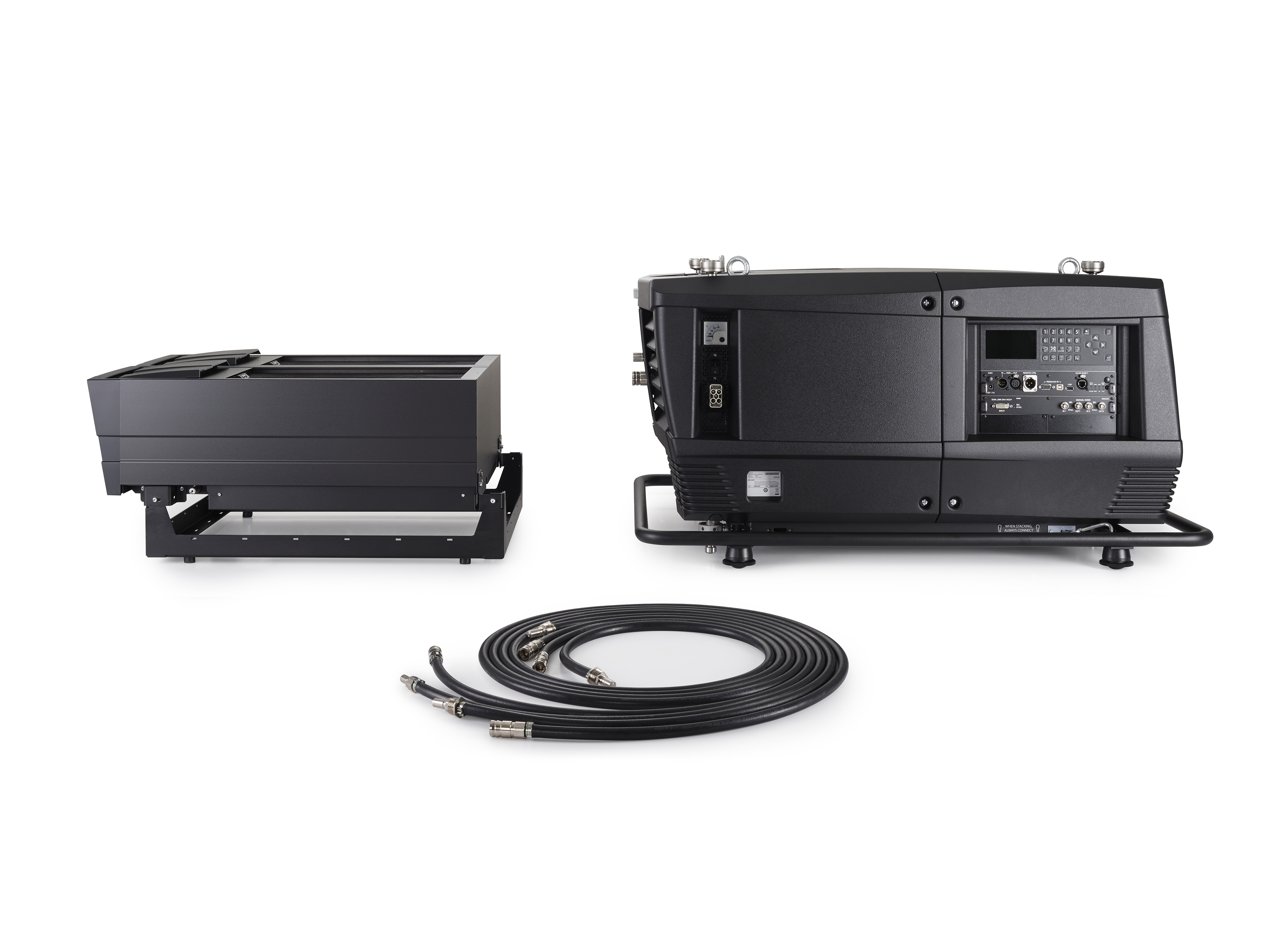

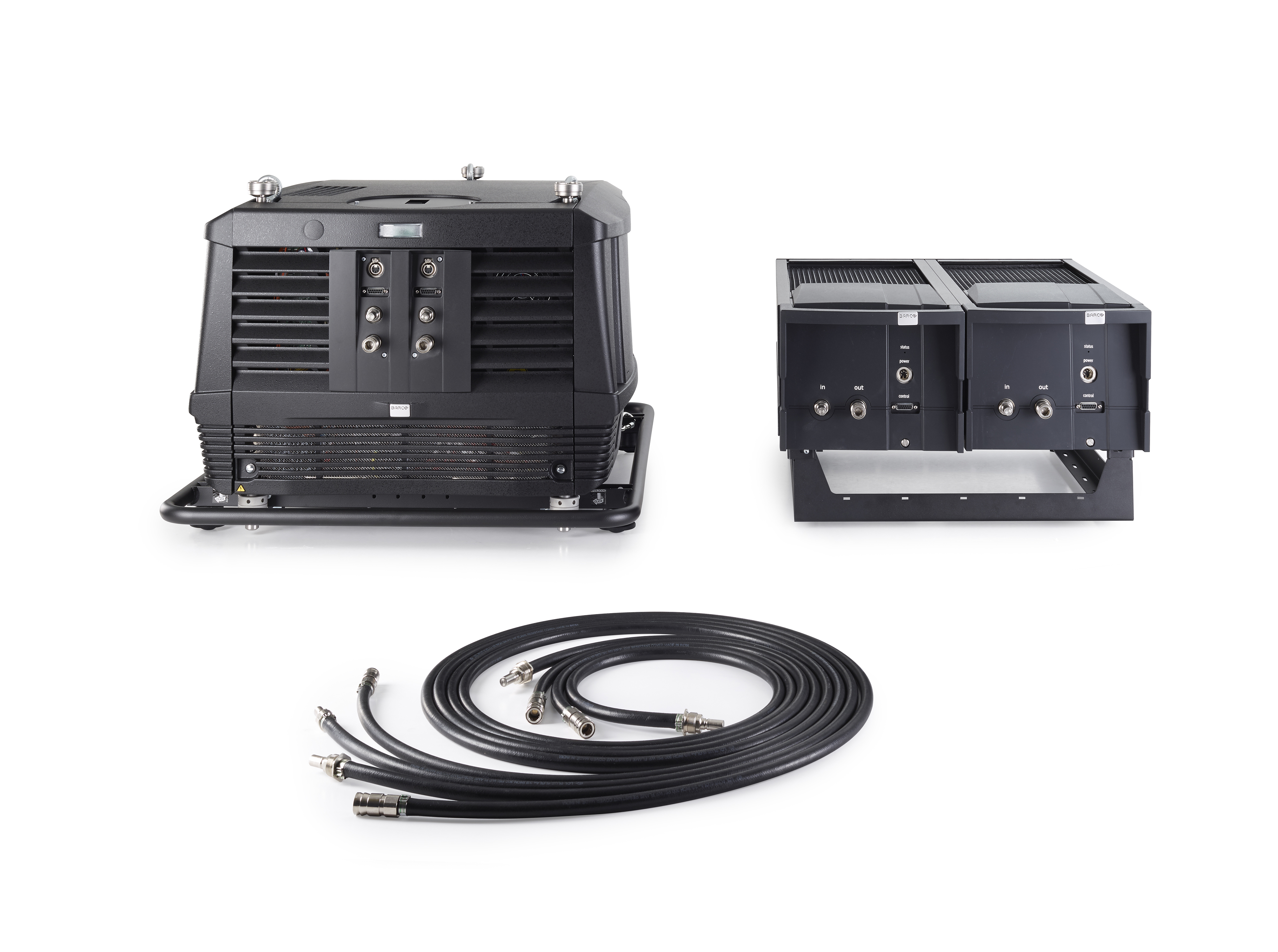

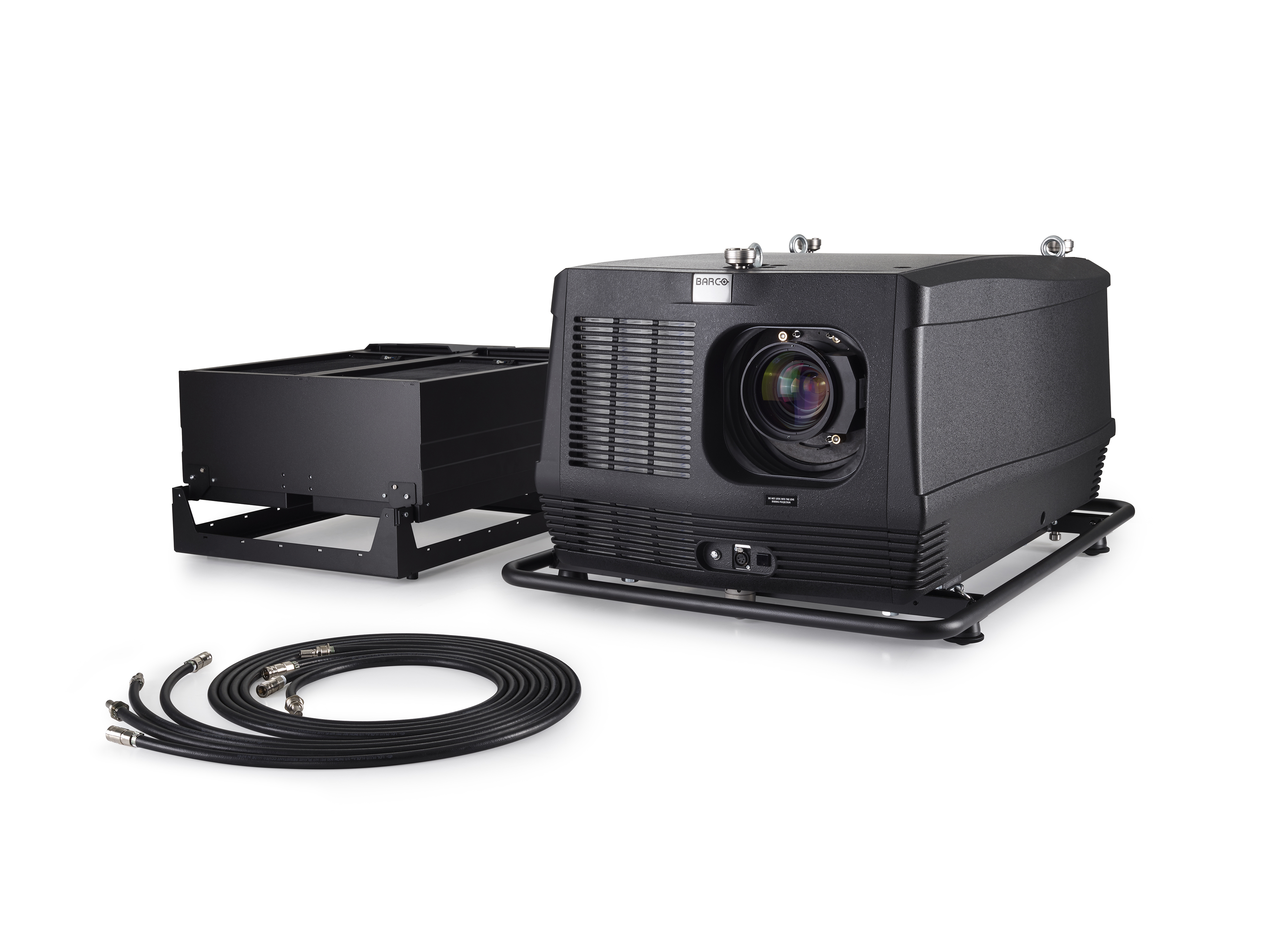

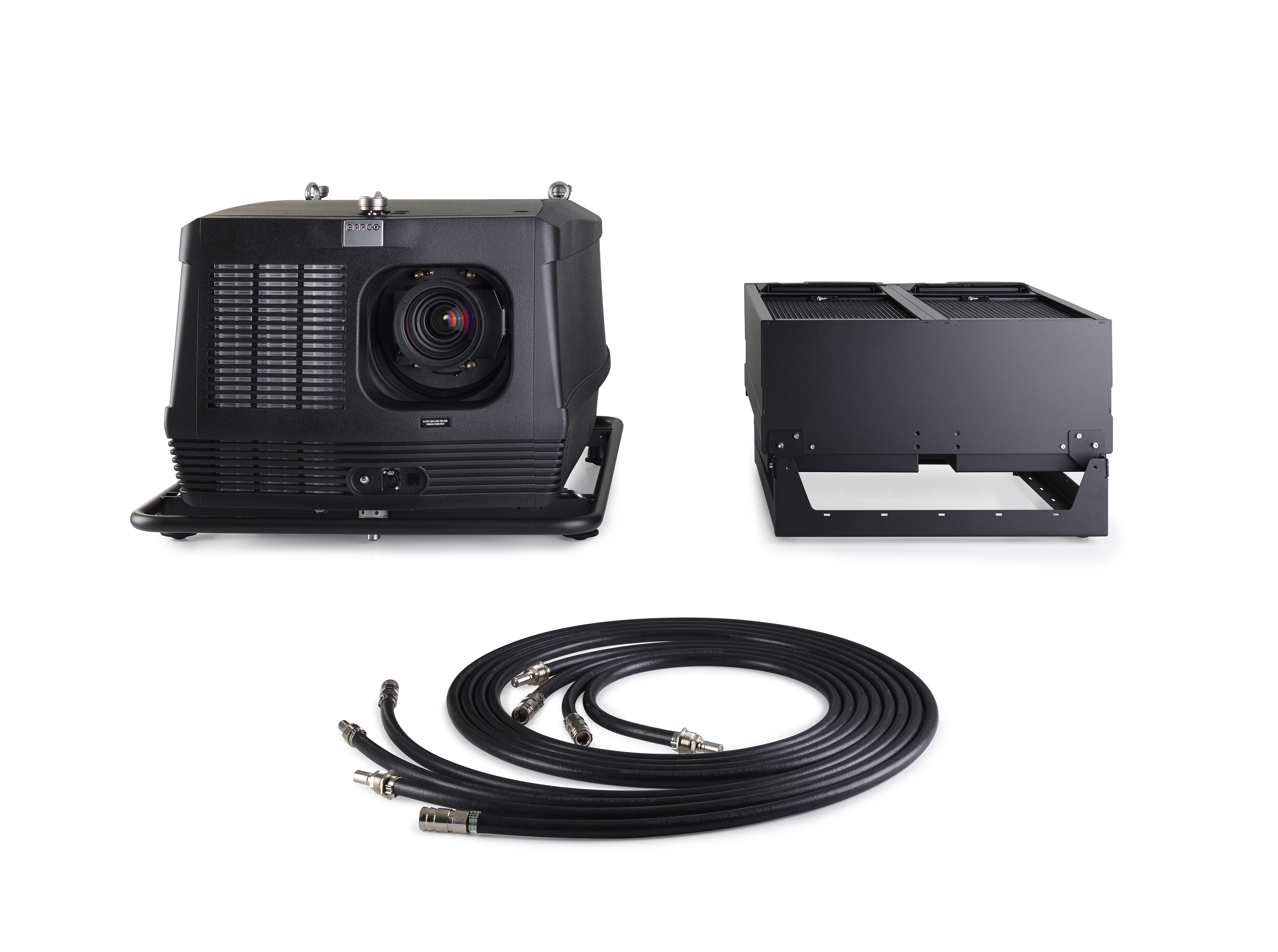

This projector offers you more flexibility in projector location as it can run in any orientation. Through its standard FLEX brightness you can tune and lock the brightness level to a specific application - from 10,000 to 30,000 lumens in incremental steps.  The cooling unit can be positioned up to 8m (26.25ft) away from the projector, so you can easily mount it on a truss. And just like the RLM, HDX, HDF, and FLM projector ranges, the HDF-W30LP FLEX uses the TLD lens suite.

• Projector type

  WUXGA 3-chip DLP digital projector

• Technology

  0.96" DMD™ x3

• Color wheel

  6S standard (RGBYCW)

• Resolution

  1920 x 1200

• Brightness

  30,000 center lumens / 28,000 ANSI lumens*

• Contrast ratio

  1,900:1 (standard) / 2,200:1 (high contrast mode)

• Brightness uniformity

  90%

• Aspect ratio

  16:10

• ScenergiX

  Horizontal and vertical edge blending**

• Lens type

  TLD+

• Lens range

  TLD 0.73:1 1.2:1 1.25-1.6:1 1.5-2.0:1 2.0-2.8:1 2.8-4.5:1 4.5-7.5:1 7.5-11.5:1

• Lenses

  TLD 0.73:1；1.2:1；0.85-1.16:1；1.16-1.5:1；1.5-2.0:1；2.0-2.8:1；2.8-4.5:1；4.5-7.5:1；7.5-11.5:1

• Optical lens shift

  V: -30% to +120% / H: -40% to +40% on zoom lenses (memorized)

• Color correction

  P7

• CLO(constant light output)

  Standard

• Light source

  laser phosphor

• Light source lifetime

  30000 hrs

• Lamp house, quick replace

  Yes

• Lamp warranty

  90 days, 500 hours / pro rata 500 hours

• Transport with lamp

  Yes

• Customer bulb replace

  Yes

• Sealed DLP™ core

  Standard

• Optical dowser

  Standard

• Advance Picture in Picture

  Two sources simultaneously**

• Orientation

  table - ceiling - side (portrait)* - vertical / * lamp door down/bottom

• Others

  can be controlled by DMX 512 console, warping

• DMX 512

  Standard

• WARP

  Direct adjust OSD + toolset

• Integrated web server

  Yes

• 3D

  Triple flash up to 200Hz/Optional: active eyewear, passive Infitec, passive circular

• Image processing

  Embedded warp & blend engine

• Outputs

  DVI-I (HDCP including analog RGB YUV), SDI/HDSDI/Dual HDSDI/3G/BarcoLink

• Input resolutions

  From NTSC up to QXGA (2,048 x 1,536)

• Max. pixel clock

  200 MHz

• Software tools

  Projector Toolset + Android app + iOS app

• Control

  XLR wired + IR, RS232, Wifi, GSM (opt)

• Network connection

  10/100 base-T, RJ-45 connection, Wifi (optional)

• Power requirements

  200-240V / 50-60Hz

• Max. power consumption

  3,200W @ 230 volts / STBY less than 10W

• BTU per hour

  Max 6,000 BTU/h

• Dissipation BTU

  Max. 10,918 BTU/h

• Noise level (typical at 25°C/77°F)

  50-56dB(A)

• Operating temperature

  0-35°C / 32°-95°F

• Operating humidity

  -20 - 60 °C

• Storage temperature

  0-80% (non condens)

• Storage temperature

  10 - 90%RH

• Dimensions (WxLxH)

  707 x 1,025 x 548mm / 27.83 x 40.35 x 21.57 inches

• Weight

  99kg (218.25lbs)/shipping weight from factory: 151kg (333lbs)

• Standard accessories

  Power cord,wireless/XLR wired rugged remote control,bottom rigging kit/clamps

• Shipping dimensions (WxLxH)

  (LxWxH)1,200 x 980 x 760 mm / 47.24 x 38.58 x 29.92 inches

• Shipping Weight from Factory

  99kg (218.25lbs)/shipping weight from factory: 151kg (333lbs)

• Certifications

  UL60950-1 and EN60950-1,FCC rules & regulations,part 15 Class A and CE EN55022 Class A,RoHS

• Warranty

  3 years

• 24-7documentation

  This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

•

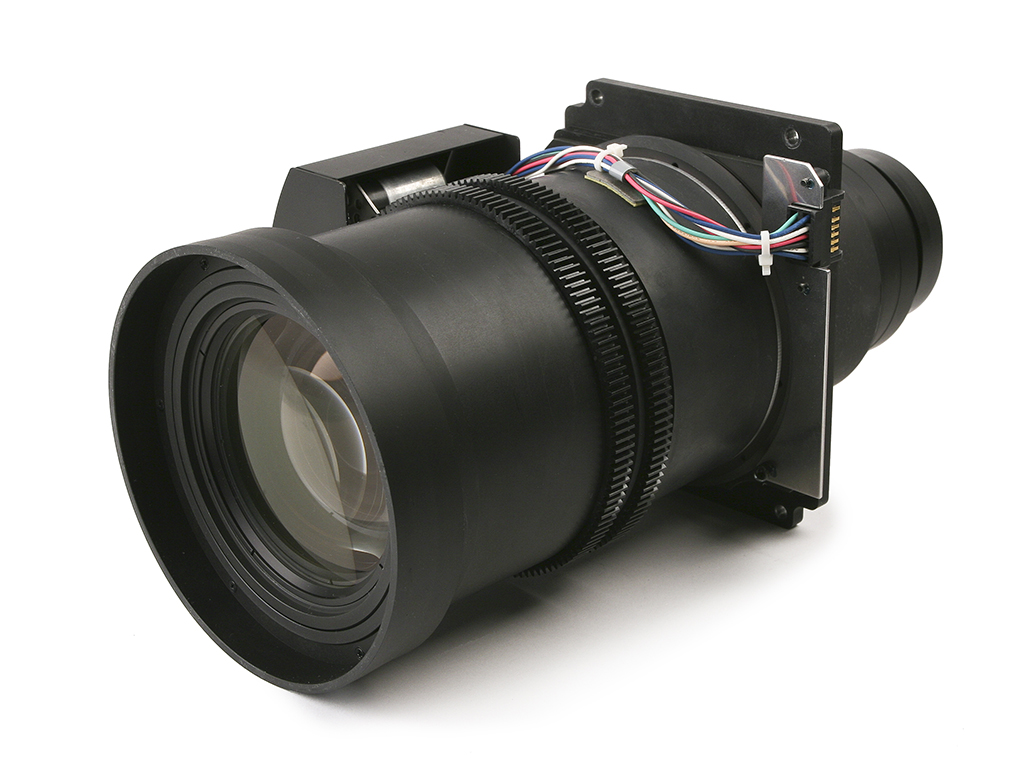

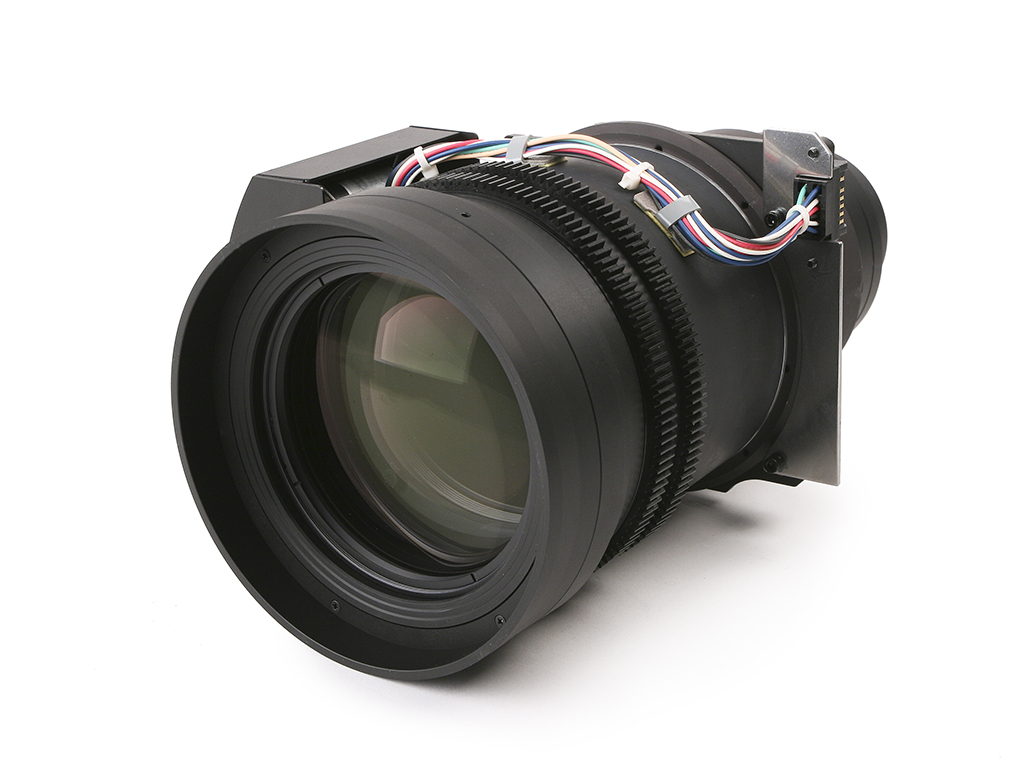

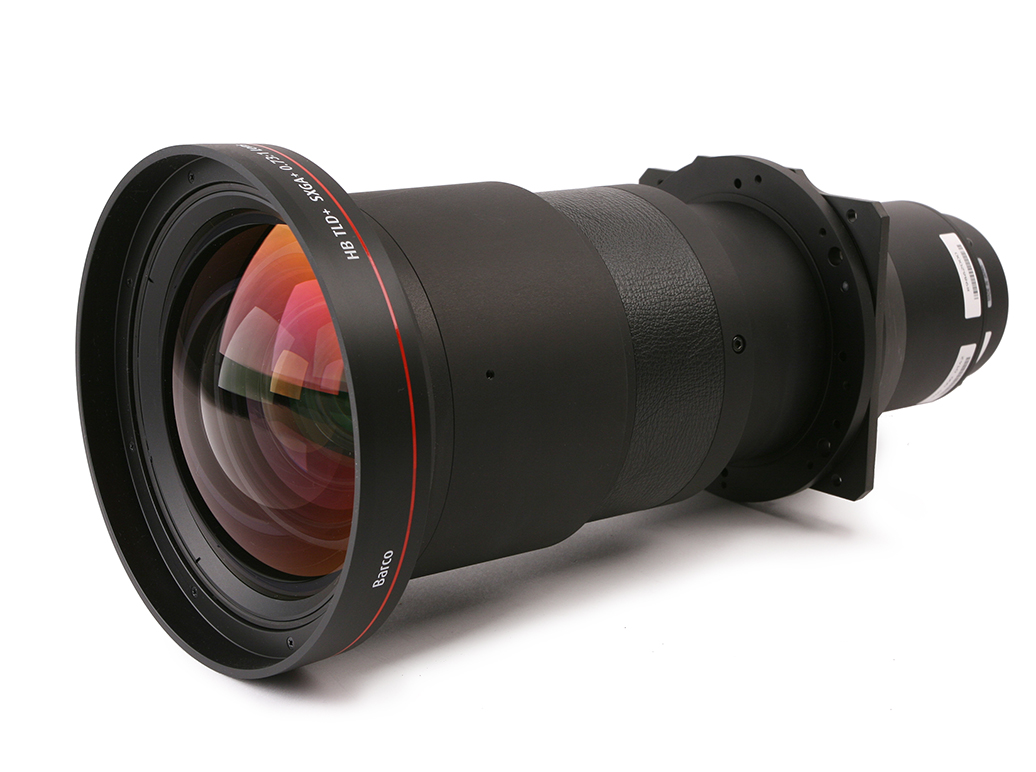

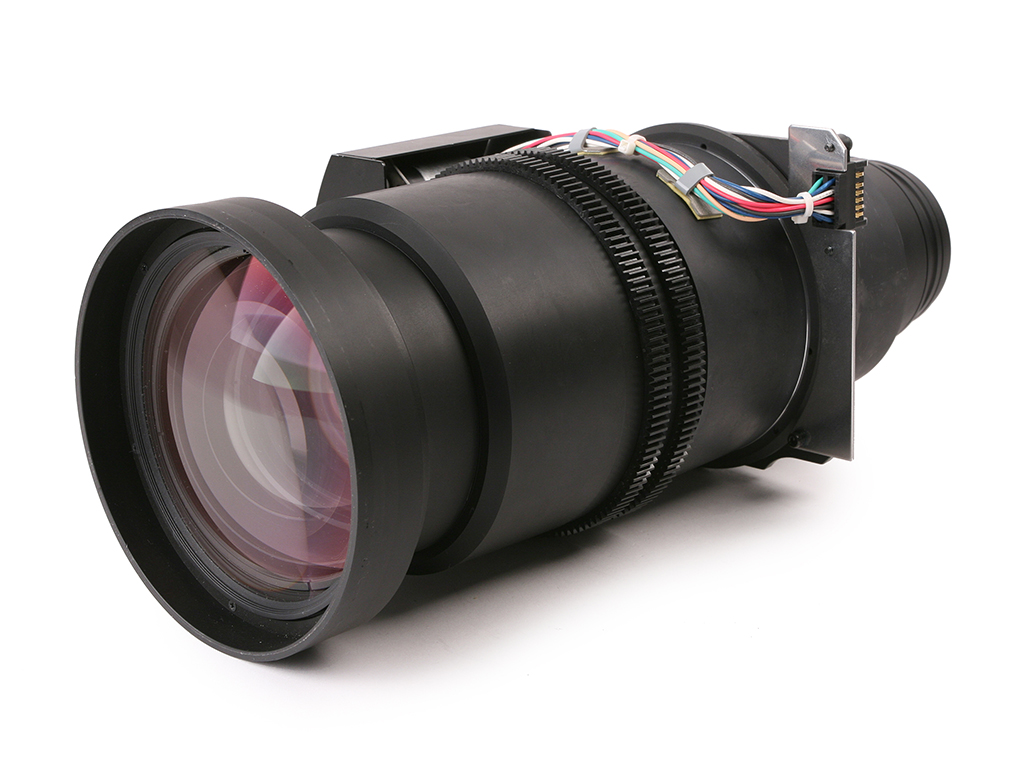

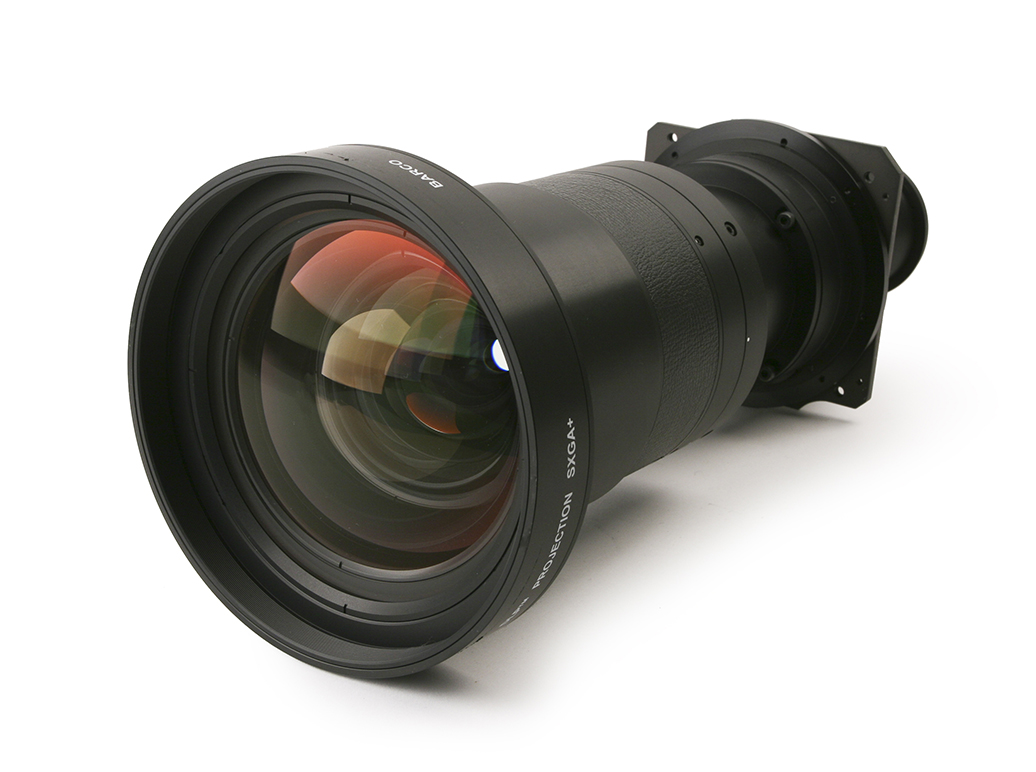

  TLD+ (0.67:1 WUXGA) (0.73:1 SXGA+)




  Article number：R9862000





•

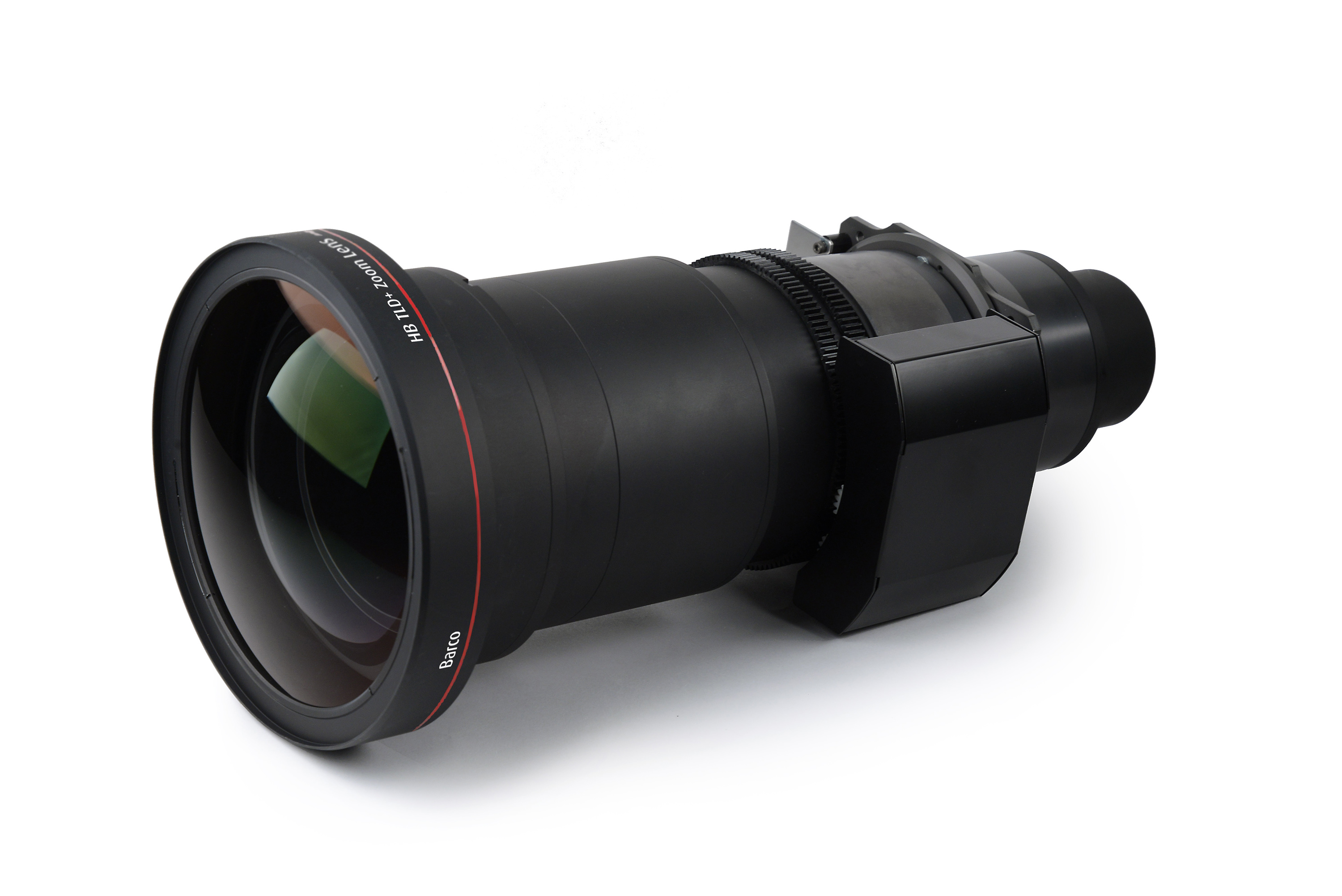

  TLD+ Ultra (0.8-1.16:1 WUXGA) (0.86-1.25:1 SXGA+)




  Article number：R9801414





•

  TLD+ (1.14:1 WUXGA) (1.23:1 SXGA+)




  Article number：R9840775





•

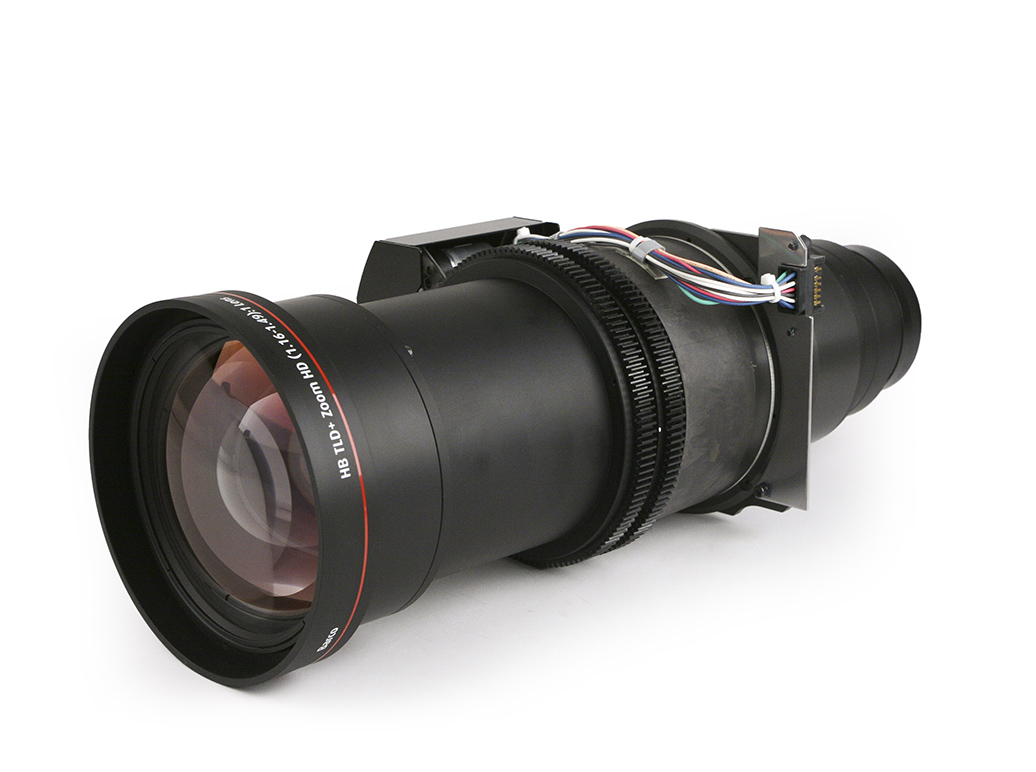

  TLD+ Ultra (1.16-1.49:1 WUXGA) (1.25-1.6:1 SXGA+)




  Article number：R9862005





•

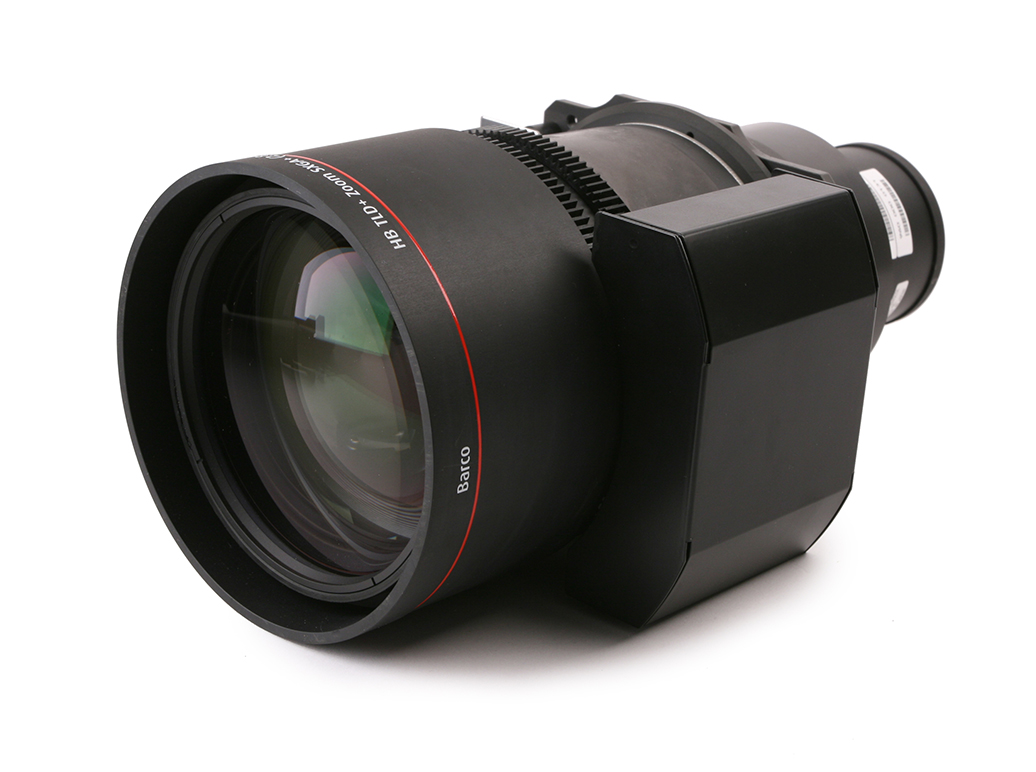

  TLD+ (1.39 - 1.87:1 WUXGA) (1.5 - 2.0:1 SXGA+)




  Article number：R9862010





•

  TLD+ (1.87 - 2.56:1 WUXGA) (2.0 - 2.8:1 SXGA+)




  Article number：R9862020





•

  TLD+ (2.56 - 4.17:1 WUXGA) (2.8 - 4.5:1 SXGA+)




  Article number：R9862030





•

  TLD+ (4.17 - 6.95:1 WUXGA) (4.5 - 7.5:1 SXGA+)




  Article number：R9862040





•

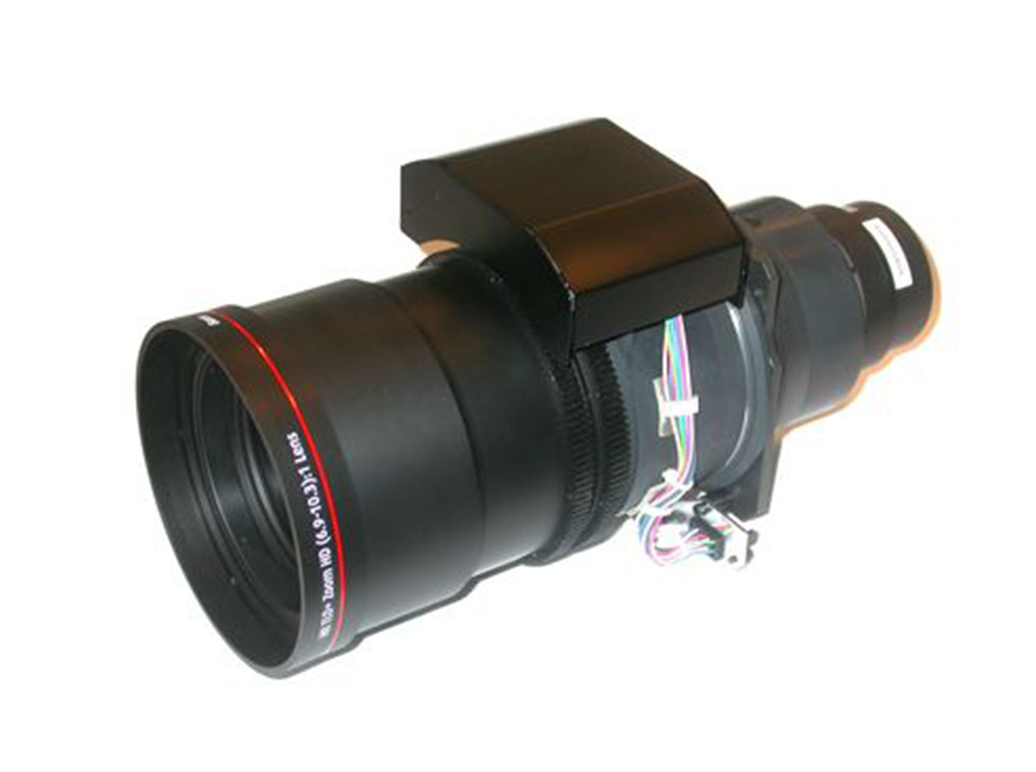

  TLD+ (6.93 - 10.3:1 WUXGA) (7.5 - 11.2:1 SXGA+)




  Article number：R9829997






Product Manual

• HDF-W30LP FLEX.pdf
