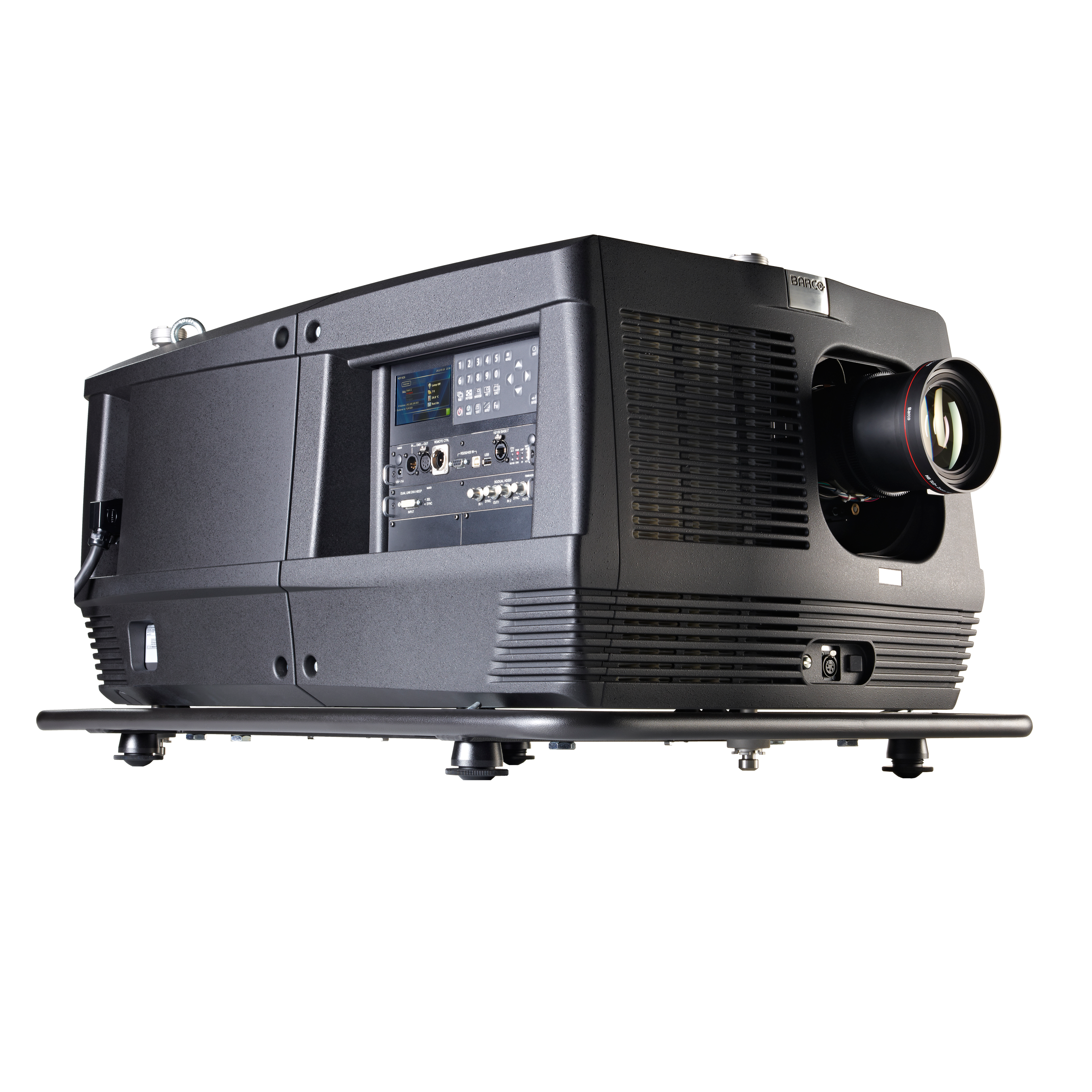

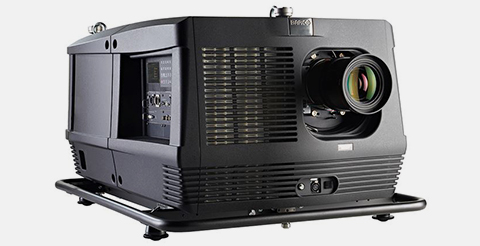

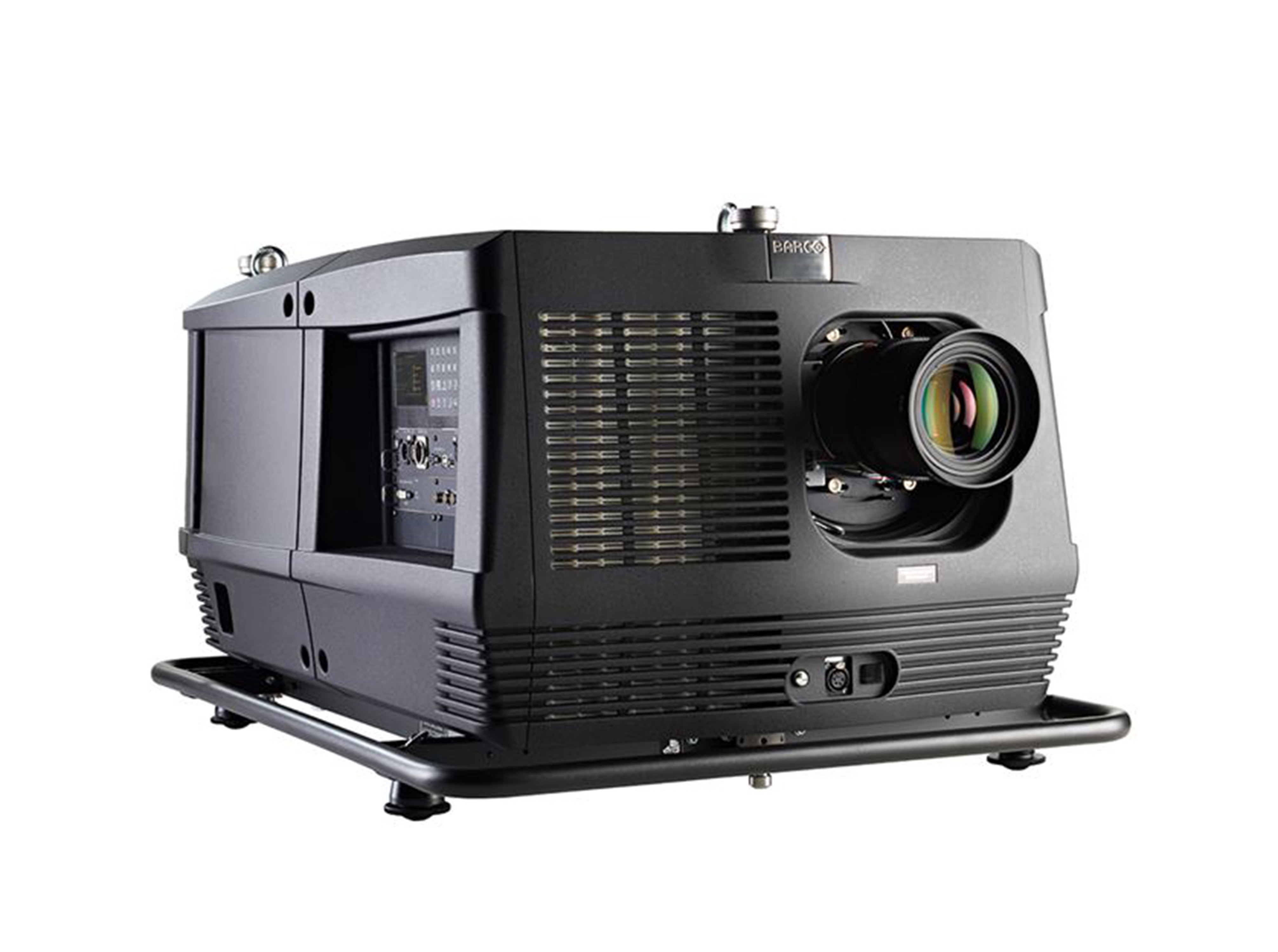

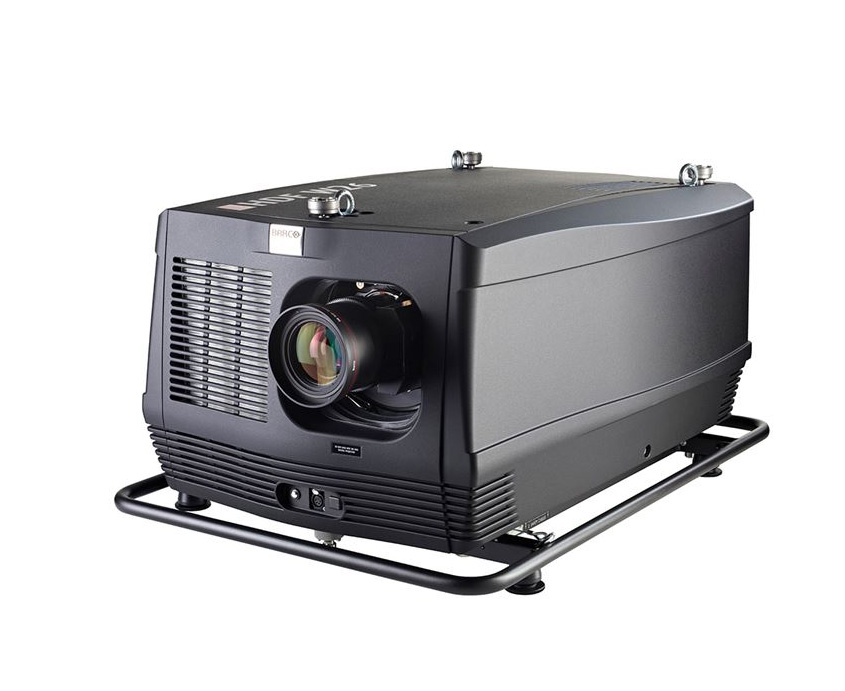

Thanks to its high light output, the HDF-W30 FLEX offers impressive performance for large venues - even when there's lots of ambient light. Designed for life on the road, the rugged and modular projector is easy to install and service. And when equipped with a rental frame, it can easily be stacked or rigged. Just like the RLM, HDX, HDF and FLM projector families, the HDF-W30 FLEX uses the TLD lens suite.
Stunning images for large screens
Geared with 3-chip DLP technology, single Xenon lamp illumination, and a high-contrast optical engine, the HDF-W30 FLEX makes no compromises on brightness, color accuracy, and stability. Its Xenon lamp color accuracy delivers the best performance required for premium large-screen projection. Plus, the projector's also equipped with Barco’s cutting-edge ImagePRO technology for remarkable scaling power.
Choose your brightness
The HDF-W30 FLEX's most remarkable benefit is that it offers FLEX brightness as standard. In this way rental companies have the flexibility to tune the projector's brightness to a specific show - from 18,000 to 30,000 lumens in incremental steps of 2,000 lumens.
Low total cost of ownership
This projector produces its 30,000 lumens brightness with a single Xenon lamp. Compared to projectors with multiple lamps, managing the HDF-W30 FLEX is a breeze. Moreover, this not only makes it easier to align images during setup but servicing the projector and replacing the lamp also take less time – thus reducing total cost of ownership.
Projector type
WUXGA 3-chip DLP digital projectorTechnology
0.96" DMD™ x3 sealed DLP coreColor wheel
6S standard (RGBYCW)Resolution
1,920 x 1,200 - 16:10 aspect ratioBrightness
30,000 center lumens / 28,000 ANSI lumens*Contrast ratio
1,900:1 (standard) / 2,200:1 (high contrast mode)Brightness uniformity
90%Aspect ratio
16:10ScenergiX
Horizontal and vertical edge blending**Lens type
TLD+Lens range
TLD 0.73:1 1.2:1 1.25-1.6:1 1.5-2.0:1 2.0-2.8:1 2.8-4.5:1 4.5-7.5:1 7.5-11.5:1Lenses
TLD+ 0.73:1;1.2:1;0.8-1.16;1.16-1.5:1;1.5-2.0:1;2.0-2.8:1;2.8-4.5:1;4.5-7.5:1;7.5-11.5:1Optical lens shift
V: -30% to +120% / H: -40% to +40% on zoom lenses (memorized)Color correction
P7CLO(constant light output)
StandardLight source
4.0 kW xenonLight source lifetime
600 HrsLamp house, quick replace
YesLamp warranty
90 days, 500 hours / pro rata 500 hoursTransport with lamp
YesCustomer bulb replace
YesSealed DLP™ core
StandardOptical dowser
StandardAdvance Picture in Picture
Two sources simultaneously**Orientation
table - ceiling - side (portrait)* - vertical / * lamp door down/bottomOthers
can be controlled by DMX 512 console, warpingDMX 512
StandardWARP
Direct adjust OSD + toolsetIntegrated web server
Yes3D
Triple flash up to 200Hz/Optional: active eyewear, passive Infitec, passive circularImage processing
Embedded warp & blend engineOutputs
DVI-I (HDCP including analog RGB YUV), SDI/HDSDI/Dual HDSDI/3G/BarcoLinkInput resolutions
From NTSC up to QXGA (2,048 x 1,536)Max. pixel clock
200 MHzSoftware tools
Projector Toolset + Android app + iOS appControl
XLR wired + IR, RS232, Wifi, GSM (opt)Network connection
10/100 base-T, RJ-45 connection, Wifi (optional)Power requirements
200-240V / 50-60HzMax. power consumption
4,800W / STBY < 10WBTU per hour
Max 6,000 BTU/hDissipation BTU
Max. 16,378 BTU/hNoise level (typical at 25°C/77°F)
60dB(A)Operating temperature
0-40°C / 32°-104°FOperating humidity
-20 - 60 °CStorage temperature
0-80% (non condens)Storage temperature
10 - 90%RHDimensions (WxLxH)
707 x 1,025 x 548mm / 27.83 x 40.35 x 21.57 inchesWeight
99kg (218.25lbs)/shipping weight from factory: 151kg (333lbs)Standard accessories
Power cord,wireless/XLR wired rugged remote control,bottom rigging kit/clampsShipping dimensions (WxLxH)
(LxWxH)1,200 x 980 x 760 mm / 47.24 x 38.58 x 29.92 inchesShipping Weight from Factory
99kg (218.25lbs)/shipping weight from factory: 151kg (333lbs)Certifications
UL60950-1 and EN60950-1,FCC rules & regulations,part 15 Class A and CE EN55022 Class A,RoHSWarranty
3 years standard, extendable up to 5 years24-7documentation
This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

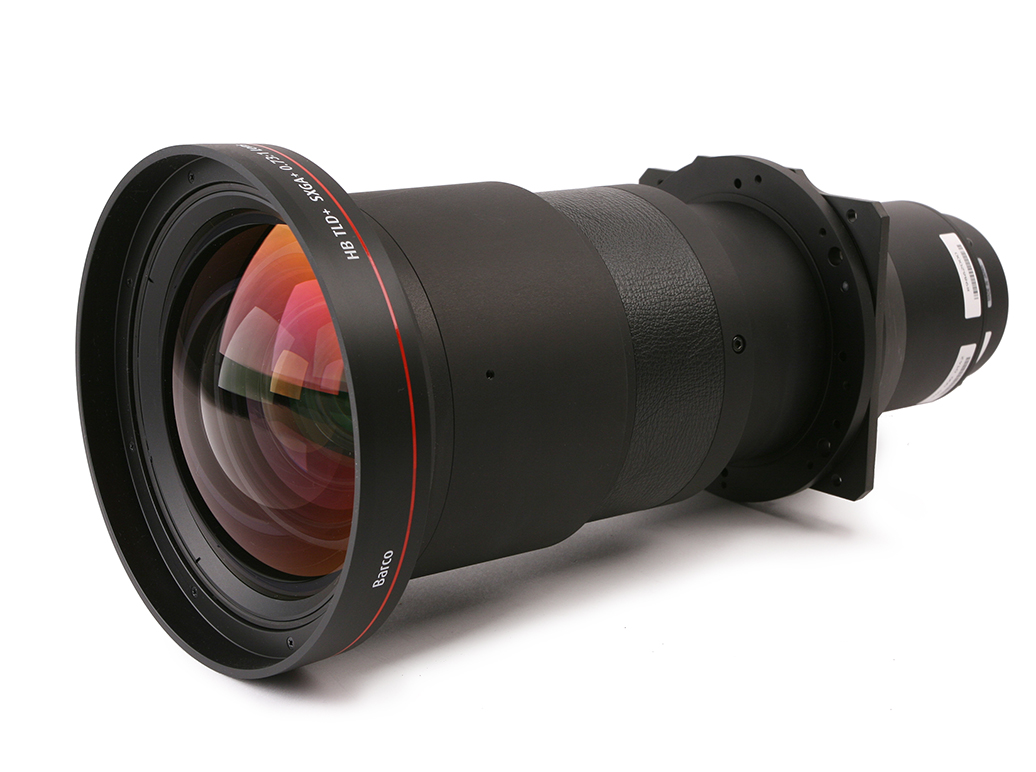

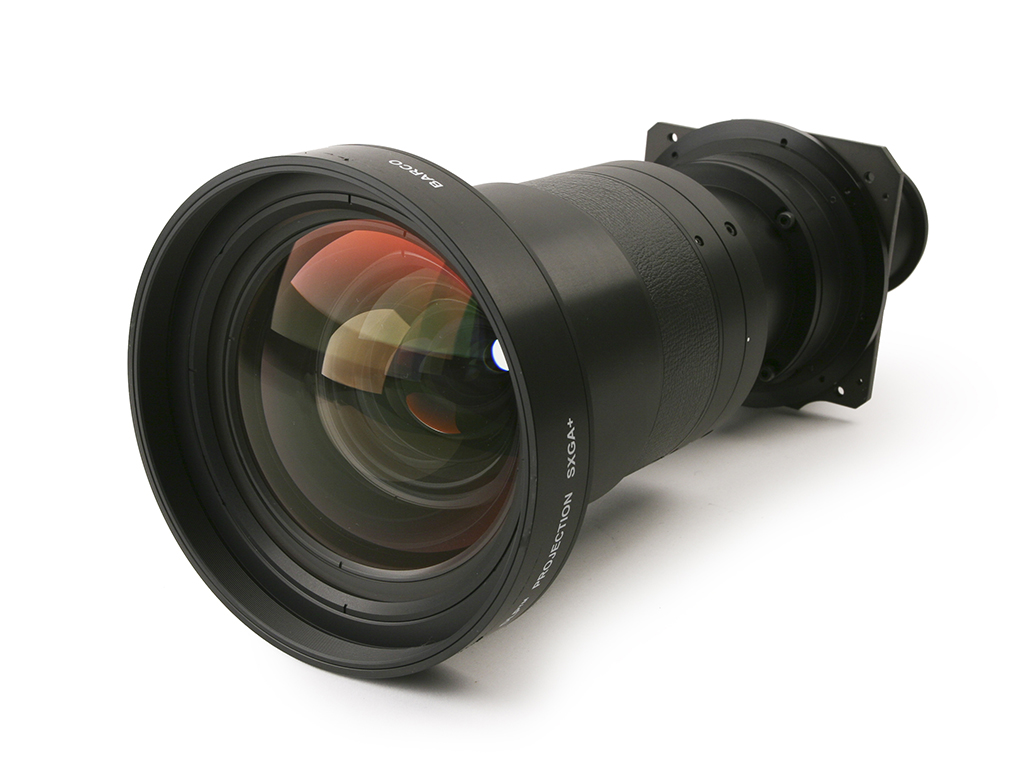

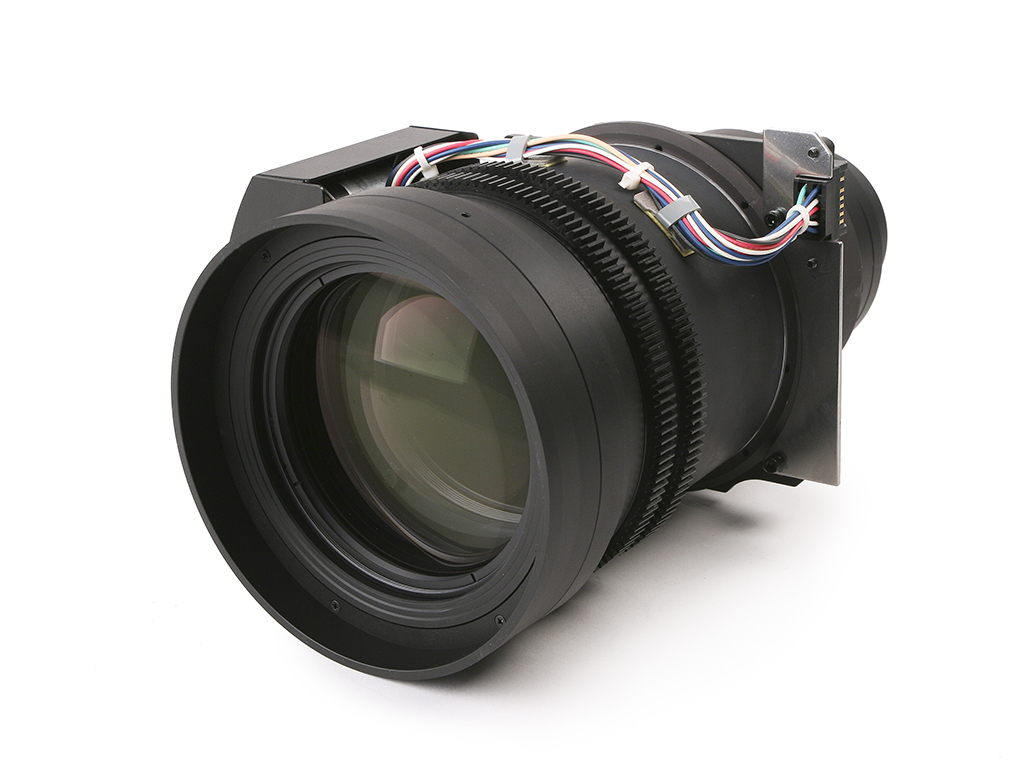

TLD+ (0.67:1 WUXGA) (0.73:1 SXGA+)
Article number:R9862000

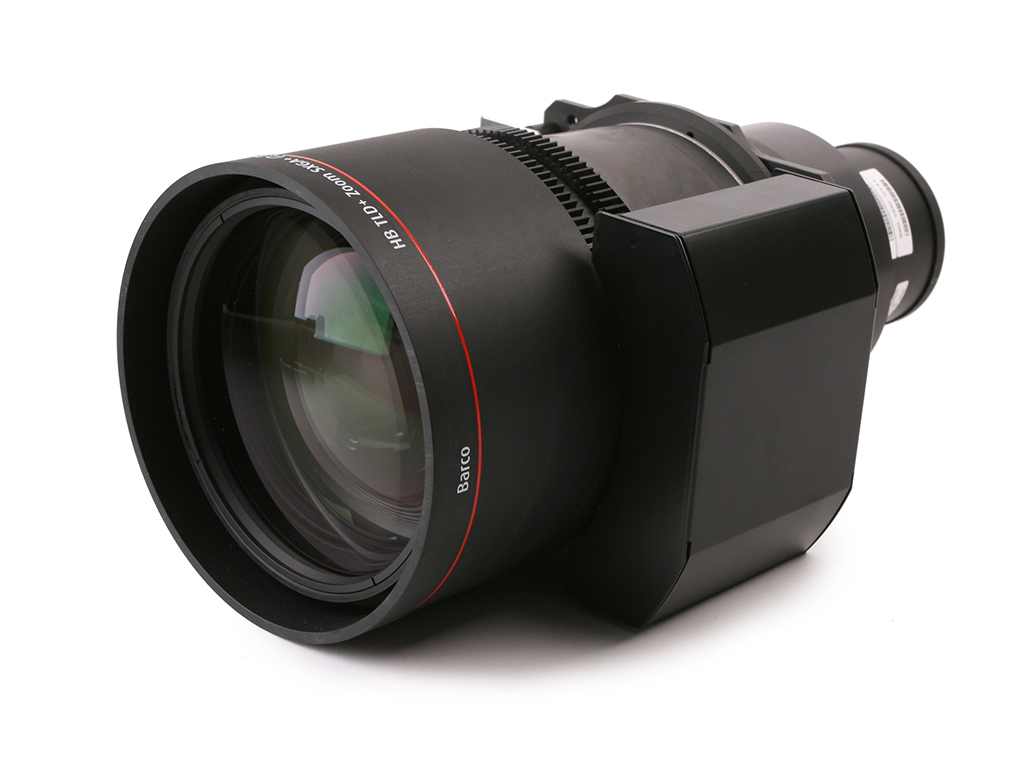

TLD+ Ultra (0.8-1.16:1 WUXGA) (0.86-1.25:1 SXGA+)
Article number:R9801414

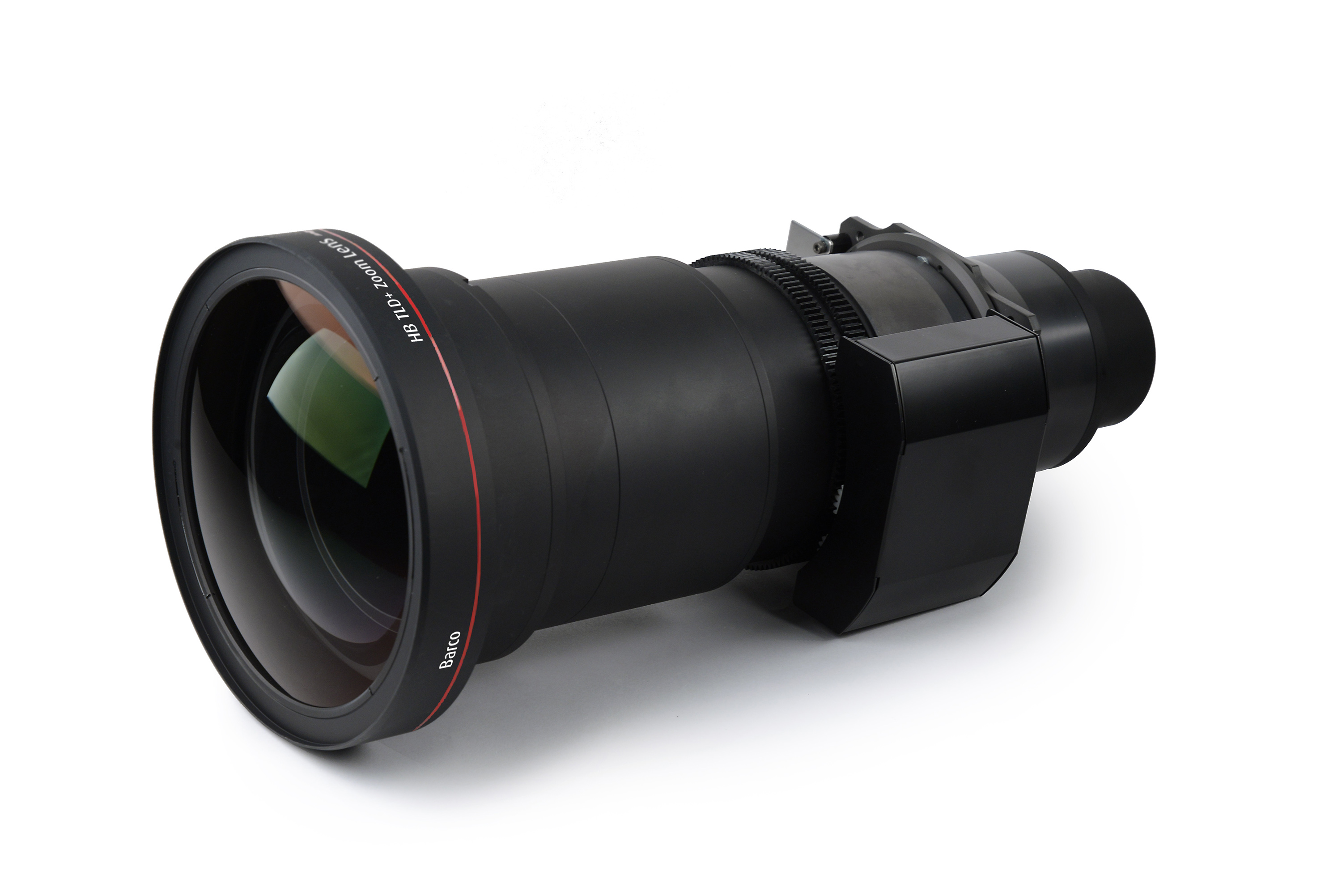

TLD+ (1.14:1 WUXGA) (1.23:1 SXGA+)
Article number:R9840775

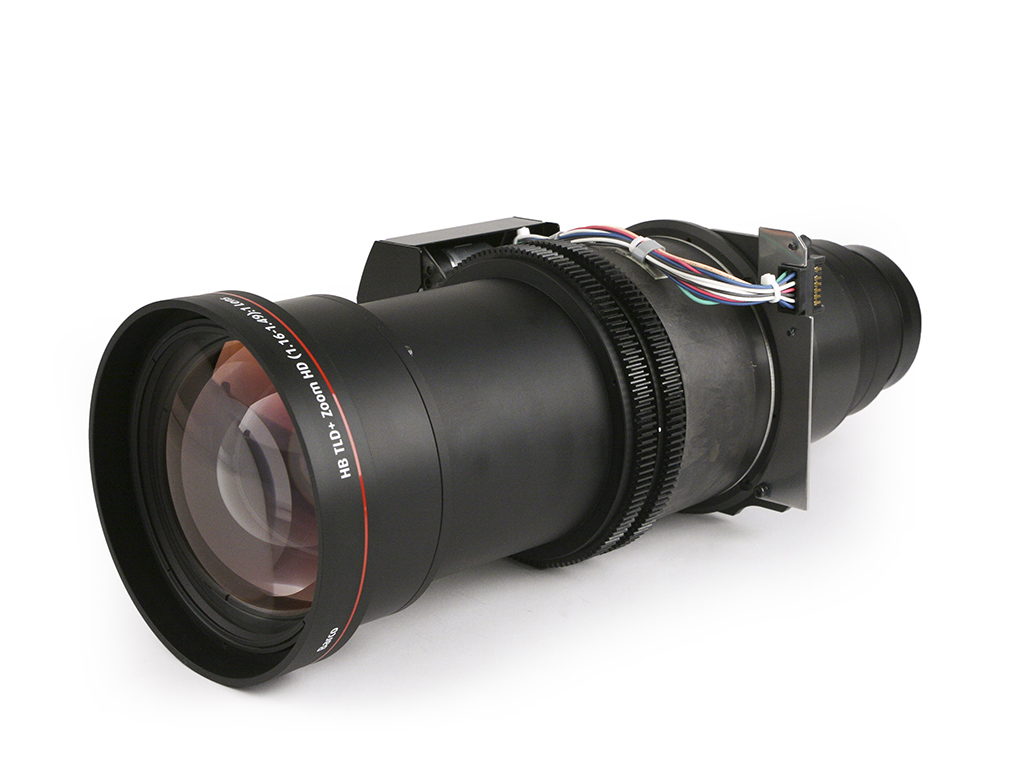

TLD+ Ultra (1.16-1.49:1 WUXGA) (1.25-1.6:1 SXGA+)
Article number:R9862005

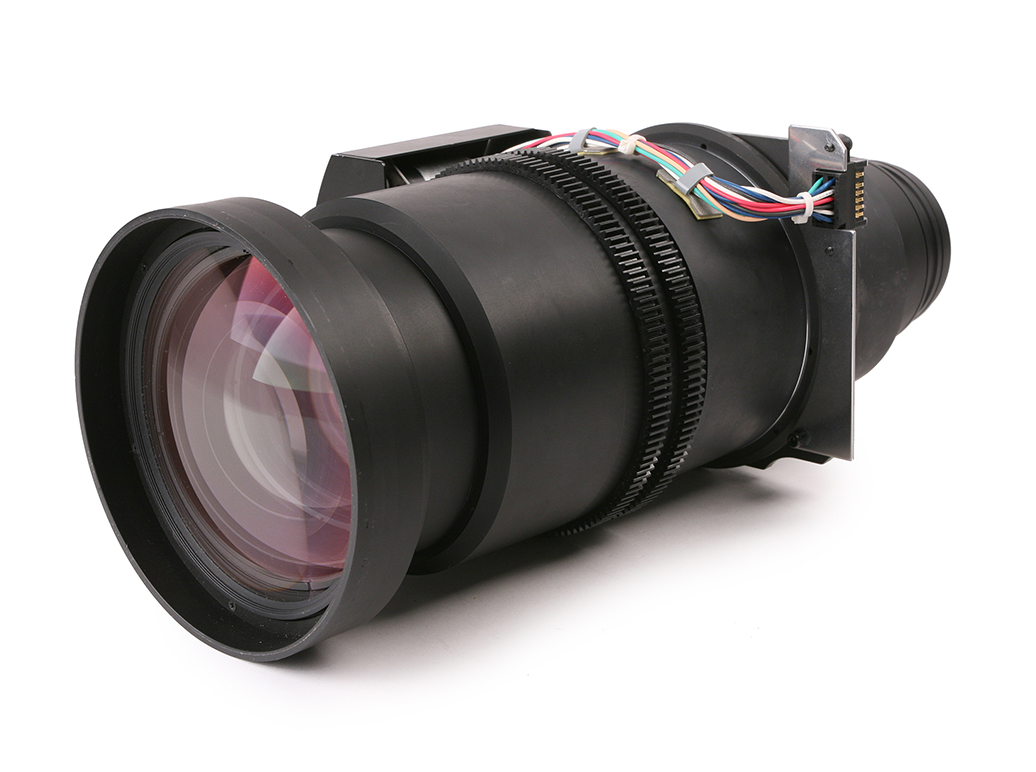

TLD+ (1.39 - 1.87:1 WUXGA) (1.5 - 2.0:1 SXGA+)
Article number:R9862010

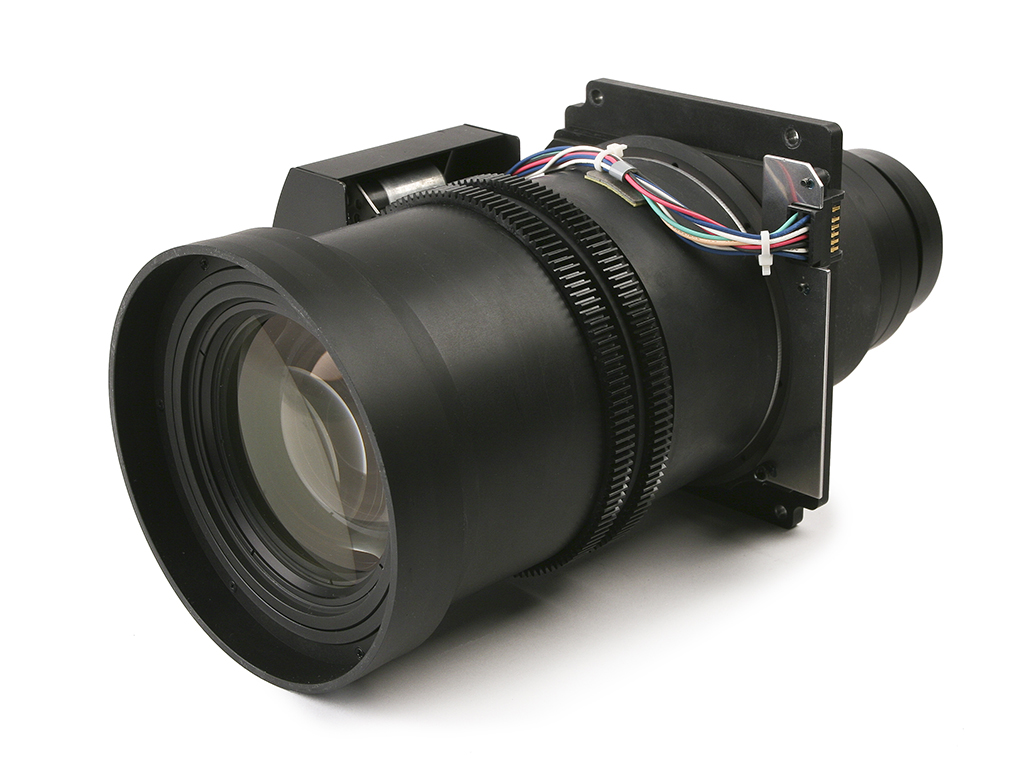

TLD+ (1.87 - 2.56:1 WUXGA) (2.0 - 2.8:1 SXGA+)
Article number:R9862020
TLD+ (2.56 - 4.17:1 WUXGA) (2.8 - 4.5:1 SXGA+)
Article number:R9862030
TLD+ (4.17 - 6.95:1 WUXGA) (4.5 - 7.5:1 SXGA+)
Article number:R9862040

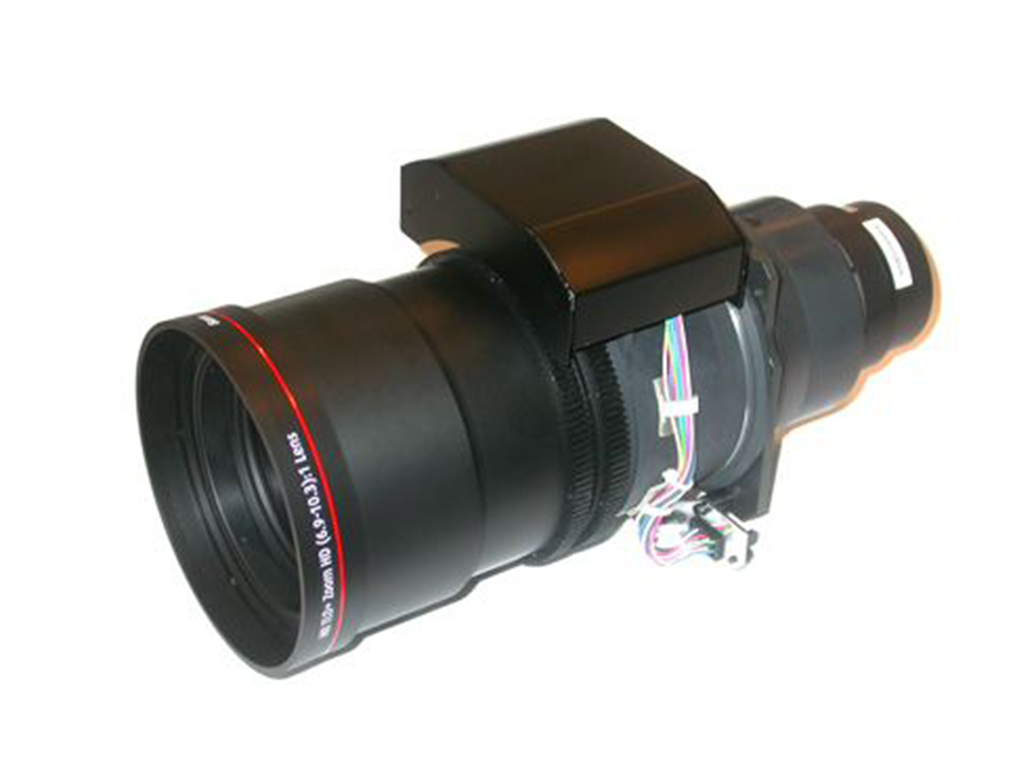

TLD+ (6.93 - 10.3:1 WUXGA) (7.5 - 11.2:1 SXGA+)
Article number:R9829997
