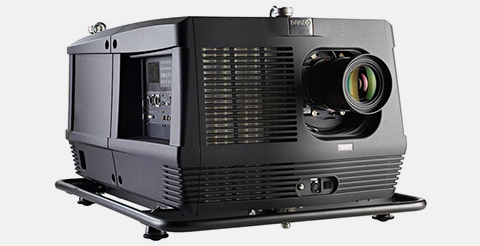

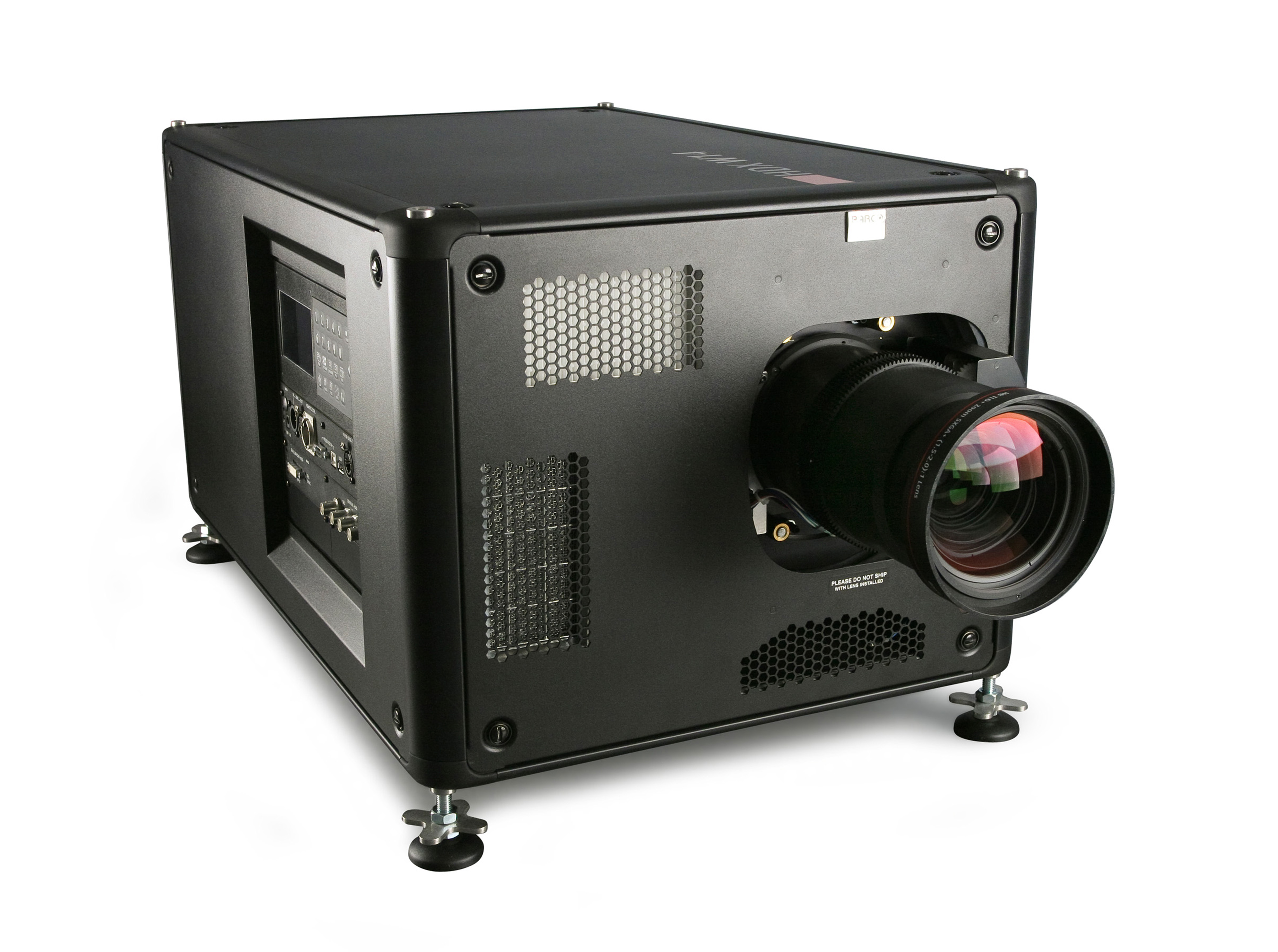

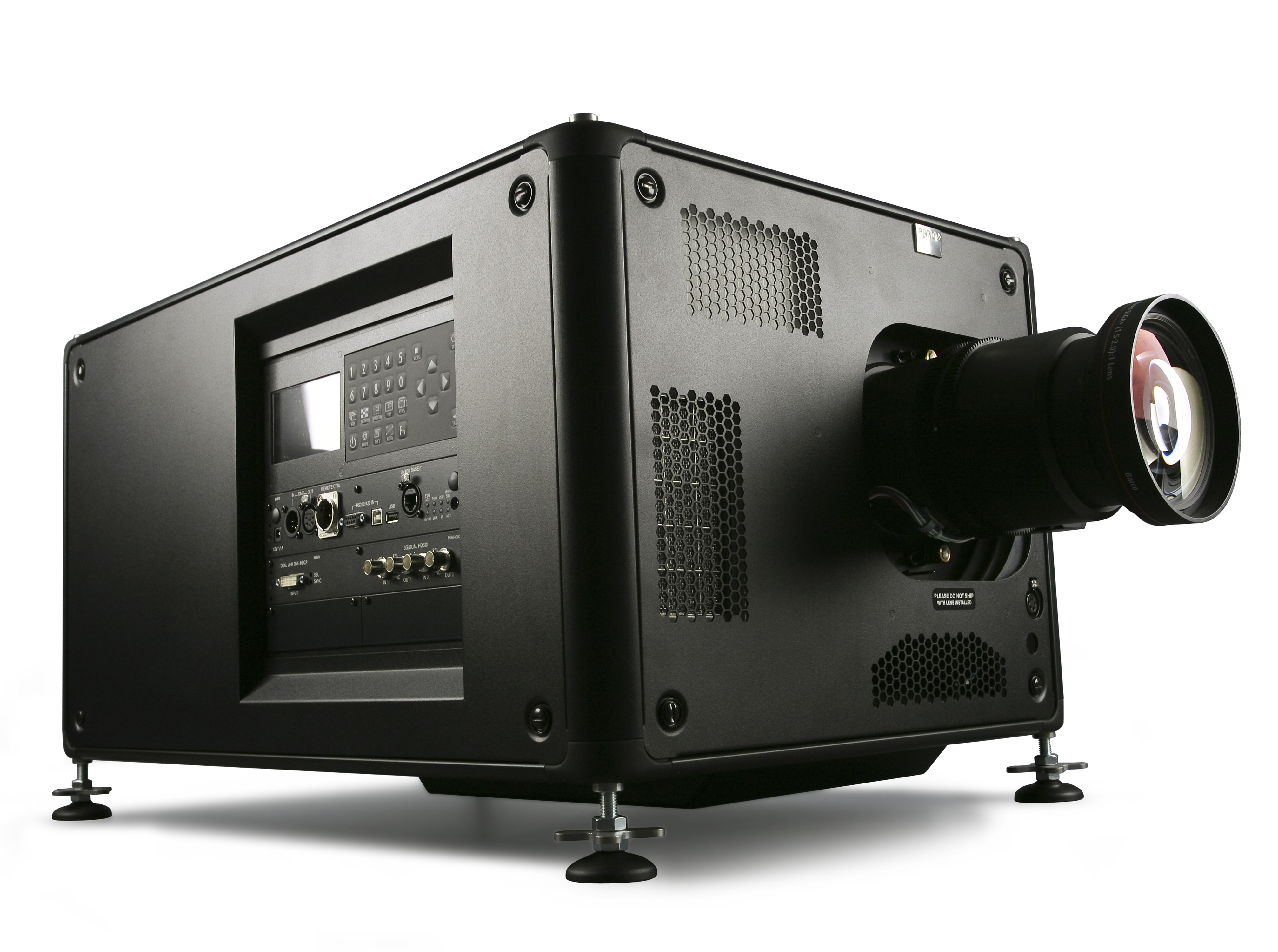

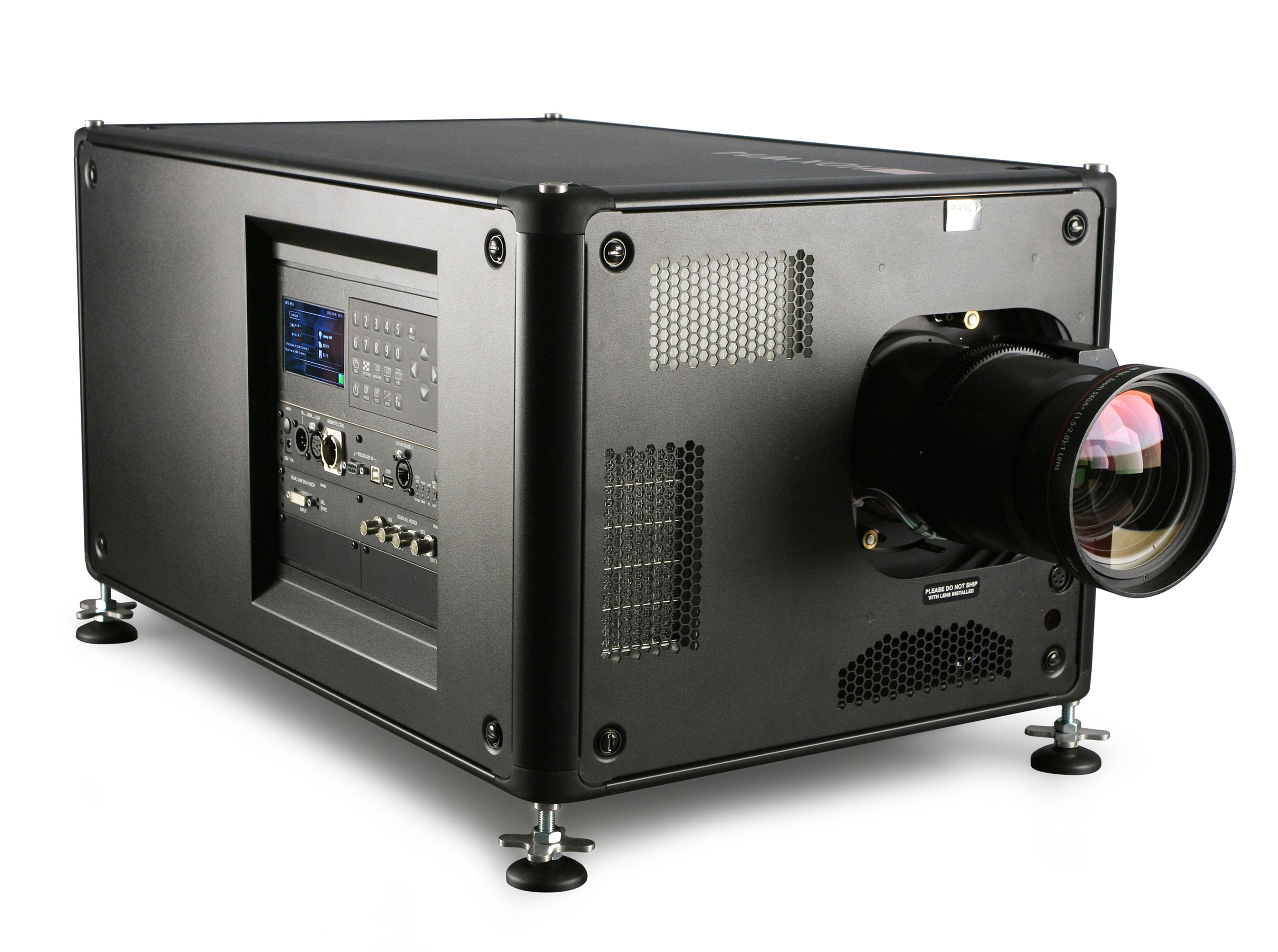

The ultra-bright and reliable HDF-W22 projector is a perfect fit for any large venue or event that requires extra brightness to show clear, crisp images in a brightly lit environment.

Reliable and powerful projection

With a light output of 22,000 lumens, the HDF-W22 displays superior images even in venues with lots of ambient light. Thanks to its 3-chip DLP technology, Xenon illumination and high-contrast optical engine, the HDF guarantees crisp images with rich colors on every occasion. What’s more, it is fully ready to support 3D projection. It has also been equipped with Barco’s high-end ImagePRO technology with Athena scalerfor flexible scaling.

Wireless control and preview mode

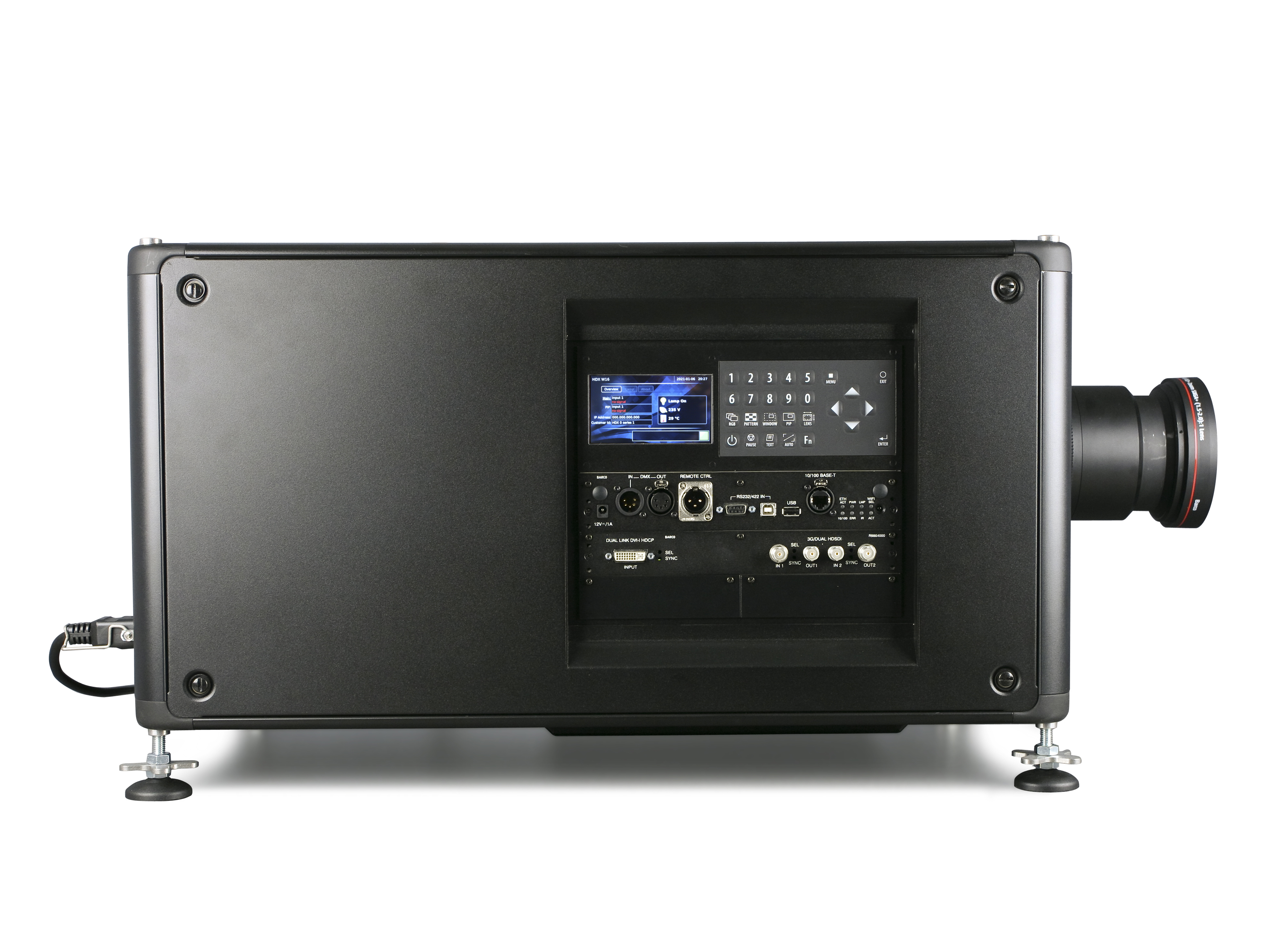

In addition, the versatile HDF-W22 offers extended wireless control features via smart phone or tablet computer. The HDF-W22’s built-in color LCD screen provides all the information you need on your projector's status and allows you to preview your connected sources.

Designed for rental and staging

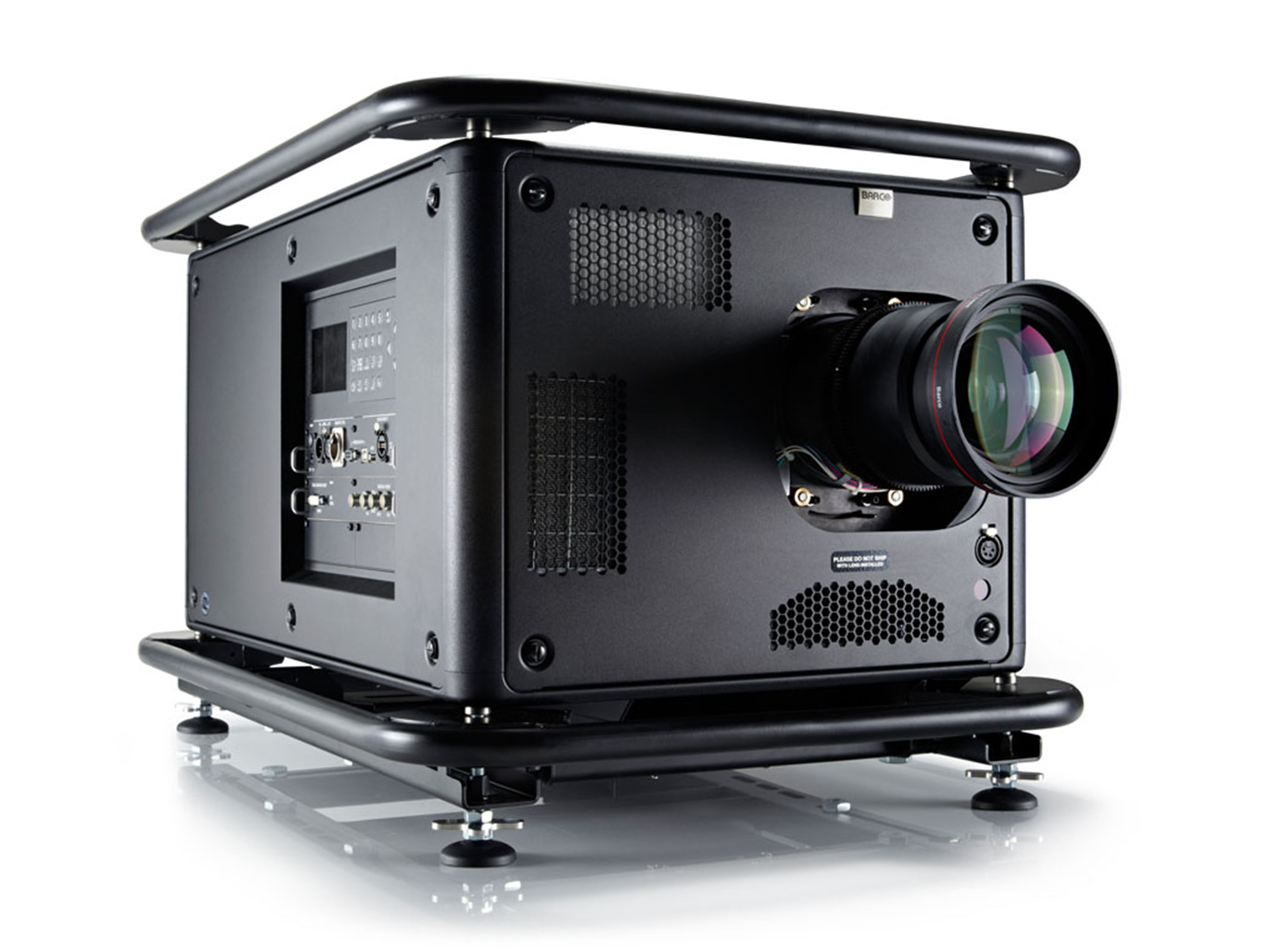

Building on Barco’s experience in the rental and staging market with the proven FLM family, the HDF has been designed with the road in mind. Its compact and modular design make it simple to install and service. Equipped with a top or bottom frame, the rugged projector can easily be rigged as well.

Fast signal distribution

Our proprietary BarcoLink technology guarantees swift signal distribution between Barco’s projectors and image processors. With BarcoLink, signals are distributed over a BNC coax cable, which is not only more durable but also enables you to lower your costs.

• Projector type

  WUXGA 3-chip DLP digital projector

• Technology

  0.96 DMD™ x3

• Color wheel

  6S standard (RGBYCW)

• Resolution

  1920 x 1200

• Brightness

  22,000 center lumens / 20,000 ANSI lumens*

• Contrast ratio

  1,900:1 (standard) / 2,200:1 (high contrast mode)

• Brightness uniformity

  90%

• Aspect ratio

  16:10

• ScenergiX

  Horizontal and vertical edge blending**

• Lens type

  TLD+

• Lens range

  TLD 0.73:1 1.2:1 1.25-1.6:1 1.5-2.0:1 2.0-2.8:1 2.8-4.5:1 4.5-7.5:1 7.5-11.5:1

• Lenses

  0.73:1；1.2:1；0.8-1.16；1.16-1.5:1；1.5-2.0:1；2.0-2.8:1；2.8-4.5:1；4.5-7.5:1；7.5-11.5:1

• Optical lens shift

  Vertical: -30% to +120% / Horizontal: -40% to +40% on zoom lenses (memorized)

• Color correction

  P7

• CLO(constant light output)

  Standard

• Light source

  3.8 kW xenon

• Light source lifetime

  1000 hours

• Lamp house, quick replace

  Yes

• Lamp warranty

  90 days, 500 hours / pro rata 500 hours

• Transport with lamp

  Yes

• Customer bulb replace

  Yes

• Sealed DLP™ core

  Standard

• Optical dowser

  Standard

• Advance Picture in Picture

  Two sources simultaneously**

• Orientation

  table - ceiling - side (portrait)* - vertical * lamp door down/bottom

• Others

  can be controlled by DMX 512 console, warping

• DMX 512

  Standard

• WARP

  Direct adjust OSD + toolset

• Integrated web server

  Yes

• 3D

  Active eyewear (optional), passive Infitec (optional), passive circular (optional), triple flash up to 200 HS

• Image processing

  Embedded warp & blend engine

• Outputs

  DVI-I (HDCP including analog RGB YUV), SDI/HDSDI/Dual HDSDI/3G/BarcoLink

• Input resolutions

  From NTSC up to QXGA (2,048 x 1,536)

• Max. pixel clock

  200 MHz

• Software tools

  Projector Toolset + Android app

• Control

  XLR wired + IR, RS232, Wifi, GSM (opt)

• Network connection

  10/100 base-T, RJ-45 connection, Wifi (optional)

• Power requirements

  200-240V / 50-60Hz

• Max. power consumption

  4000W / STBY < 10W

• BTU per hour

  Max 6,000 BTU/h

• Dissipation BTU

  Max. 13660 BTU/h

• Noise level (typical at 25°C/77°F)

  58dB(A)

• Operating temperature

  0-40°C / 32°-104°F

• Operating humidity

  -20 - 60 °C

• Storage temperature

  0-80% (non condens)

• Storage temperature

  10 - 90%RH

• Dimensions (WxLxH)

  707 x 1025 x 548mm 27.83 x 40.35 x 21.57 inches

• Weight

  99kg (218.25lbs)

• Standard accessories

  Power cord wireless/XLR wired rugged remote control, bottom rigging kit/clamps

• Shipping dimensions (WxLxH)

  (LxWxH) 1200 x 980 x 760 mm / 47.24 x 38.58 x 29.92 inches

• Shipping Weight from Factory

  151kg (333lbs)

• Certifications

  Compliant with UL60950-1 and EN60950-1 complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS

• Warranty

  3 years standard, extendable up to 5 years

• 24-7documentation

  This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

•

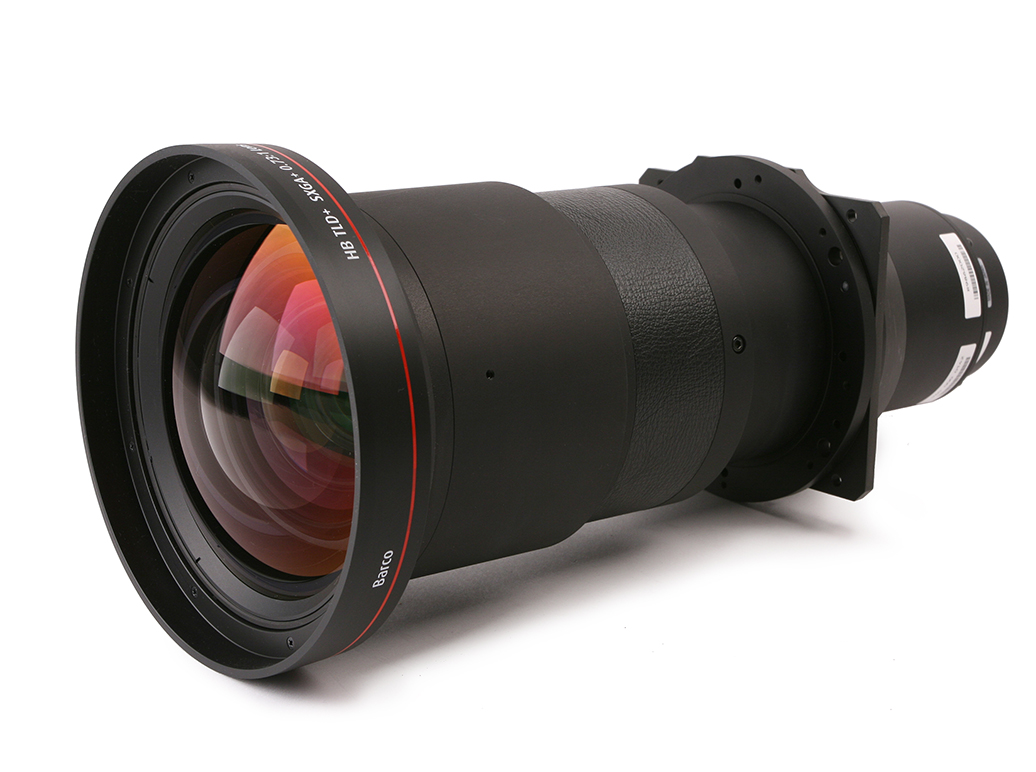

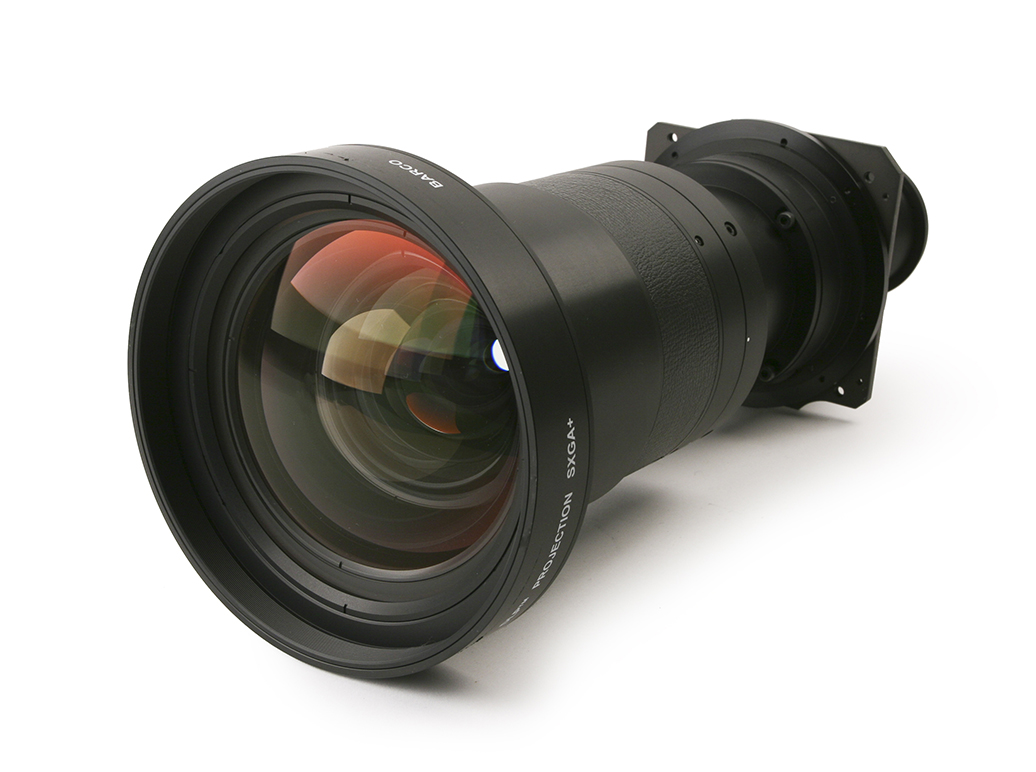

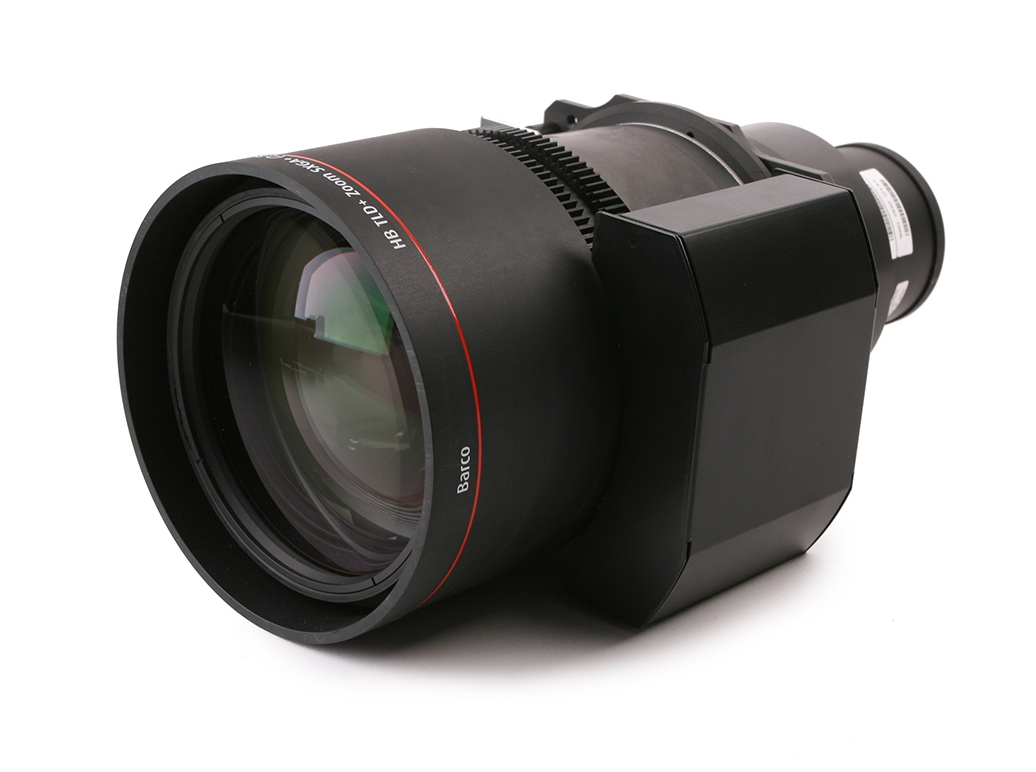

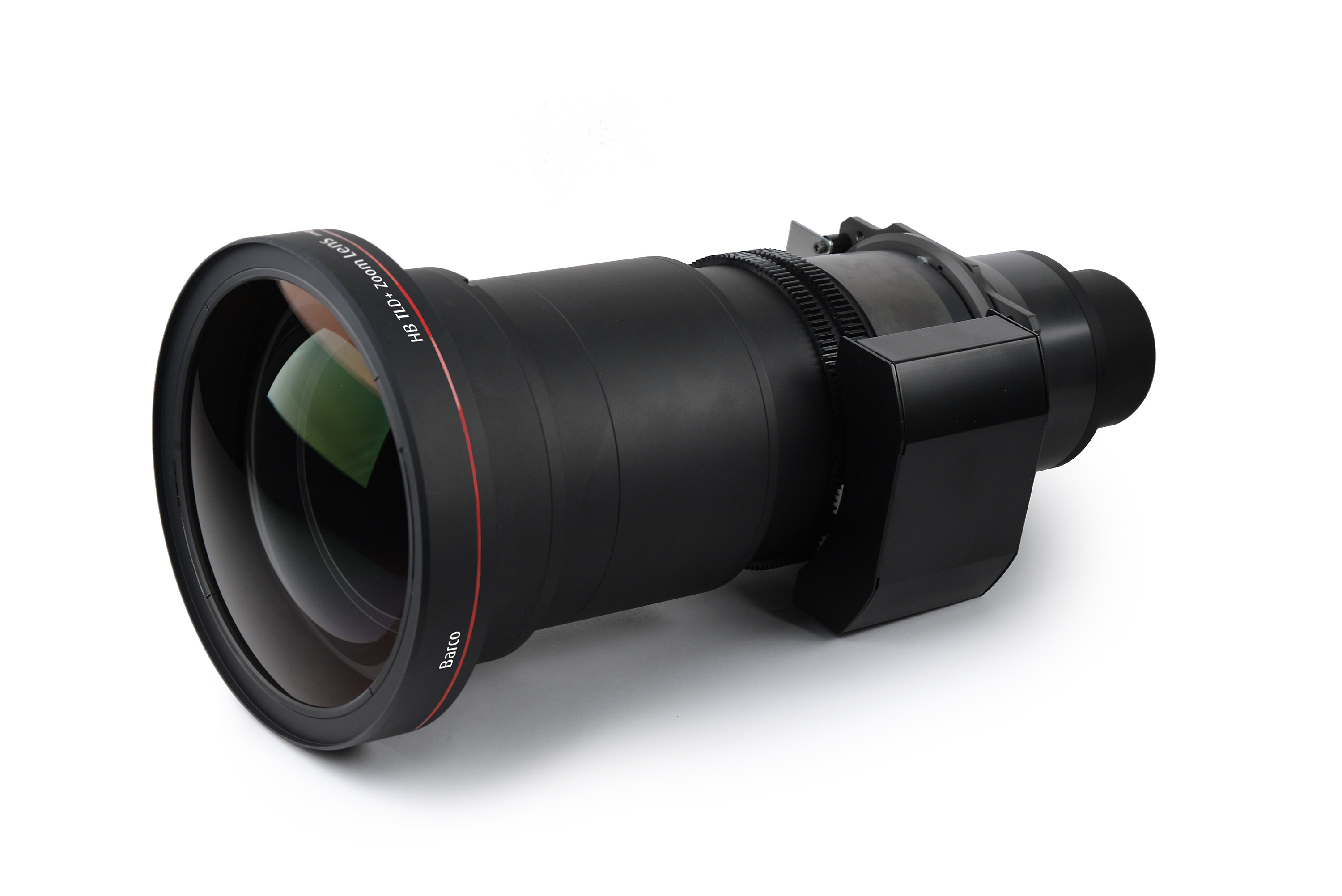

  TLD+ (0.67:1 WUXGA) (0.73:1 SXGA+)




  Article number：R9862000





•

  TLD+ Ultra (0.8-1.16:1 WUXGA) (0.86-1.25:1 SXGA+)




  Article number：R9801414





•

  TLD+ (1.14:1 WUXGA) (1.23:1 SXGA+)




  Article number：R9840775





•

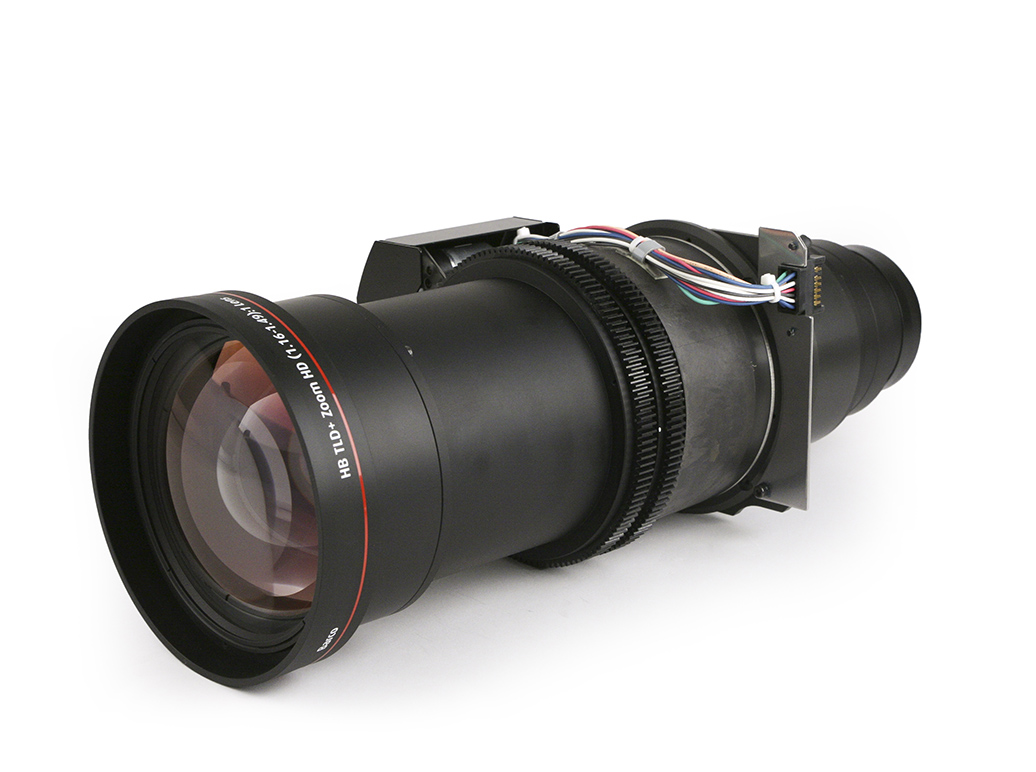

  TLD+ Ultra (1.16-1.49:1 WUXGA) (1.25-1.6:1 SXGA+)




  Article number：R9862005





•

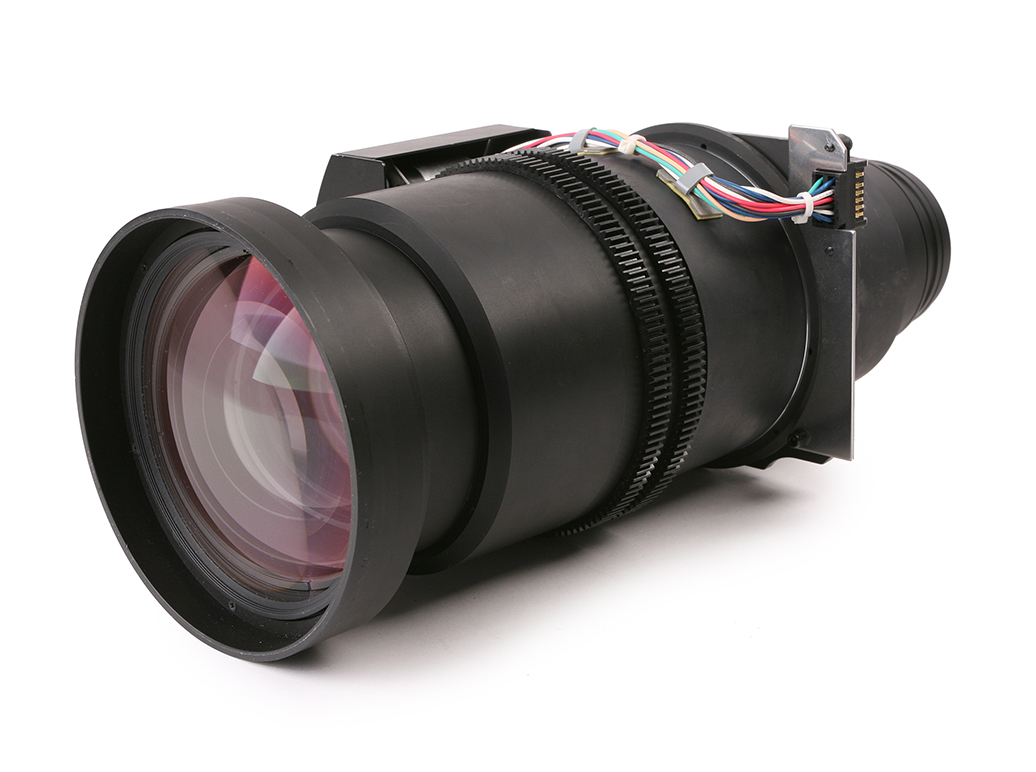

  TLD+ (1.39 - 1.87:1 WUXGA) (1.5 - 2.0:1 SXGA+)




  Article number：R9862010





•

  TLD+ (1.87 - 2.56:1 WUXGA) (2.0 - 2.8:1 SXGA+)




  Article number：R9862020





•

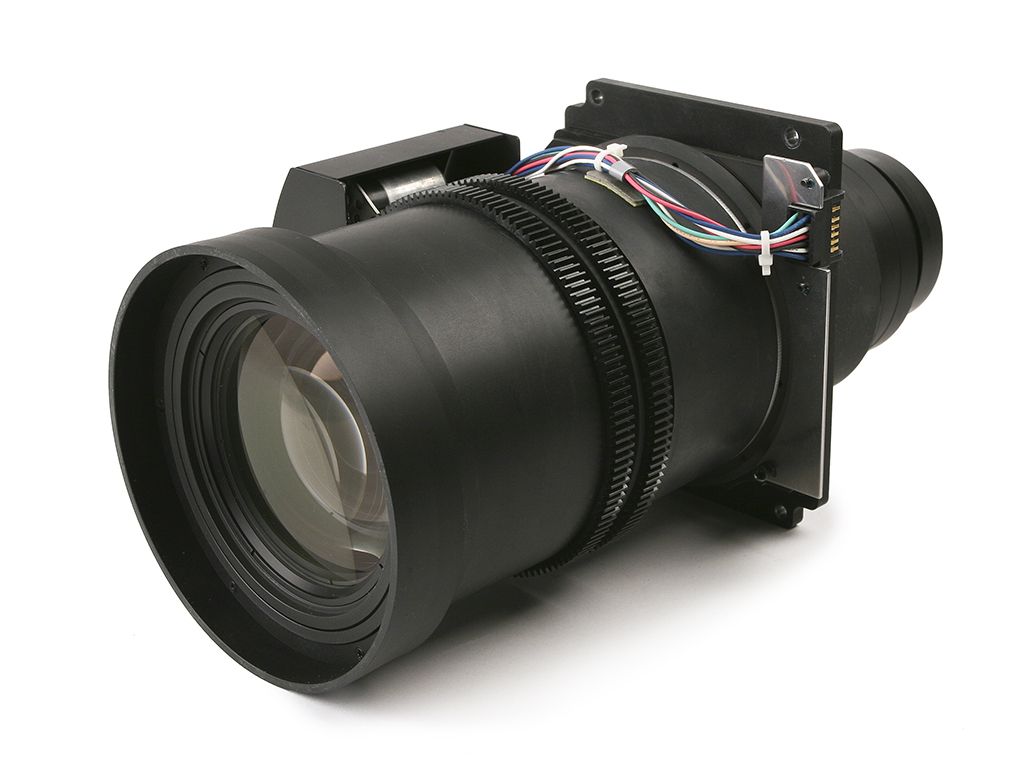

  TLD+ (2.56 - 4.17:1 WUXGA) (2.8 - 4.5:1 SXGA+)




  Article number：R9862030





•

  TLD+ (4.17 - 6.95:1 WUXGA) (4.5 - 7.5:1 SXGA+)




  Article number：R9862040





•

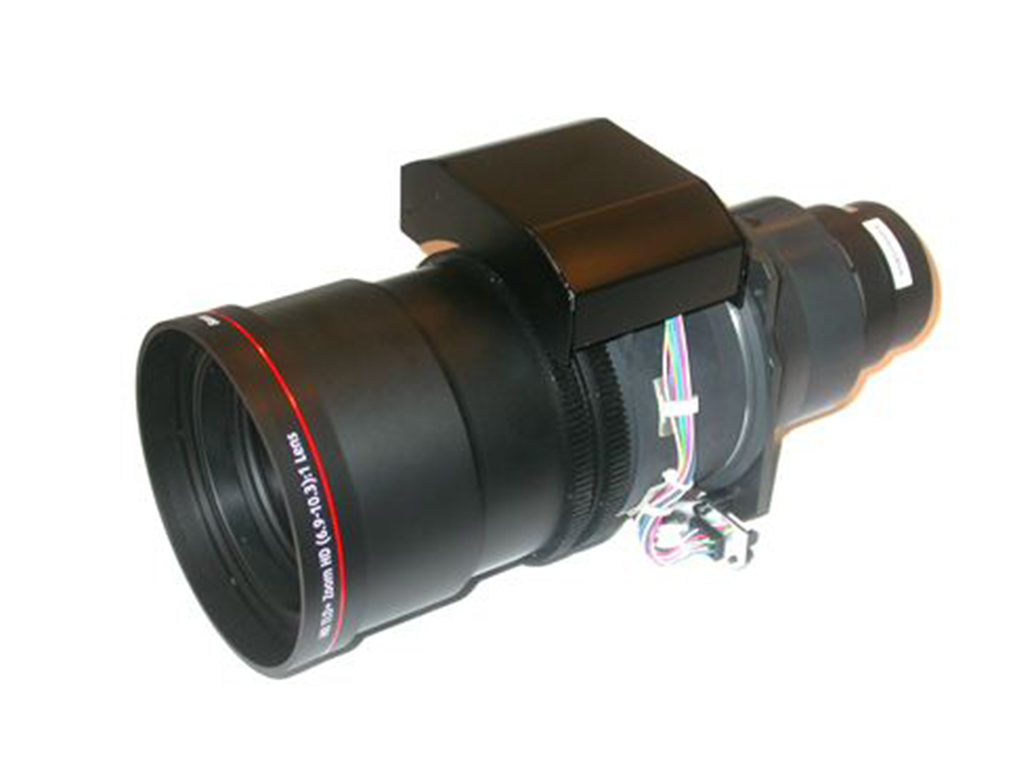

  TLD+ (6.93 - 10.3:1 WUXGA) (7.5 - 11.2:1 SXGA+)




  Article number：R9829997
