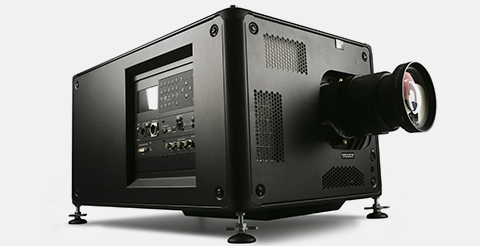

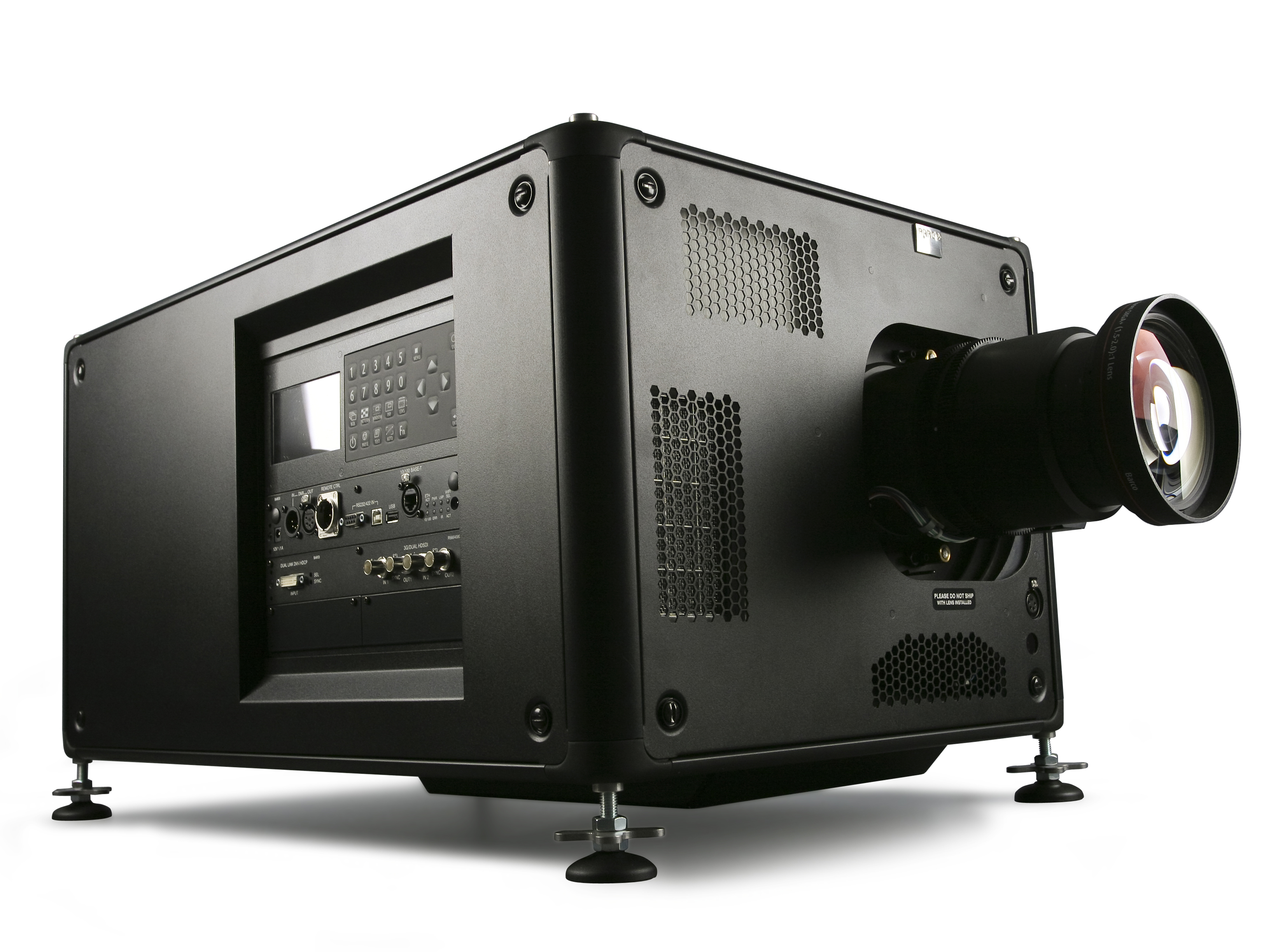

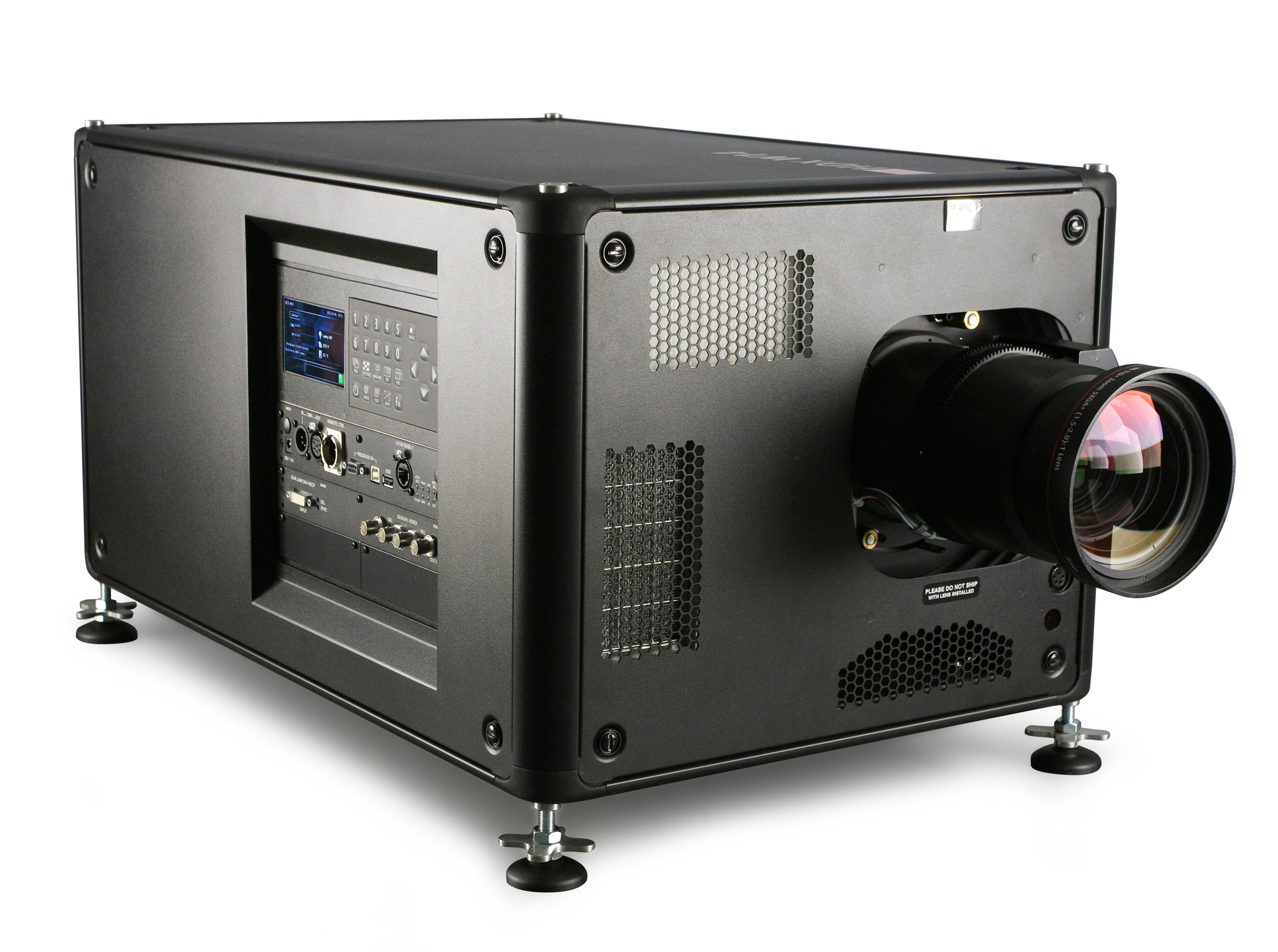

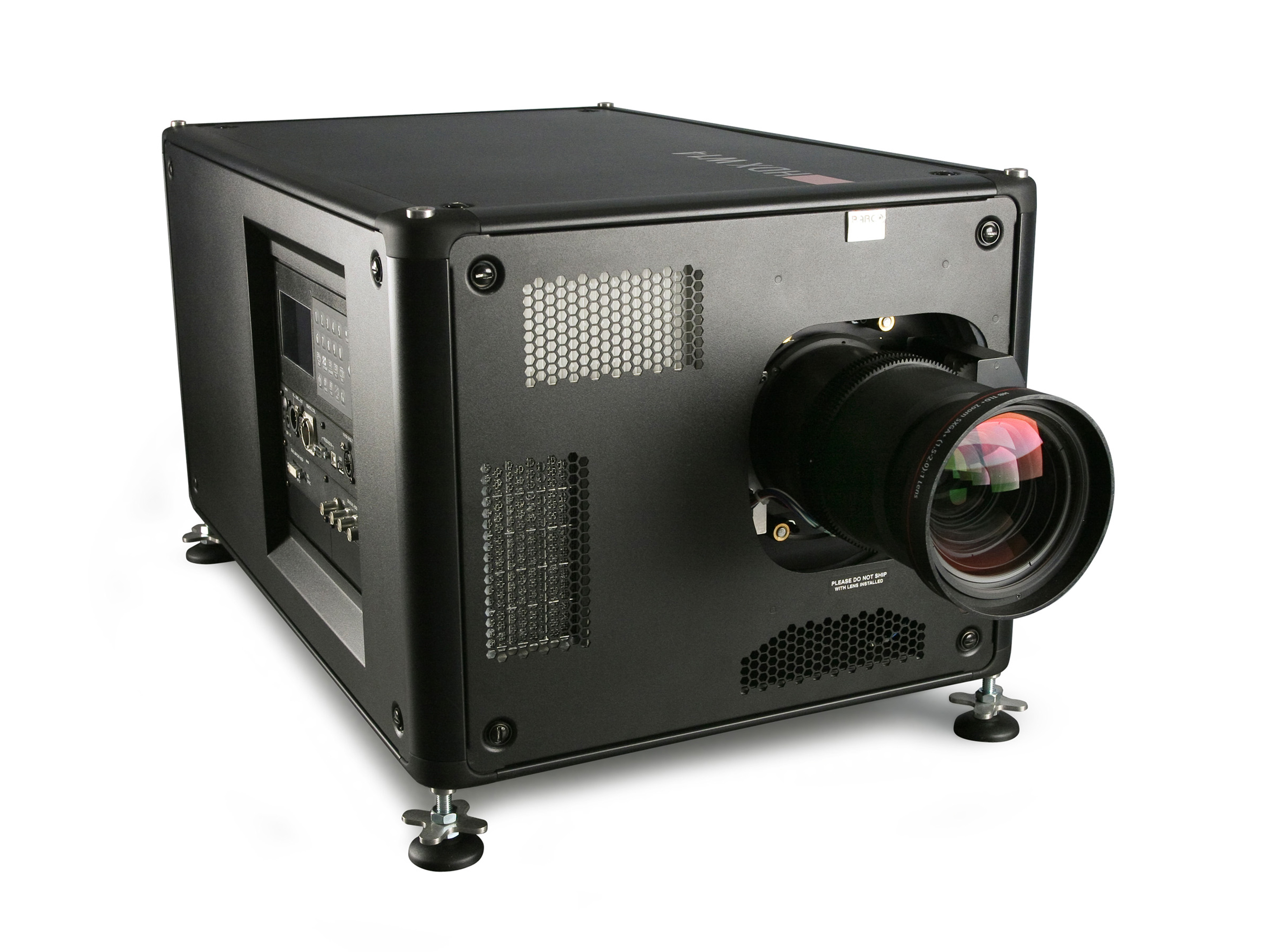

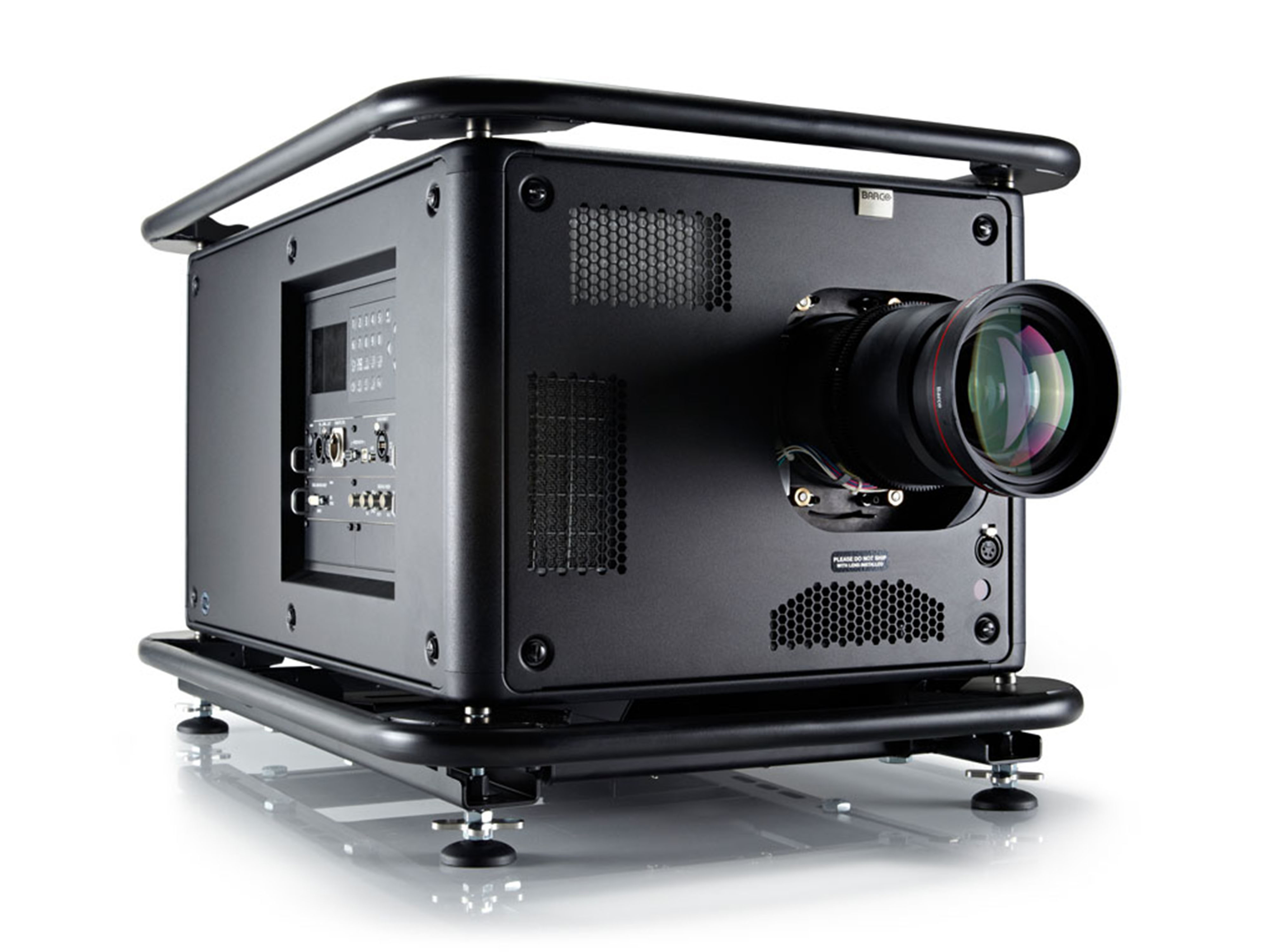

The HDX-W20 FLEX is the most compact rugged projector that offers 20,000 lumens light output currently available. One of its most striking features is that it is standard equipped with the light-on-demand option for flexible light output.

Choose your brightness

Thanks to the light-on-demand feature, you can fully tune the light output of the projector to your event: it can be programmed to a light output of 10,000 to 20,000 lumens in 2,000 incremental steps. Rental companies now have the flexibility to offer their customers the light output they want.

Flexible scaling

Building on Barco’s renowned ImagePRO series with AthenaTMscaler, the HDX is equipped with on-board image processing for unlimited and flexible scaling. This boosts creativity and minimizes the time it takes to get sources on screen.

Quick preview and wireless control

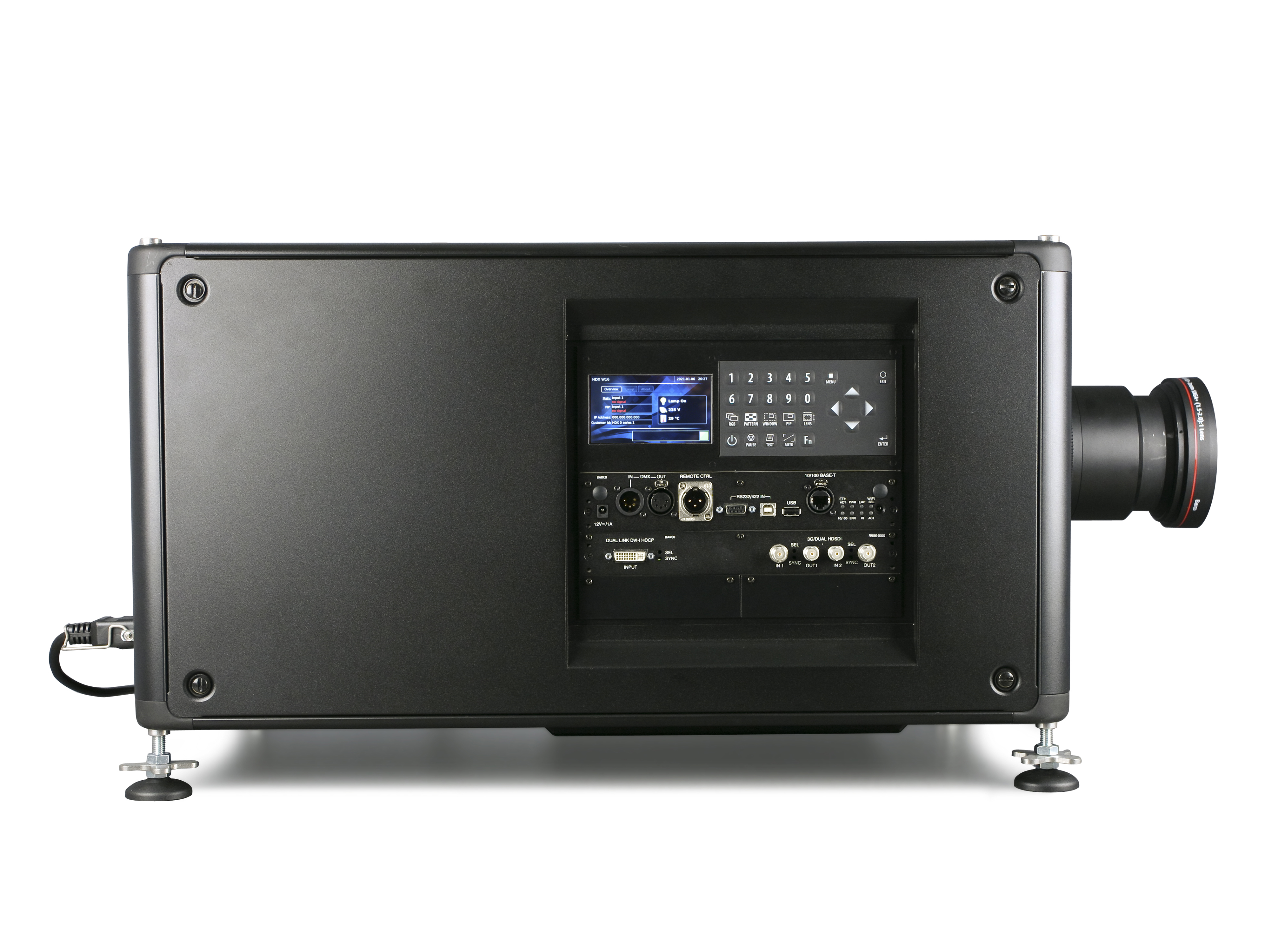

The HDX-W20 FLEX's built-in color LCD screen provides you with all the information you need on your projector's status and allows you to preview your connected sources. Whether from one central PC or via the Android projector control app for smartphone or tablet computer, you remain connected to the HDX at all times.

3G/BarcoLink compatibility

The HDX-W20 FLEX has a native 3G HDSDI/SDI input, which makes it compatible with progressive HD sources over a single BNC cable. This also means that the HDX allows for digital inputs that don’t come through fragile DVI fiber cables. What’s more, the projectors also feature BarcoLink, enabling progressive WUXGA 50/59.94/60 Hz signal distribution over a single BNC coax cable.

Compact projector with just five building blocks

As the HDX-W20 FLEX is the smallest and lightest 20K lumens projector on the market, it can easily be boxed and shipped, and it fits into standard flight cases. It features just five building blocks that can be removed and replaced quickly.

• Projector type

  WUXGA 3-Chip DLP digital projector

• Technology

  0.96" DMD x 3

• Color wheel

  6S standard (RGBYCW)

• Resolution

  1920 x 1200

• Brightness

  20,000 center lumens

• Contrast ratio

  1,850:1 (standard) - 2,600:1 (high contrast mode)

• Brightness uniformity

  90%

• Aspect ratio

  16:10

• ScenergiX

  horizontal and vertical edge blending**

• Lens type

  TLD +

• Lens range

  TLD 0.73:1 1.2:1 1.25-1.6:1 1.5-2.0:1 2.0-2.8:1 2.8-4.5:1 4.5-7.5:1 7.5-11.5:1

• Lenses

  0.73:1；1.2:1；0.8-1.16；1.16-1.5:1；1.5-2.0:1；2.0-2.8:1；2.8-4.5:1；4.5-7.5:1；7.5-11.5:1

• Optical lens shift

  Vertical: -30% to +120% / Horizontal: -40% to +40% on zoom lenses (memorized)

• Color correction

  P7

• CLO(constant light output)

  Standard

• Light source

  2.5 kW Xenon

• Light source lifetime

  1000 hours

• Lamp house, quick replace

  Yes

• Lamp warranty

  90 days, 500 hours/pro rata 750 hours

• Transport with lamp

  Yes

• Customer bulb replace

  Yes

• Sealed DLP™ core

  Standard

• Optical dowser

  Standard

• Advance Picture in Picture

  Two sources simultaneously**

• Orientation

  table - ceiling - side (portrait)* - vertical * lamp door down/bottom

• DMX 512

  Standard

• WARP

  direct adjust OSD + toolset

• Integrated web server

  Yes

• 3D

  active eyewear (optional), passive Infitec (optional), passive circular (optional), triple flash up to 200Hz**

• Image processing

  Embedded warp & blend engine

• Outputs

  DVI- I (HDCP including analog RGB YUV) / SDI/HDSDI/dual HDSDI/3G/BarcoLink

• Input resolutions

  From NTSC up to QXGA (2,048 x 1,536)

• Max. pixel clock

  200 Mhz

• Software tools

  Projection Toolset + Android app* + iOS app*

• Control

  XLR wired + IR, RS232, Wifi, GSM (opt)

• Network connection

  10/100 Base-T, RJ-45 conn, Wifi (optional)

• Power requirements

  200-240 V / 50-60 Hz

• Max. power consumption

  2850 W / STBY

• BTU per hour

  Max 6,000 BTU/h

• Dissipation BTU

  Max. 9,725 BTU/h

• Noise level (typical at 25°C/77°F)

  53 dB (A)

• Operating temperature

  0 ~ 40°C / 32 ~ 104°F

• Operating humidity

  -20 - 60 °C

• Storage temperature

  0% - 80%

• Storage temperature

  10 - 90%RH

• Dimensions (WxLxH)

  475 x 725 x 382 mm (18.70" x 28.54" x 14.96")

• Weight

  50kg (110lbs)

• Standard accessories

  Power cord wireless/XLR wired rugged remote control

• Shipping dimensions (WxLxH)

  (WxLxH) 650 x 900 x 560 mm (25.59" x 35.43" x 22.04")

• Shipping Weight from Factory

  41.5 kg (91.49 lbs)

• Certifications

  Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS

• Warranty

  3 years standard, extendable up to 5 years

• 24-7documentation

  This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

•

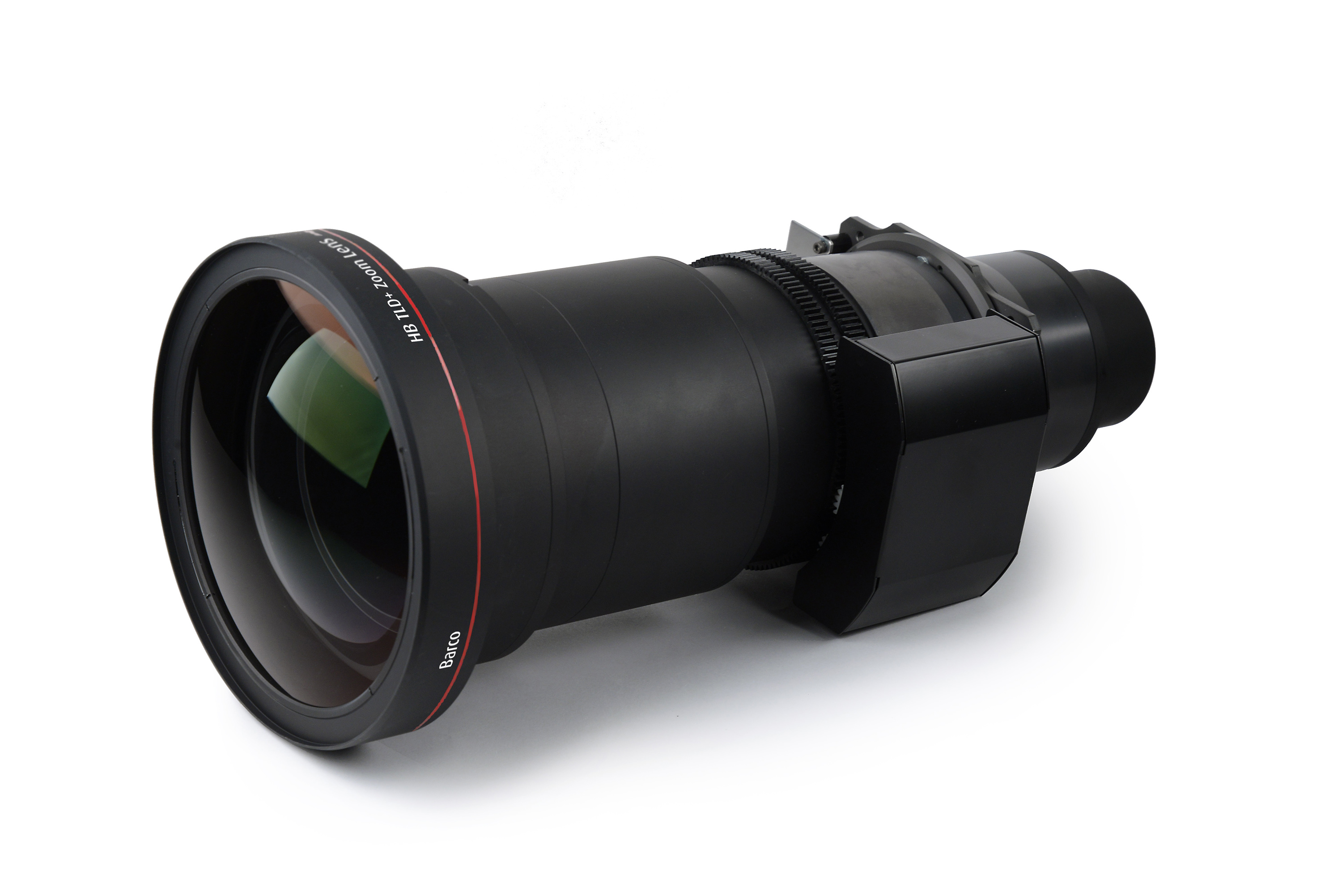

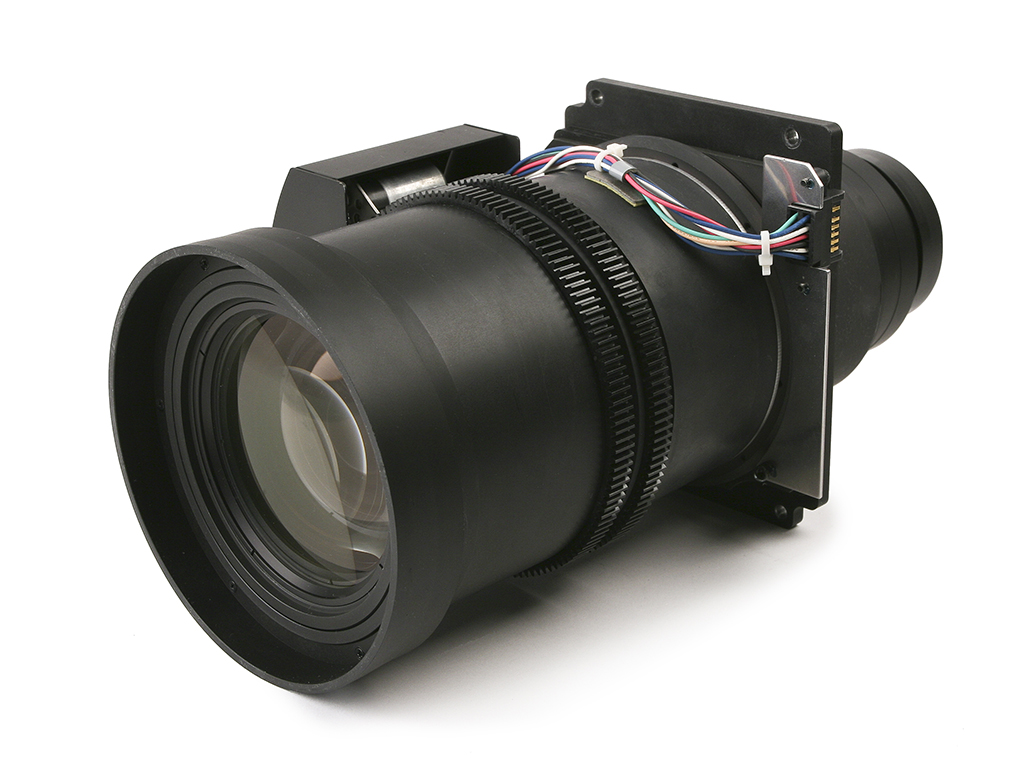

  TLD+ (0.67:1 WUXGA) (0.73:1 SXGA+)




  Article number：R9862000





•

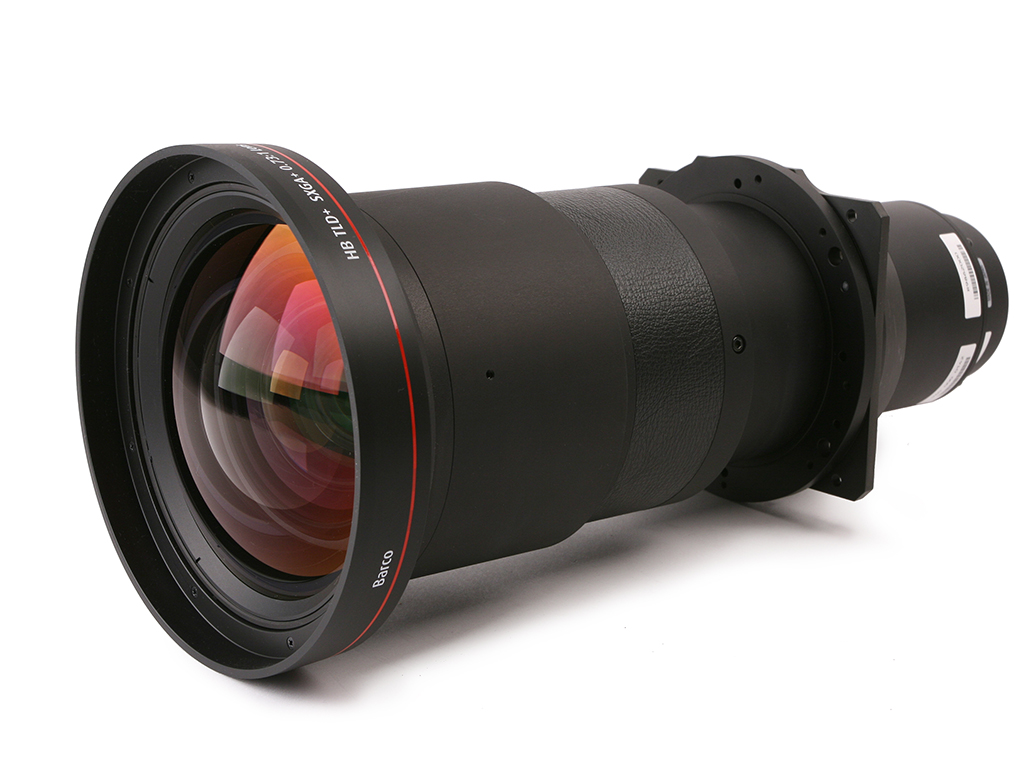

  TLD+ Ultra (0.8-1.16:1 WUXGA) (0.86-1.25:1 SXGA+)




  Article number：R9801414





•

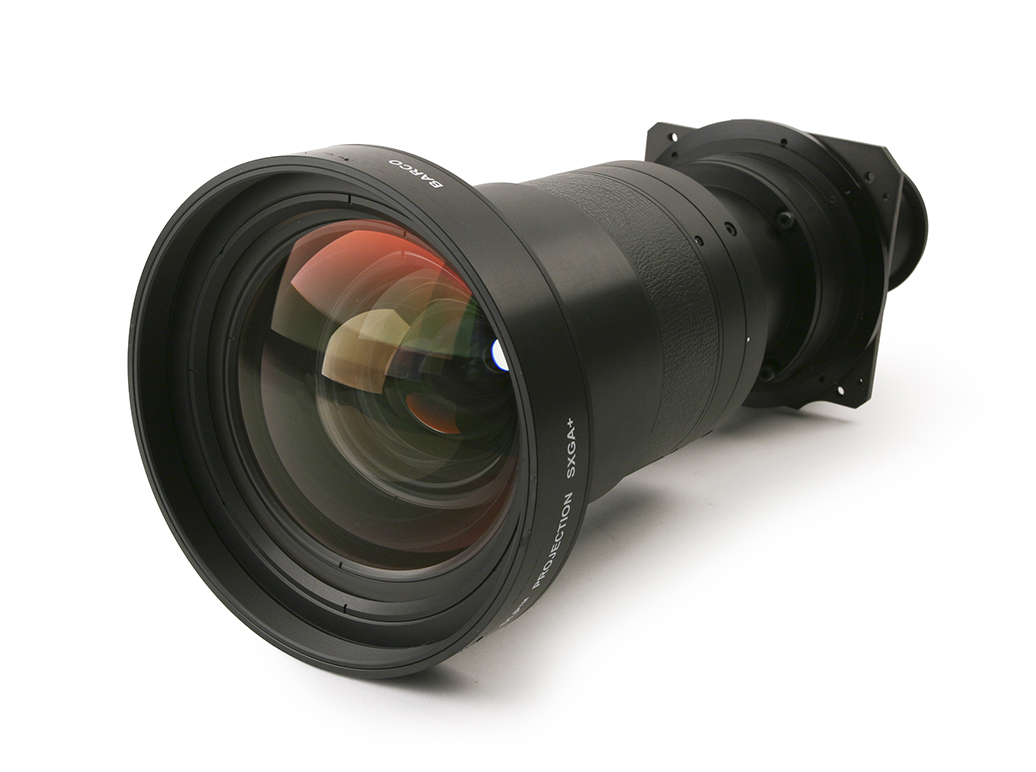

  TLD+ (1.14:1 WUXGA) (1.23:1 SXGA+)




  Article number：R9840775





•

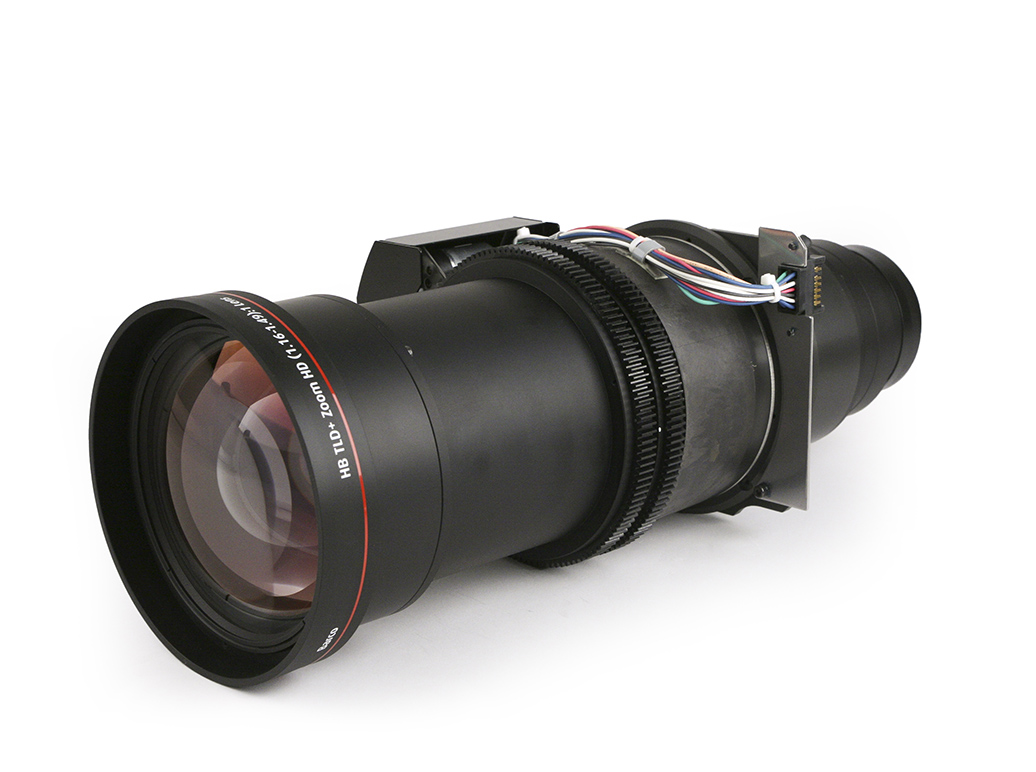

  TLD+ Ultra (1.16-1.49:1 WUXGA) (1.25-1.6:1 SXGA+)




  Article number：R9862005





•

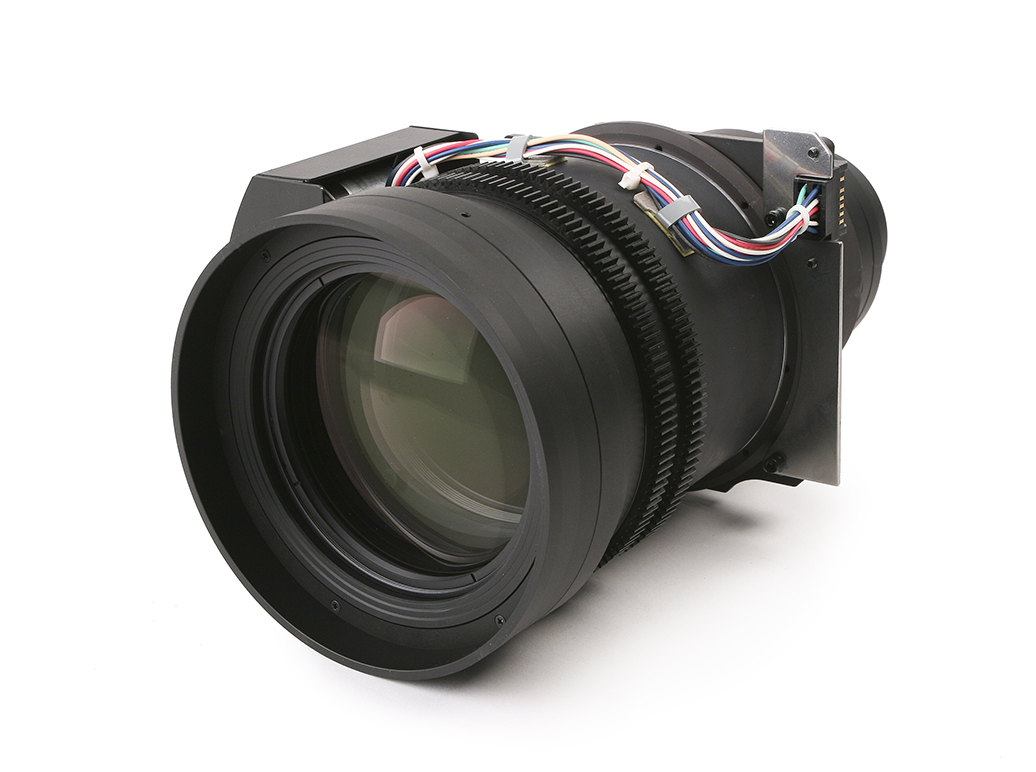

  TLD+ (1.39 - 1.87:1 WUXGA) (1.5 - 2.0:1 SXGA+)




  Article number：R9862010





•

  TLD+ (1.87 - 2.56:1 WUXGA) (2.0 - 2.8:1 SXGA+)




  Article number：R9862020





•

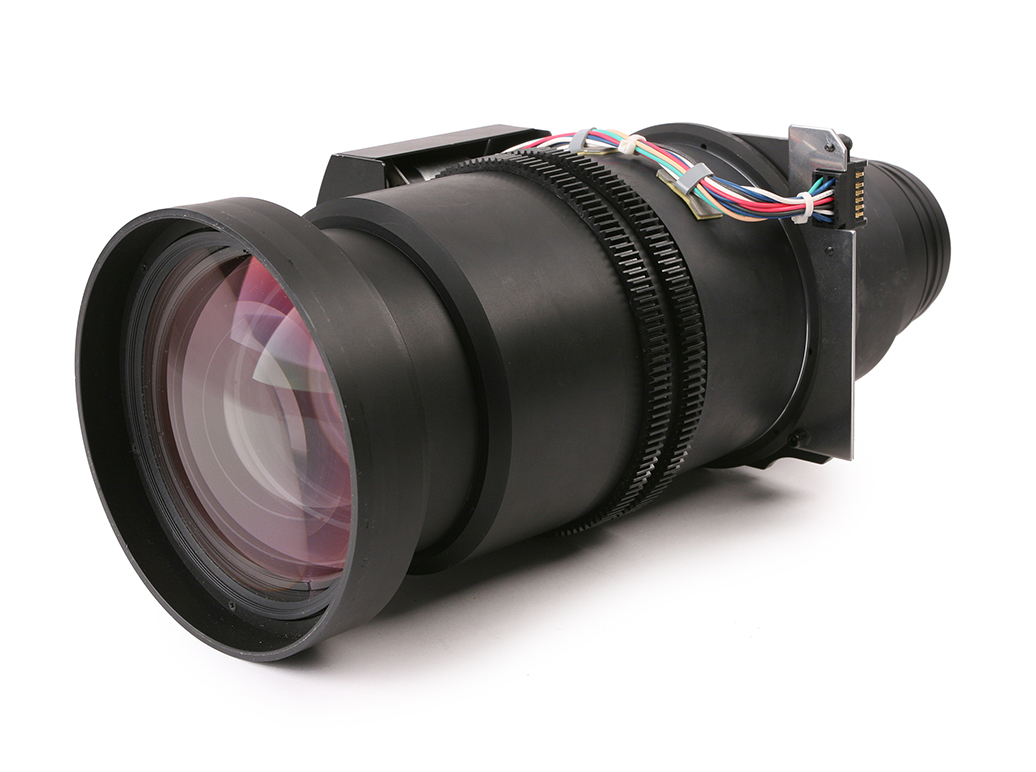

  TLD+ (2.56 - 4.17:1 WUXGA) (2.8 - 4.5:1 SXGA+)




  Article number：R9862030





•

  TLD+ (4.17 - 6.95:1 WUXGA) (4.5 - 7.5:1 SXGA+)




  Article number：R9862040





•

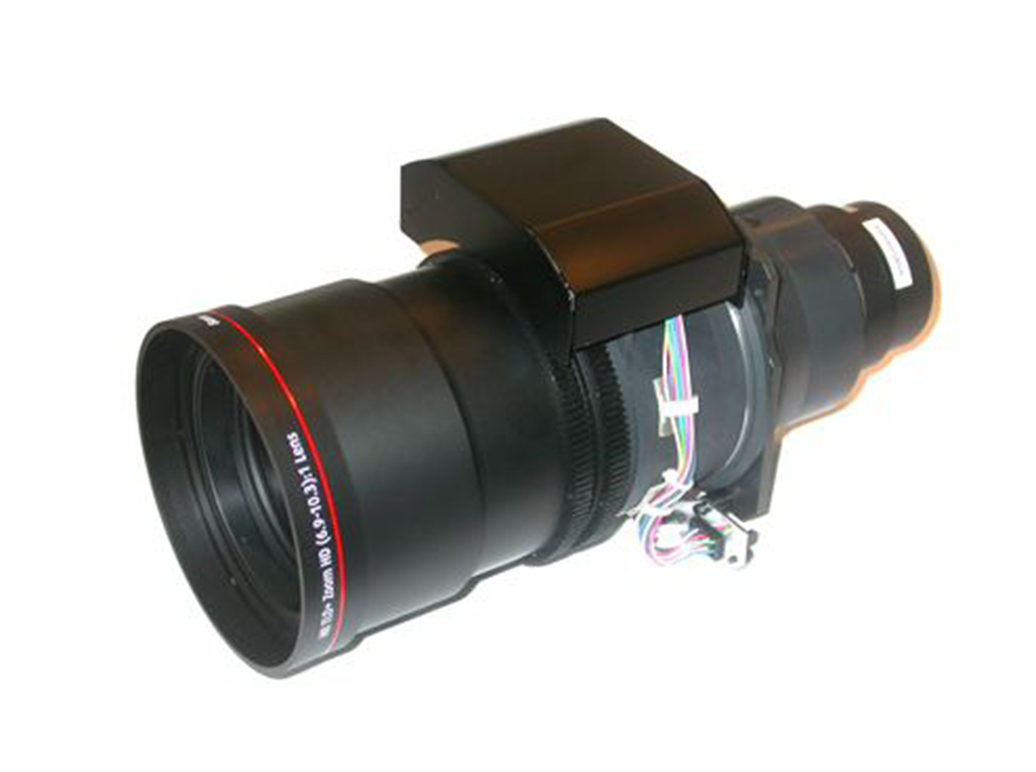

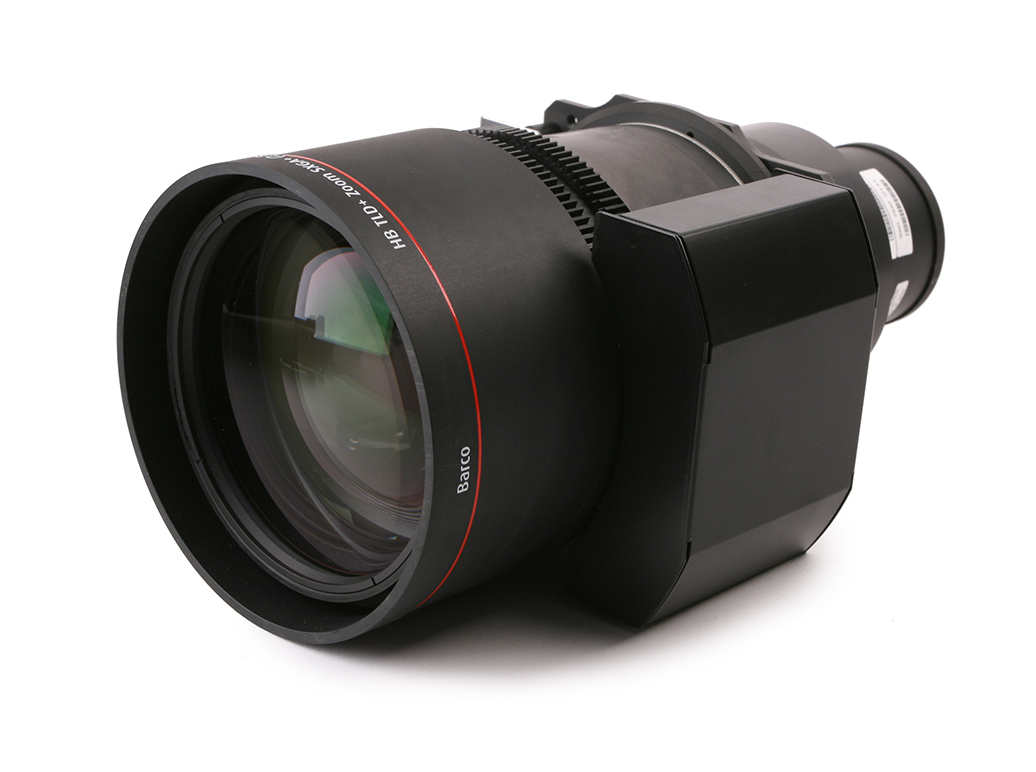

  TLD+ (6.93 - 10.3:1 WUXGA) (7.5 - 11.2:1 SXGA+)




  Article number：R9829997






Product Manual

• HDX-W20 FLEX.pdf
