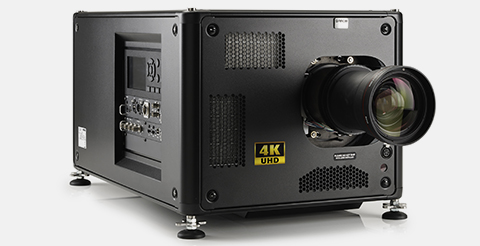

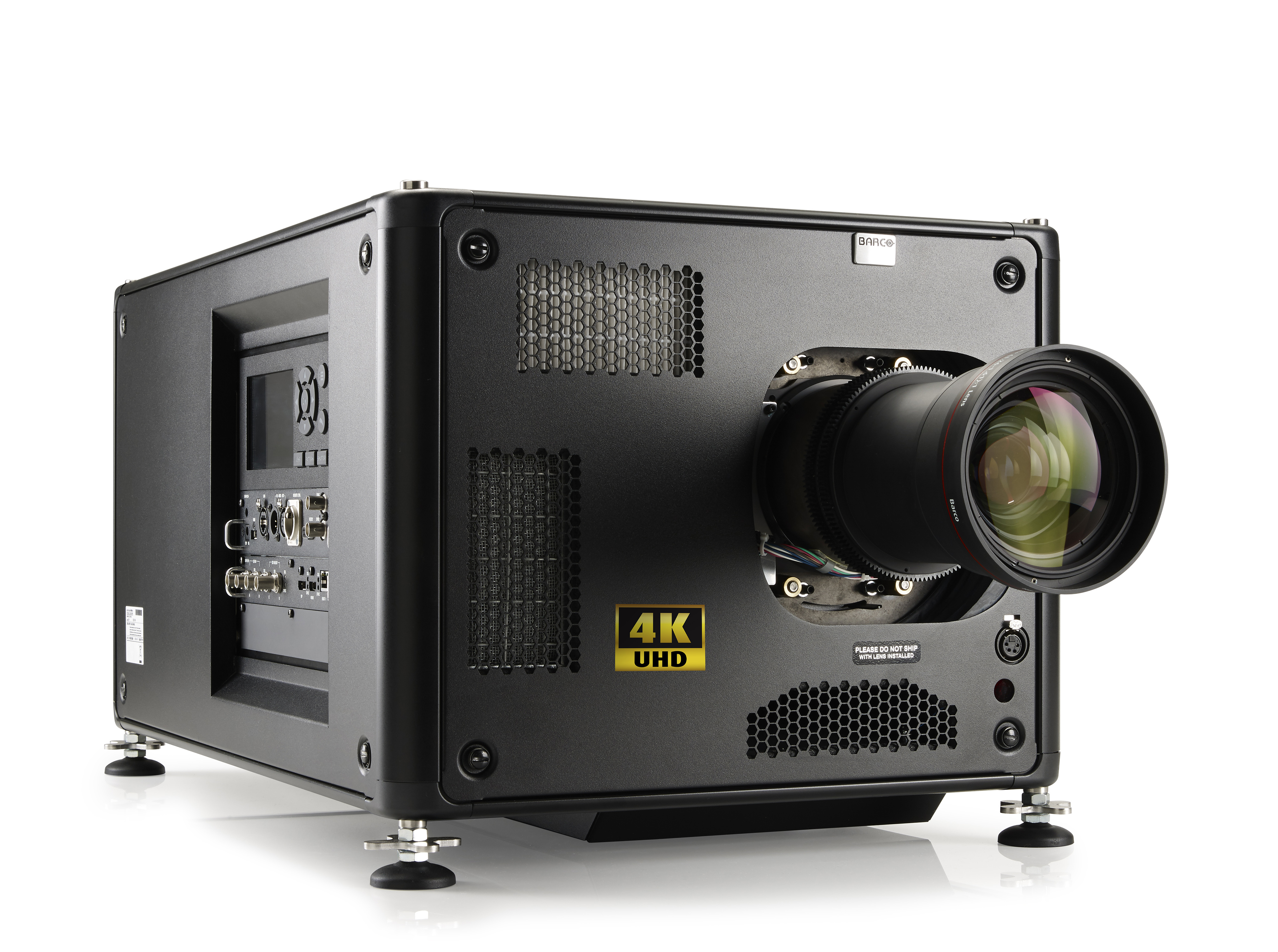

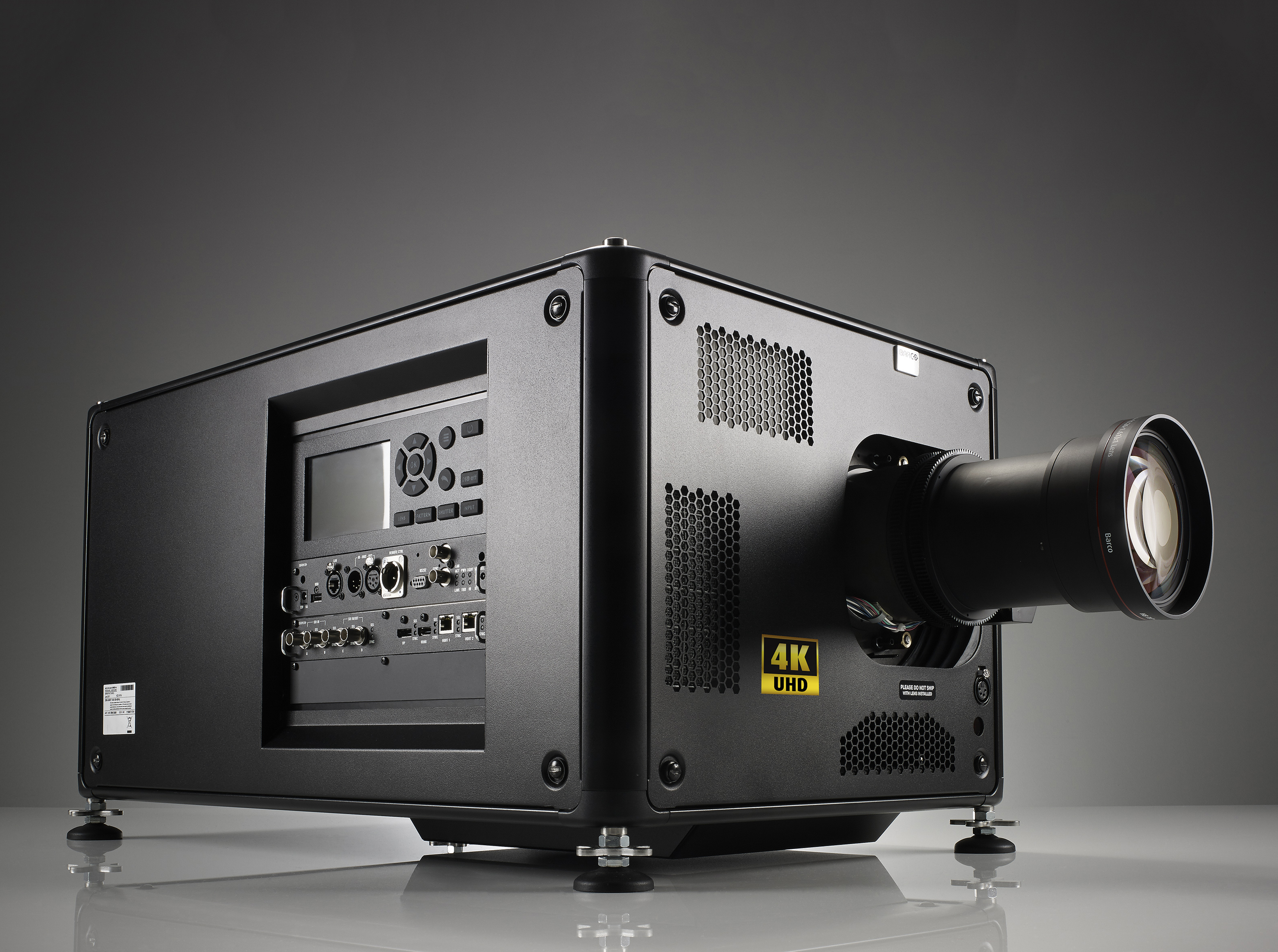

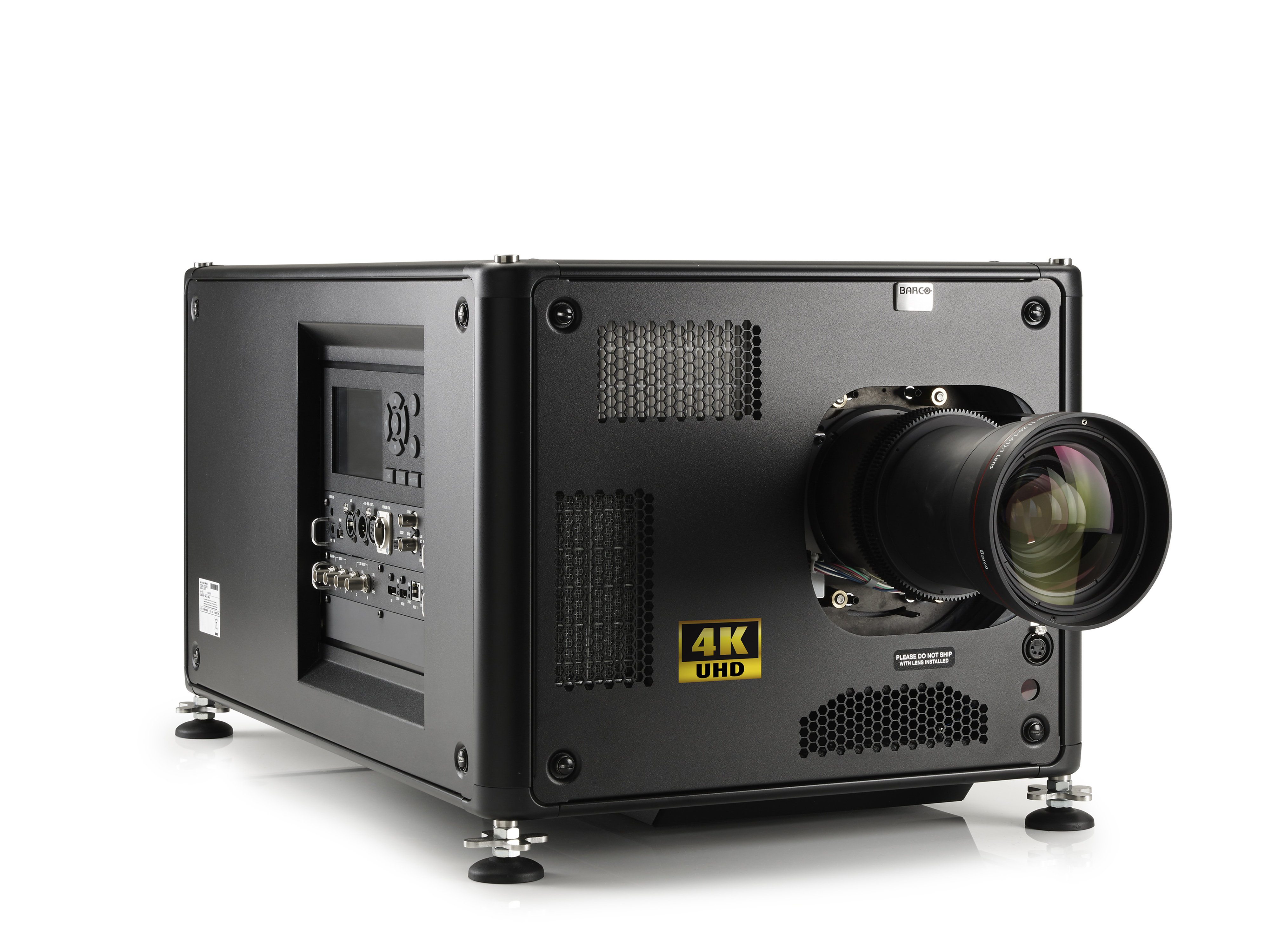

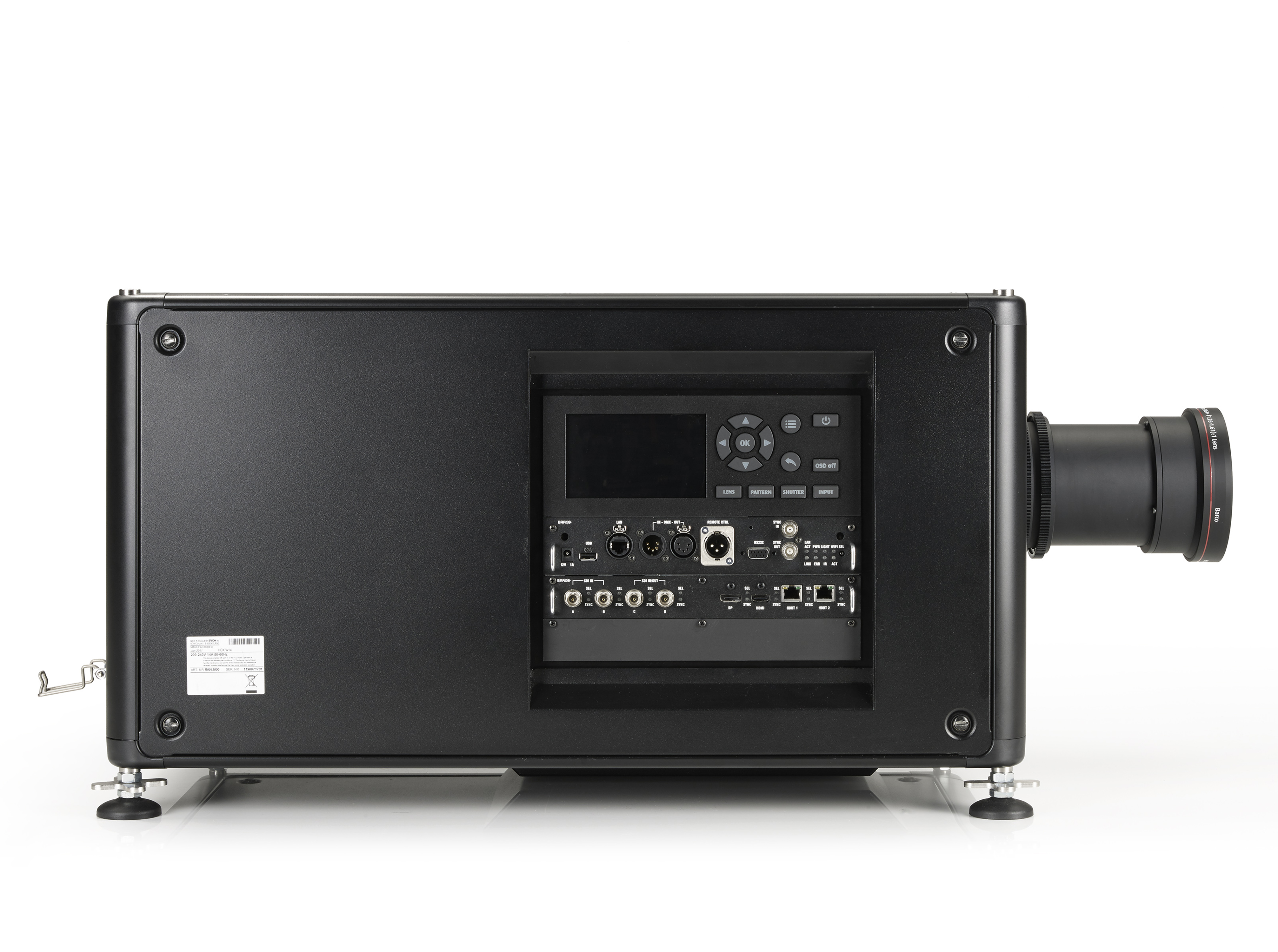

The HDX-4K12 offers 4K UHD resolution for superb image quality. This projector shares its lens range, ease of use, and modularity with the other HDX models. Thanks to its modular design of only five building blocks the HDX-4K14 is easy to service. Equipped with rental frames, the projector can easily be stacked or rigged. The HDX-4K12 shares its TLD lens suite with the other RLM, HDX, HDF, and FLM projectors. What's more, the TLD+ 0.8-1.16:1 lens offers extreme 120% vertical lens shift capability.

Excellent image quality

Equipped with 3-chip DLP® technology, a single high-brightness Xenon lamp, and a high-contrast optical engine, the HDX-4K12 excels in brightness, color accuracy, and stability. Thanks to its 4K UHD resolution this projector delivers smooth, sharp images with fine detail.

Scaling and input flexibility

Featuring a single-step processing electronics unit, the projector provides powerful scaling, handles all of the latest resolutions and offers advanced image warping and edge blending with zero additional latency. The HDX-4K12 supports HDMI 2.0, DisplayPort 1.2, HDBaseT and quad 6G HDSDI inputs.

• Projector type

  4K UHD 3-Chip DLP digital projector

• Technology

  0.90" DMD x 3

• Color wheel

  6S standard (RGBYCW)

• Resolution

  3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (WQXGA native) / 16:10 aspect ratio

• Brightness

  11,000 (WQXGA) / 10,200 (4K UHD mode) center lumens*

• Contrast ratio

  1,900:1 (standard) - 2,200:1 (high contrast mode)

• Brightness uniformity

  90%

• Aspect ratio

  16:10

• ScenergiX

  horizontal and vertical edge blending**

• Lens type

  TLD +

• Lens range

  TLD+ 0.8-1.16 1.16-1.5:1 1.5-2.0:1 2.0-2.8:1 2.8-4.5:1 4.5-7.5:1 7.5-11.5:1

• Lenses

  0.73:1；1.2:1；0.8-1.16；1.16-1.5:1；1.5-2.0:1；2.0-2.8:1；2.8-4.5:1；4.5-7.5:1；7.5-11.5:1

• Optical lens shift

  Vertical: -30% to +120%/Horizontal: -40% to +40% on zoom lenses (memorized)

• Color correction

  P7

• CLO(constant light output)

  Standard

• Light source

  2.5 kW Xenon

• Light source lifetime

  lamp lifetime: 1,000 hours typical

• Lamp house, quick replace

  Yes

• Lamp warranty

  90 days, 500 hours/pro rata 750 hours

• Transport with lamp

  Yes

• Customer bulb replace

  Yes

• Sealed DLP™ core

  Standard

• Optical dowser

  Standard

• Advance Picture in Picture

  Two sources simultaneously**

• Orientation

  table - ceiling - side (portrait) (lamp door down/bottom) - vertical

• DMX 512

  Standard

• WARP

  direct adjust OSD + toolset

• Integrated web server

  Yes

• 3D

  active eyewear (optional), passive Infitec (optional), passive circular (optional), triple flash up to 200Hz**

• Image processing

  Embedded warp & blend engine

• Outputs

  Dual HDBaseT, HDMI 2.0**, DP 1.2, Quad SDI/HDSDI/dual HDSDI/Quad 3G HDSDI/BarcoLink

• Input resolutions

  From VGA up to 4K (4,096 x 2,160)

• Max. pixel clock

  400 Mhz

• Software tools

  Projection Toolset + Android app** + iOS app**

• Control

  10/100 Base-T, RJ-45 conn, Wifi ( opt), GSM (optional), XLR wired + IR , RS232, DMX 512**

• Network connection

  10/100 Mb/s Ethernet (on RJ45), WiFi

• Power requirements

  110­-130V/200-­240V, 50-­60 Hz

• Max. power consumption

  2,450 W / STBY

• BTU per hour

  Max 6,000 BTU/h

• Dissipation BTU

  Max. 5800 BTU/h @ (110-130V) / Max. 8360 BTU/h @ (200-240V)

• Noise level (typical at 25°C/77°F)

  49 dB (A)

• Operating temperature

  0 ~ 40°C / 32 ~ 104°F

• Operating humidity

  -20 - 60 °C

• Storage temperature

  0% - 80%

• Storage temperature

  10 - 90%RH

• Dimensions (WxLxH)

  475 x 725 x 382 mm (18.70" x 28.54" x 14.96")

• Weight

  50kg (110lbs)

• Standard accessories

  Power cord wireless/XLR wired rugged remote control

• Shipping dimensions (WxLxH)

  (WxLxH) 650 x 900 x 560 mm (25.59" x 35.43" x 22.04")

• Shipping Weight from Factory

  41.5 kg (91.49 lbs)

• Certifications

  Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS

• Warranty

  3 years standard

• 24-7documentation

  This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

•

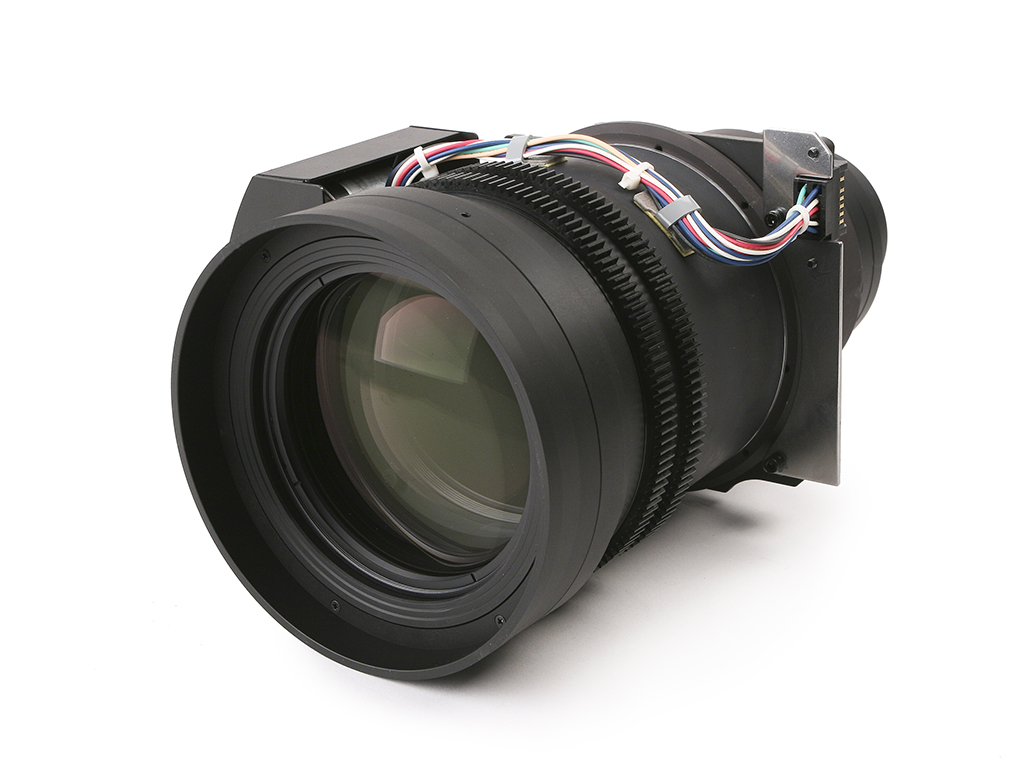

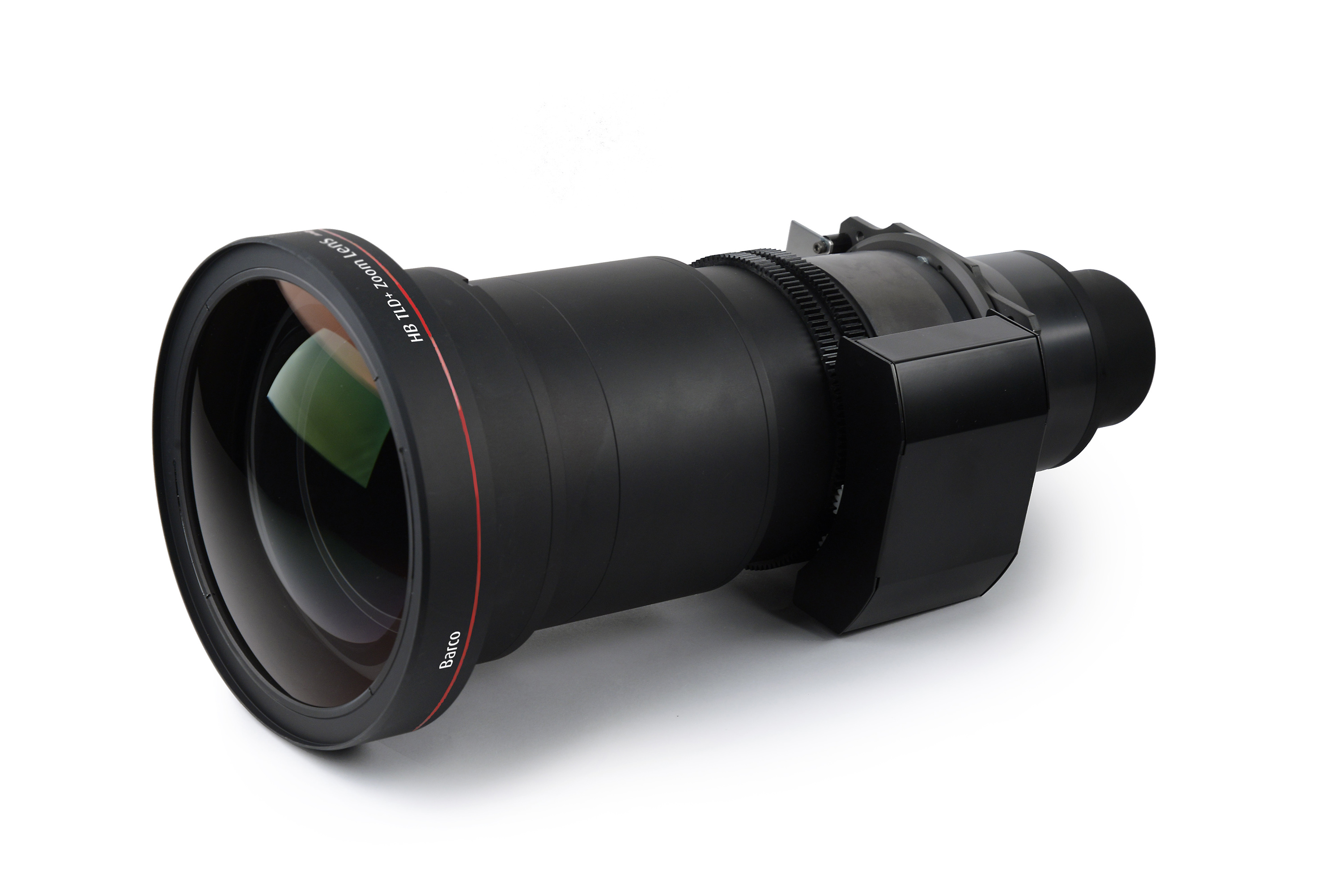

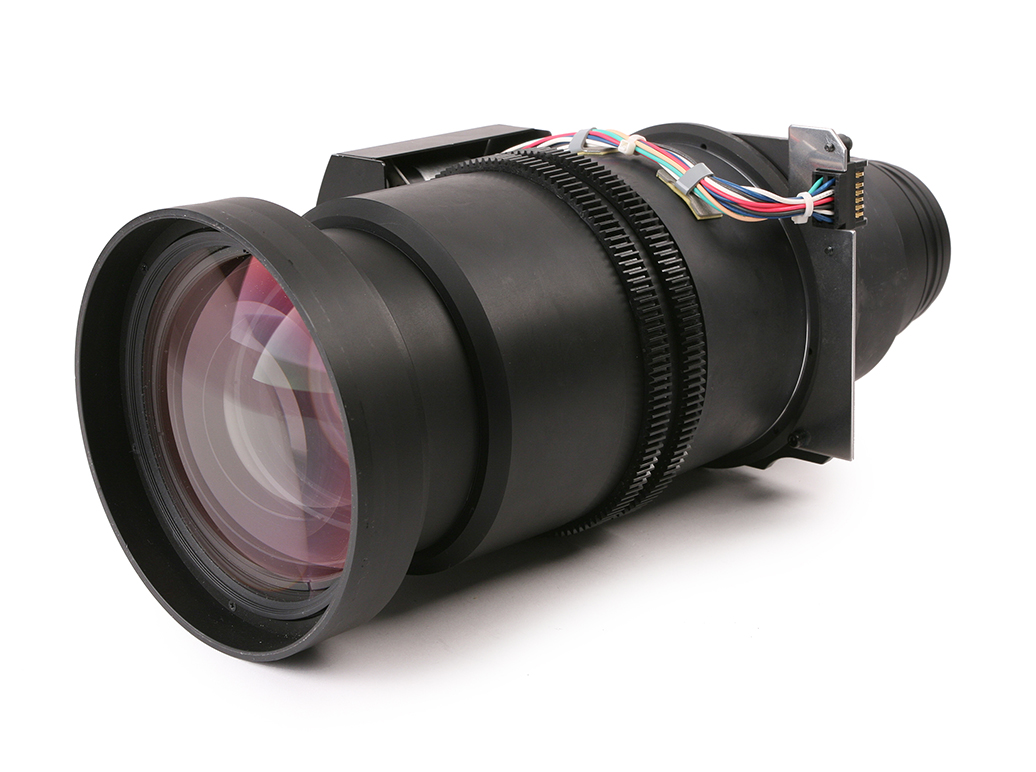

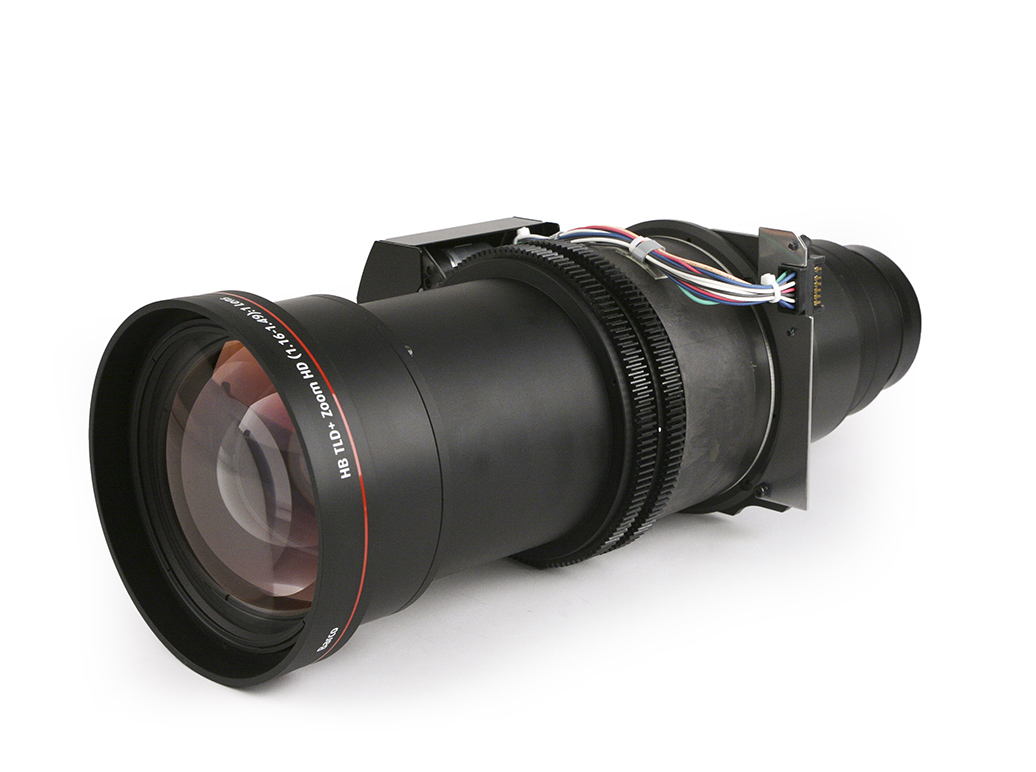

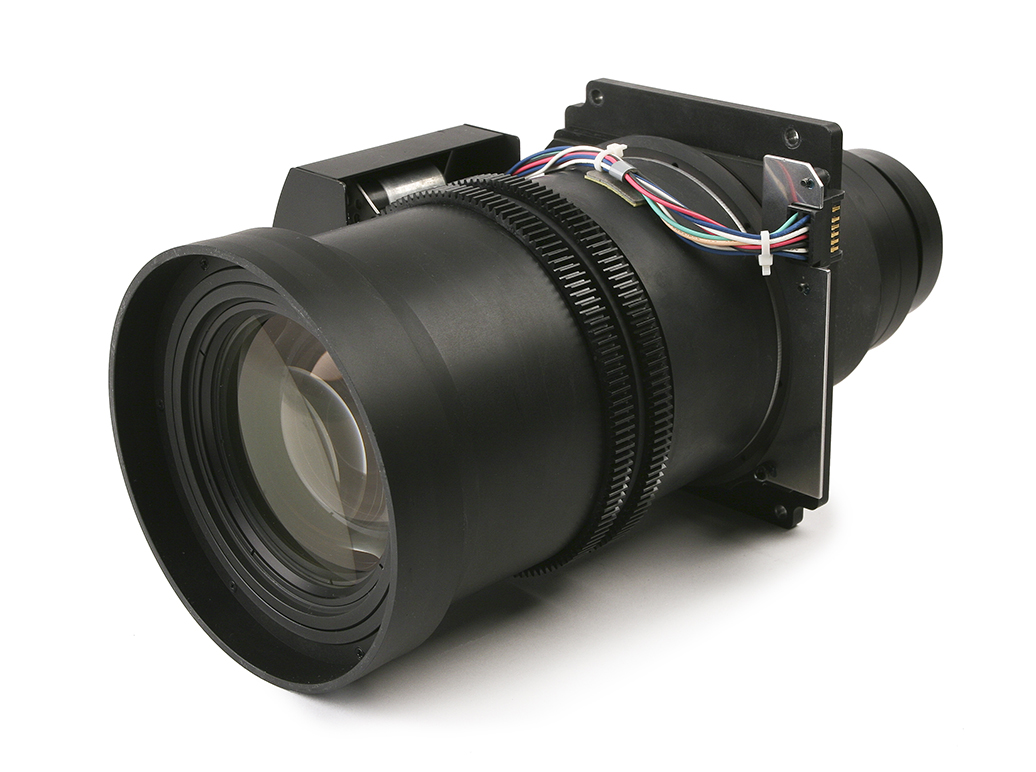

  TLD+ Ultra (0.8-1.16:1 WUXGA) (0.86-1.25:1 SXGA+)




  Article number：R9801414





•

  TLD+ Ultra (1.16-1.49:1 WUXGA) (1.25-1.6:1 SXGA+)




  Article number：R9862005





•

  TLD+ (1.39 - 1.87:1 WUXGA) (1.5 - 2.0:1 SXGA+)




  Article number：R9862010





•

  TLD+ (1.87 - 2.56:1 WUXGA) (2.0 - 2.8:1 SXGA+)




  Article number：R9862020





•

  TLD+ (2.56 - 4.17:1 WUXGA) (2.8 - 4.5:1 SXGA+)




  Article number：R9862030





•

  TLD+ (4.17 - 6.95:1 WUXGA) (4.5 - 7.5:1 SXGA+)




  Article number：R9862040





•

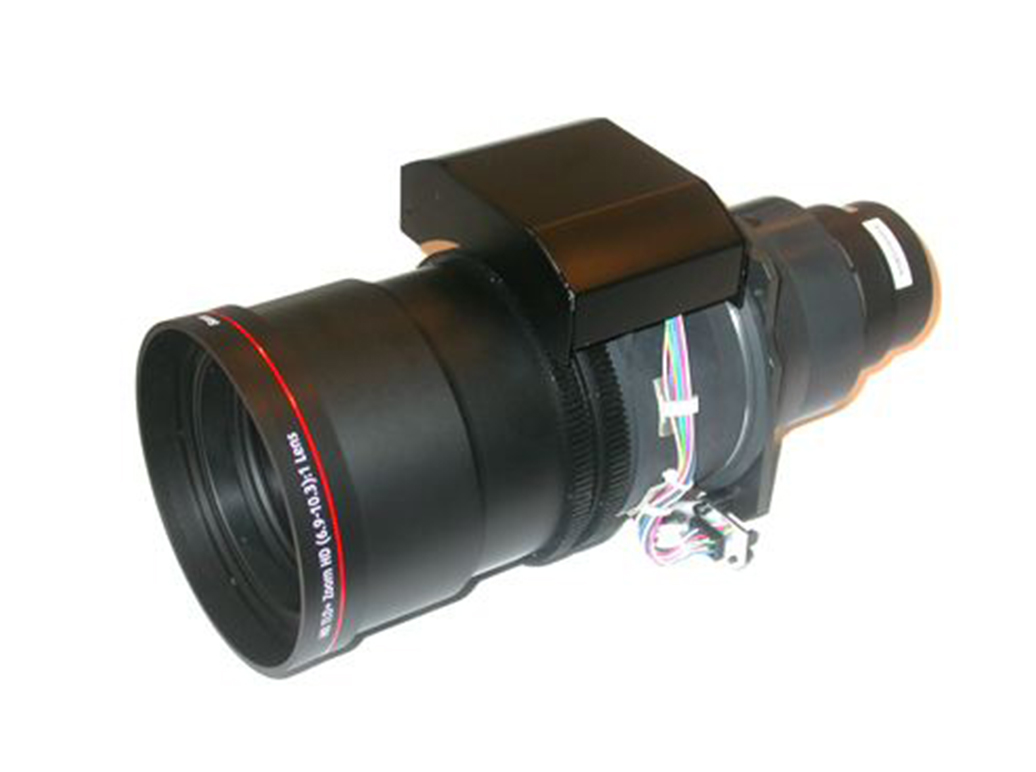

  TLD+ (6.93 - 10.3:1 WUXGA) (7.5 - 11.2:1 SXGA+)




  Article number：R9829997






Product Manual

• HDX-4K12.pdf
