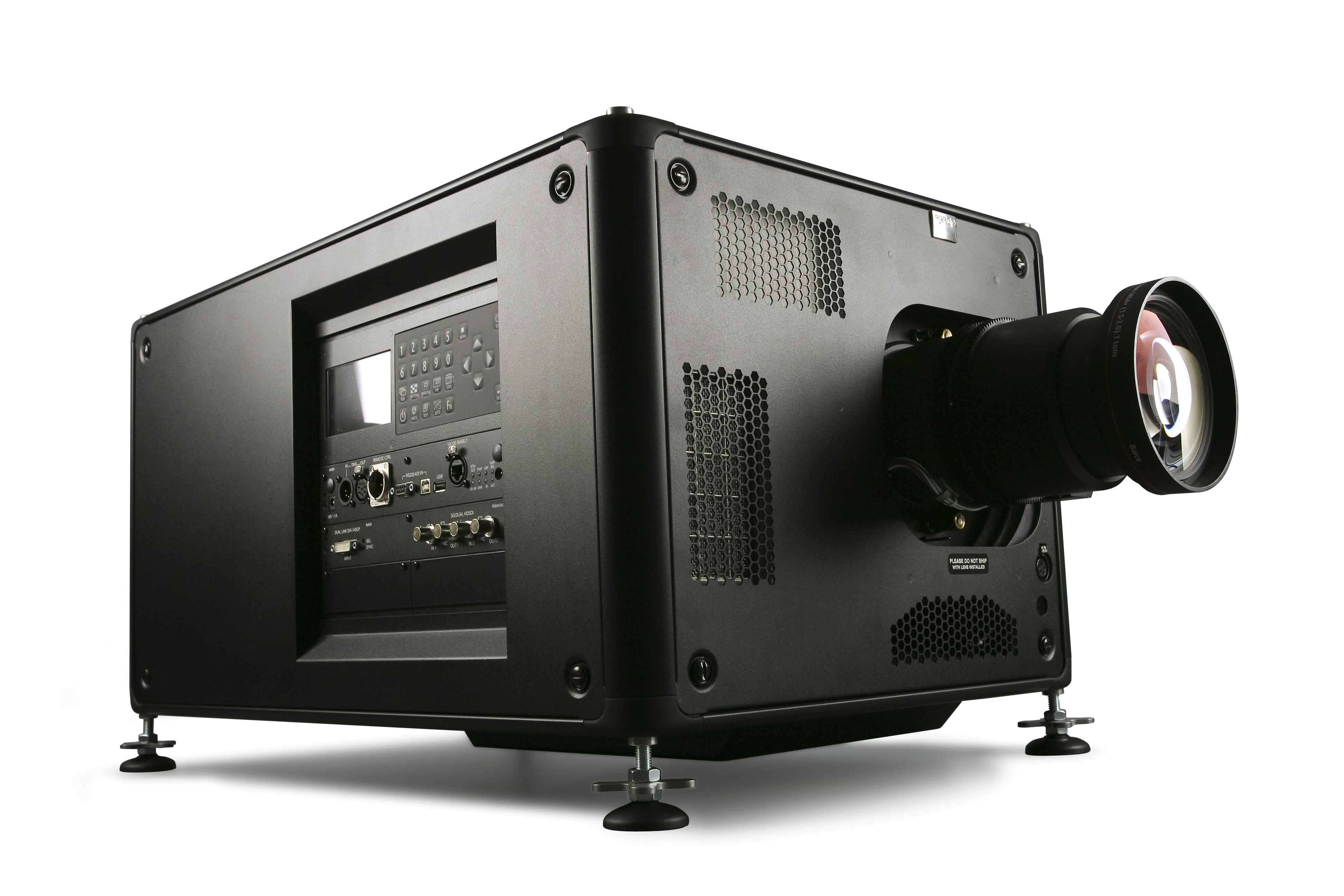

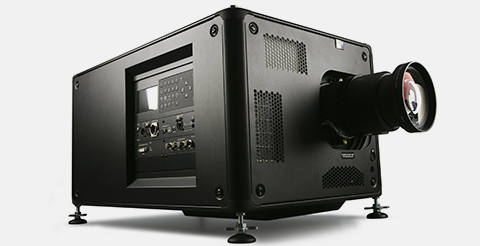

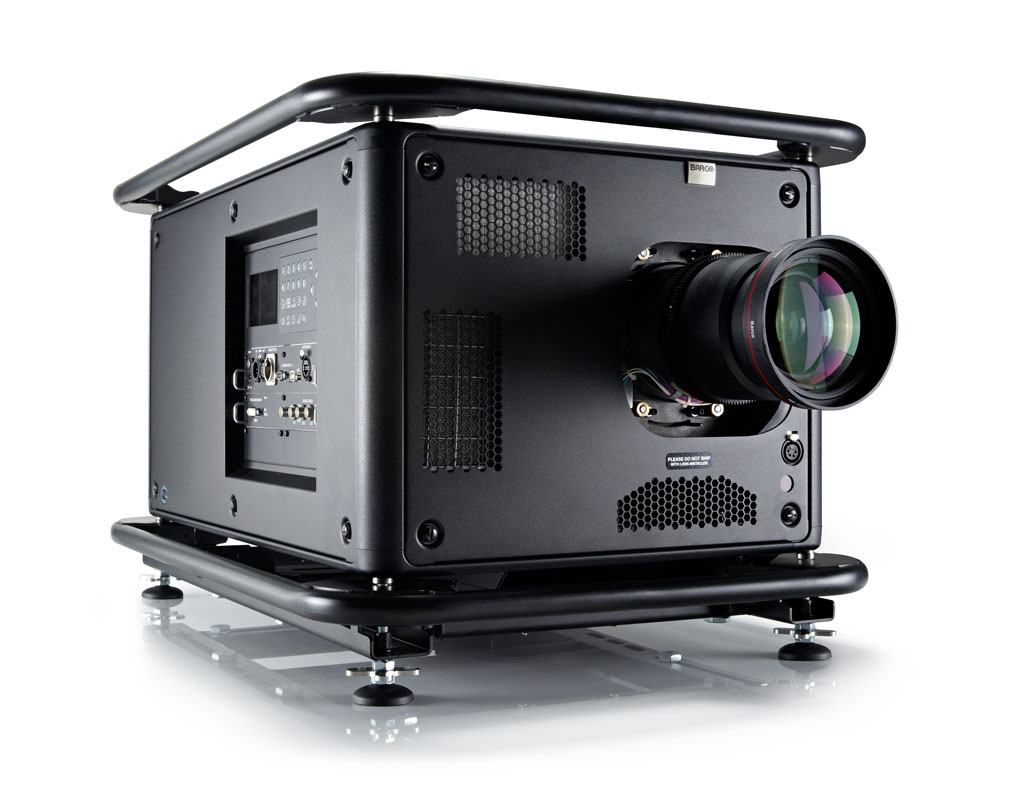

With the HDX series, Barco brings its expertise in 3D projection to events. The HDX-W14 combines active 3D and both wired and wireless control options in one unit. The success of the FLM event projectors have added considerably to the design of the HDX projector, while it also shares image processing and AthenaTM scaling technology with Barco's benchmark image processing hardware. Its sturdy, compact design allows the HDX-W14 to be ready for the road in no time, while its 14,000 lumens light output and 3-chip DLP color quality ensure crisp, vivid imagery on any screen.

Quick preview and wireless control

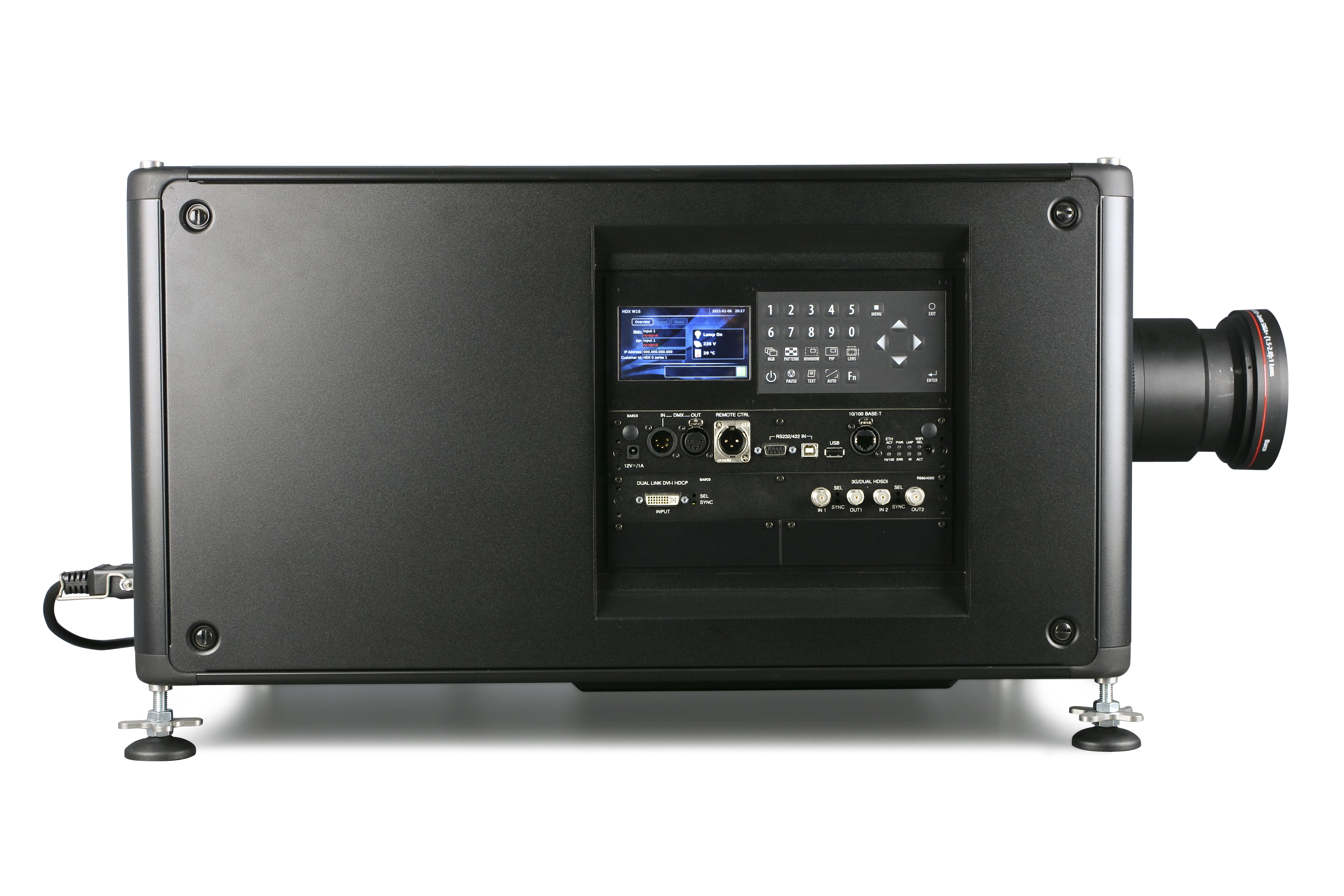

The HDX's built-in color LCD screen provides you with all the information you need on your projector's status, and allows you to preview your connected sources. The projector has a native 3G HDSDI/SDI input, which makes it compatible with progressive sources over a single BNC cable. In addition, it offers quick and wireless control via smart phones and tablet computers.

Simple setup and maintenance

Barco designed the HDX-W14 with efficiency and quick setup in mind. Its features just five building blocks that can be removed and replaced quickly, so that time spent servicing the projector is kept to a bare minimum. In addition, it can easily be boxed, shipped and fits into standard flight cases.

Fast signal distribution

Our proprietary BarcoLink technology guarantees swift signal distribution between Barco’s projectors and image processors. With BarcoLink, signals are distributed over a BNC coax cable, which is not only more durable but also enables you to lower your costs.

Barco's HDX series won an InAVation Award for Most InAVative Commercial Projector.

• Projector type

  WUXGA 3-chip DLP digital projector

• Technology

  0.96" DMD x3

• Color wheel

  6S standard (RGBYCW)

• Resolution

  1920 x 1200 (WUXGA)

• Brightness

  13,000 ANSI lumens / 14,000 center lumens*

• Contrast ratio

  1,850:1 (standard) / 2,600:1 (high contrast mode)

• Brightness uniformity

  90% (standard)

• Aspect ratio

  16:10

• ScenergiX

  Horizontal and vertical edge blending

• Lens type

  TLD+

• Lens range

  0.73:1；1.2:1；0.8-1.16；1.16-1.5:1；1.5-2.0:1；2.0-2.8:1；2.8-4.5:1；4.5-7.5:1；7.5-11.5:1

• Lenses

  0.73:1；1.2:1；0.8-1.16；1.16-1.5:1；1.5-2.0:1；2.0-2.8:1；2.8-4.5:1；4.5-7.5:1；7.5-11.5:1

• Optical lens shift

  Vertical: -30% to +120% / Horizontal: -40% to +40% on zoom lenses (memorized)

• Color correction

  P7

• CLO(constant light output)

  /

• Light source

  2.5kW xenon

• Light source lifetime

  1.750 hours

• Lamp house, quick replace

  Yes

• Lamp warranty

  90 days, 500 hours / pro rata 750 hours

• Transport with lamp

  Yes

• Customer bulb replace

  Yes

• Sealed DLP™ core

  Standard

• Optical dowser

  Standard

• Advance Picture in Picture

  Up to two sources on-screen simultaneously

• Orientation

  table - ceiling - side (portrait)* - vertical * lamp door down/bottom

• DMX 512

  Standard

• WARP

  Direct adjust OSD + toolset

• Integrated web server

  Yes

• 3D

  active eyewear (optional), passive Infitec (optional), passive circular (optional), triple flash up to 200Hz

• Image processing

  Embedded warp & blend engine

• Outputs

  DVI - I (HDCP including analog RGB YUV), SDI/HDSDI/dual HDSDI/3G/BarcoLink

• Input resolutions

  from NTSC up to QXGA (2,048 x 1,536)

• Max. pixel clock

  200MHz

• Software tools

  Projection Toolset + Android app + iOS app

• Control

  - XLR wired, IR, RS-232, DMX512 in/out, integrated web browser, Projection Toolset - optional control over WiFi and GSM/mobile

• Network connection

  10/100 Mb/s Ethernet (on RJ45), WiFi

• Power requirements

  200-240 VAC/50-60 Hz

• Max. power consumption

  2,600 W / STBY

• BTU per hour

  Max 6,000 BTU/h

• Dissipation BTU

  max. 8,871 BTU/h

• Noise level (typical at 25°C/77°F)

  50 dB(A)

• Operating temperature

  0 ~ 40°C / 32 ~ 104°F

• Operating humidity

  -20 - 60 °C

• Storage temperature

  0 - 80%

• Storage temperature

  10 - 90%RH

• Dimensions (WxLxH)

  475 x 725 x 382 mm (18.7"” x 28.54" x 14.96")

• Weight

  50kg (110lbs)

• Standard accessories

  Power cord wireless/XLR wired rugged remote control

• Shipping dimensions (WxLxH)

  (LxWxH) 900 x 650 x 560 mm (35.43" x 25.59" x 22.04")

• Shipping Weight from Factory

  41.5 kg (91.49 lbs)

• Certifications

  Compliant with UL60950-1 and EN60950-1, complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS

• Warranty

  3 years standard, extendable up to 5 years

• 24-7documentation

  This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

•

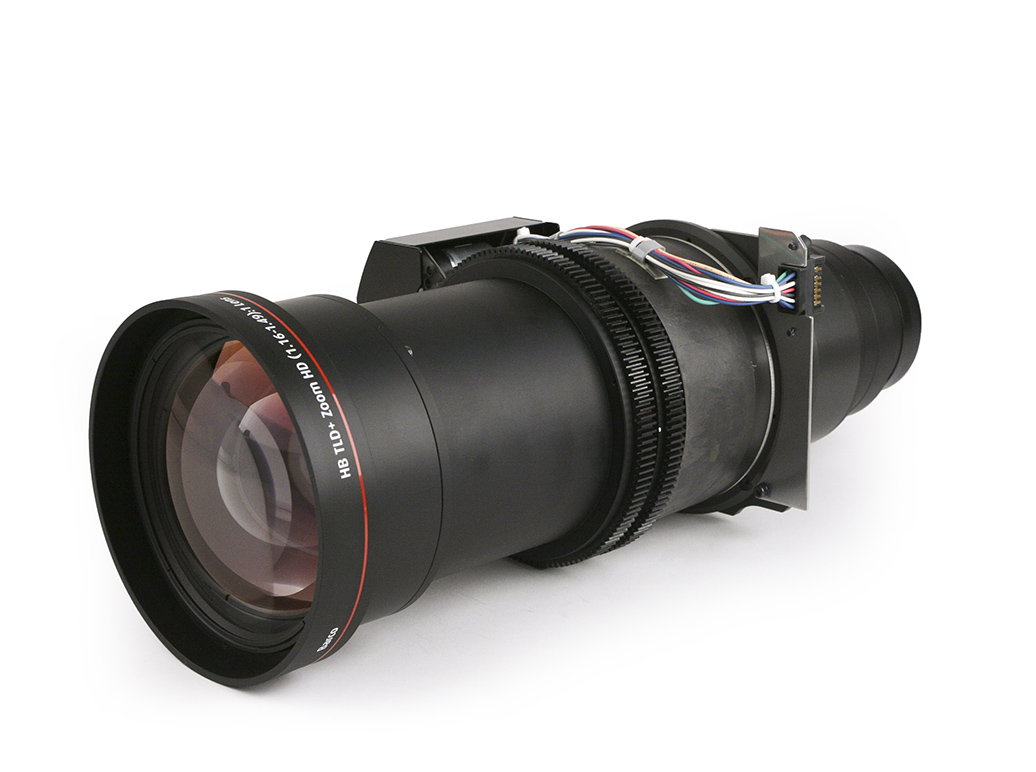

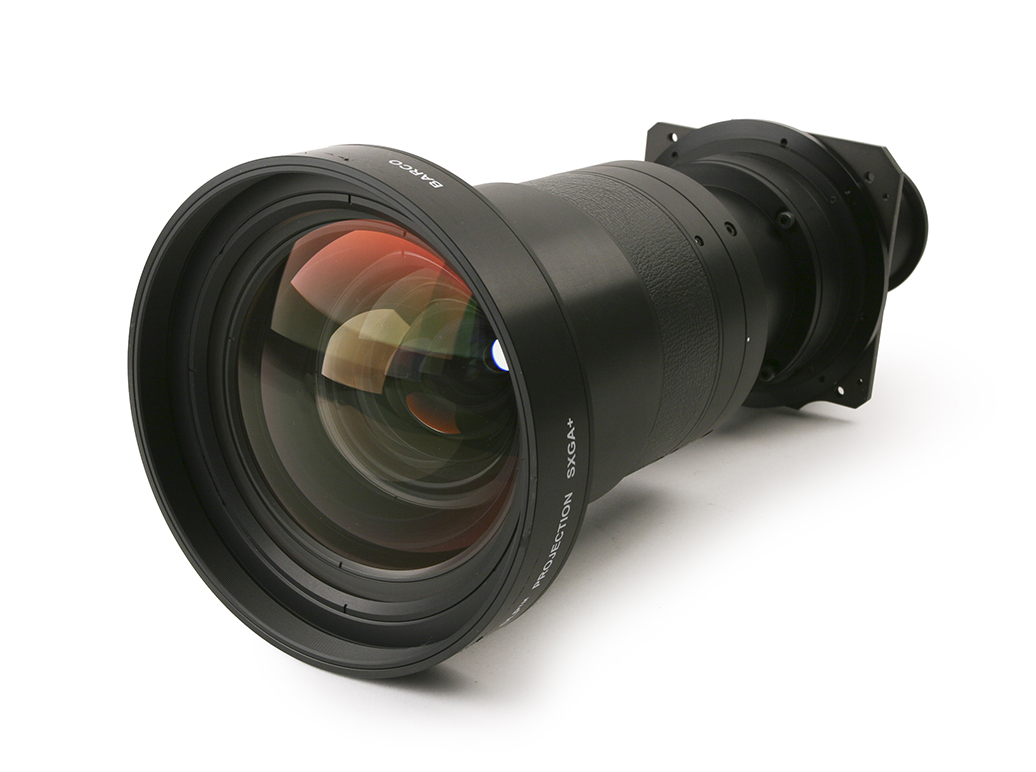

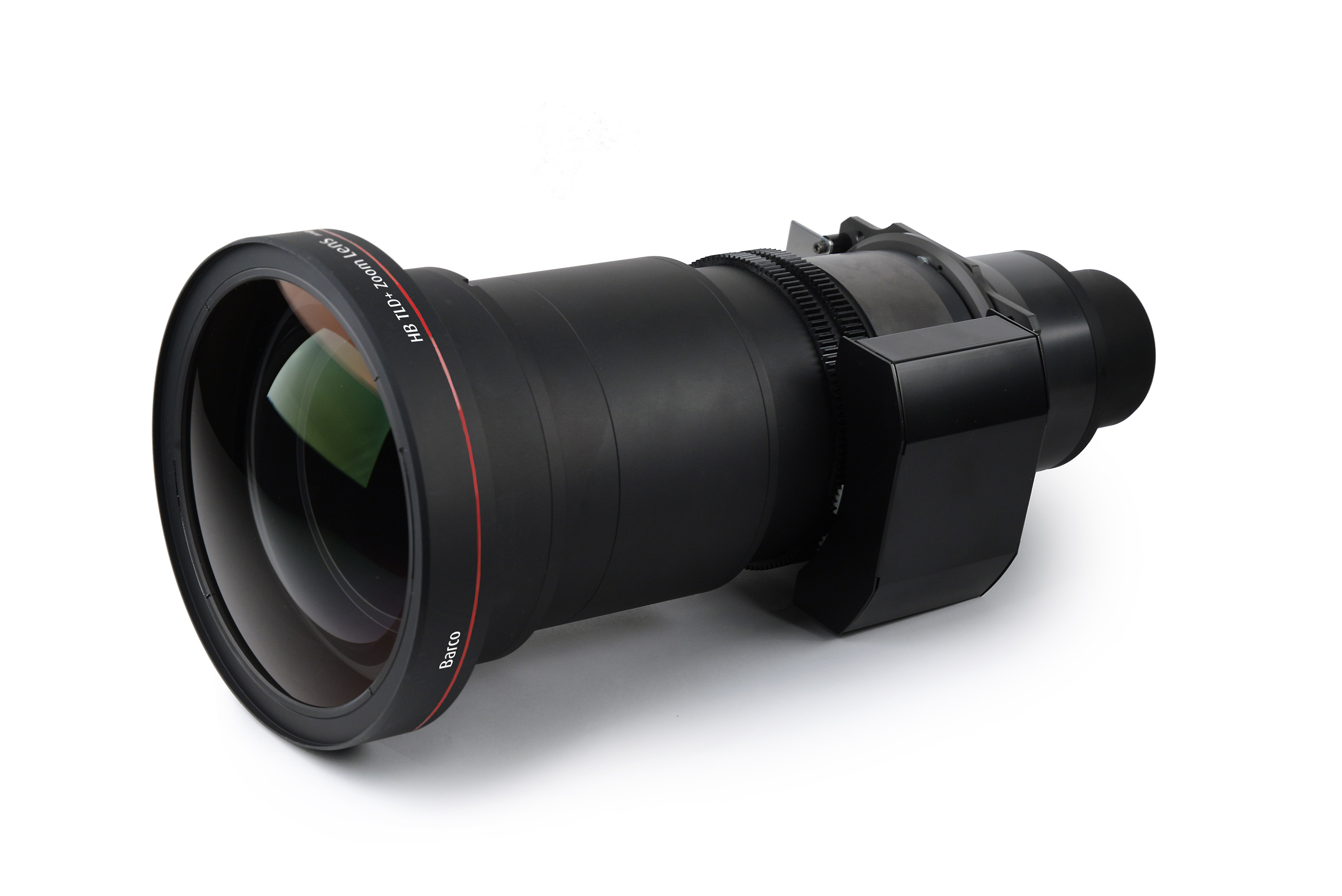

  TLD+ (0.67:1 WUXGA) (0.73:1 SXGA+)




  Article number：R9862000





•

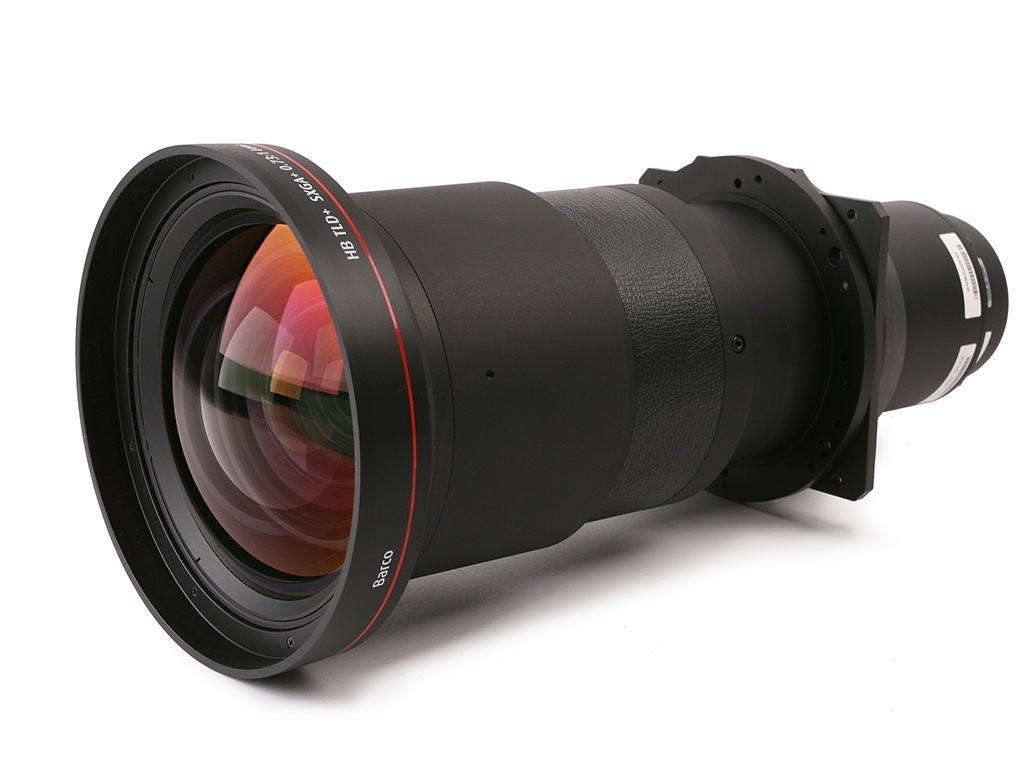

  TLD+ Ultra (0.8-1.16:1 WUXGA) (0.86-1.25:1 SXGA+)




  Article number：R9801414





•

  TLD+ (1.14:1 WUXGA) (1.23:1 SXGA+)




  Article number：R9840775





•

  TLD+ Ultra (1.16-1.49:1 WUXGA) (1.25-1.6:1 SXGA+)




  Article number：R9862005





•

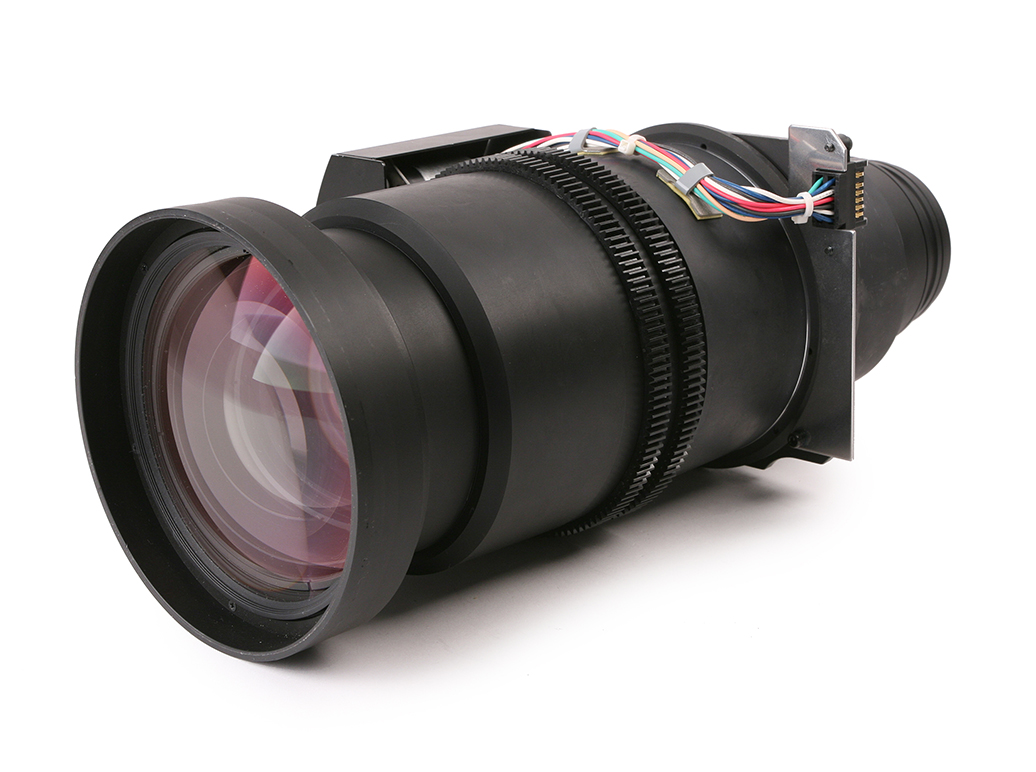

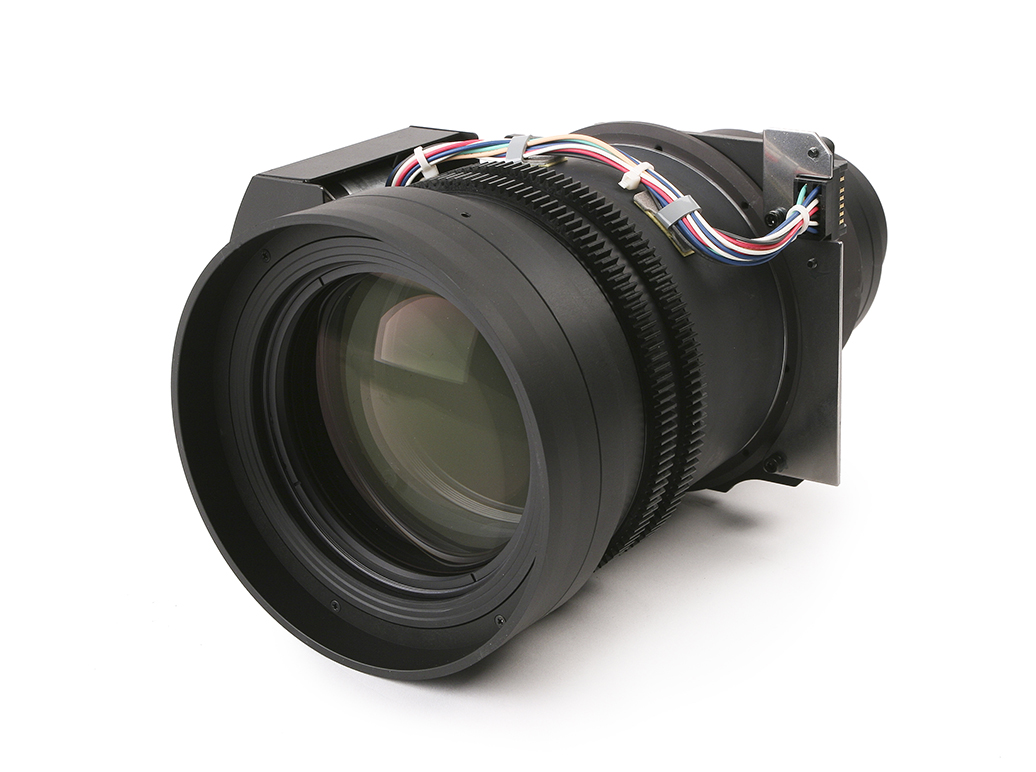

  TLD+ (1.39 - 1.87:1 WUXGA) (1.5 - 2.0:1 SXGA+)




  Article number：R9862010





•

  TLD+ (1.87 - 2.56:1 WUXGA) (2.0 - 2.8:1 SXGA+)




  Article number：R9862020





•

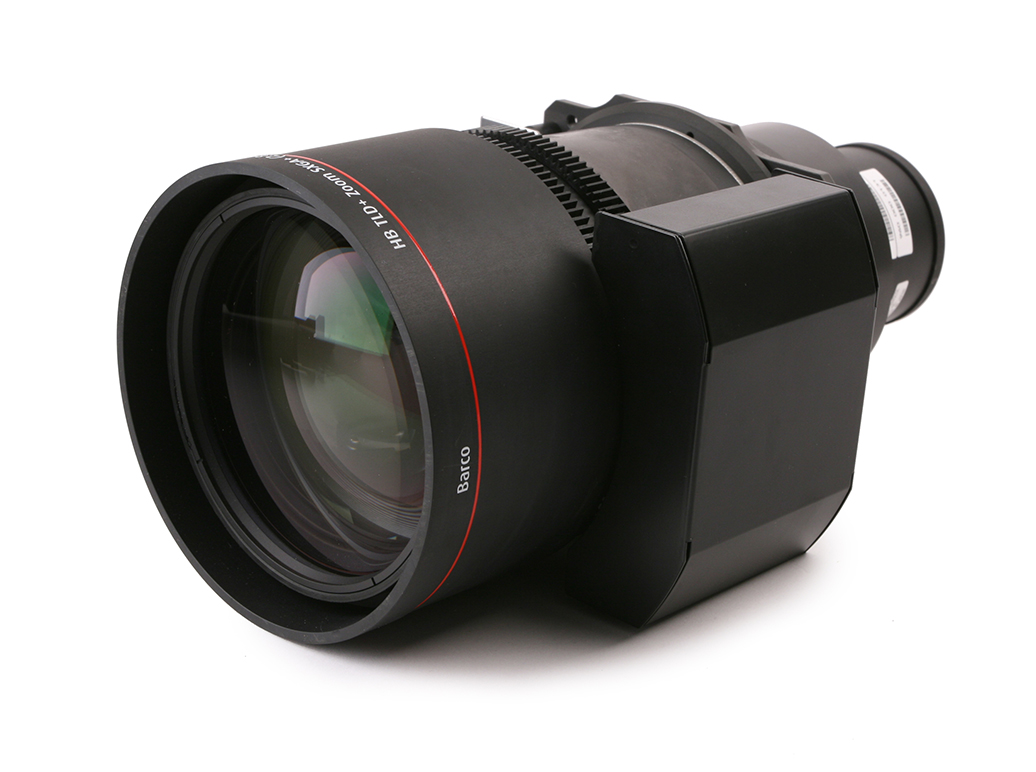

  TLD+ (2.56 - 4.17:1 WUXGA) (2.8 - 4.5:1 SXGA+)




  Article number：R9862030





•

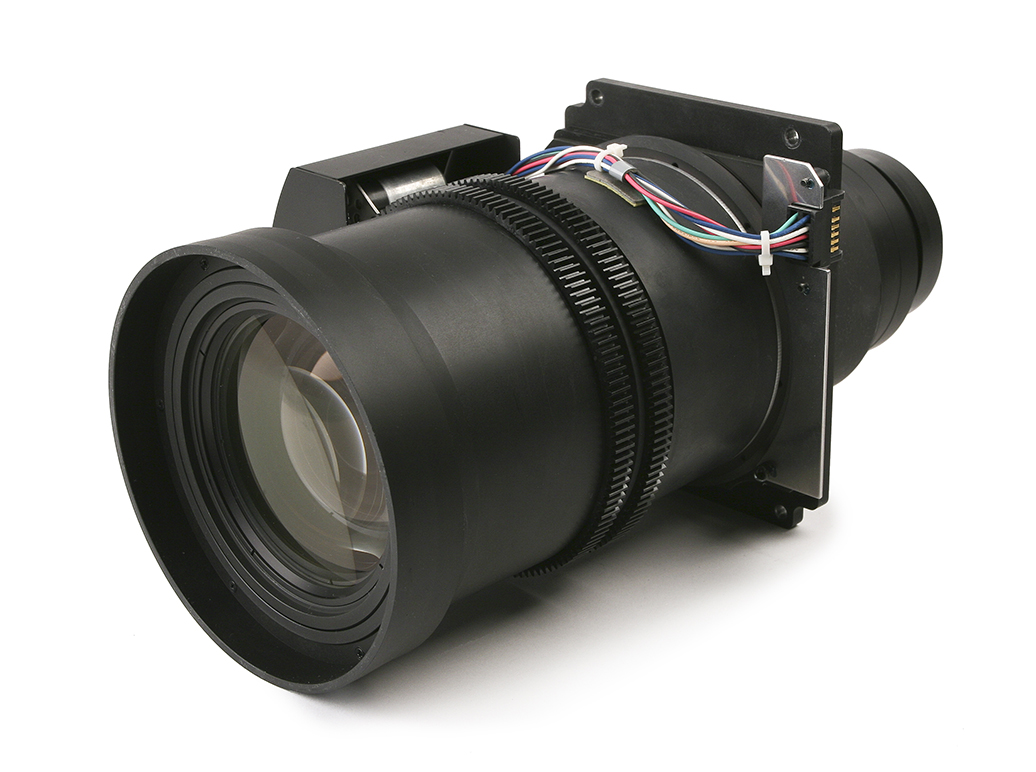

  TLD+ (4.17 - 6.95:1 WUXGA) (4.5 - 7.5:1 SXGA+)




  Article number：R9862040





•

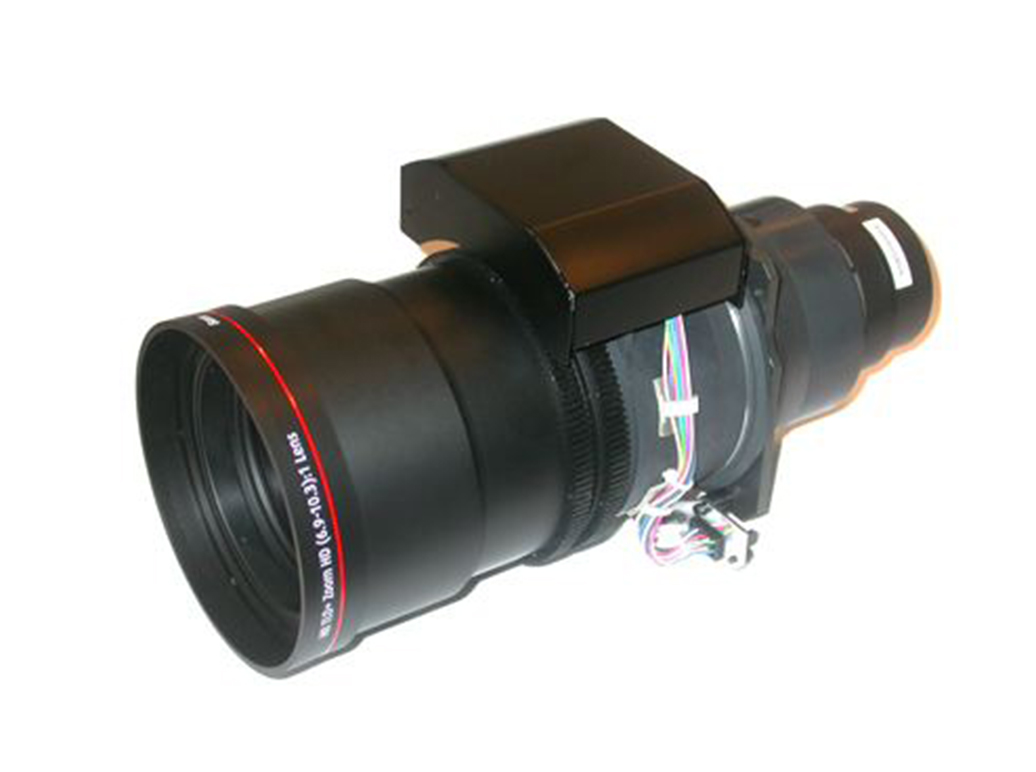

  TLD+ (6.93 - 10.3:1 WUXGA) (7.5 - 11.2:1 SXGA+)




  Article number：R9829997






Product Manual

• HDX-W14.pdf

  1970-01-01
