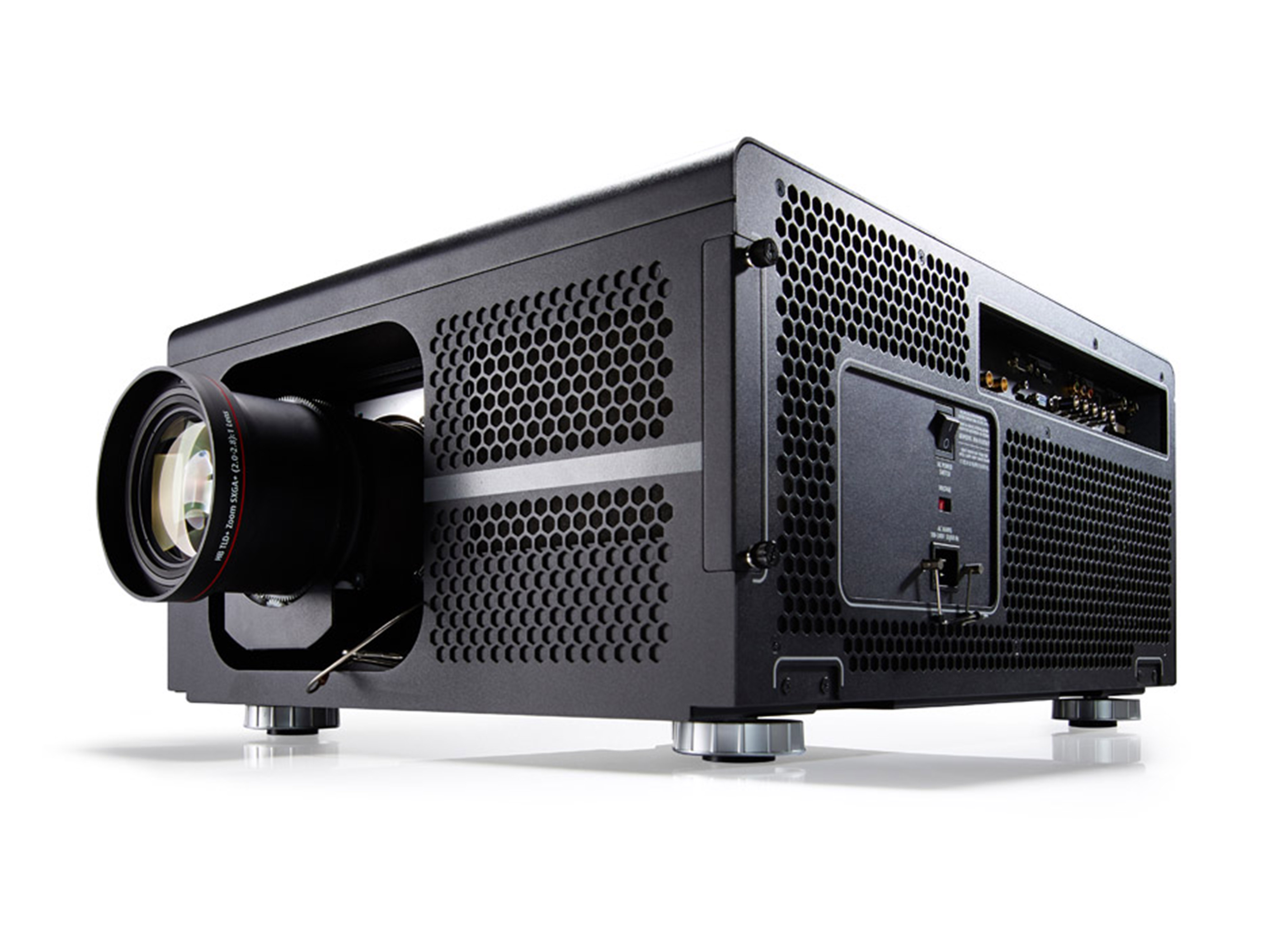

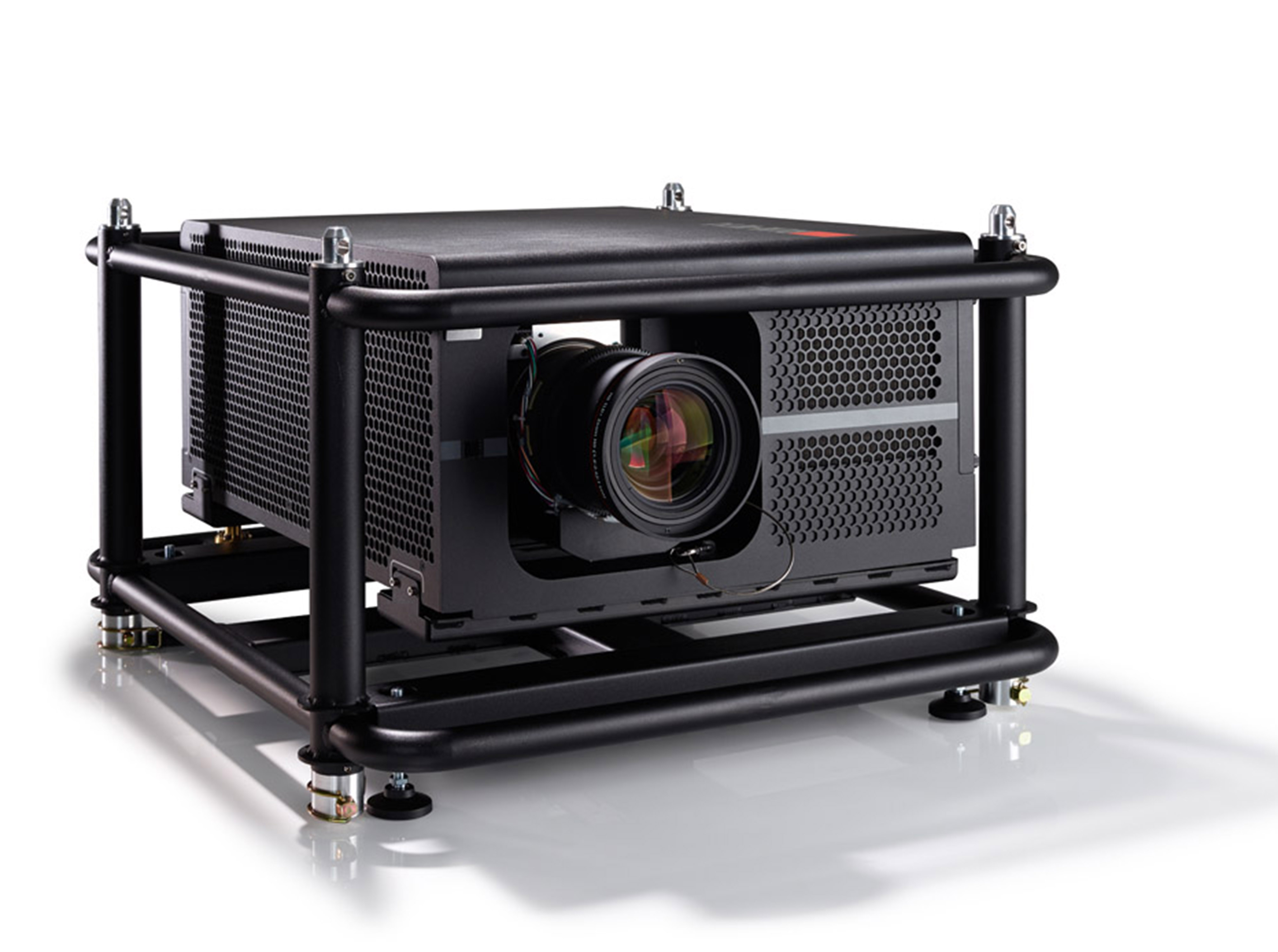

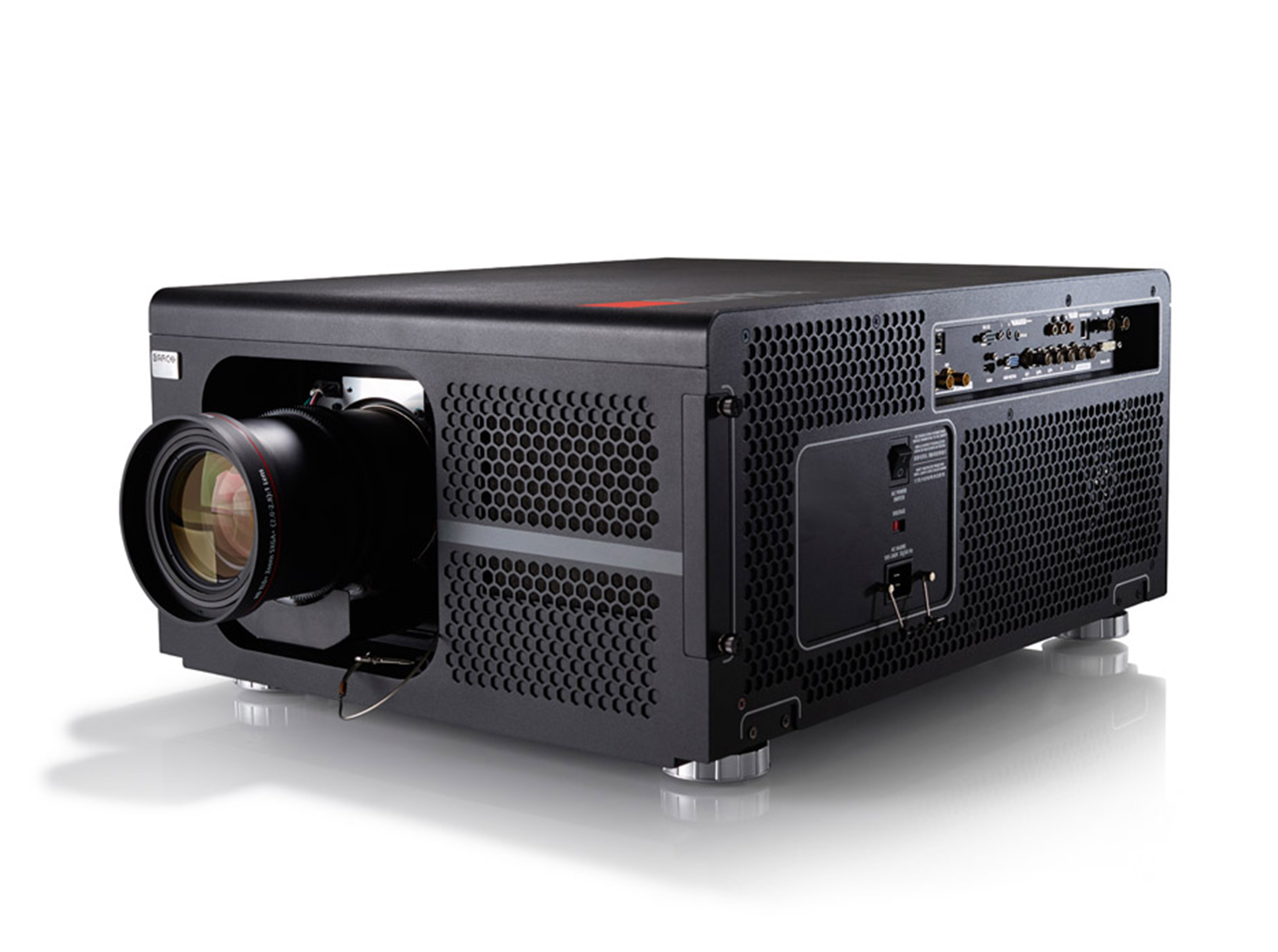

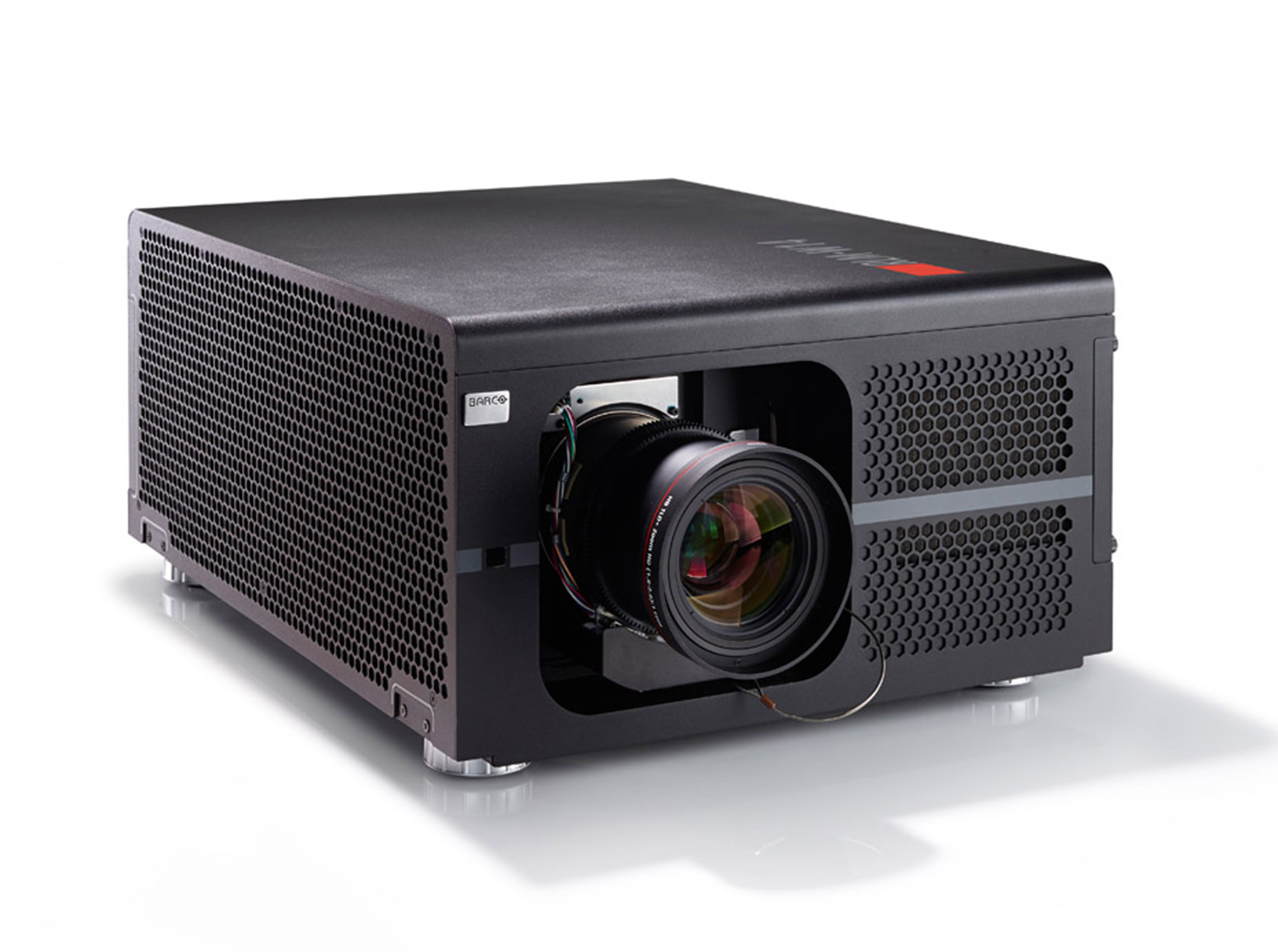

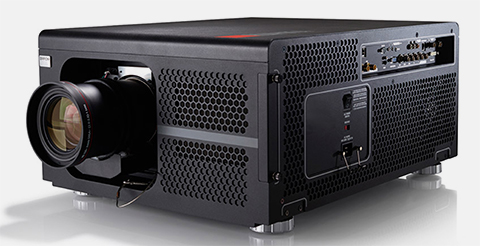

Featuring a stylish projector design with a very stable lens mount, the RLM-W14 offers Active Stereo 3D and provides video over a single Cat 5 cable (HDBaseTTM). It is designed for fixed installation in museums, theaters, houses of worship, hotels, lecture halls or conference auditoriums; but its extended warping and blending, rugged chassis and optional rental frame make it equally suited for the rental market as well.

Video over a single Cat 5 cable

Supporting point-to-point transmission of video signals – up to WUXGA (1,920 x 1,200) at 60 Hz – from a source converter to a projector over a single Cat 5 cable, the RLM-W14’s HDBaseTTM technology takes away the need for multiple cables and connectors, leading to more simplicity and lower costs.

Stunning images

Geared with three-chip DLP technology, the high-brightness RLM-W14 generates crisp and stable images with rich contrast and sensational colors. It also features a DICOM simulated mode that guarantees accurate grayscales and highly detailed images – key requirements for medical training.

Rugged design

Operating on a voltage of 110V - 240V, the RLM-W14 is a rugged projector that reduces noise and power consumption. Moreover, its TLD lenses are compatible with the RLM-W12, HDX and HDF projectors. It’s also standard equipped with BarcoLink, allowing native WUXGA @60 Hz signals to be transmitted between the Barco image processors and projectors via a single BNC cable, for simple and reliable signal distribution.

• Projector type

  WUXGA 3-chip DLP digital projector

• Technology

  0.96" DMD™ x3

• Color wheel

  6S standard (RGBYCW)

• Resolution

  1920 x 1200

• Brightness

  14,500 center / 13,500 ANSI lumens*

• Contrast ratio

  1,650:1 (standard) / 2,400:1 (CE)

• Brightness uniformity

  90%

• Aspect ratio

  16:10

• ScenergiX

  Horizontal and vertical edge blending

• Lens type

  TLD+

• Lenses

  0.73:1；1.2:1；0.8-1.16；1.16-1.5:1；1.5-2.0:1；2.0-2.8:1；2.8-4.5:1；4.5-7.5:1；7.5-11.5:1

• Optical lens shift

  Vertical: -70% to +130% / Horizontal: +/-30% on zoom lenses memorized

• Color correction

  P7

• CLO(constant light output)

  /

• Light source

  2x465W

• Light source lifetime

  2,000 hours (typical) / 2,500 hours (maximum)

• Lamp house, quick replace

  Yes, auto lamp select

• Lamp warranty

  120 days, 500 hours

• Transport with lamp

  Yes

• Sealed DLP™ core

  Standard

• Optical dowser

  Standard

• Advance Picture in Picture

  Up to two sources simultaneously

• Orientation

  table - ceiling

• WARP

  preset values + custom (RS232)

• Integrated web server

  Yes

• 3D

  Dual link DVI with sync in /out BNC

• Image processing

  Embedded warp & blend engine

• Outputs

  HDMI (HDCP 1,3) HDBase-T 5-BNC (RGBHV, RGBS/RGBsBYUV) VGA (RGBHV, RGBS/RGBsBYUV) cinch (RGBs, YUV) HSDI/ 3G HDSDI /SDI 3D DUAL LINK DVI

• Input resolutions

  From NTSC up to UXGA (1,600 x 1,200), including HDTV (1,920 x 1,200)

• Max. pixel clock

  165Mhz up to 200Mhz

• Software tools

  Projection Toolset + Android app + iOS app

• Control

  Mini-jack + IR, RS232, 12v trigger

• Network connection

  10/100 base-T, RJ-45 connection, Wifi (optional)

• Power requirements

  90-240V / 50-60Hz - 1,140W @ 240V, 1,230W @ 110V, STBY less than 2W

• Max. power consumption

  580 W

• BTU per hour

  Max 6,000 BTU/h

• Dissipation BTU

  max 4,131 BTU/h

• Noise level (typical at 25°C/77°F)

  46 dB(A) norm, 42dB(A) eco

• Operating temperature

  0-40°C / 32°-104°F

• Operating humidity

  -20 - 60 °C

• Storage temperature

  0-85% (non condens)

• Storage temperature

  10 - 90%RH

• Dimensions (WxLxH)

  631 x 504 x 270 mm / 24.8 x 19.82 x 10.63 inches

• Weight

  33.5kg (73.8 lbs)

• Standard accessories

  Power cord, wireless remote control, HDMI to DVI adaptor

• Shipping dimensions (WxLxH)

  (LxWxH) 829 x 709 x 437 mm / 32.64 x 27.9 x 17.20 inches

• Shipping Weight from Factory

  41.5 kg (91.49 lbs)

• Certifications

  Complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, CE, TUV, RHoS, WEE

• Warranty

  3 years standard, extra 2 years optional

• 24-7documentation

  This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

•

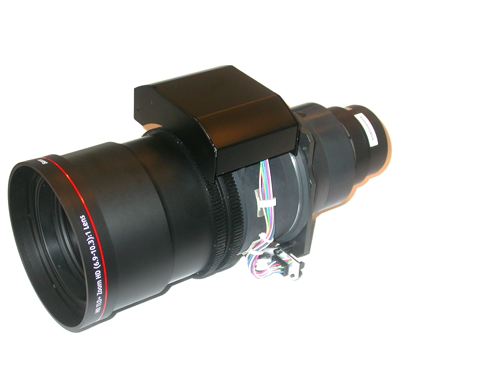

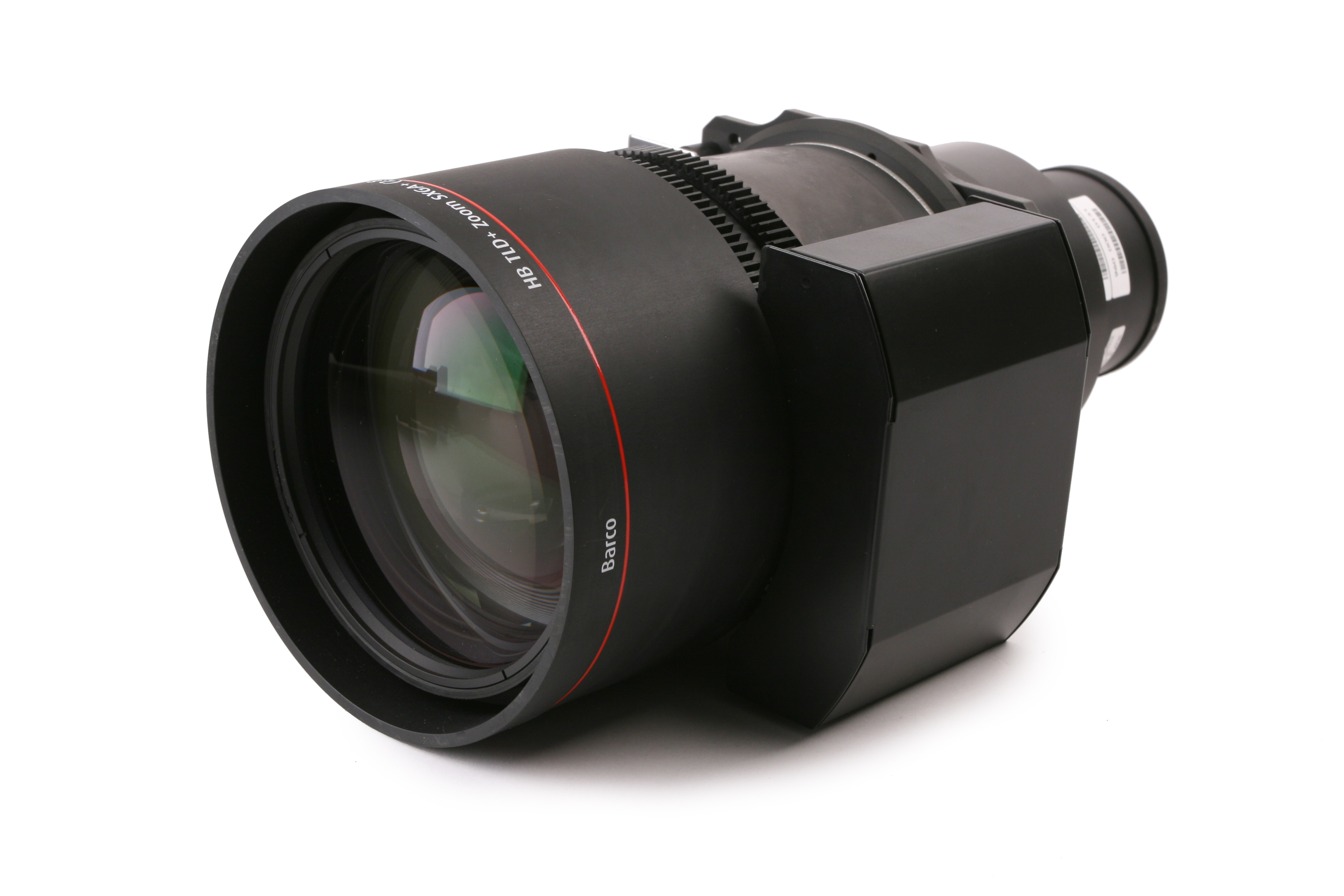

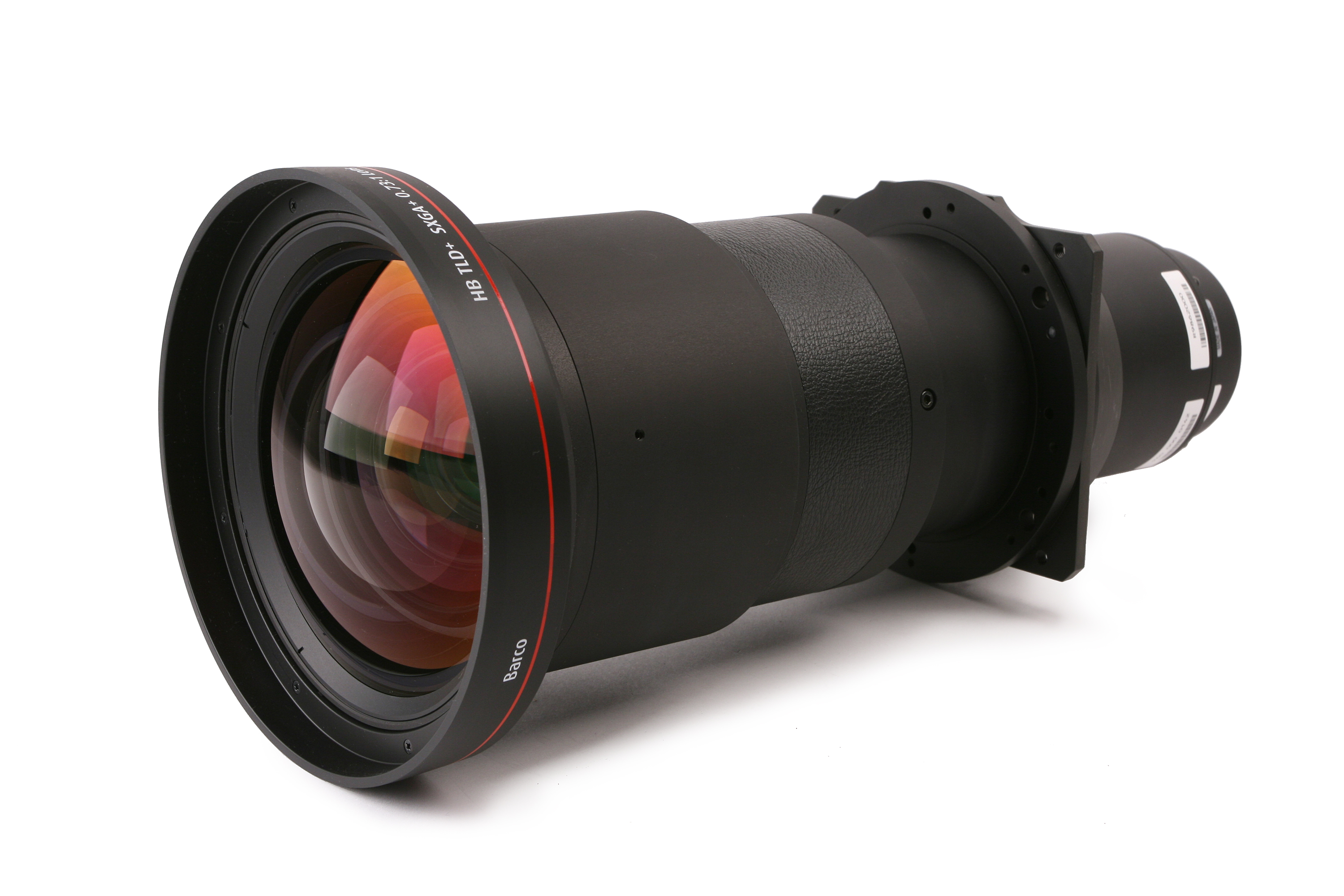

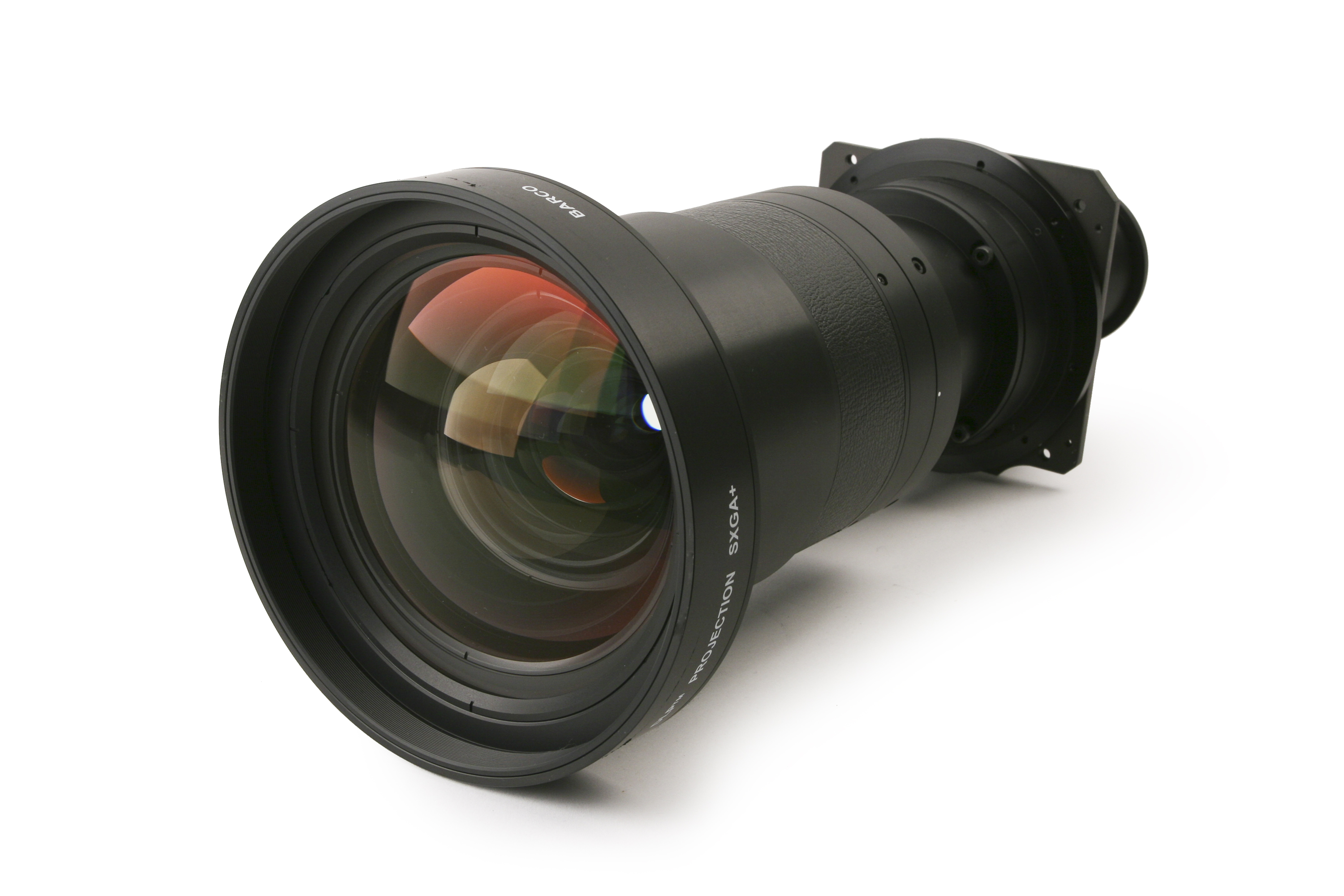

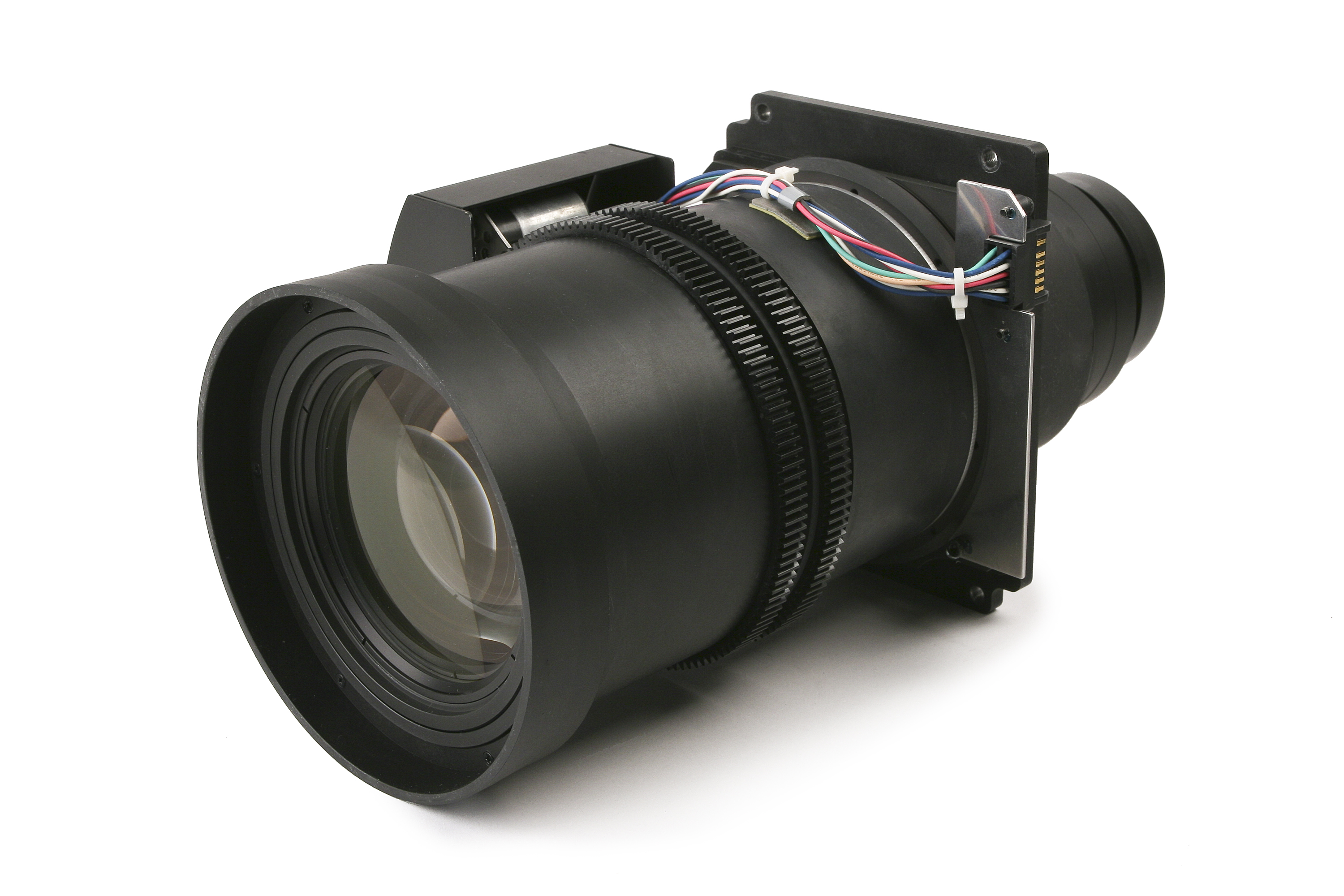

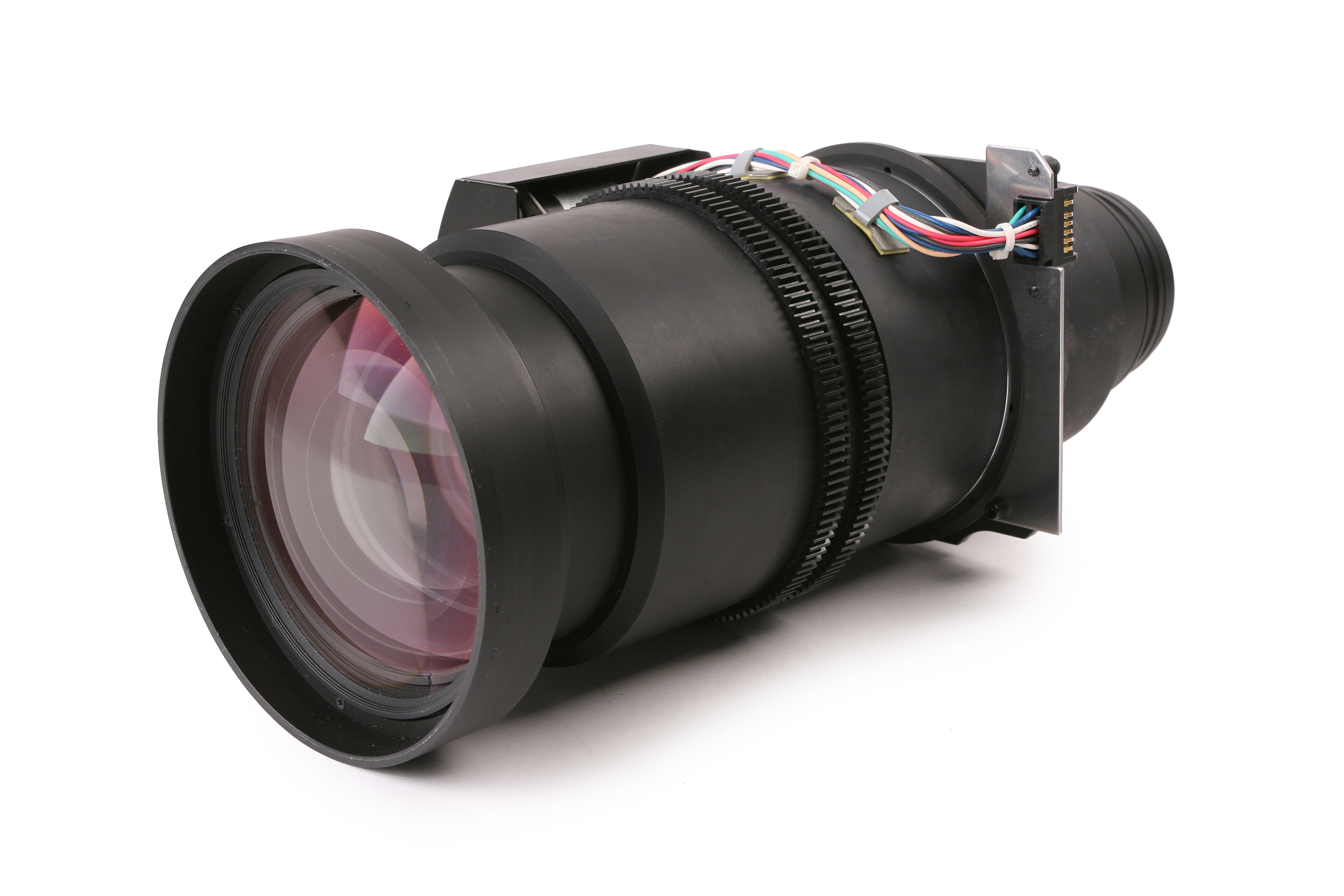

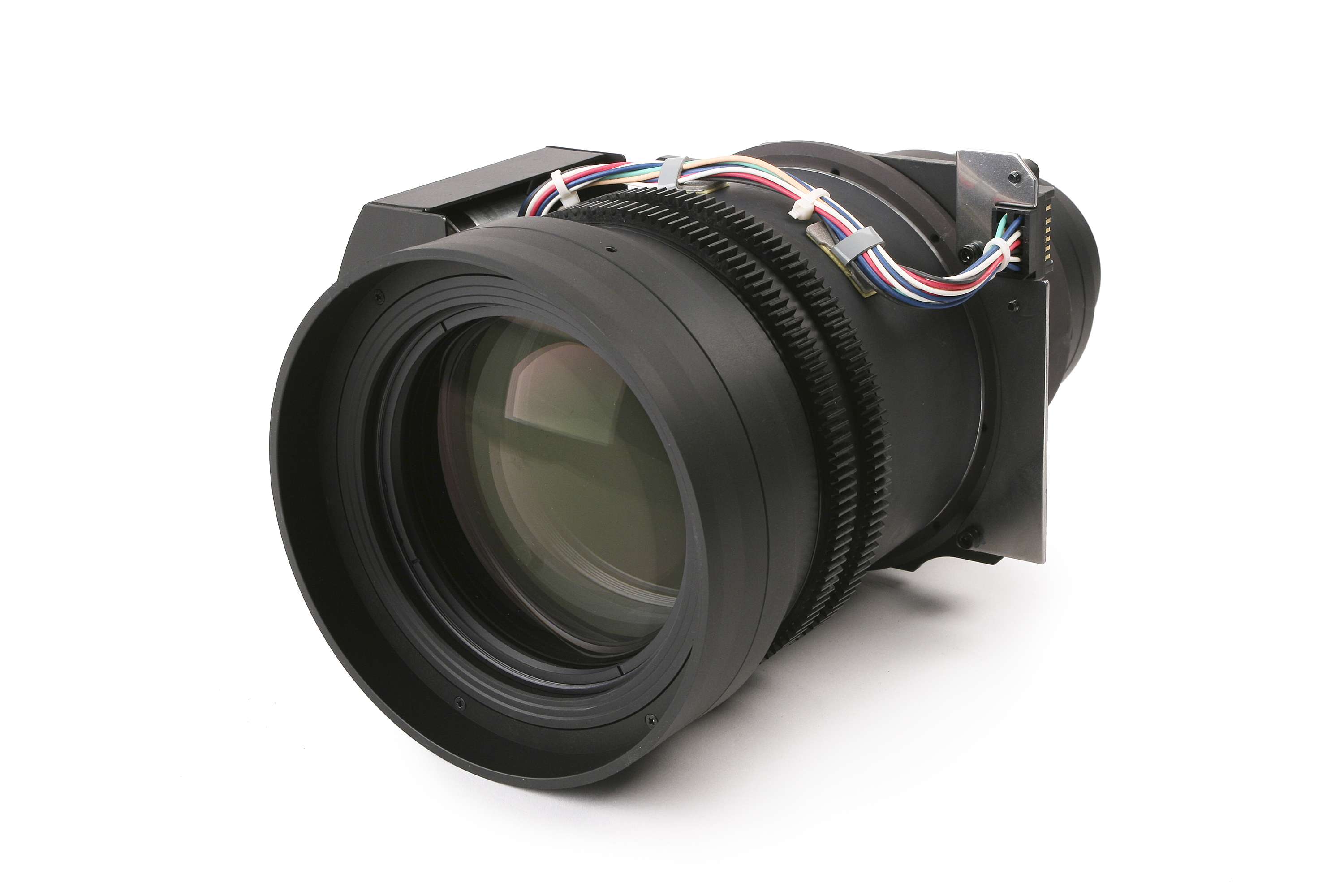

  TLD+ (0.67:1 WUXGA) (0.73:1 SXGA+)




  Article number：R9862000





•

  TLD+ (1.14:1 WUXGA) (1.23:1 SXGA+)




  Article number：R9840775





•

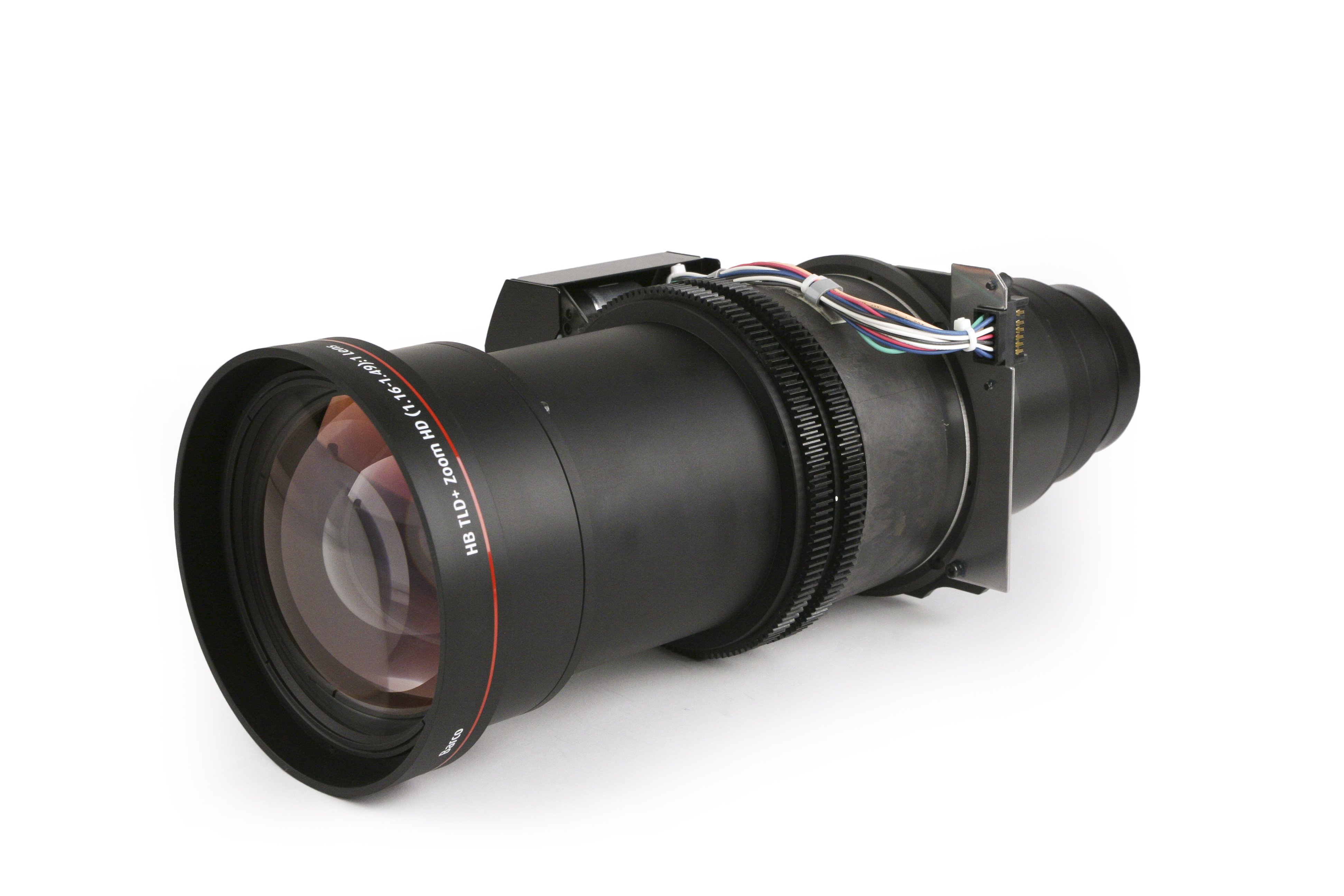

  TLD+ Ultra (1.16-1.49:1 WUXGA) (1.25-1.6:1 SXGA+)




  Article number：R9862005





•

  TLD+ (1.39 - 1.87:1 WUXGA) (1.5 - 2.0:1 SXGA+)




  Article number：R9862010





•

  TLD+ (1.87 - 2.56:1 WUXGA) (2.0 - 2.8:1 SXGA+)




  Article number：R9862020





•

  TLD+ (2.56 - 4.17:1 WUXGA) (2.8 - 4.5:1 SXGA+)




  Article number：R9862030





•

  TLD+ (4.17 - 6.95:1 WUXGA) (4.5 - 7.5:1 SXGA+)




  Article number：R9862040





•

  TLD+ (4.17 - 6.95:1 WUXGA) (4.5 - 7.5:1 SXGA+)




  Article number：R9829997
