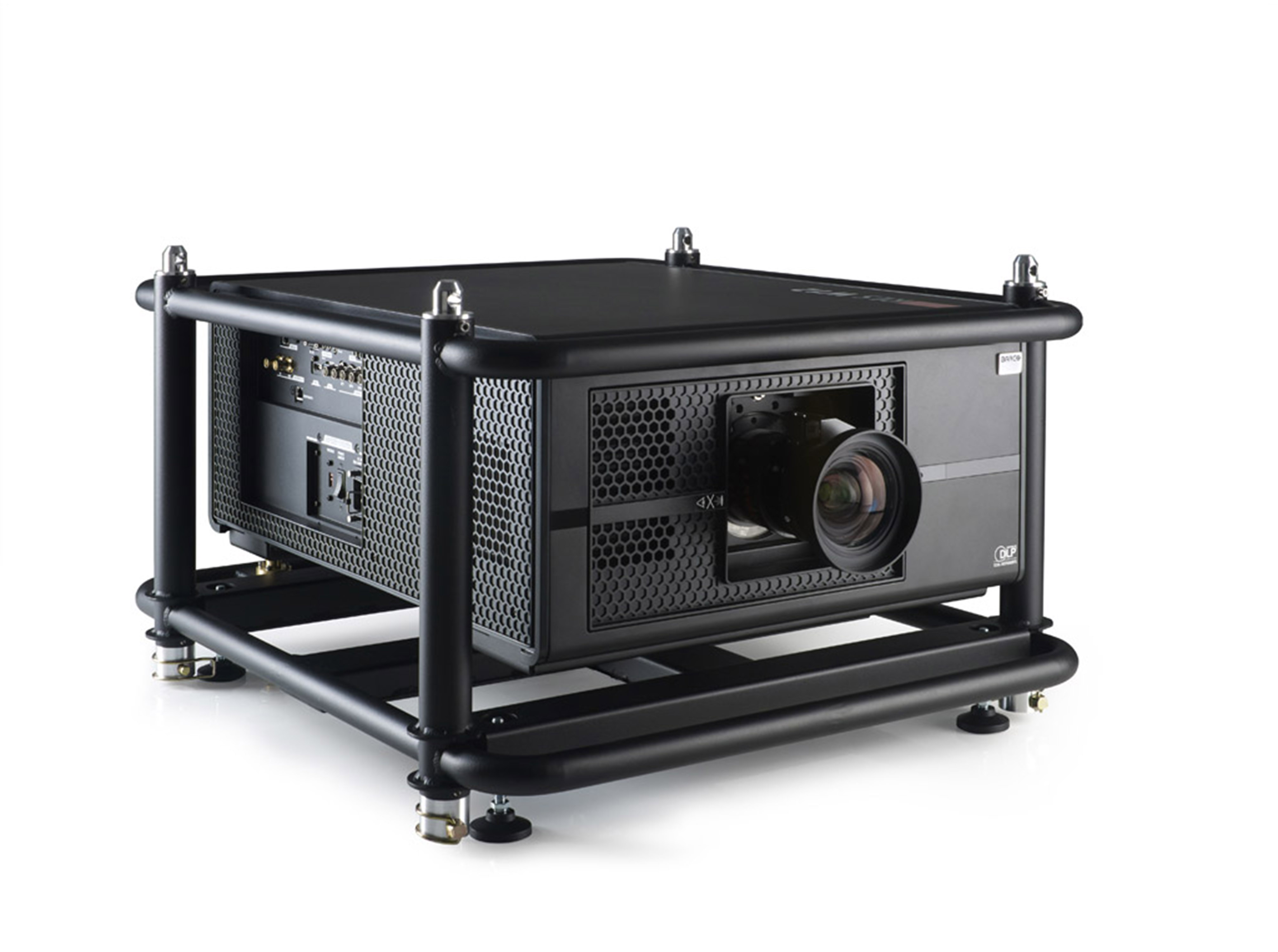

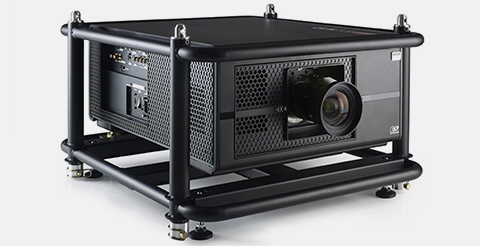

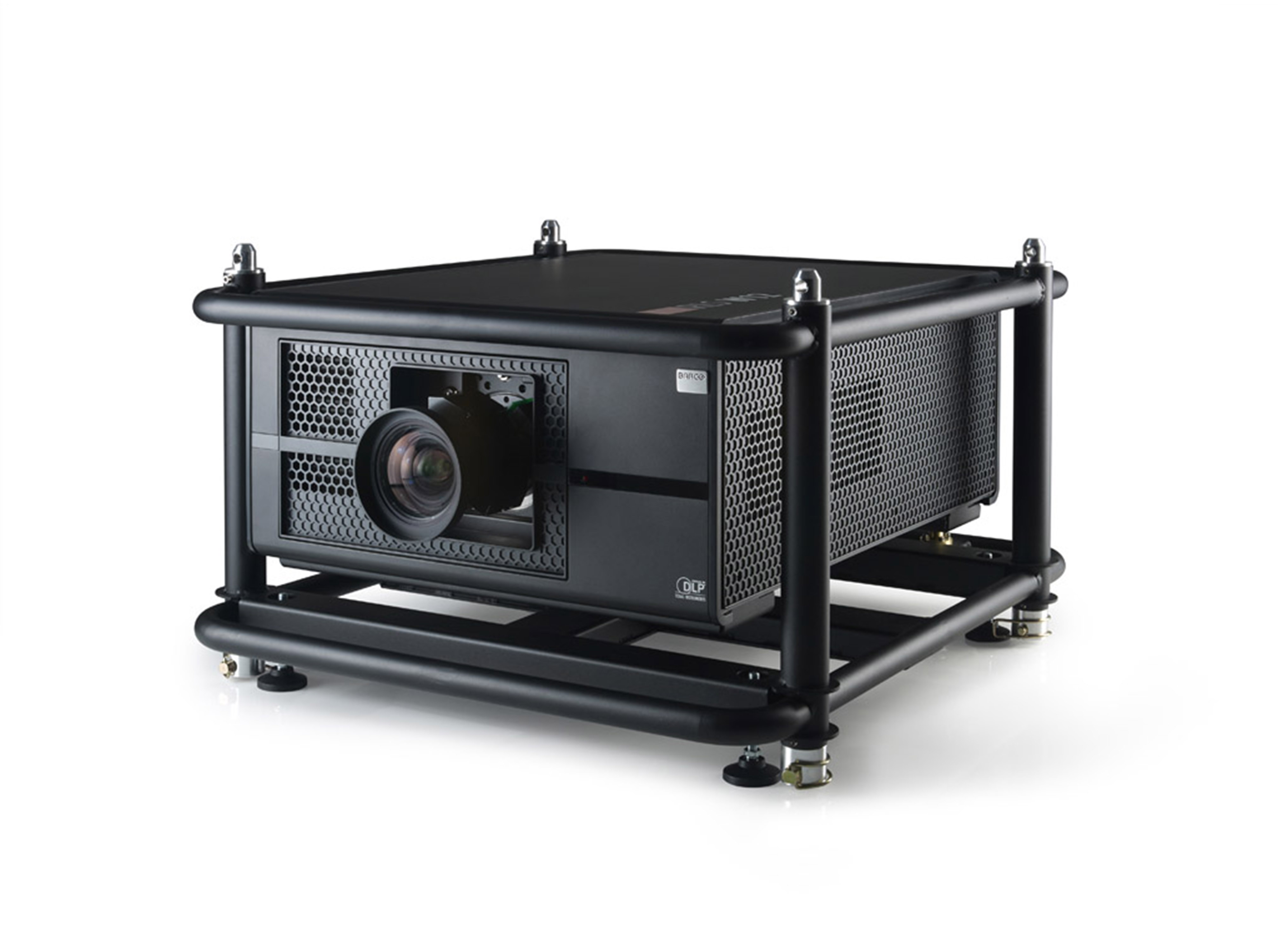

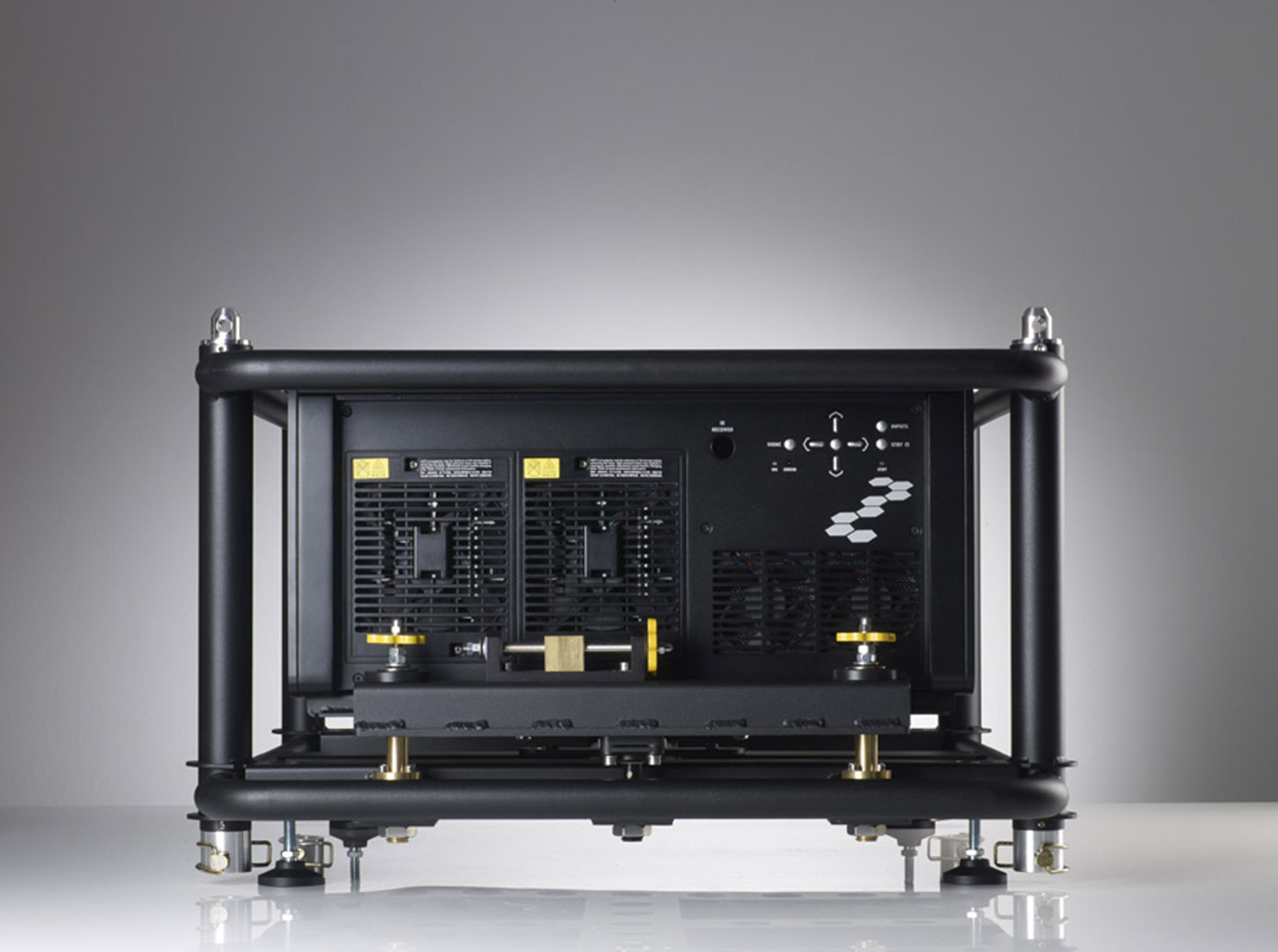

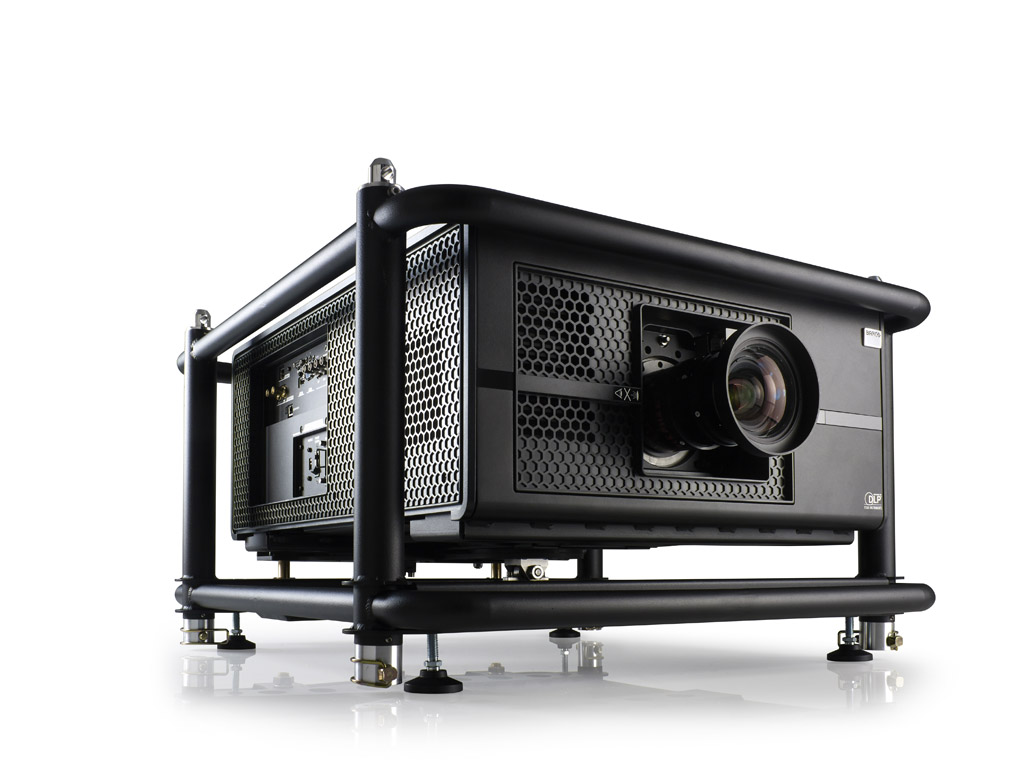

The RLS-W12 is a single-chip DLP projector that produces 12,000 center lumens light output and offers WUXGA (1,920 x 1,200) resolution, extended warping and blending, and HDBaseTTM technology to provide video over a single Cat 5 cable at a very low price point. Designed for fixed installation in museums, theaters and conference auditoriums, it’s also ideally suited for the hotel and exhibition rental market thanks to its rugged design, extended warping and blending functionalities*, and optional rental frame.
Cost-effective design
Offering high-brightness images, the cost-effective RLS-W12 features a rugged design that reduces noise and minimizes power consumption. Its twin 465W NSH lamps are not only very affordable they also provide a long lifetime. It operates at full brightness on a voltage range of 110V - 240V.
Simplified setup and installation
Featuring HDBaseTTM and BarcoLink, the RLS-W12 supports point-to-point transmission of video signals – up to WUXGA (1,920 x 1,200) at 60 Hz – from source to projector, over distances of more than 70 meters, via a single Cat 5 or BNC cable. By eliminating multiple expensive cables and connectors, it provides more simplicity, flexibility and lower installation costs.
Simple control
The RLS-W12 can be easily controlled via the wired or wireless remote control, the Android and iOS app, and the user-friendly Projector Toolset software.
* Some combinations will restrict adjustment range
Projector type
WUXGA 1-chip DLP digital projectorTechnology
0.96 DMD™ x 1 CW:RGBYCWColor wheel
6S standard (RGBYCW)Resolution
1920 x 1200Brightness
12,000 center lumens / 11,000 ANSI lumens*Contrast ratio
1500:1Brightness uniformity
90%Aspect ratio
16:10ScenergiX
Horizontal and vertical edge blendingLens type
J typeLenses
0.84-1.03:1;1.25-1.48;1.56-1.85:1;1.85-2.4:1;2.4-4.0:1;4.0-7.0:1Optical lens shift
Vertical: +/- 100% horizontal: +/- 30% Vertical: +/- 75% horizontal: +/- 25% (for 0.84-1.03:1 lens)Color correction
P7CLO(constant light output)
YesLight source
2x465WLight source lifetime
1,500 hours (typical) / 2,000 hours (maximum)Lamp house, quick replace
Yes, auto lamp selectLamp warranty
120 days, 500 hoursTransport with lamp
YesSealed DLP™ core
StandardOptical dowser
StandardAdvance Picture in Picture
Up to two sources simultaneouslyOrientation
table - ceiling - verticalWARP
preset values + custom (RS232)Integrated web server
Yes3D
Passive circular polarized (optional)Image processing
Embedded warp & blend engineOutputs

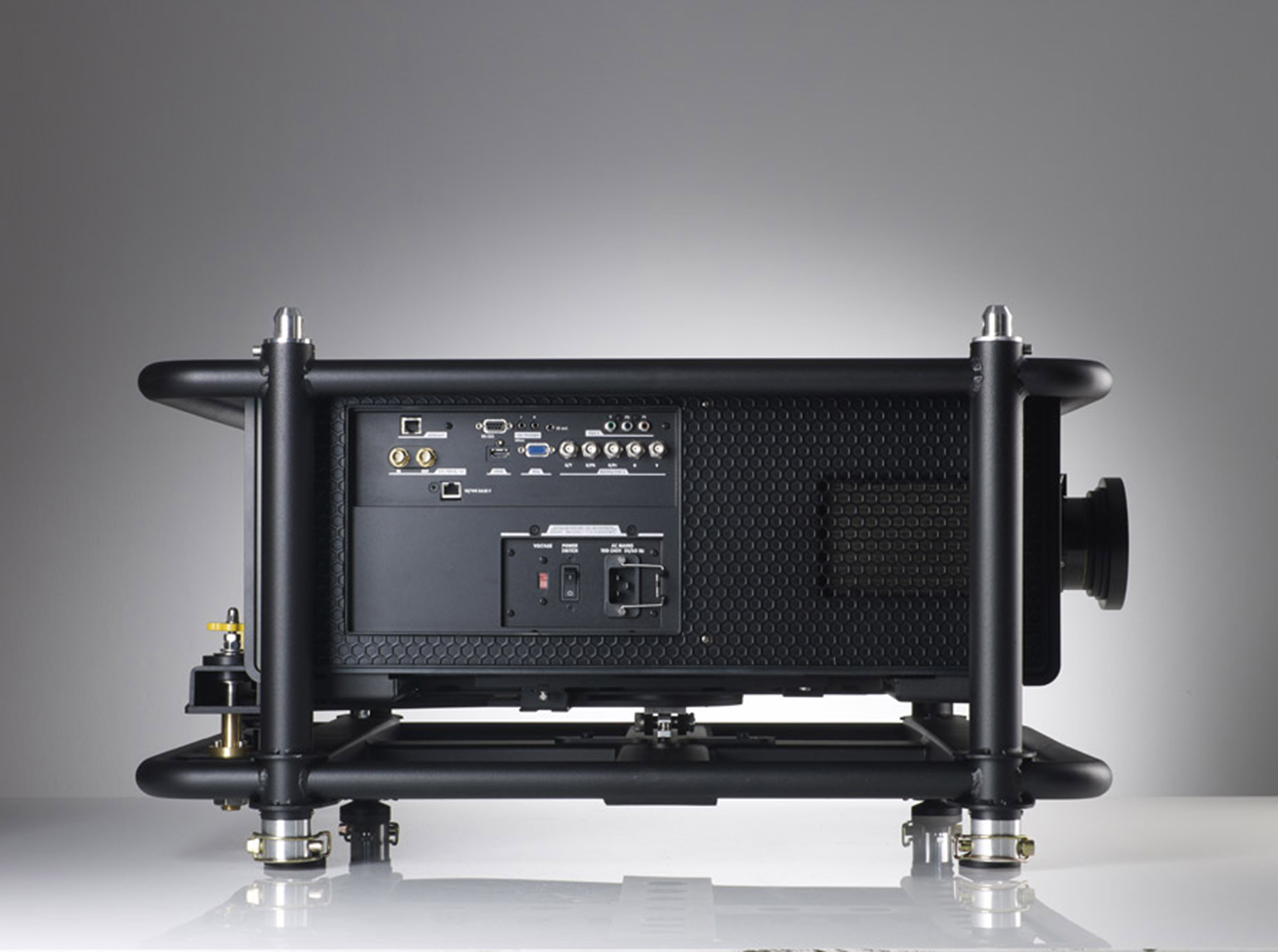

1 x HDMI (HDCP 1,3) HDBaseT 5-BNC (RGBHV, RGBS/RGBsBYUV) VGA (RGBHV, RGBS/RGBsBYUV) cinch (RGBs, YUV) HSDI/ 3G HDSDI /SDIInput resolutions
From NTSC up to UXGA (1,600 x 1,200), including HDTV (1,920 x 1,200)Max. pixel clock
165MhzSoftware tools
Projection Toolset + Android app + iOS appControl
Mini-jack + IR, RS232, 12v triggerNetwork connection
10/100 base-T, RJ-45 connection, Wifi (optional)Power requirements
90-240V / 50-60Hz - 1,115W @ 240V, 1,150W @ 110V, STBY less than 2WMax. power consumption
850W / STBYBTU per hour
Max 6,000 BTU/hDissipation BTU
max 3,804 BTU/hNoise level (typical at 25°C/77°F)
45 dB(A) norm, 40dB(A) ecoOperating temperature
0-40°C / 32°-104°FOperating humidity
-20 - 60 °CStorage temperature
0-90% (non condens)Storage temperature
10 - 90%RHDimensions (WxLxH)
530 x 670 x 285 mm / 20.86 x 32.64 x 17.20 inchesWeight
34 kg (74.95 lbs)Standard accessories
Power cord, wireless remote control, HDMI to DVI adaptorShipping dimensions (WxLxH)
796 x 595 x 378mmShipping Weight from Factory
42 kgCertifications
Complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, CE, TUV, RHoS, WEEWarranty
3 years standard, extra 2 years optional24-7documentation
This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

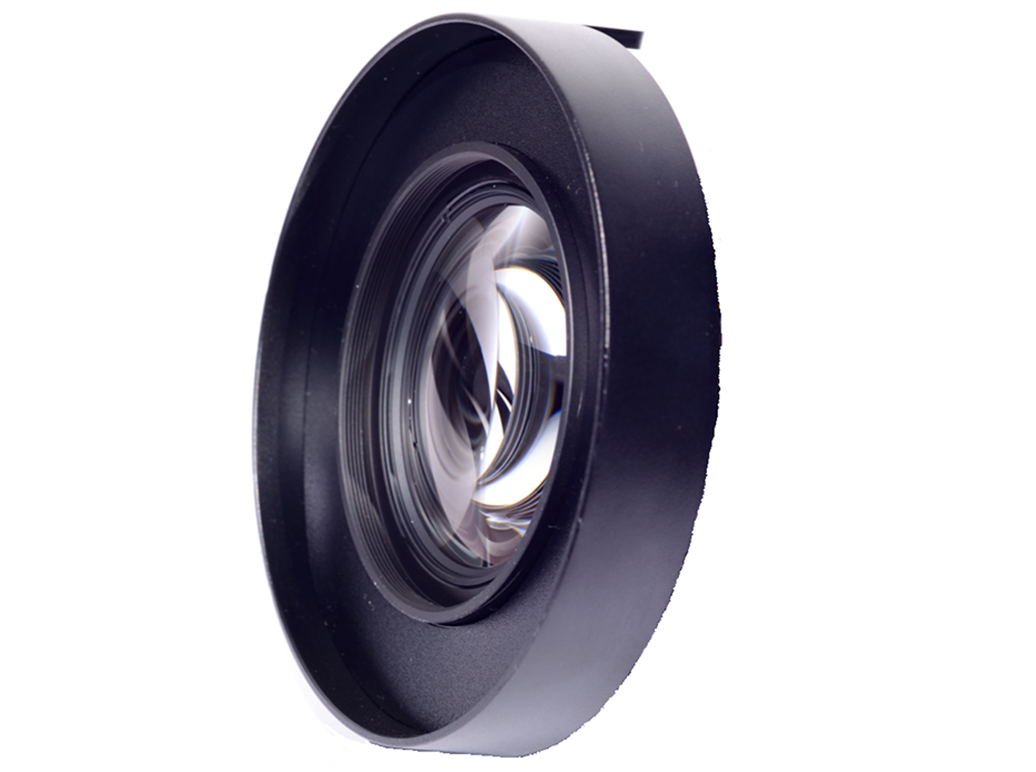

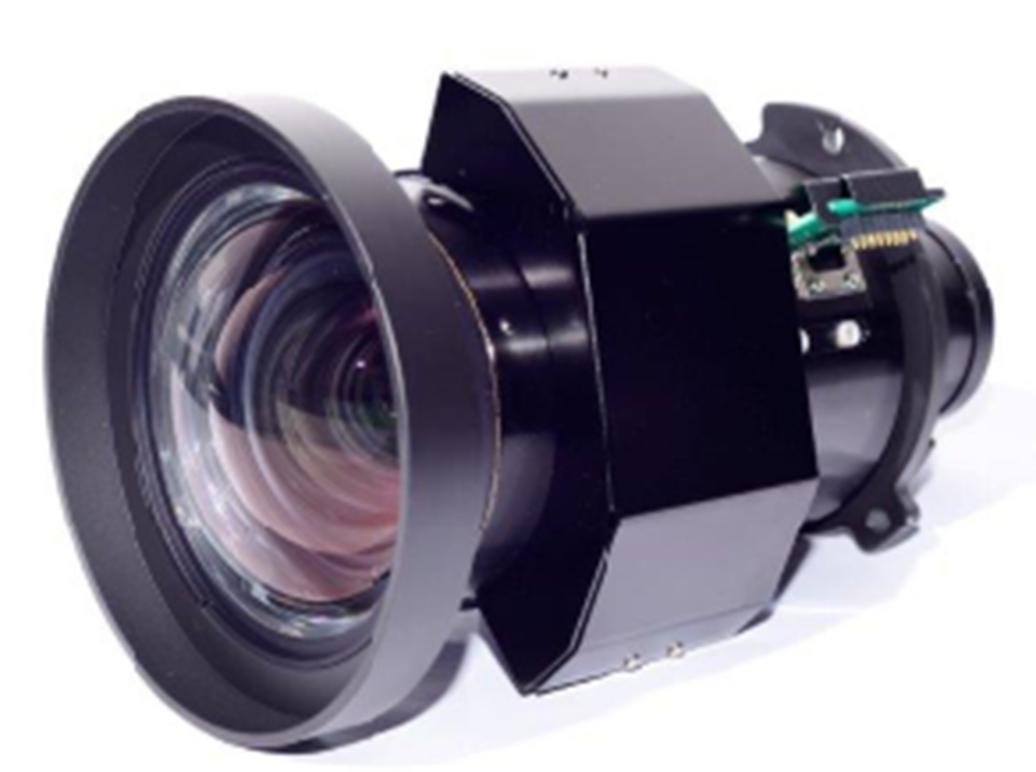

Conversion lens x 0.8 for J lens (1.56-1.86:1)
Article number:R9832784

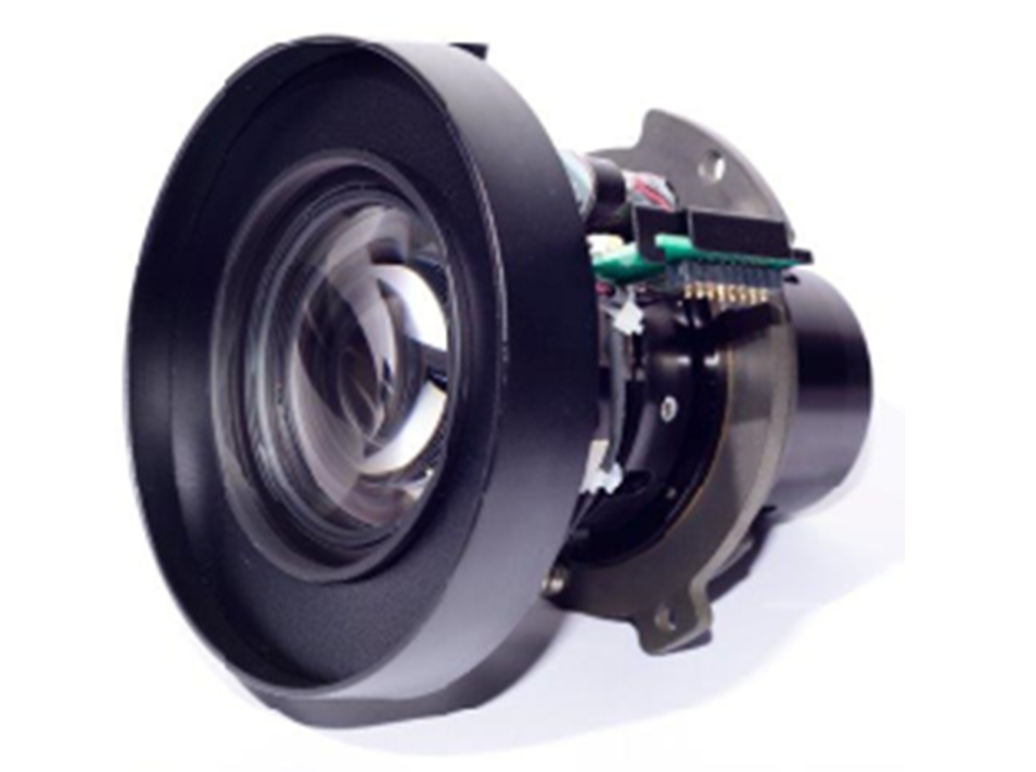

J lens (0.84-1.03 : 1)
Article number:R9832763
J lens(1.56-1.86 : 1)
Article number:R9832761

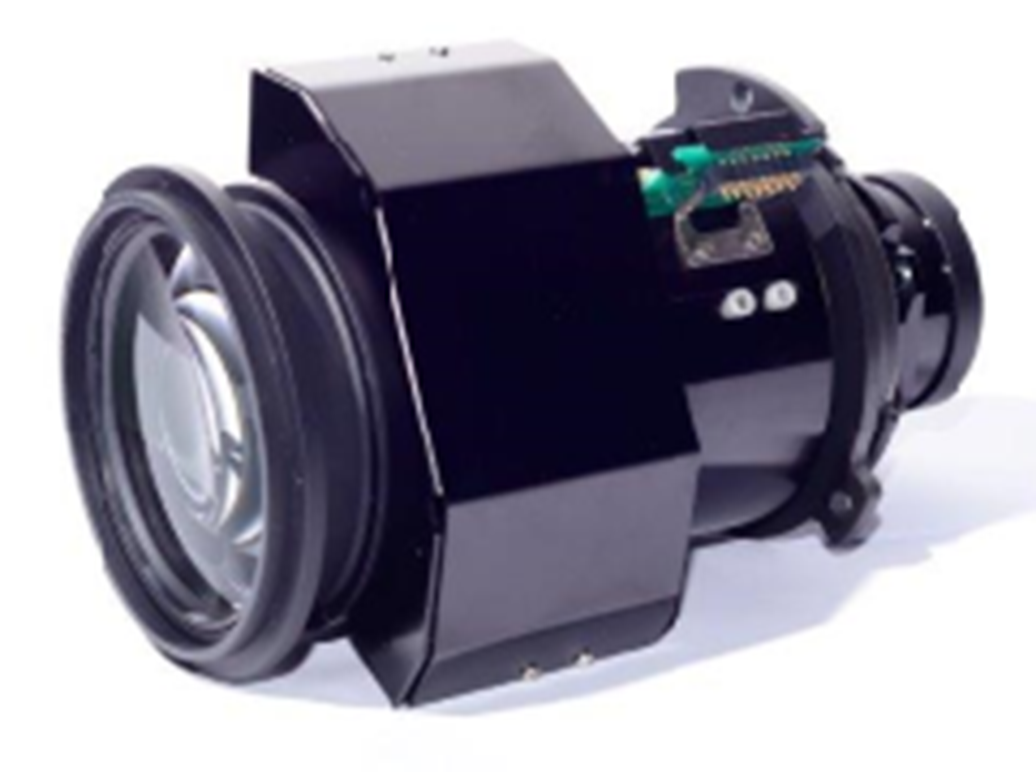

J lens (1.85-2.4 : 1)
Article number:R9832760
J lens (2.4-4.0 : 1)
Article number:R9832762

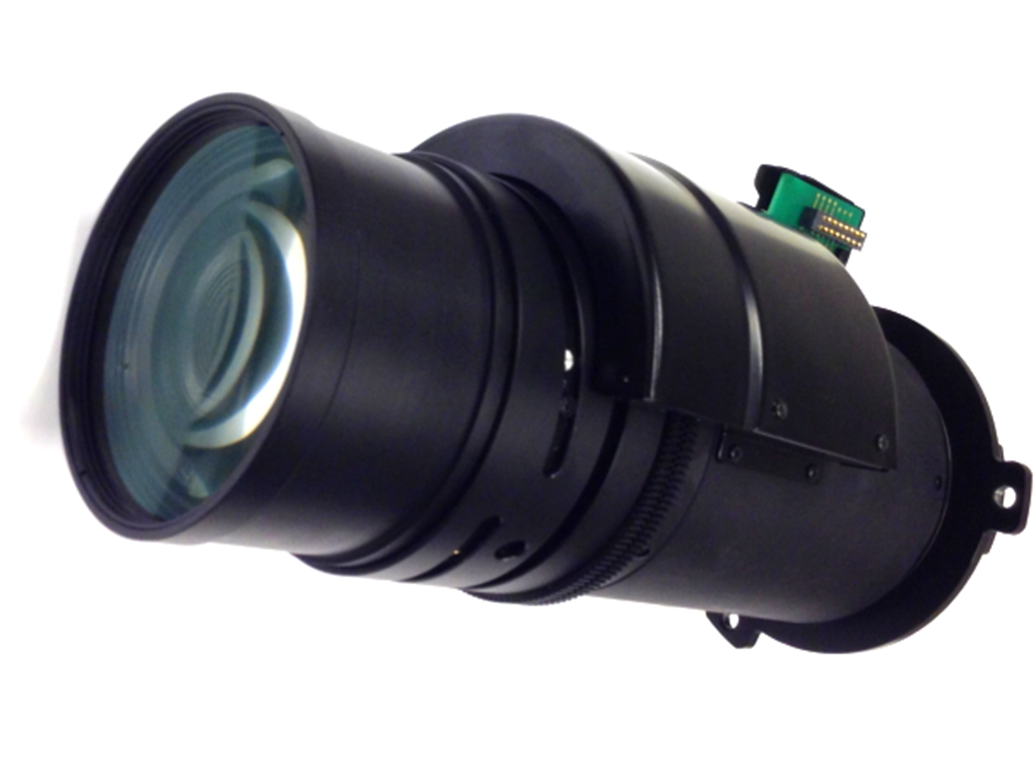

J lens (4.0-7.0 :1) ultra longer zoom
Article number:R9832783
Product Manual
RLS-W12.pdf
