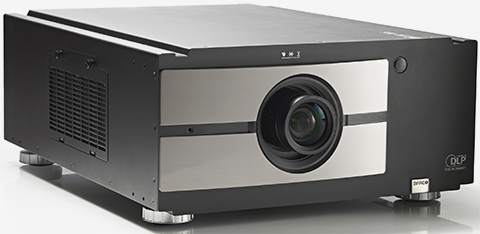

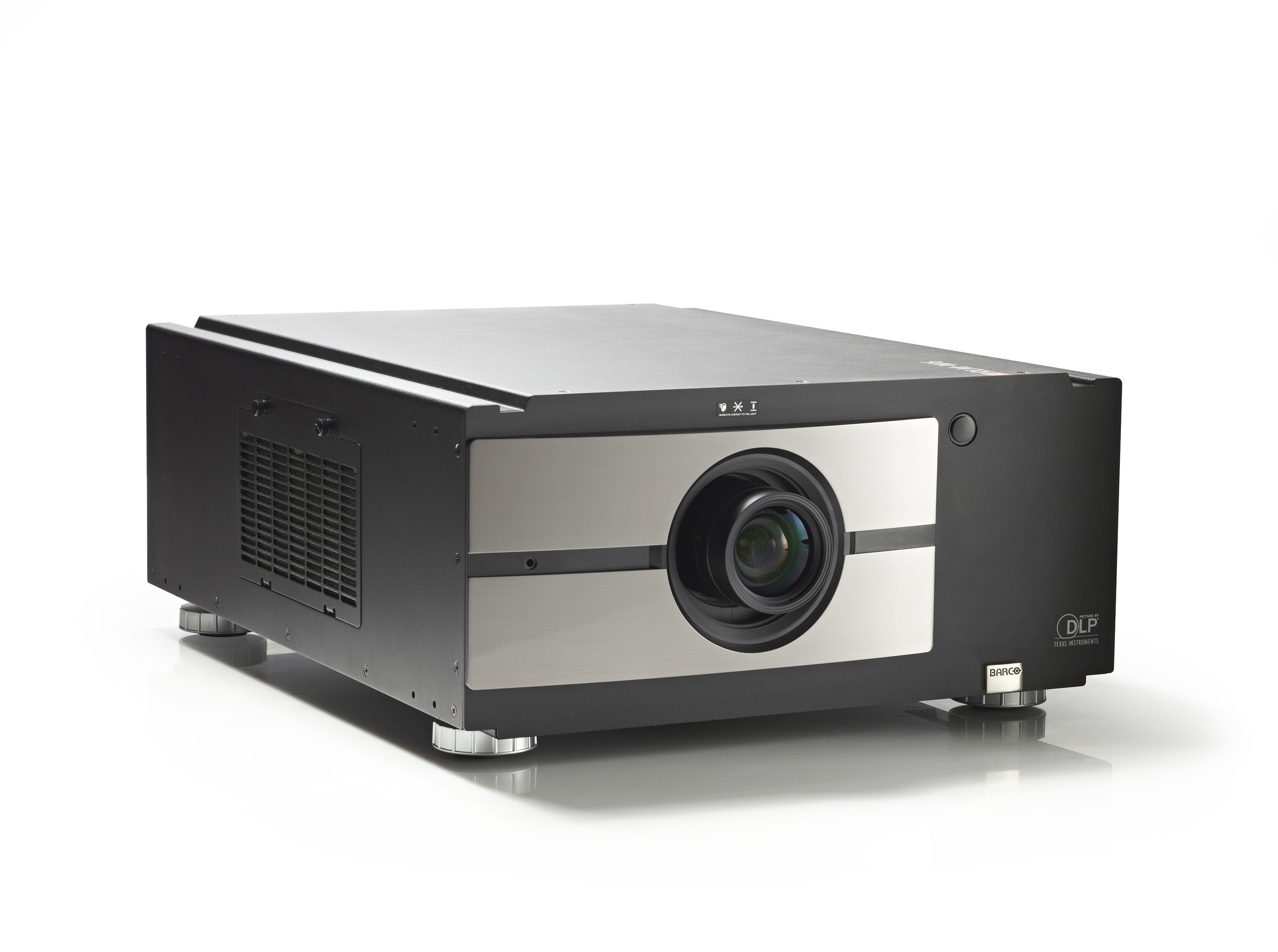

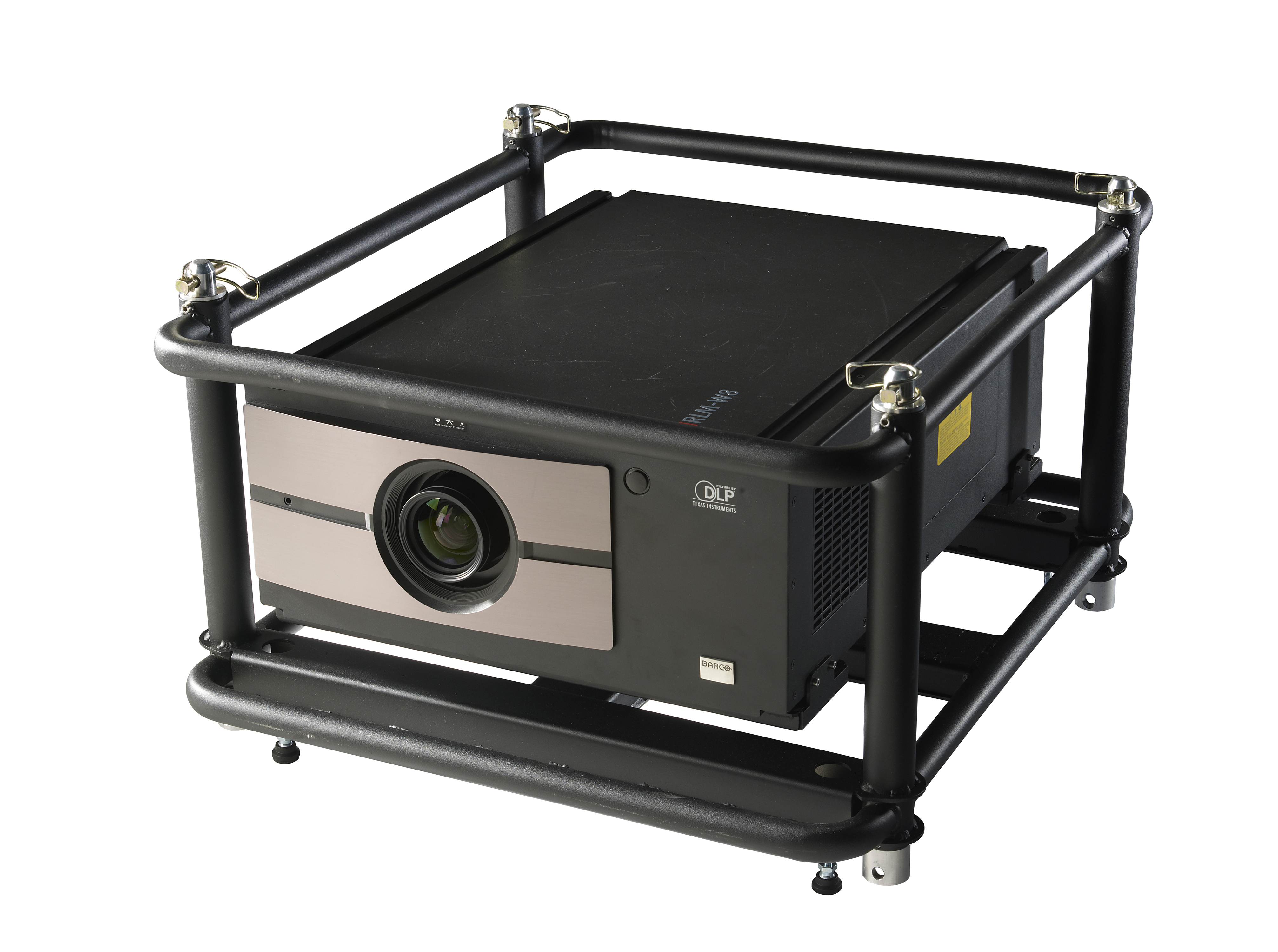

Barco's RLM-W8 brings the saturated colors of 3-chip DLPTM projection to events and fixed installations, at the price of single-chip DLPTM technology.

Featuring blending and built-in warping

With an enhanced contrast, quick and creative stacking options as well as built-in warping capabilities for curved surfaces, Barco's RLM-W8 is a versatile choice for mid- to large-sized venues. In addition, it features blending technology to create seamless composite images across a canvas of any size. The RLM-W8 continues the RLM line's tradition of silence as well as low energy consumption.

Fast signal distribution

Our proprietary BarcoLink technology guarantees swift signal distribution between Barco’s projectors and image processors. With BarcoLink, signals are distributed over a BNC coax cable, which is not only more durable but also enables you to lower your costs.

• Projector type

  WUXGA 3-chip DLP digital projector

• Technology

  0.67" DMD™ x3

• Color wheel

  6S standard (RGBYCW)

• Resolution

  1920 x 1200

• Brightness

  8,000 center lumens / 7,300 ANSI lumens*

• Contrast ratio

  2,200:1 (standard) / 3,000:1 (CE)

• Brightness uniformity

  95%

• Aspect ratio

  16:10

• ScenergiX

  Horizontal and vertical edge blending

• Lens type

  RLDW

• Lenses

  (fix)0.77:1 1.16:1 (zoom) 1.45-1.74 1.74-2.17 2.17-2.9 2.9-4.34 4.34-6.76

• Optical lens shift

  Vertical: -100% to +100% / Horizontal: -35% to +35% on zoom lenses

• Color correction

  P7

• CLO(constant light output)

  Yes

• Light source

  2x330W

• Light source lifetime

  1,500 hours (typical) / 2,000 hours (maximum)

• Lamp house, quick replace

  Yes, auto lamp select

• Lamp warranty

  120 days, 500 hours

• Transport with lamp

  Yes

• Sealed DLP™ core

  Standard

• Optical dowser

  Standard

• Advance Picture in Picture

  Up to two sources simultaneously

• Orientation

  table - ceiling

• WARP

  Preset and customized values (RS232)

• Integrated web server

  Yes

• 3D

  Passive circular polarized (optional)

• Image processing

  Embedded warp & blend engine

• Outputs

  2 x HDMI (HDCP 1,3) 5-BNC (RGBHV, RGBS/RGBsBYUV) VGA (RGBHV, RGBS/RGBsB YUV) cinch (RGBs, YUV) Composite video S-Video HSDI/ 3G HDSDI /SDI/BarcoLink

• Input resolutions

  From NTSC up to UXGA (1600x1200), including WUXGA (1920x1200)

• Max. pixel clock

  165 MHz

• Software tools

  Projector Toolset, Android app

• Control

  Minijack + IR, RS232, 12v trigger

• Network connection

  10/100 base-T, RJ-45 connection, Wifi (optional)

• Power requirements

  90-240V / 50-60Hz

• Max. power consumption

  850W / STBY

• BTU per hour

  Max 6,000 BTU/h

• Dissipation BTU

  max 2900 BTU/h

• Noise level (typical at 25°C/77°F)

  39dB(A)

• Operating temperature

  0-40°C/32°-104°F

• Operating humidity

  -20 - 60 °C

• Storage temperature

  0-80% (non condens)

• Storage temperature

  10 - 90%RH

• Dimensions (WxLxH)

  500 x 669.74 x 247mm / 19.69 x 26.36 x 9.72 inches

• Weight

  26kg (57.3lbs)

• Standard accessories

  Power cord, wireless remote control, HDMI to DVI converter

• Shipping dimensions (WxLxH)

  796 x 595 x 378mm

• Shipping Weight from Factory

  42 kg

• Certifications

  Compliant with FCC rules and regulations, part 15 Class A and CE EN55022 Class A, CE, TUV, RoHS, WEEE

• Warranty

  3 years standard, 4th or 5th year optional

• 24-7documentation

  This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

•

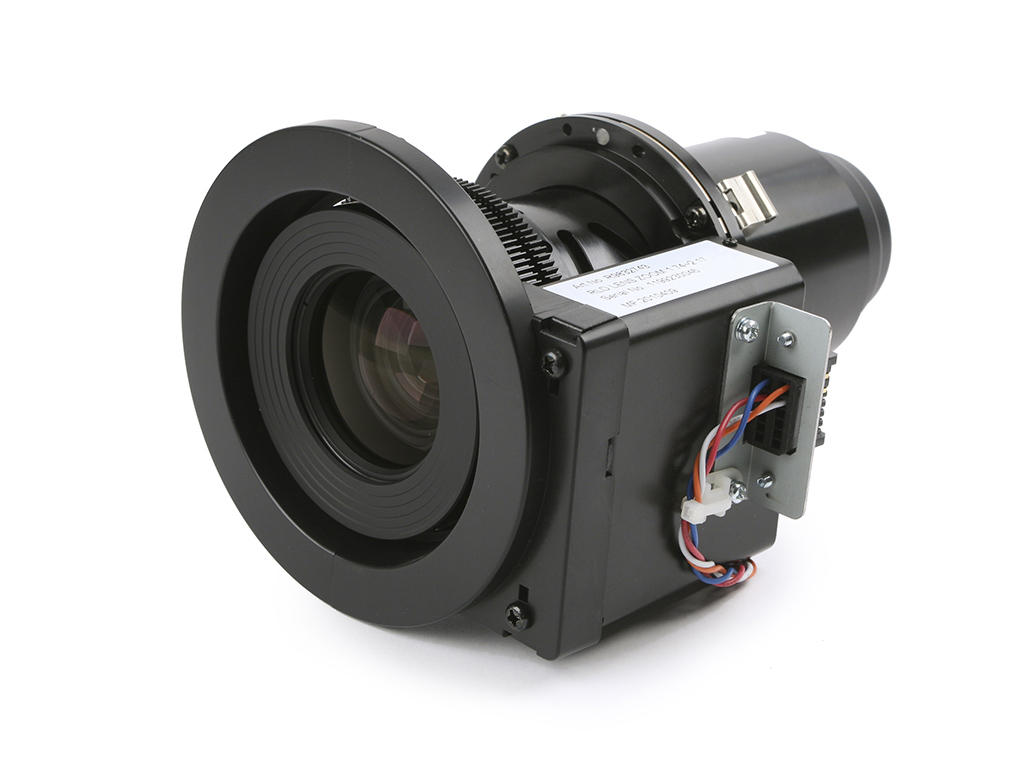

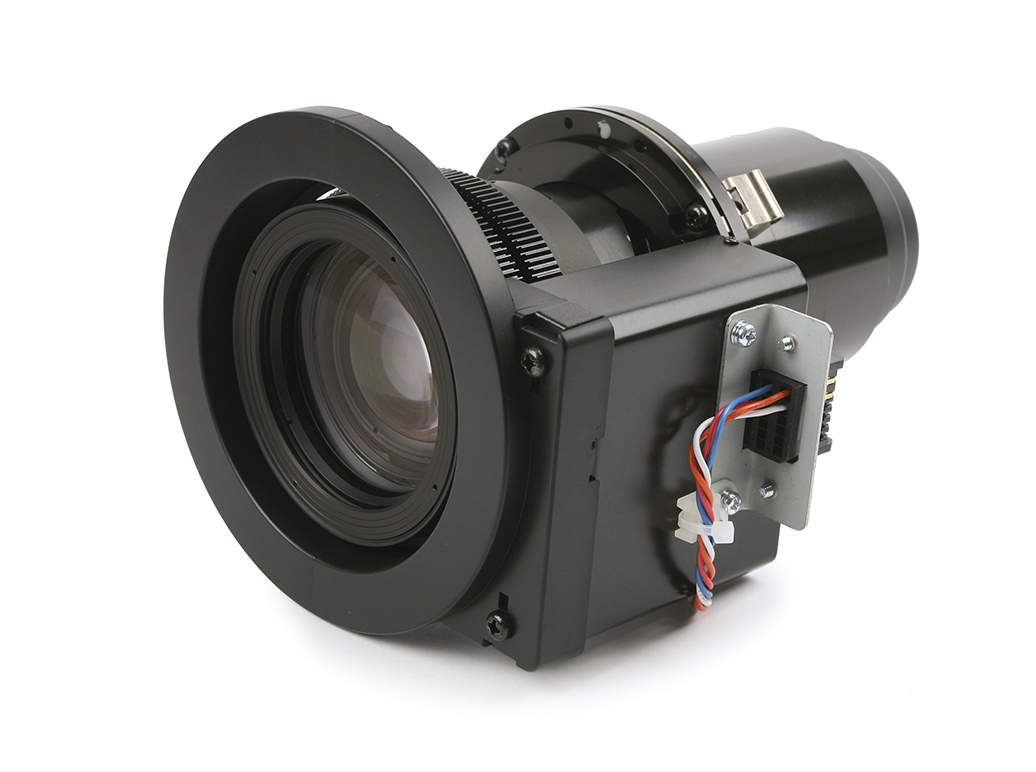

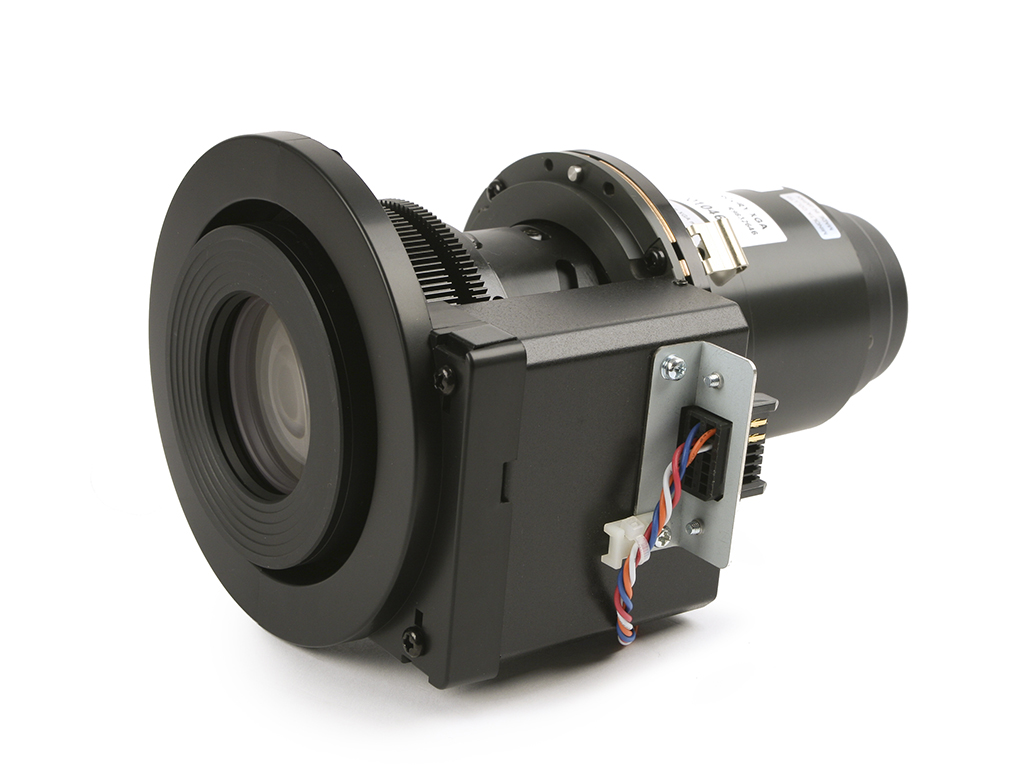

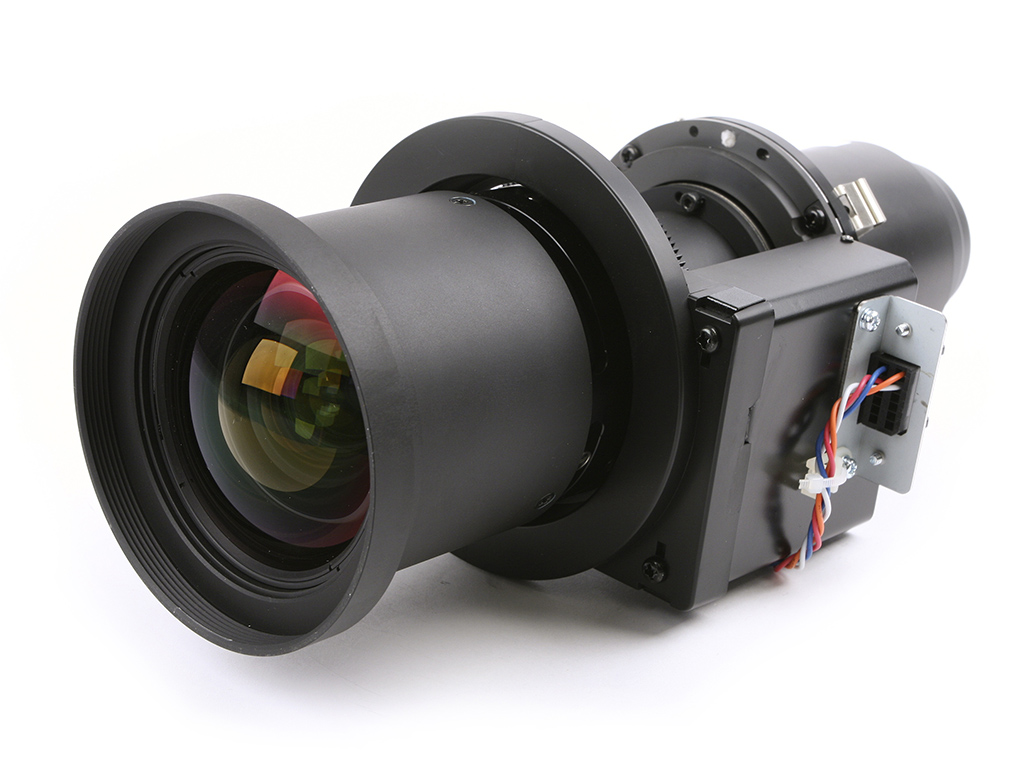

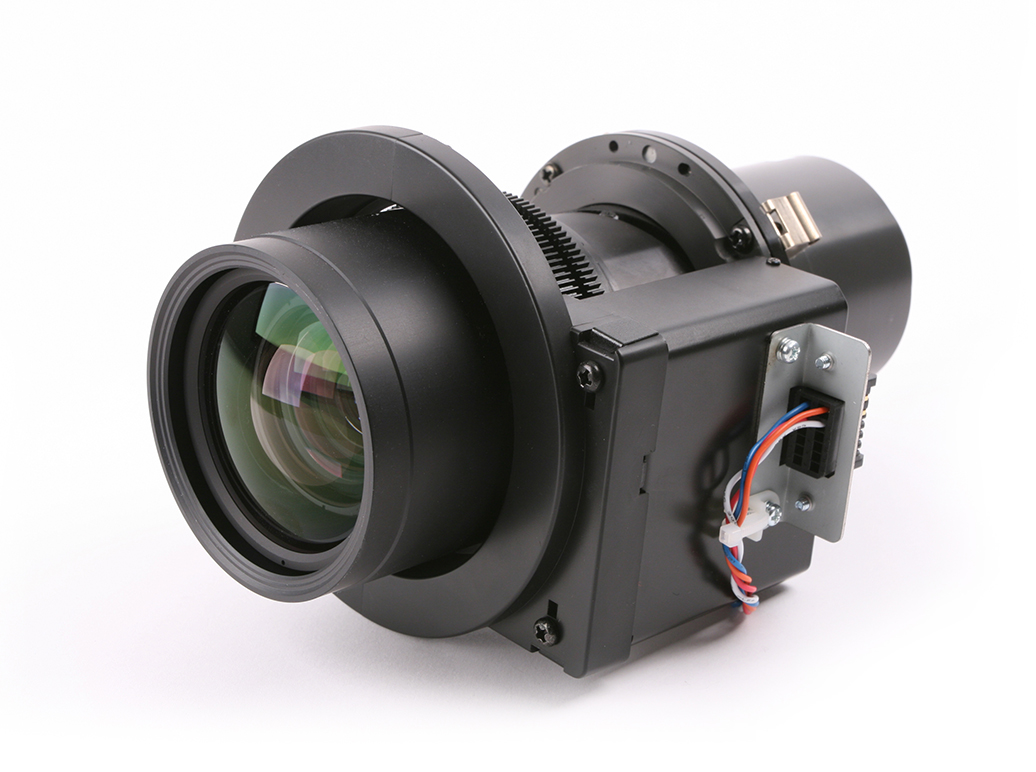

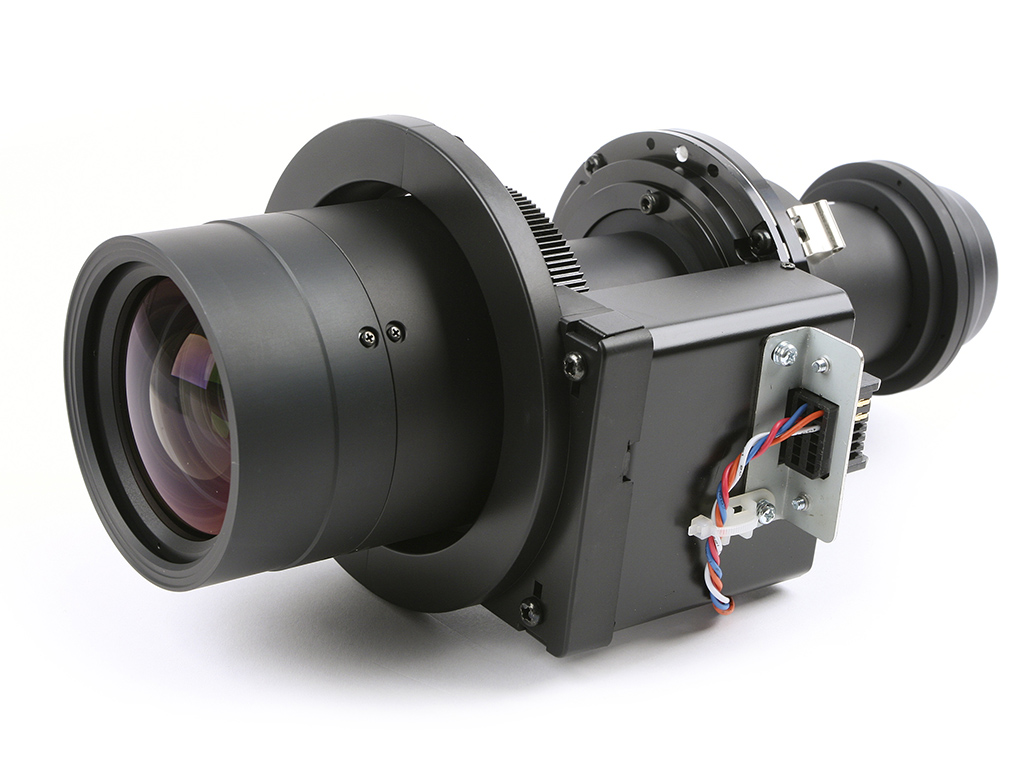

  RLD W Lens (4.34 - 6.76 : 1)




  Article number：R9832746





•

  RLD W Lens (2.9 - 4.34 : 1)




  Article number：R9832745





•

  RLD W Lens (2.17 - 2.90 : 1)




  Article number：R9832744





•

  RLD W Lens (1.74 - 2.17 : 1)




  Article number：R9832743





•

  RLD W Lens (1.45 - 1.74 : 1)




  Article number：R9832742





•

  RLD W Lens (1.16 : 1)




  Article number：R9832741





•

  RLD W Lens (0.77 : 1)




  Article number：R9832740
