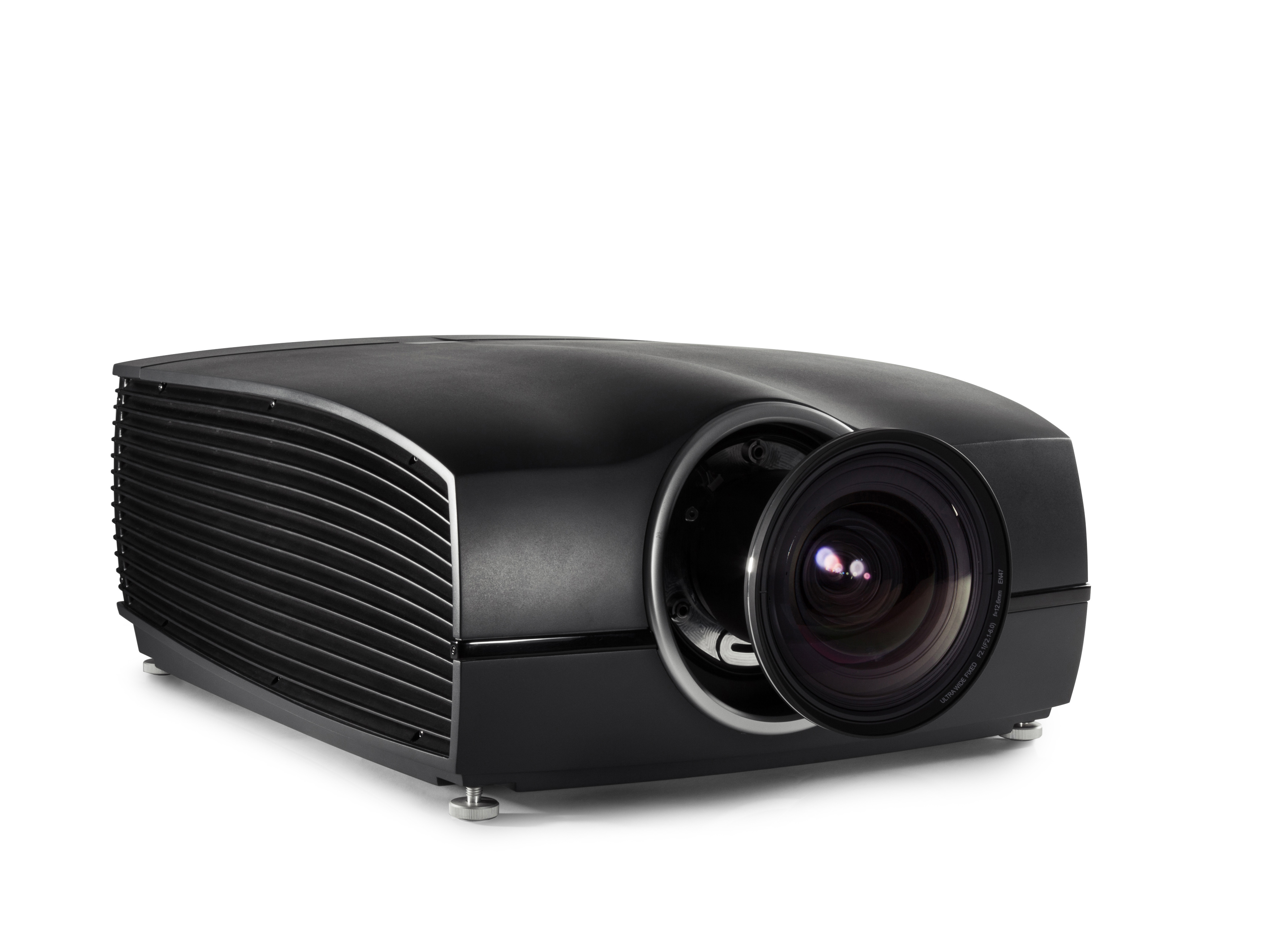

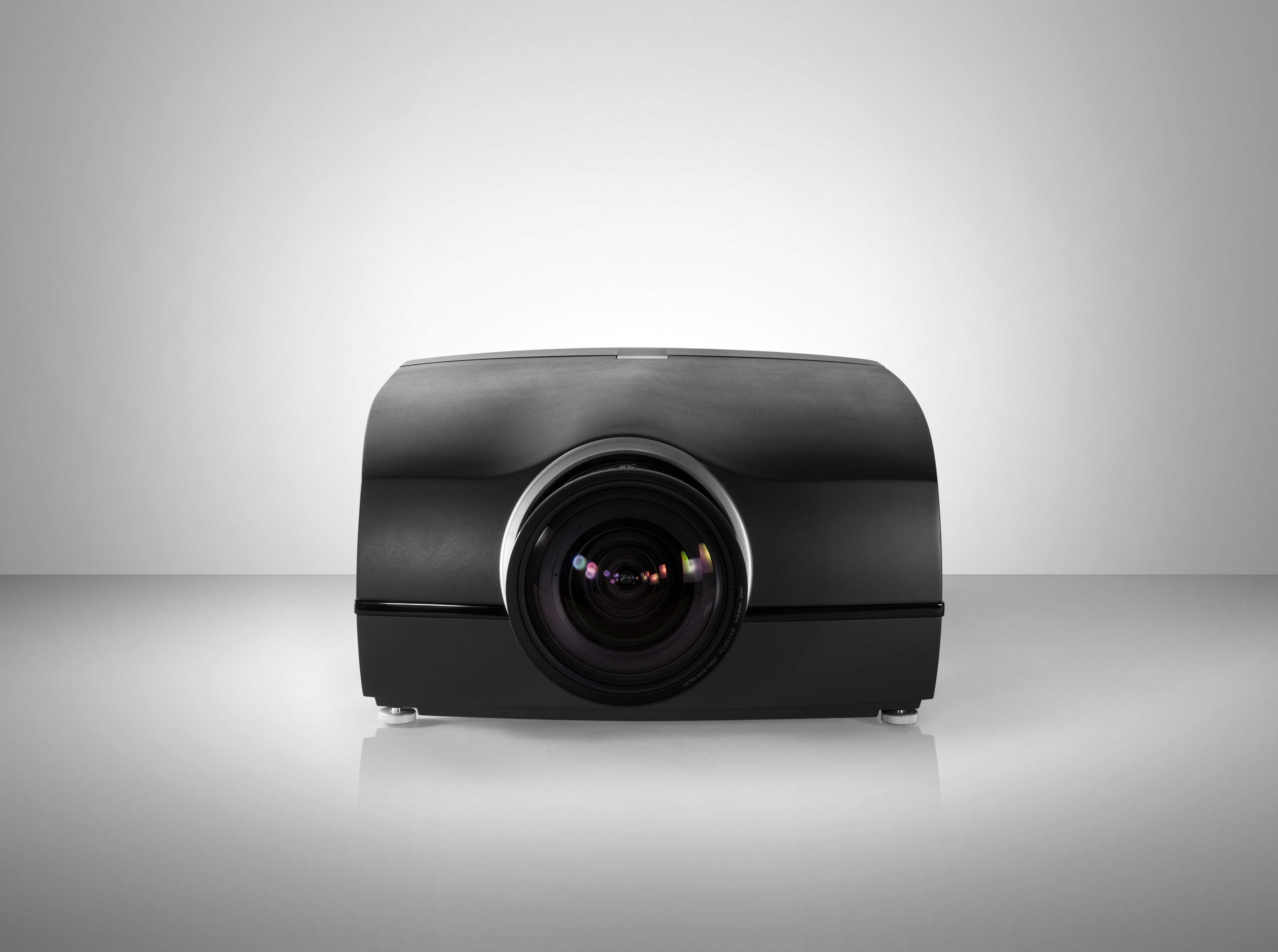

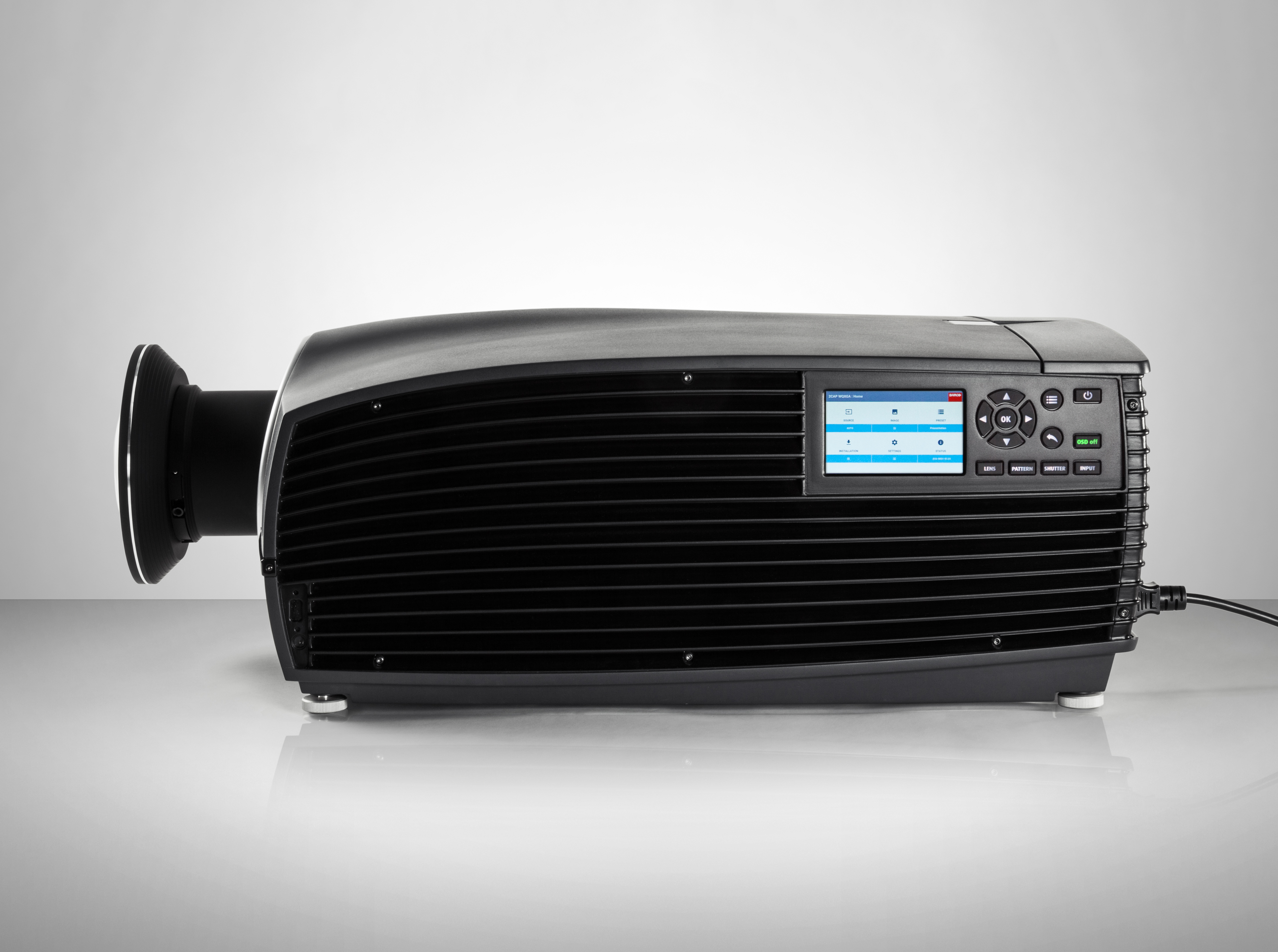

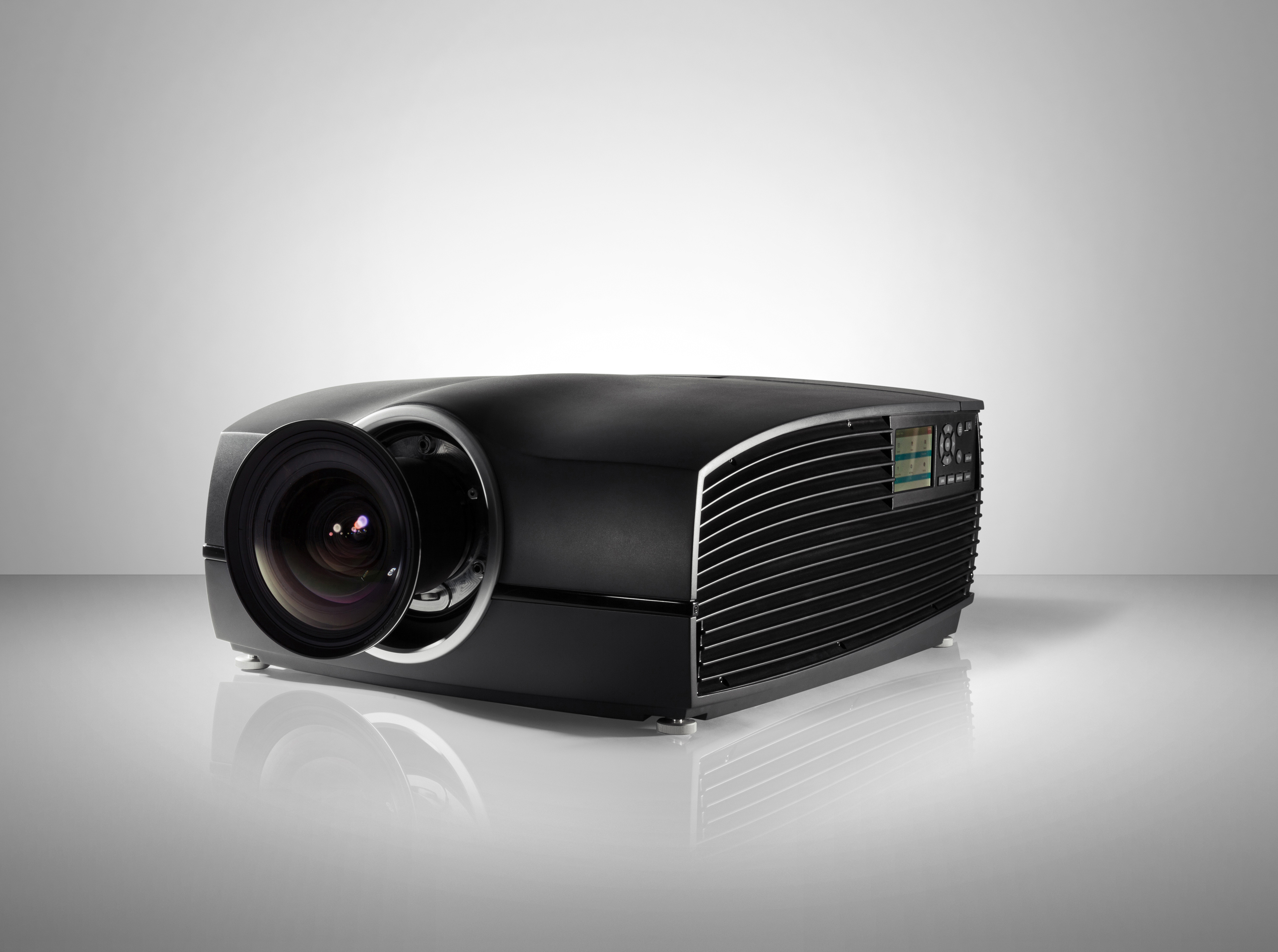

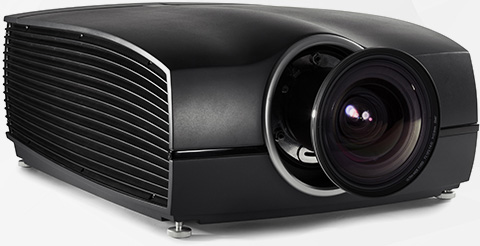

The excellent image quality and laser phosphor light source of Barco's F90 projectors enable you to provide stunning experiences while saving both time and money. Designed for installation in everything from high demanding visitor attractions to simulation applications that require 24/7 operation, the reliable F90-W13 is equally suited for events, retail and advertising as well as boardrooms and auditoriums. Thanks to its 3D functionality, the projector is also perfectly fit for theme park dark rides and interactive experiences.

Excellent image quality

Thanks to its advanced optical design, the F90-W13 delivers excellent image quality. What's more, this reliable projector also offers images with constant light output, for long-term, worry-free operation.

Unprecedented business value

The F90-W13 projector enables you to increase uptime while driving costs down. Through its laser-phosphor light source and advanced cooling design, it provides up to 40,000 hours operating time without need for lamp changes - resulting in considerable cost-savings on maintenance and consumables.

Ultimate installation flexibility

This projector can run in any orientation, giving you more flexibility in projector location and orientation. Thanks to its wide array of high-resolution FLD and FLD+ lenses – from ultra-short throw (0.28:1) to long throw (9.75:1) – each providing a wide lens shift range, the F90-W13 accommodates almost any projector configuration.

• Projector type

  Single chip DLP laser phosphor projector

• Technology

  0.65" DMD

• Color wheel

  6S standard (RGBYCW)

• Resolution

  1920 x 1200 (WUXGA)

• Brightness

  13000center lumens

• Contrast ratio

  1800:1 sequential - 50000:1 dynamic contrast

• Brightness uniformity

  90%

• Aspect ratio

  16:10

• ScenergiX

  Yes

• Lens type

  FLD

• Lenses

  1.28-1.60:1 1.00-1.28:1 1.61-3.07:1 3.04 ~ 5.78

• Optical lens shift

  Up to 134% lens shift, depending on lens. Motorized zoom, focus, vertical and horizontal shift, iris and shutter.

• Color correction

  P7 RealColor™

• CLO(constant light output)

  Yes

• Light source

  Laser phosphor

• Light source lifetime

  20,000 / 40,000 hours, brightness mode dependent

• Transport with lamp

  Yes

• Sealed DLP™ core

  Yes

• Optical dowser

  Yes

• Advance Picture in Picture

  Yes

• Orientation

  360° rotation, no restrictions

• WARP

  Yes

• Integrated web server

  Yes

• 3D

  Active stereoscopic 3D

• Image processing

  Embedded warp & blend engine

• Outputs

  HDSDI, 2x DP, 2x dual link DVI-I, HDBaseT, HDMI 2.0, RJ 45 Ethernet, DMX in/out, RS232 in, 2x USB, 12v out

• Input resolutions

  Up to 2,560 x 1,600 @ 120Hz

• Software tools

  Projector Toolset

• Control

  IR、RS232、RJ45

• Network connection

  10/100 Ethernet, RJ45

• Power requirements

  100-240V / 50-60Hz

• Max. power consumption

  1,600 W Max.

• BTU per hour

  Max 6,000 BTU/h

• Noise level (typical at 25°C/77°F)

  38 dB(A)

• Operating temperature

  10 - 40 °C (sea level)

• Operating humidity

  -20 - 60 °C

• Storage temperature

  20 - 80%RH

• Storage temperature

  10 - 90%RH

• Dimensions (WxLxH)

  575 x 730 x 295 mm / 22.64 x 28.74 x 11.61 in

• Weight

  38 kg / 84 lbs

• Standard accessories

  Power cord, wireless remote control

• Shipping dimensions (WxLxH)

  796 x 595 x 378mm

• Shipping Weight from Factory

  42 kg

• Certifications

  CE, FCC Class A and cCSAus

• Warranty

  Limited 3 years parts and labor. Extendable up to 5 years

• 24-7documentation

  This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

•

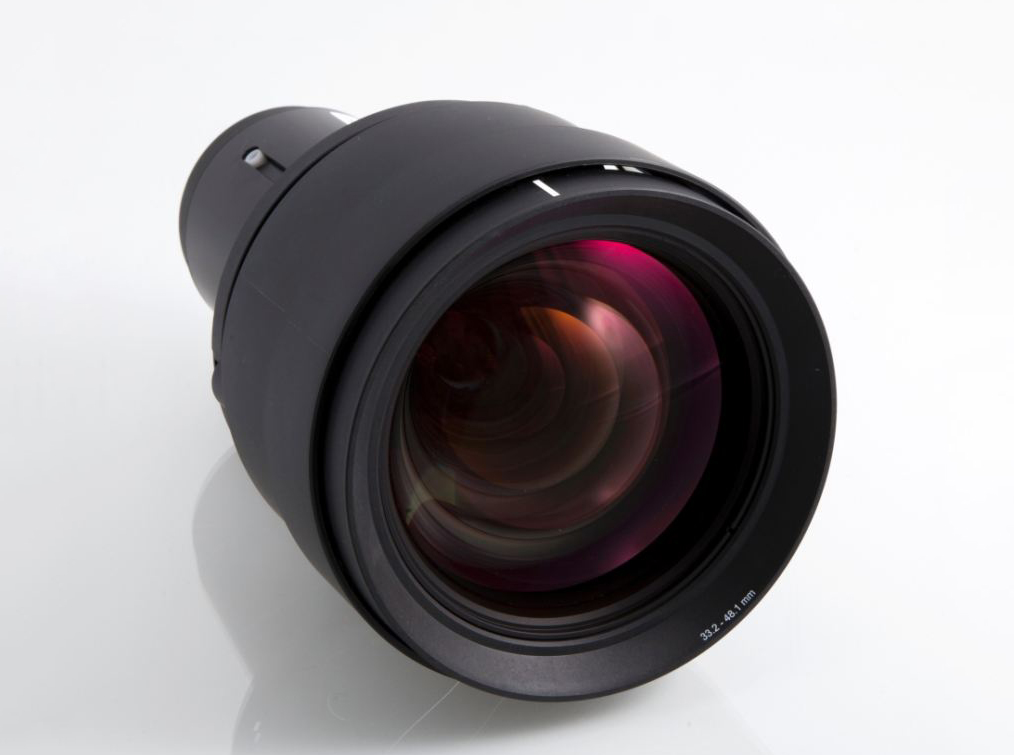

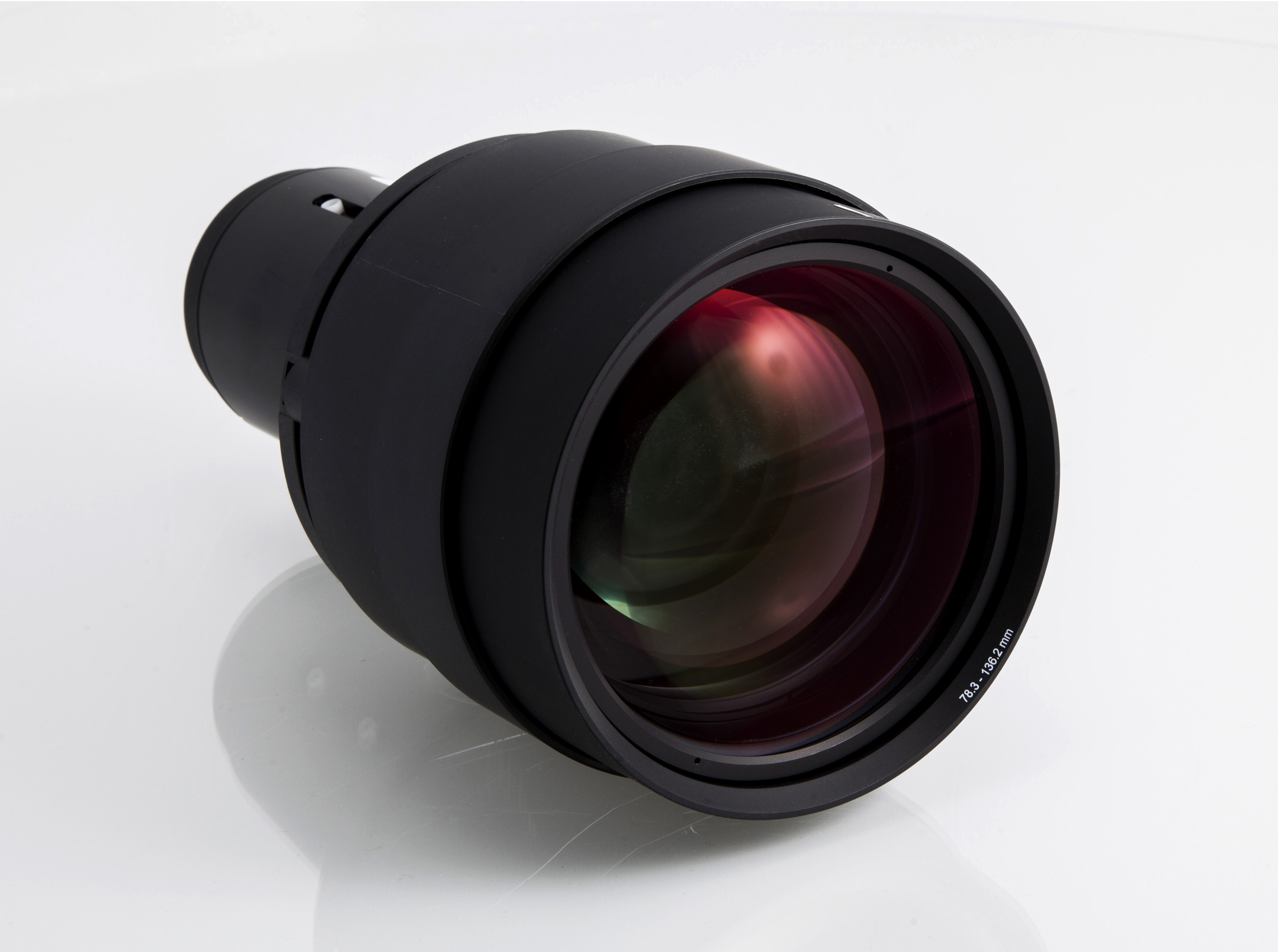

  FLD 1.6 - 2.32 : 1 (EN11)




  1.74 - 2.51：1 (SX+) / 1.6 - 2.32：1 (WUXGA)




  Article number：R9801214



•

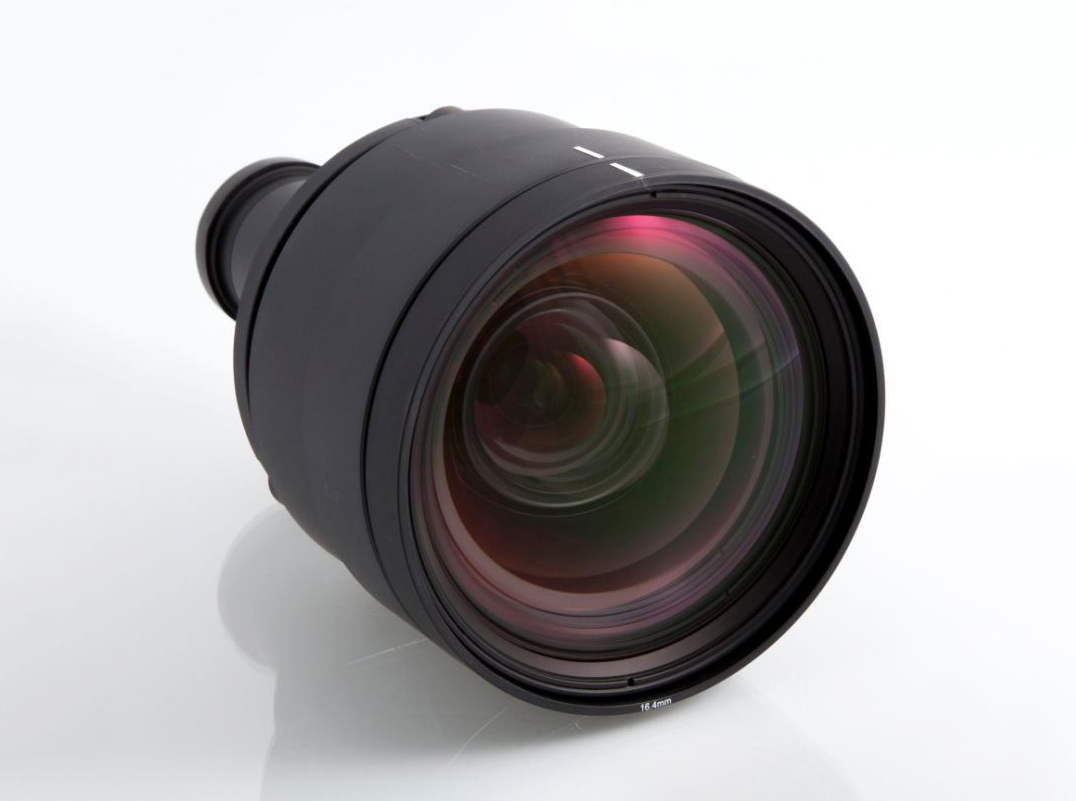

  FLD 0.74：1 (EN12)




  0.81：1 (SX+) / 0.74：1 (WUXGA)




  Article number：R9801218



•

  FLD 1.24 - 1.6 : 1 (EN13)




  1.34 - 1.74：1 (SX+) / 1.24 - 1.6：1 (WUXGA)




  Article number：R9801228



•

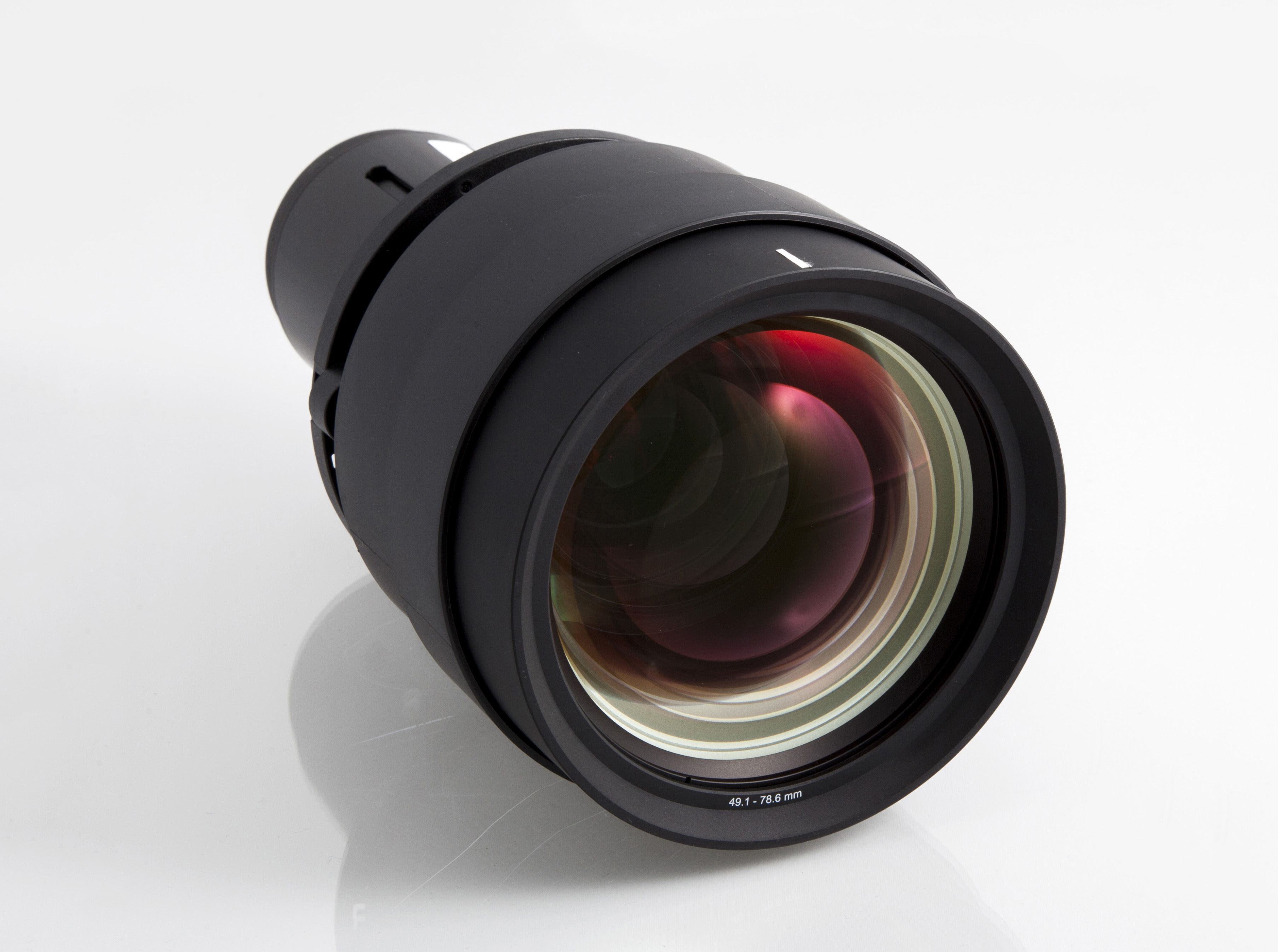

  FLD 2.37 - 3.79 : 1 (EN14)




  2.56 - 4.1：1 (SX+) / 2.37 - 3.79：1 (WUXGA)




  Article number：R9801209



•

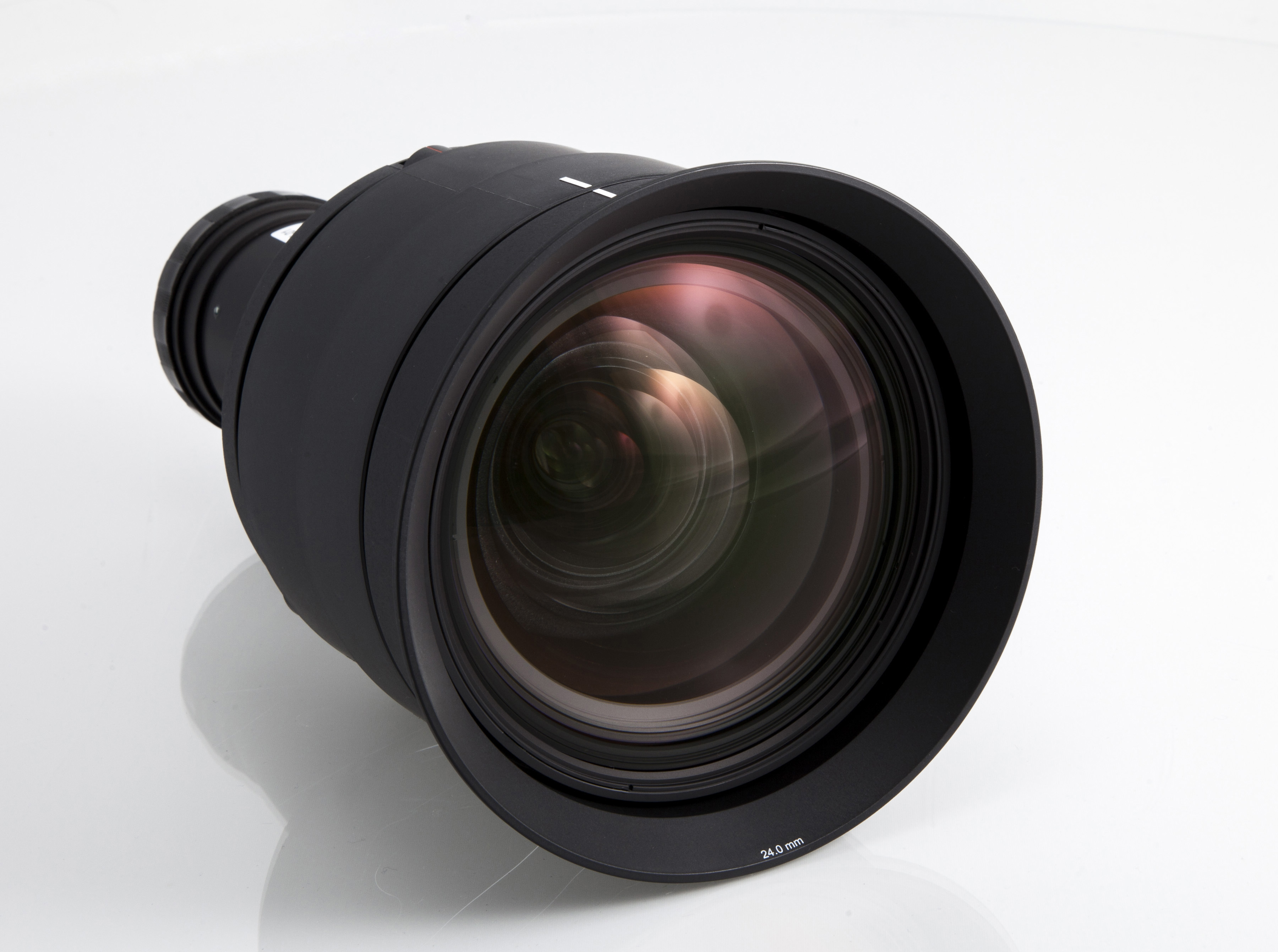

  FLD 1:16 : 1（EN15）




  1.25：1 (SX+) / 1.16：1 (WUXGA)




  Article number：R9801225



•

  FLD 3.8 - 6.5 : 1 (EN16)




  4.1 - 7.1:1 (SX+) / 3.8 - 6.5：1 (WUXGA)




  Article number：R9801249
