Producing a noise level of just 35dB, the Barco laser phosphor projectors are the quietest laser phosphor projectors currently available.* The PGWX-62L offers WXGA resolution (1,280 x 800) and features a lightweight and compact design that blends in nicely. What’s more thanks to its laser phosphor light source the projector offers long lifetime, low maintenance (no lamps and filters) and great color performance.

What you'll love about the PGWX-62L

•    Quietest laser phosphor projector on the market*
•    Long lifetime of 20,000 hours
•    Low total cost of ownership thanks to laser light source
•    Compact, lightweight and stylish design that seamlessly blends in
•    Flexible installation thanks to 360° rotation and portrait mode
•    High-quality images with an unmatched level of detail and contrast
•    Button-free and cable-free for simple operation and less clutter
•    Reliable DLP technology for true ease of mind
•    Flexible color management thanks to preset image modes
•    Intuitive control menu with the most common features at your fingertips

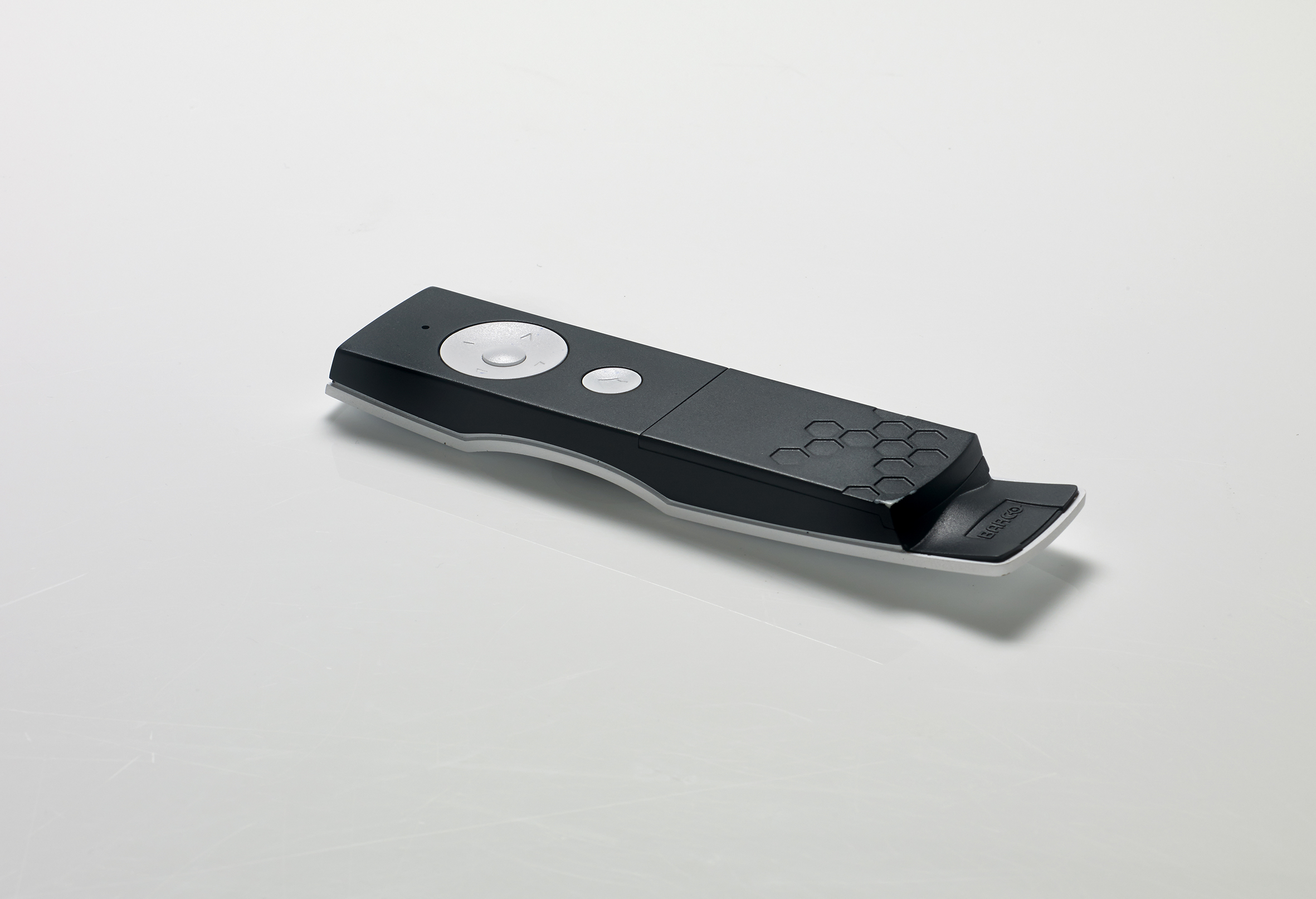

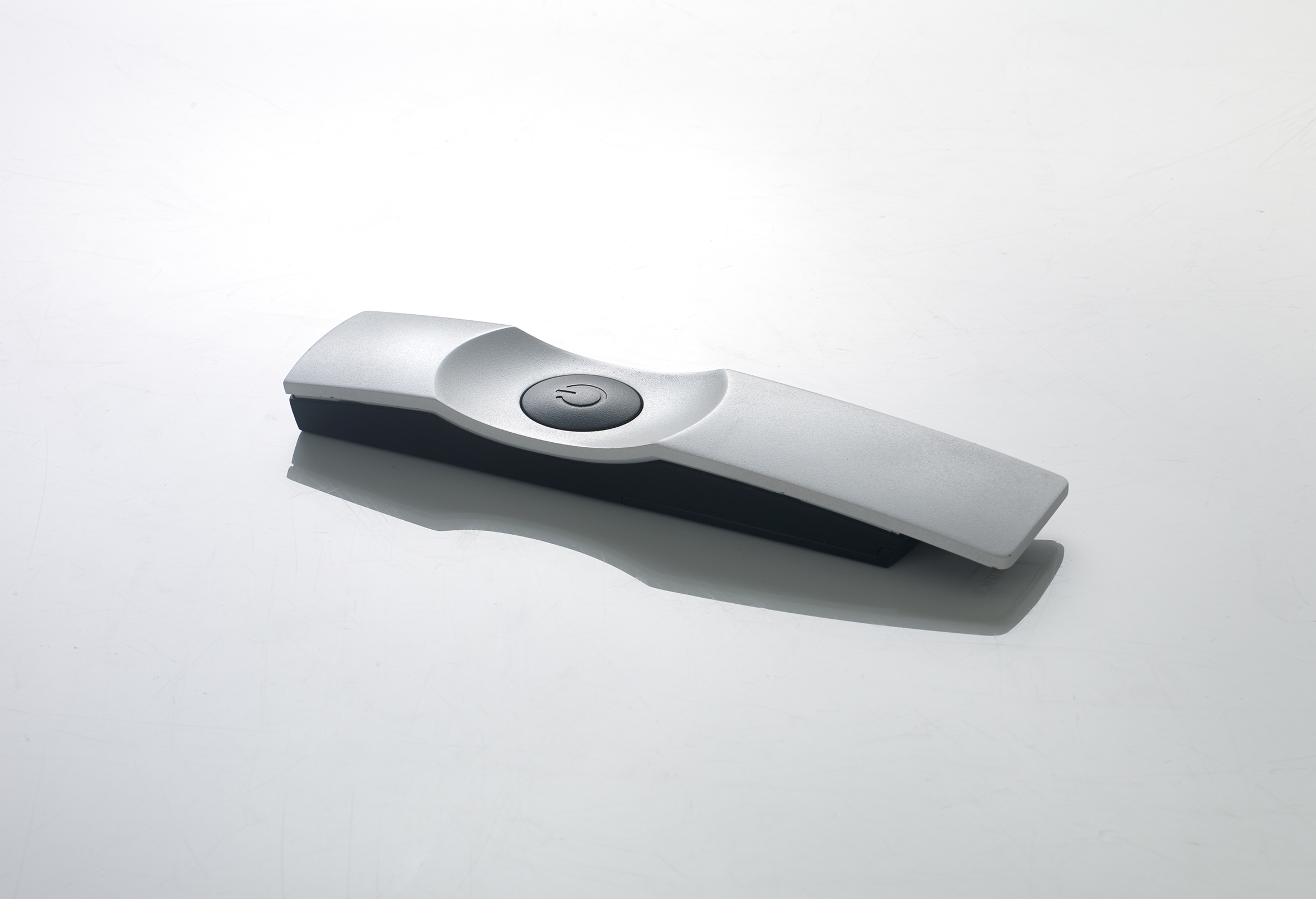

•    User-friendly remote control that features just one button

ClickShare Inside

Supporting the integration of optional connectivity modules, the PGWX-62L is future-proof and can be upgraded with extra functionalities. Based on Barco’s wireless presentation system ClickShare, the ‘ClickShare Inside’ option can be nicely integrated - allowing users to wirelessly share their content on-screen, for true collaboration.

• Projector type

  WXGA single-chip DLP projector

• Technology

  0.65" DMD

• Color wheel

  6S standard (RGBYCW)

• Resolution

  1280 x 800 WXGA

• Brightness

  6000 ANSI lumens*

• Contrast ratio

  11000:1*

• Brightness uniformity

  90%*

• Aspect ratio

  16:10

• ScenergiX

  Yes

• Lens type

  G lens

• Lenses

  1.28-1.60:1 1.00-1.28:1 1.61-3.07:1 3.04 ~ 5.78

• Optical lens shift

  Vertical: -100% to +100% / horizontal: -30% to +30%

• Color correction

  Yes

• CLO(constant light output)

  Yes

• Light source

  Laser diode

• Light source lifetime

  20,000 hours (bright mode)

• Transport with lamp

  Yes

• Sealed DLP™ core

  Yes

• Optical dowser

  Yes

• Advance Picture in Picture

  Yes

• Orientation

  Ceiling/floor, front/rear, 360 degree free installation, portrait

• WARP

  Yes

• Integrated web server

  Yes

• 3D

  Yes (DLP link)

• Image processing

  Embedded warp & blend engine

• Outputs

  VGA-in, VGA-out, HDMI, DVI, CVBS, LAN, RS232, 12V out, 5V out

• Input resolutions

  up to WUXGA (1,920 x 1,200) 60Hz

• Software tools

  Projector Toolset

• Control

  IR, RS232, RJ45

• Network connection

  10/100 base-T、RJ-45 connection

• Power requirements

  100-240V / 50-60Hz

• Max. power consumption

  580 W

• BTU per hour

  Max. 6,000 BTU/h

• Noise level (typical at 25°C/77°F)

  35 dBA (bright mode)/ 32 dBA (eco mode)

• Operating temperature

  5-40°C / 41°-104°F (sea level)

• Operating humidity

  -20 - 60 °C

• Storage temperature

  10-85%

• Storage temperature

  10 - 90%RH

• Dimensions (WxLxH)

  506 x 516 x 251 mm (without cable cover)

• Weight

  17.5 kg

• Standard accessories

  Power cord, wireless remote control, lens cover

• Shipping dimensions (WxLxH)

  796 x 595 x 378mm

• Shipping Weight from Factory

  42 kg

• Certifications

  CB test certificate, US emc, US safety, CE emc and safety, CCC emc and safety

• Warranty

  Limited 3 years parts and labor. Extendable up to 5 years.

• 24-7documentation

  This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

•

  G lens (0.75-0.95 :1)




  Article number：R9832781





•

  G lens (0.95-1.22 : 1)




  Article number：R9832755





•

  G lens (1.22-1.53 : 1)




  Article number：R9832754





•

  G lens (1.26-1.58:1)




  Article number：R9832753





•

  G lens (1.52-2.92 : 1)




  Article number：R9832756





•

  G lens (2.90-5.50 :1)ultra long zoom




  Article number：R9832778






Product Manual

• PGWX-62L.pdf
