This product is only available in China and via distribution partners.

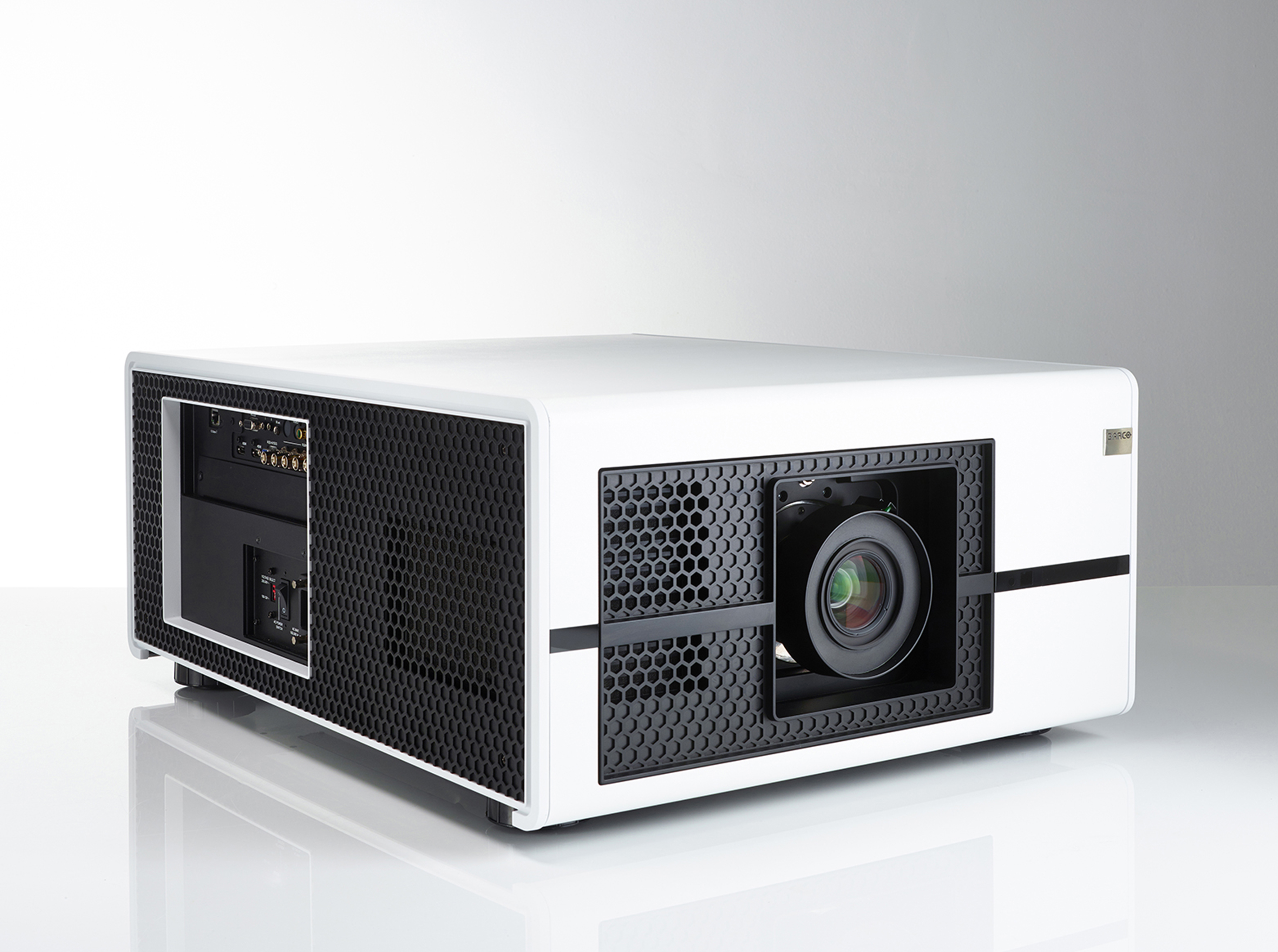

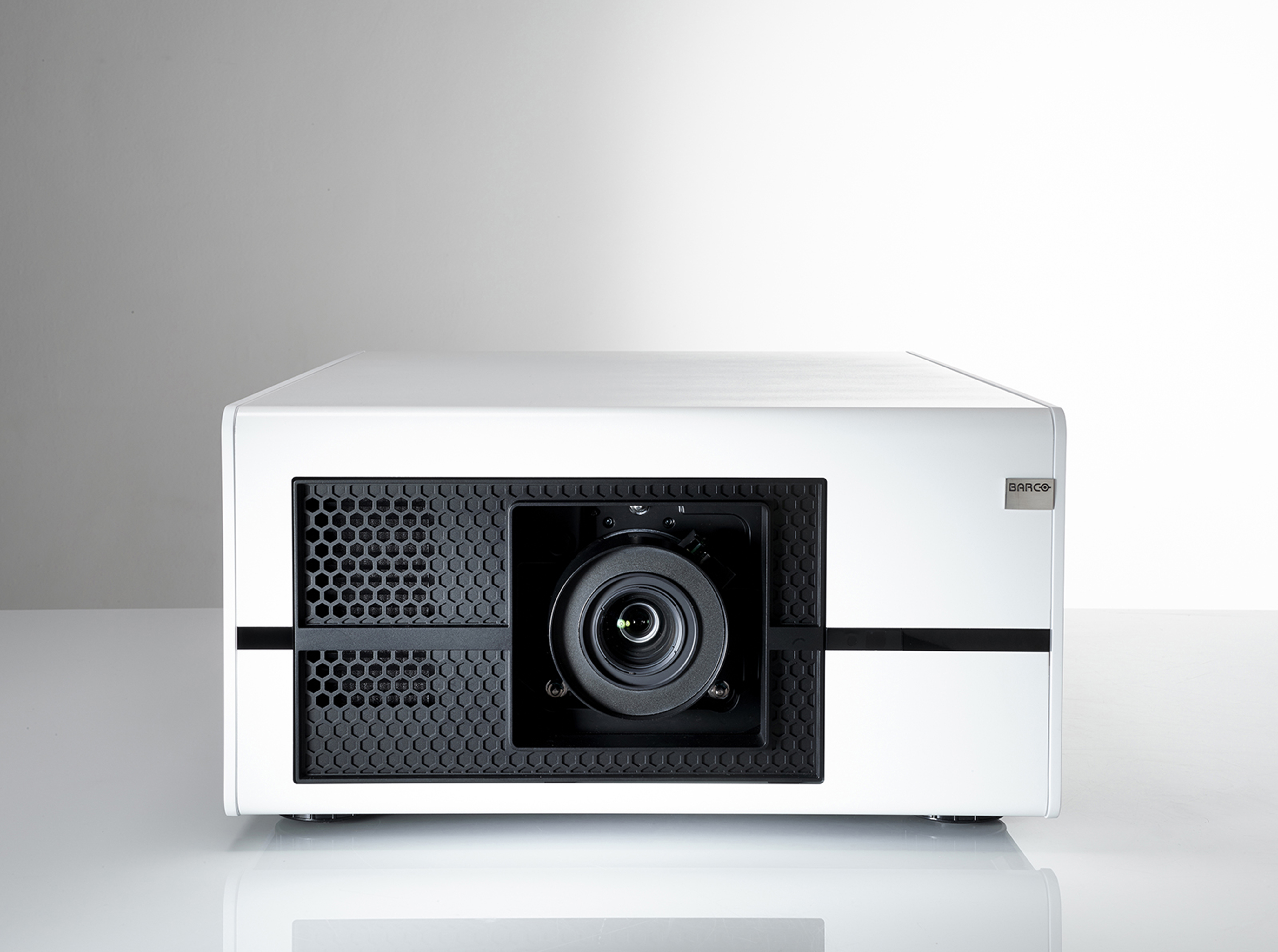

With its 125000 center lumens brightness and WUXGA resolution, this projector is the brightest single-chip DLP projector currently available.

What you'll love about this projector

•   Stylish design that seamlessly blends in with your office interior
•   High-quality images with an unmatched level of detail and contrast
•   Button-free and cable-free for simple operation and less clutter
•   Reliable DLP technology for true ease of mind
•   Easily upgradable with future connectivity add-ons
•   Low cost of ownership thanks to DLP technology and sealed optics
•   Preset image modes that allow for flexible color management
•   Intuitive control menu with the most common features at your fingertips

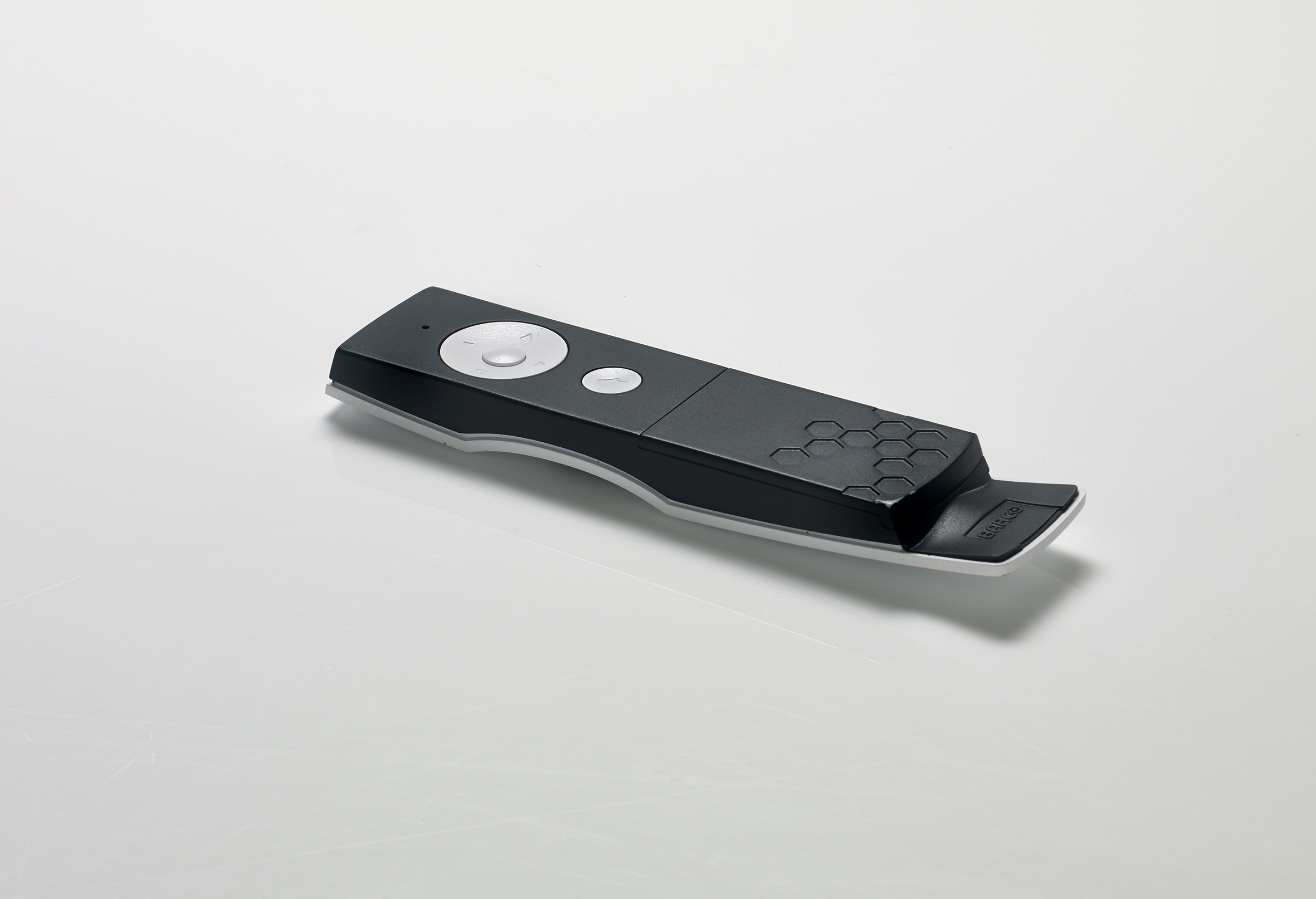

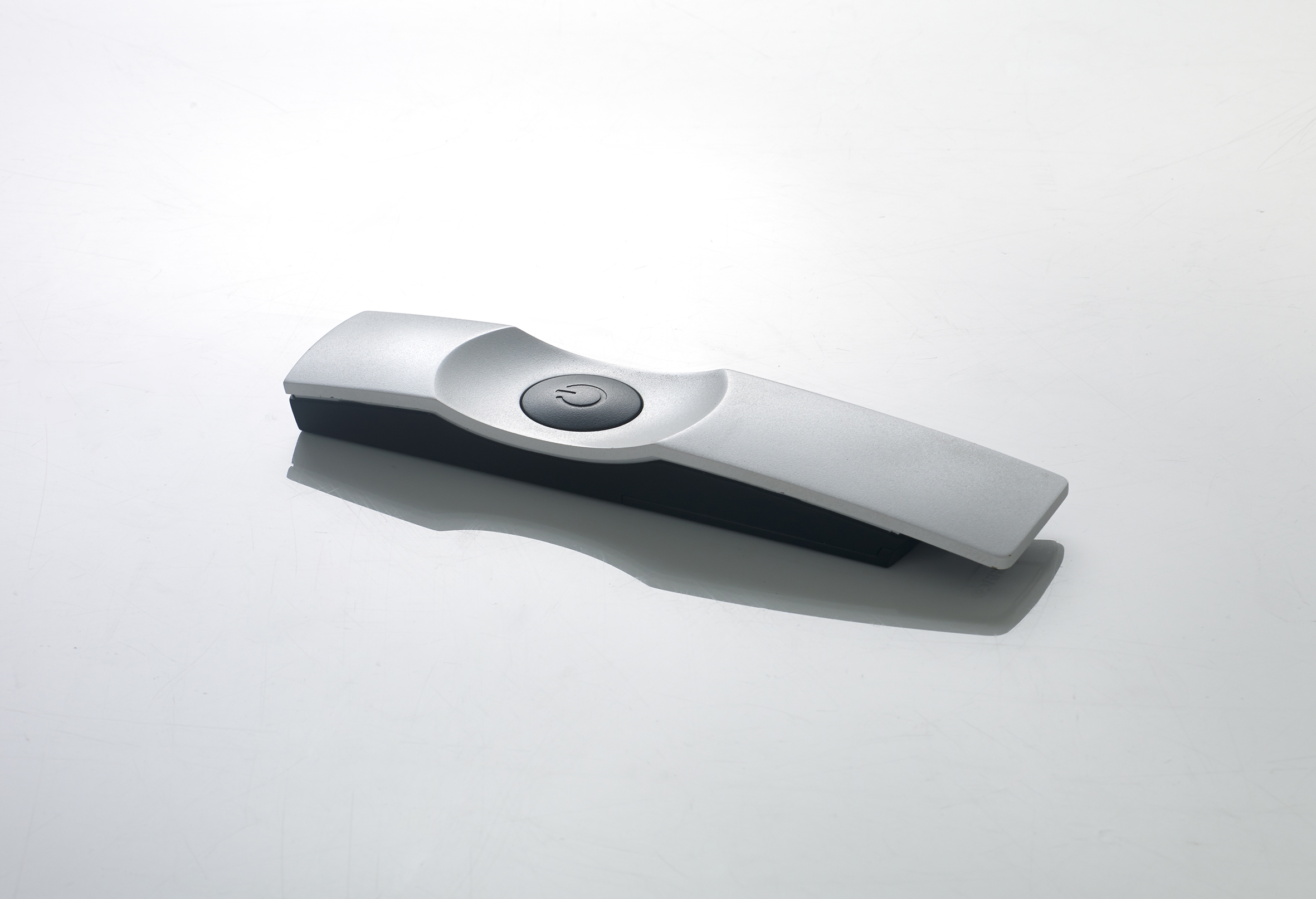

•   User-friendly remote control that features just one button

• Projector type

  WUXGA single-chip DLP projector

• Technology

  0.96" DMD

• Color wheel

  6S standard (RGBYCW)

• Resolution

  1,920 x 1,200 (WUXGA)

• Brightness

  12,500 center lumens

• Contrast ratio

  1,500:1

• Brightness uniformity

  85%

• Aspect ratio

  16:10

• ScenergiX

  Yes

• Lens type

  J lens

• Lenses

  2.4 -4.0:1 1.85-2.4:1 1.56-1.85:1 0.84-1.03:1

• Optical lens shift

  Vertical: +/- 100% horizontal: +/- 30% / Vertical: +/- 75% horizontal: +/- 25% (for 0.84-1.03:1 lens)

• Color correction

  Yes

• CLO(constant light output)

  Yes

• Light source

  lamps

• Light source lifetime

  Up to 1,500 hours (full power), up to 2,500 hours (eco mode)

• Transport with lamp

  Yes

• Sealed DLP™ core

  Yes

• Optical dowser

  Yes

• Advance Picture in Picture

  Yes

• Orientation

  table - ceiling

• WARP

  Yes

• Integrated web server

  Yes

• 3D

  Yes, TI DLP-link

• Image processing

  Embedded warp & blend engine

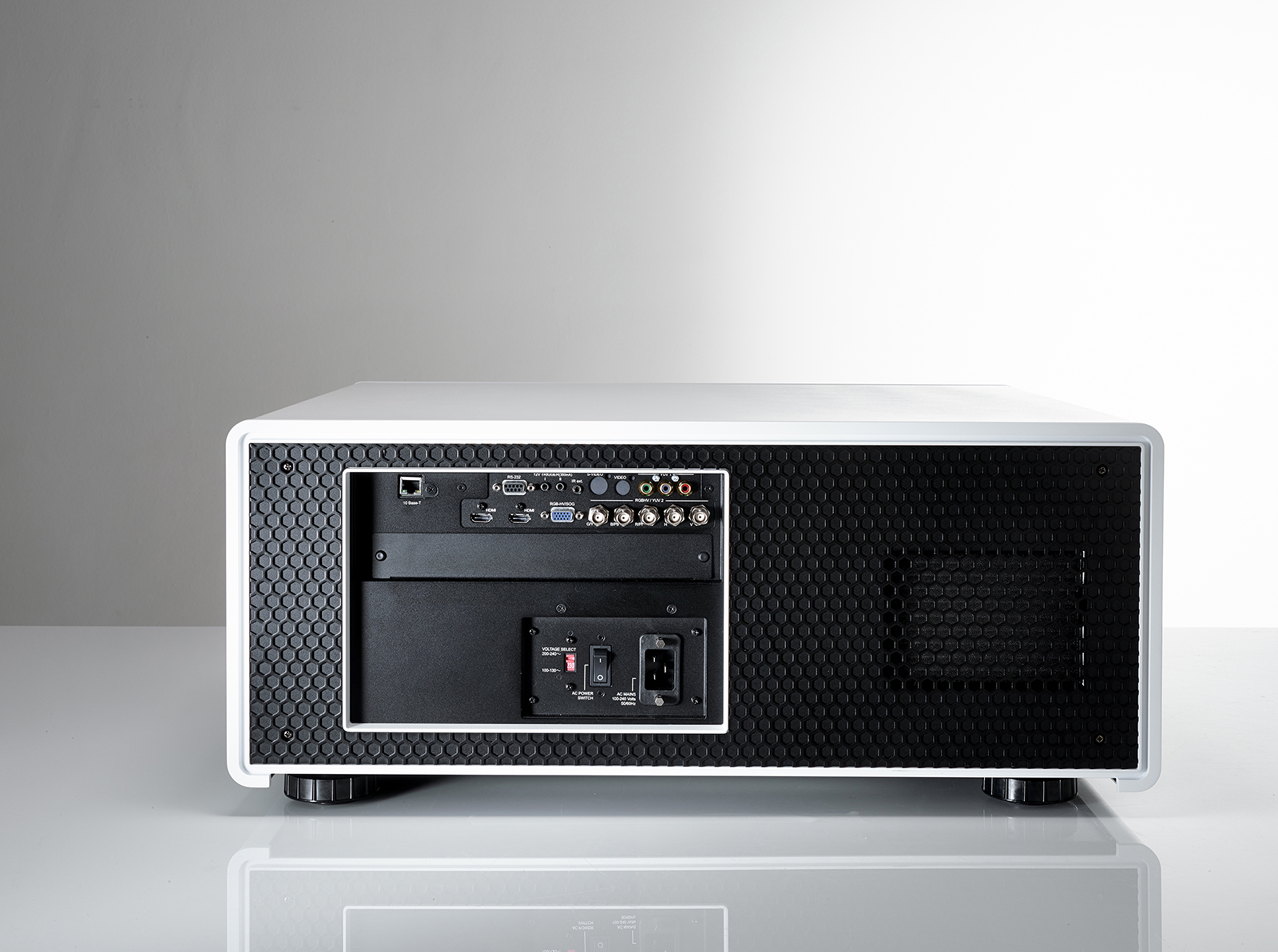

• Outputs

  5 BNC、VGA、HDMI-1、HDMI-2

• Input resolutions

  up to WUXGA (1,920 x 1,200) 60Hz

• Software tools

  Projector Toolset

• Control

  IR、RS232、RJ45

• Network connection

  10/100 base-T、RJ-45 connection

• Power requirements

  100-240V / 50-60Hz

• Max. power consumption

  1,180W @110 VAC/1,100W @ 220VAC 890W @110 VAC/860W @ 220 VAC (eco mode) less than 2W (standby)

• BTU per hour

  Max. 6,000 BTU/h

• Noise level (typical at 25°C/77°F)

  45 dBA (typical in bright mode) / 40 dBA (typical in eco mode)

• Operating temperature

  0-40°C / 32°-104°F

• Operating humidity

  -20 - 60 °C

• Storage temperature

  30-90%

• Storage temperature

  10 - 90%RH

• Dimensions (WxLxH)

  670 x 530 x 285 mm

• Weight

  33 kg

• Standard accessories

  Power cord, wireless remote control

• Shipping dimensions (WxLxH)

  829 x 709 x 437 mm

• Shipping Weight from Factory

  42 kg

• Certifications

  CB test certificate, US emc, US safety, CE emc and safety, CCC emc and safetyh

• Warranty

  3 years standard warranty (warranty and service conditions can differ from region to region. Contact your local sales or service rep for more details)

• 24-7documentation

  This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

•

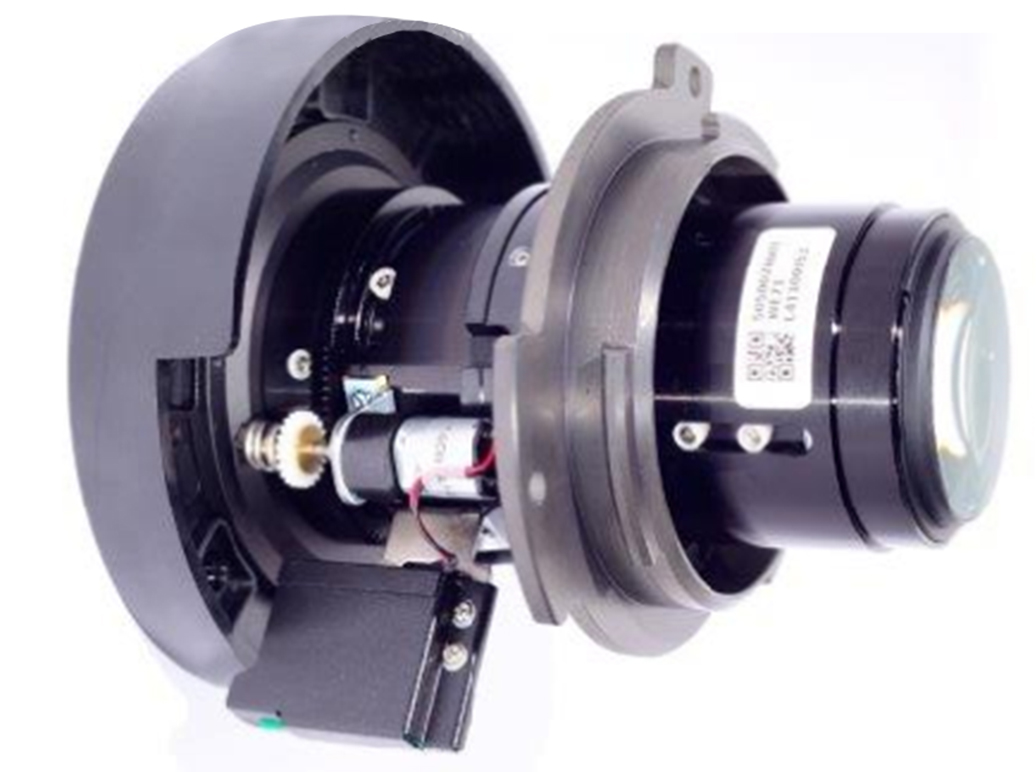

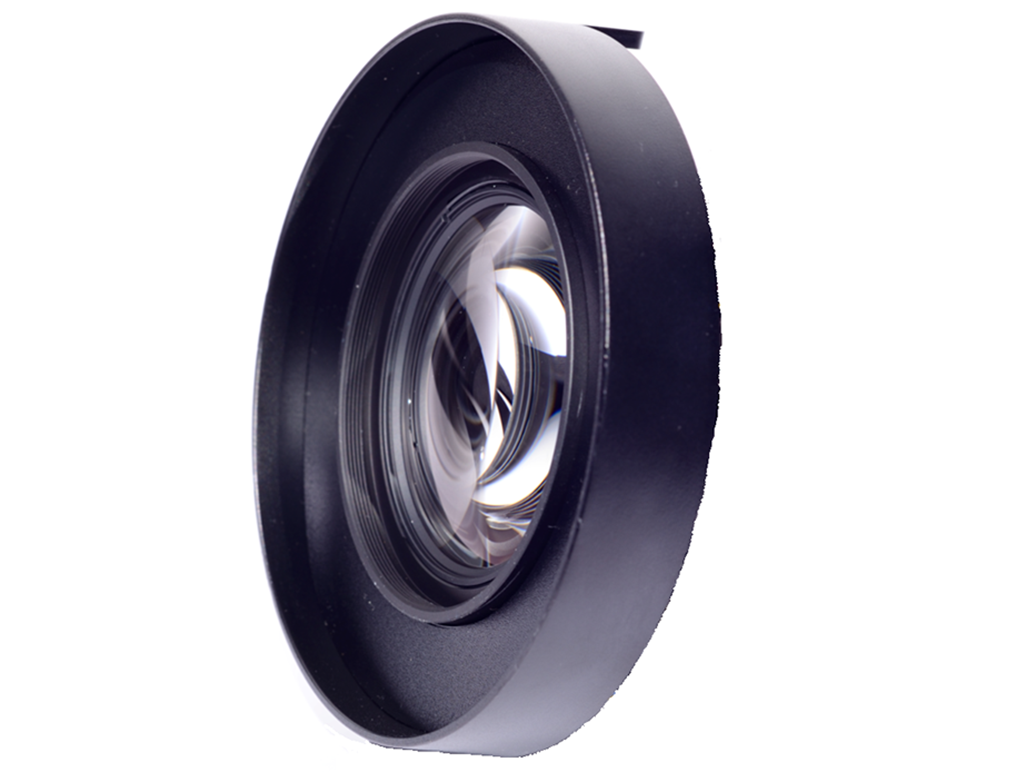

  Conversion lens x 0.8 for J lens (1.56-1.86:1)




  Article number：R9832784





•

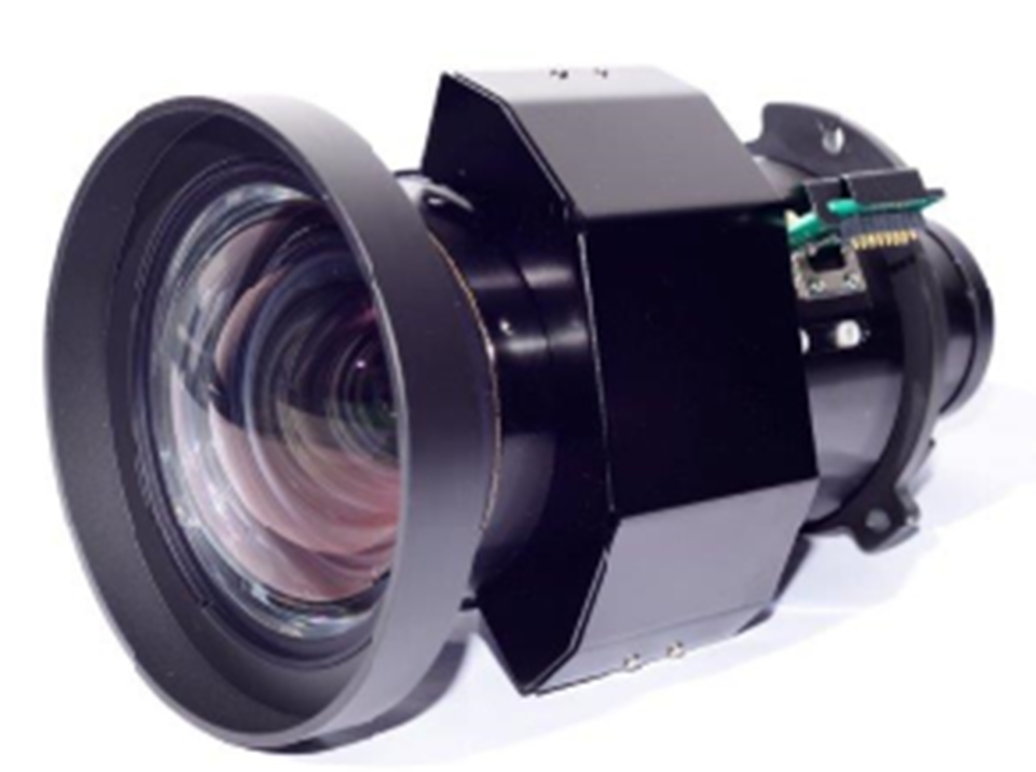

  J lens (0.84-1.03 : 1)




  Article number：R9832763





•

  J lens (2.4-4.0 : 1)




  Article number：R9832762





•

  J lens(1.56-1.86 : 1)




  Article number：R9832761





•

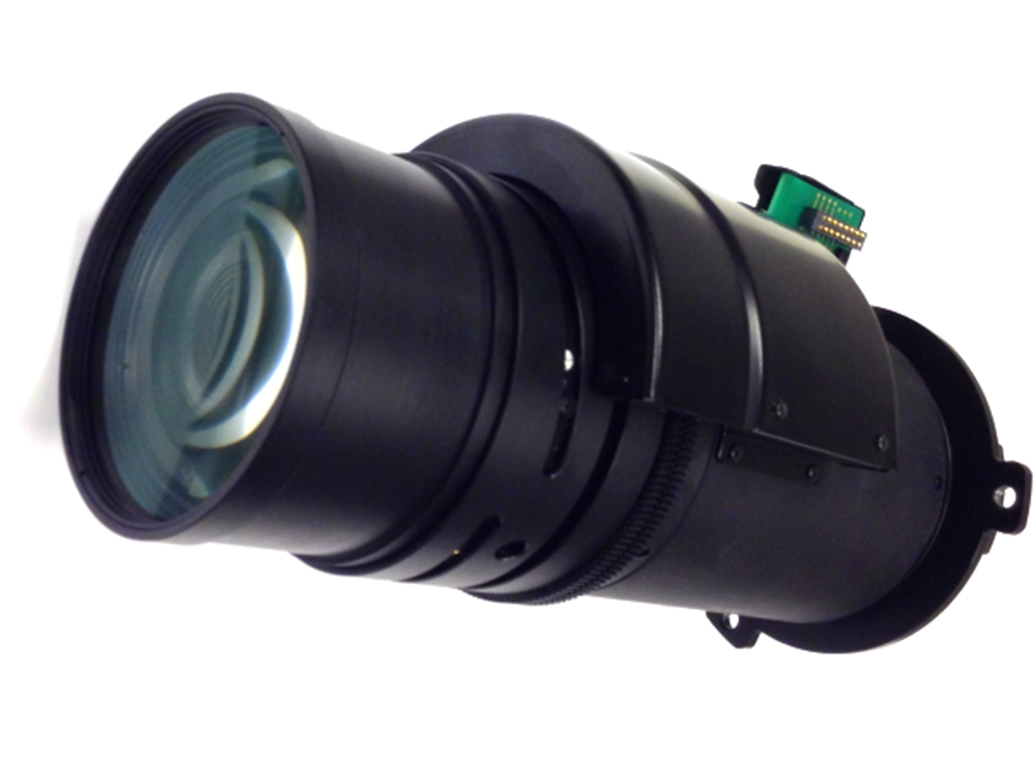

  J lens (4.0-7.0 :1) ultra long zoom




  Article number：R9832783





•

  J lens (1.85-2.4 : 1)




  Article number：R9832760






Product Manual

• PJWU-101B.pdf
