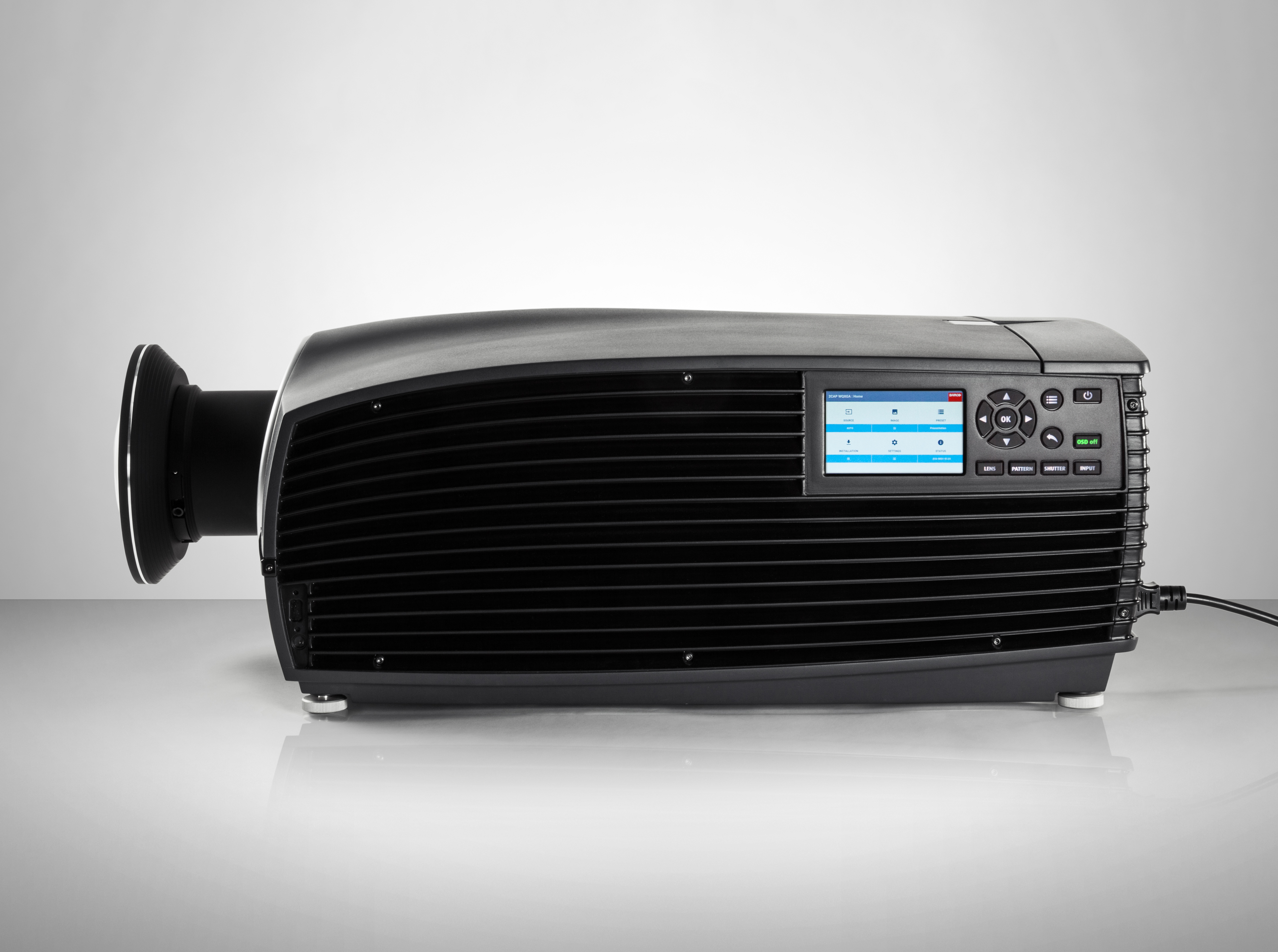

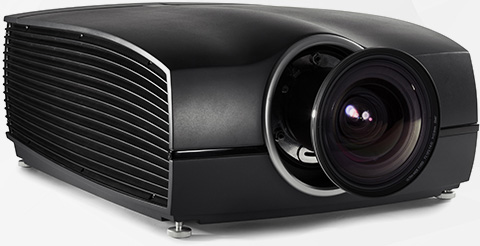

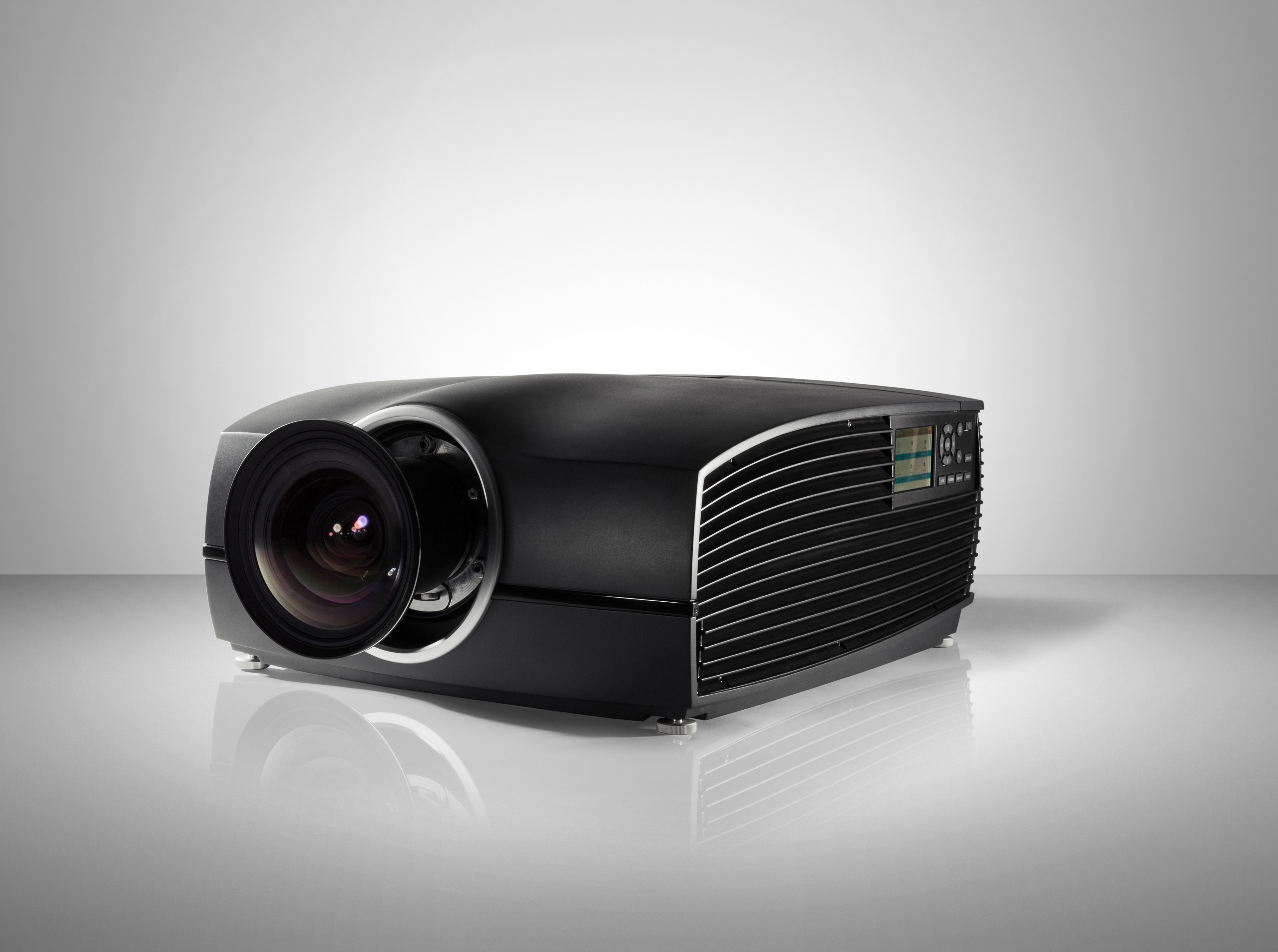

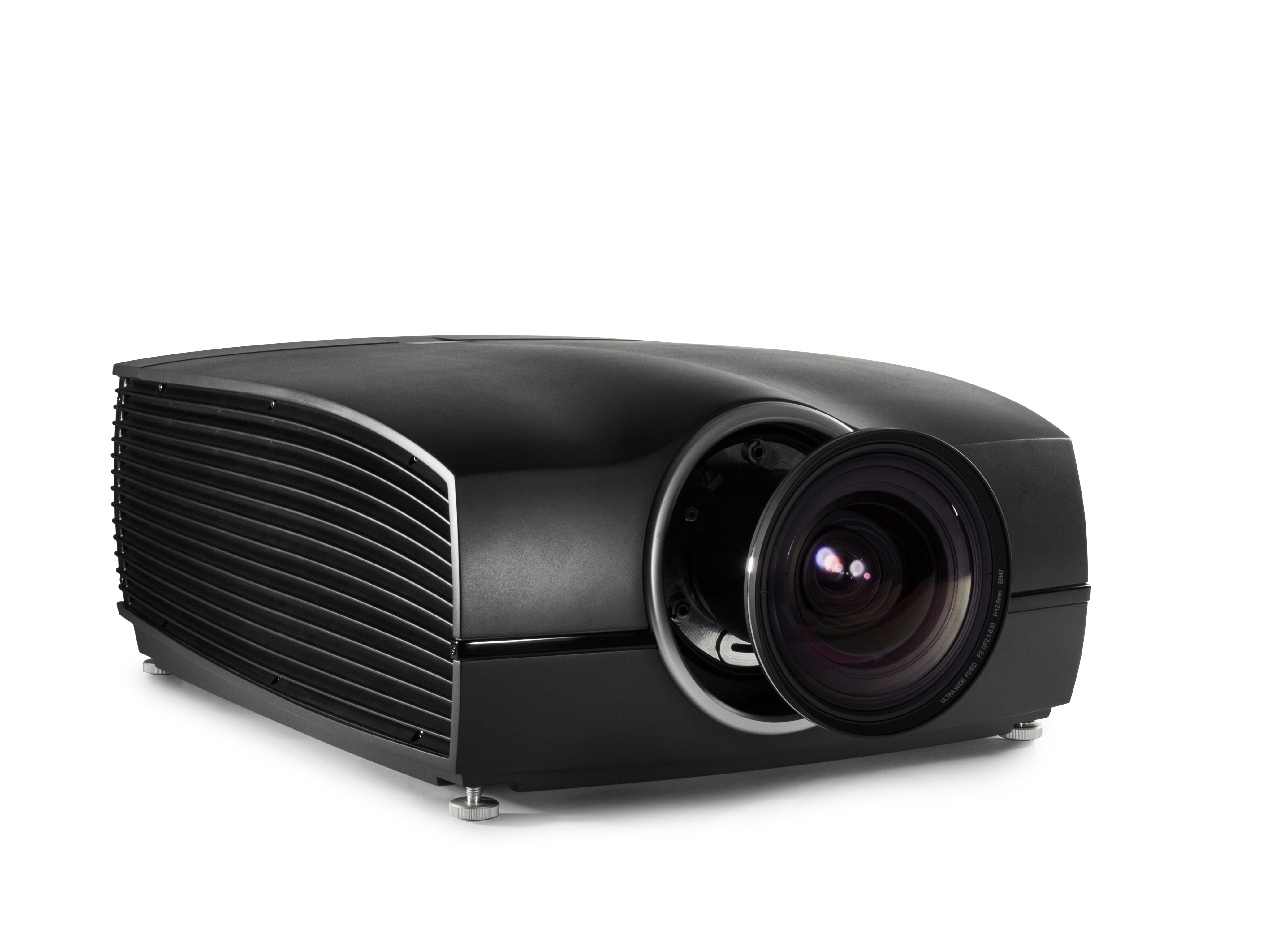

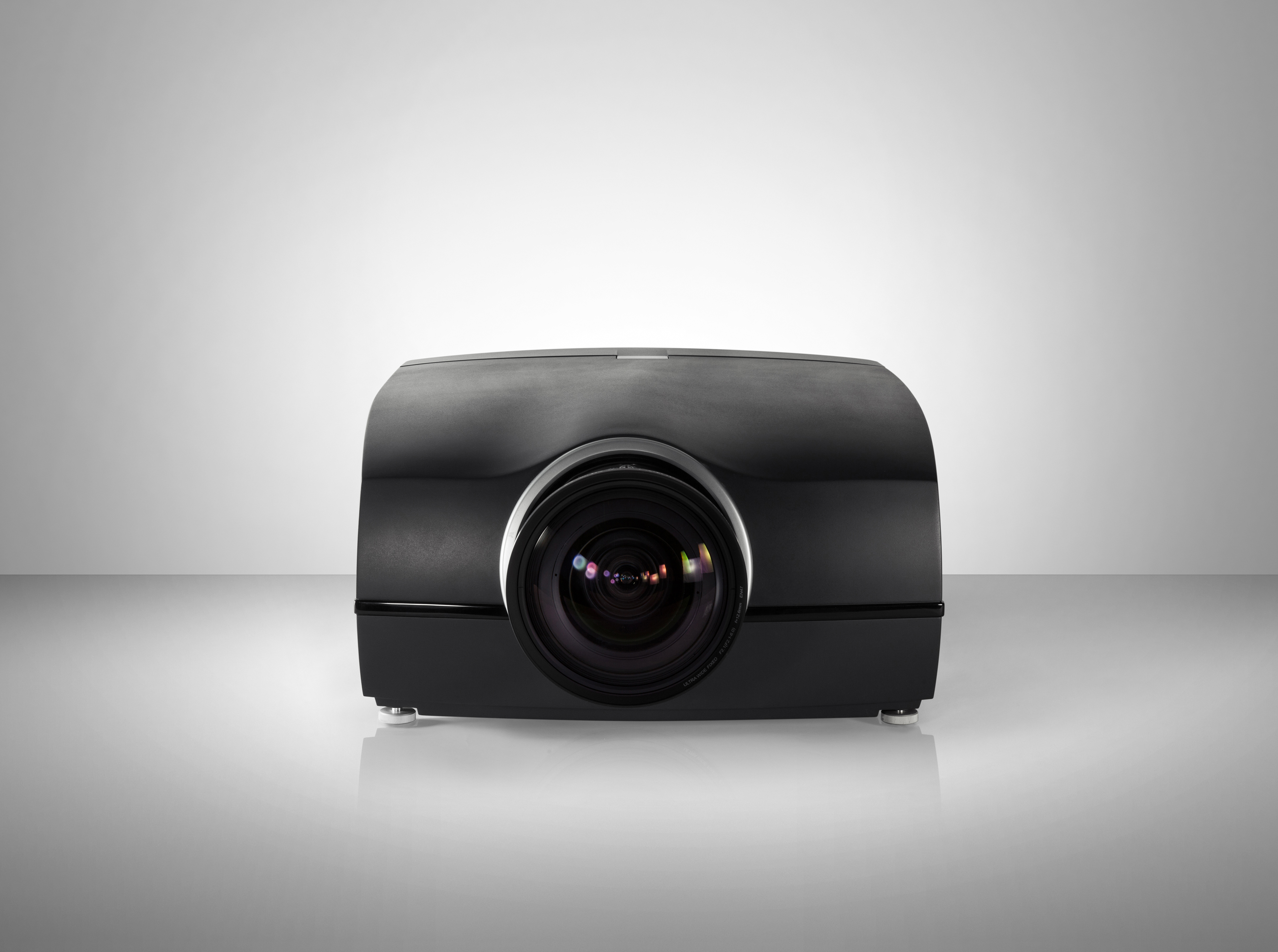

The stunning image quality and laser phosphor light source of Barco's F90 projectors enable you to provide exceptional experiences while saving both time and money. Designed for installation in everything from high demanding visitor attractions to simulation applications that require 24/7 operation, the reliable F90 4K13 is equally suited for events, retail and advertising as well as boardrooms and auditoriums. Thanks to its 3D functionality, the projector is also perfectly fit for theme park dark rides and interactive experiences.

Superior image quality

The F90-4K13 delivers razor-sharp images at 4K UHD resolution with a high level of detail, and highly saturated colors that meet the Rec. 709 color space. Featuring an advanced optical design, this reliable projector provides a constant light output, for long-term, worry-free operation.

Unprecedented business value

The F90-4K13 projector enables you to increase uptime while driving costs down. Through its laser-phosphor light source and advanced cooling design, it provides up to 40,000 hours operating time without need for lamp changes - resulting in considerable cost-savings on maintenance and consumables.

Ultimate installation flexibility

This projector can run in any orientation, giving you more flexibility in projector location and orientation. Thanks to its wide array of high-resolution FLD and FLD+ lenses – from ultra-short throw (0.3:1) to long throw (9.75:1) – each providing a wide lens shift range, the F90-4K13 accommodates almost any projector configuration.

• Projector type

  Single chip DLP laser phosphor projector

• Resolution

  3,840 x 2,400 (4K UHD) / 2,560 x 1,600 (WQXGA native)

• Brightness

  11,800 center lumens

• Contrast ratio

  1800:1 sequential - 50000:1 dynamic contrast

• Brightness uniformity

  90%

• Aspect ratio

  16:10

• Lens type

  FLD+

• Optical lens shift

  Up to 146% lens shift, depending on lens. Motorized zoom, focus, vertical and horizontal shift, iris and shutter.

• Color correction

  P7 RealColor™

• CLO(constant light output)

  Yes

• Light source

  Laser phosphor

• Light source lifetime

  20,000 / 40,000 hours, brightness mode dependent

• Sealed DLP™ core

  Yes

• Orientation

  360° rotation, no restrictions

• 3D

  Active stereoscopic 3D

• Image processing

  Embedded warp & blend engine

• Outputs

  HDSDI, 2x DP, 2x dual link DVI-I, HDBaseT, HDMI 2.0, RJ 45 Ethernet, DMX in/out, RS232 in, 2x USB, 12v out

• Input resolutions

  Up to 4K UHD @ 60Hz / Up to 2,560 x 1,600 @ 120Hz

• Software tools

  Projector Toolset

• Control

  IR、RS232、RJ45

• Network connection

  10/100 Ethernet, RJ45

• Power requirements

  100-240V / 50-60Hz

• Max. power consumption

  1,600 W Max

• BTU per hour

  Max. 6,000 BTU/h

• Noise level (typical at 25°C/77°F)

  38 dB(A)

• Operating temperature

  10 - 40 °C (sea level)

• Operating humidity

  -20 - 60 °C

• Storage temperature

  20 - 80%RH

• Storage temperature

  10 - 90%RH

• Dimensions (WxLxH)

  575 x 730 x 295 mm / 22.64 x 28.74 x 11.61 in

• Weight

  44.5 kg / 98.1 lbs

• Standard accessories

  Power cord, wireless remote control

• Certifications

  CE, FCC Class A and cCSAus

• Warranty

  Limited 3 years parts and labor. Extendable up to 5 years

• 24-7documentation

  This projector is designed and warranted for heavy duty 24/7 operation. Specific measures and design considerations have been made in order for it to comply with stringent requirements in challenging applications.

•

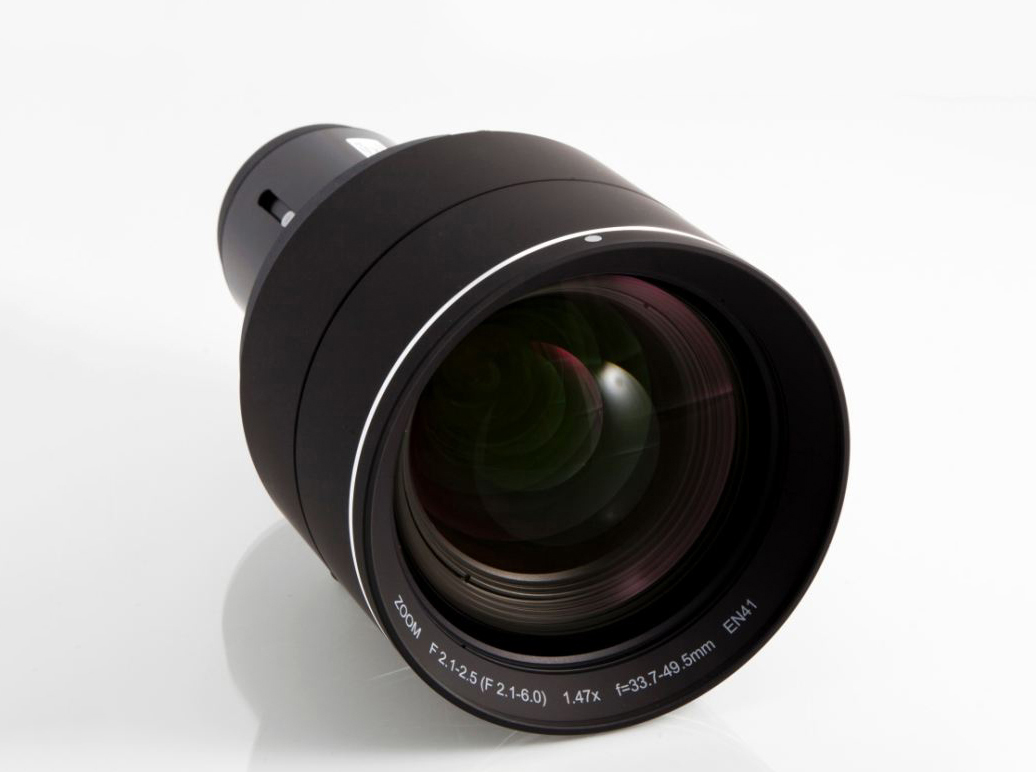

  FLD+ 1.7 - 2.5 : 1 (EN41)




  1.58 - 2.33：1 (WUXGA) / 1.7 - 2.5：1 (WQXGA)




  Article number: R9801216



•

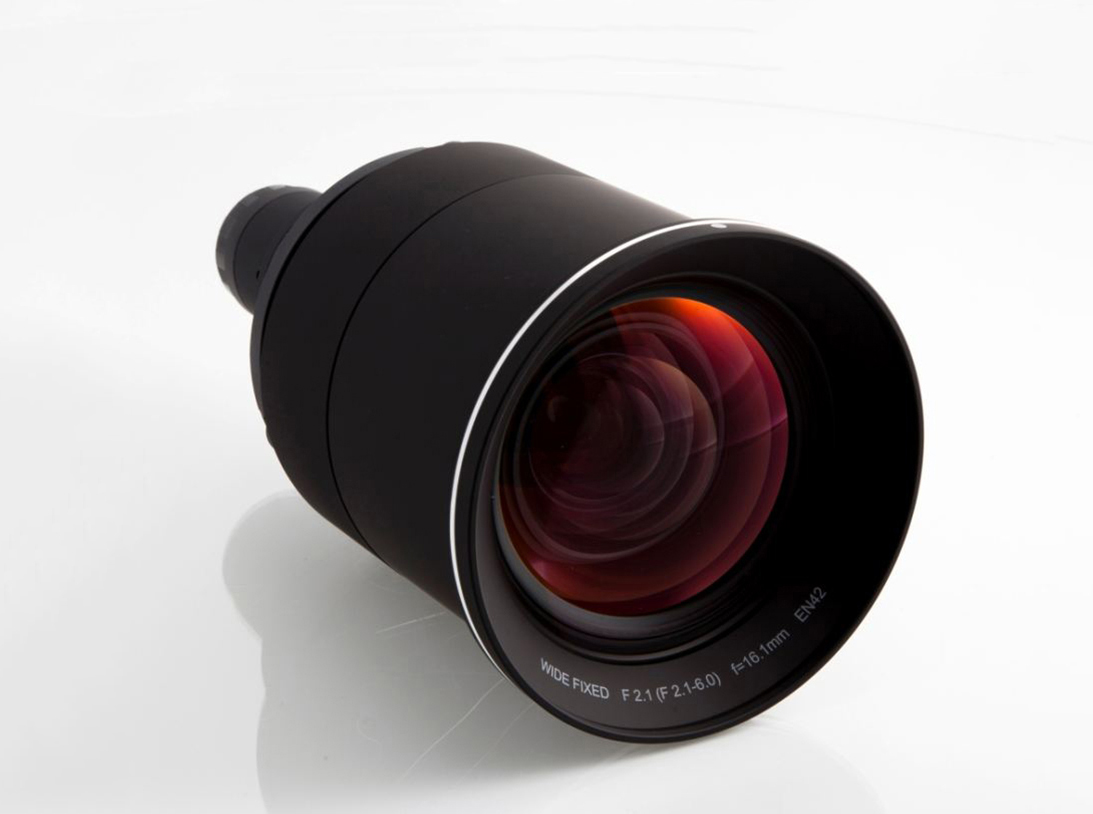

  FLD+ 0.8 : 1 (EN42)




  0.75：1 (WUXGA) / 0.8：1 (WQXGA)




  Article number：R9801226



•

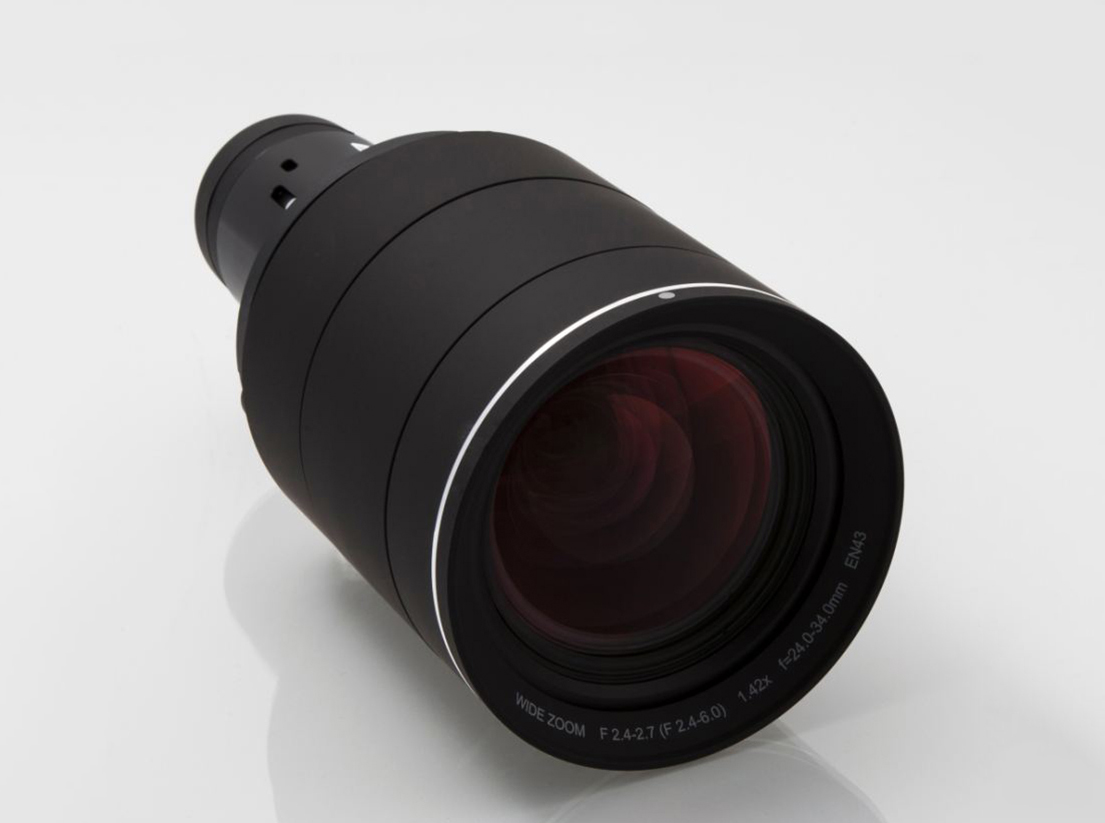

  FLD+ 1.2 - 1.7 : 1 (EN43)




  1.12 - 1.58：1 (WUXGA) / 1.2 - 1.7：1 (WQXGA)




  Article number：R9801230



•

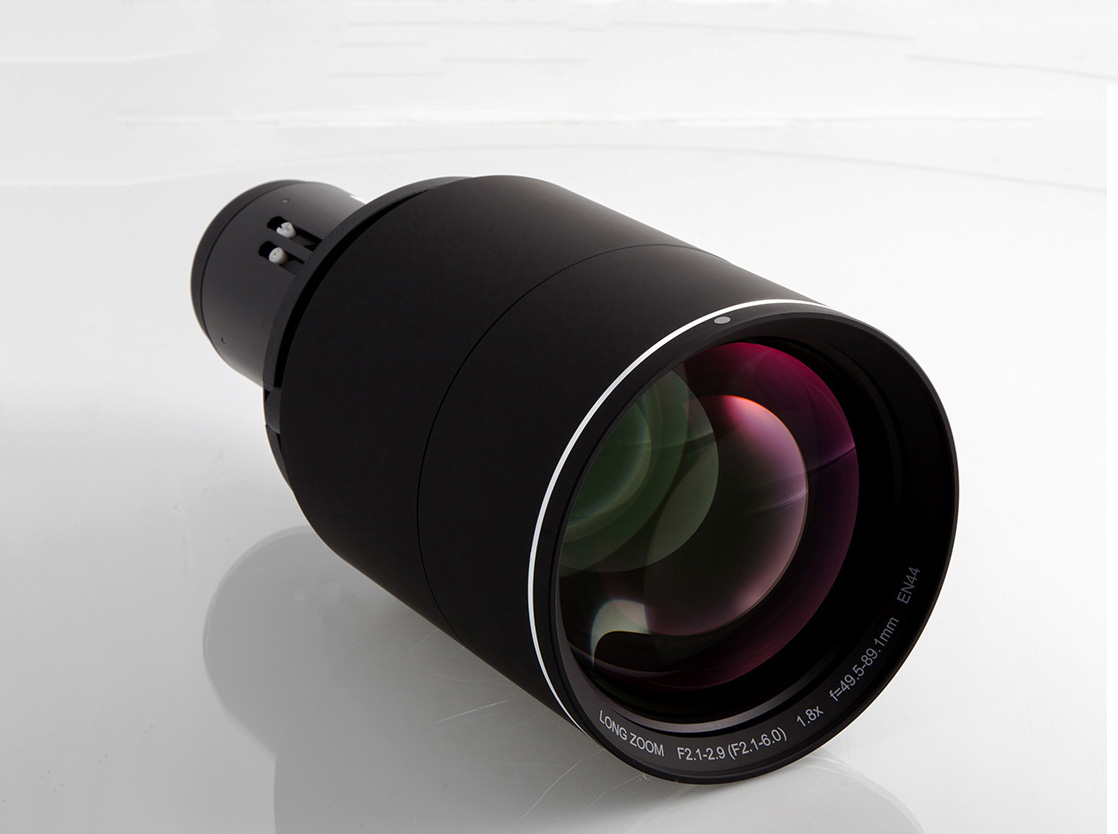

  FLD+ 2.5 - 4.6 : 1 (EN44)




  2.33 - 4.3：1 (WUXGA) / 2.5 - 4.6：1 (WQXGA)




  Article number：R9801211



•

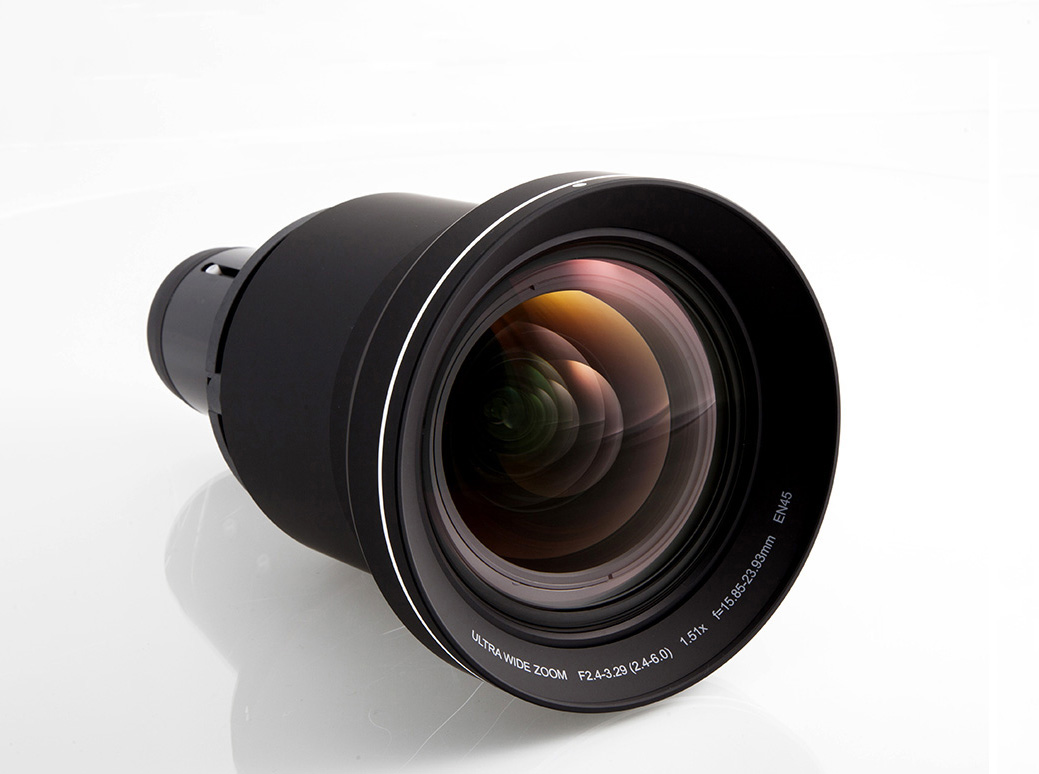

  FLD+ Long Focus 0.8 - 1.21 : 1 (EN45)




  0.75 - 1.13：1 (WUXGA) / 0.8 - 1.21：1 (WQXGA)




  Article number：R9801220



•

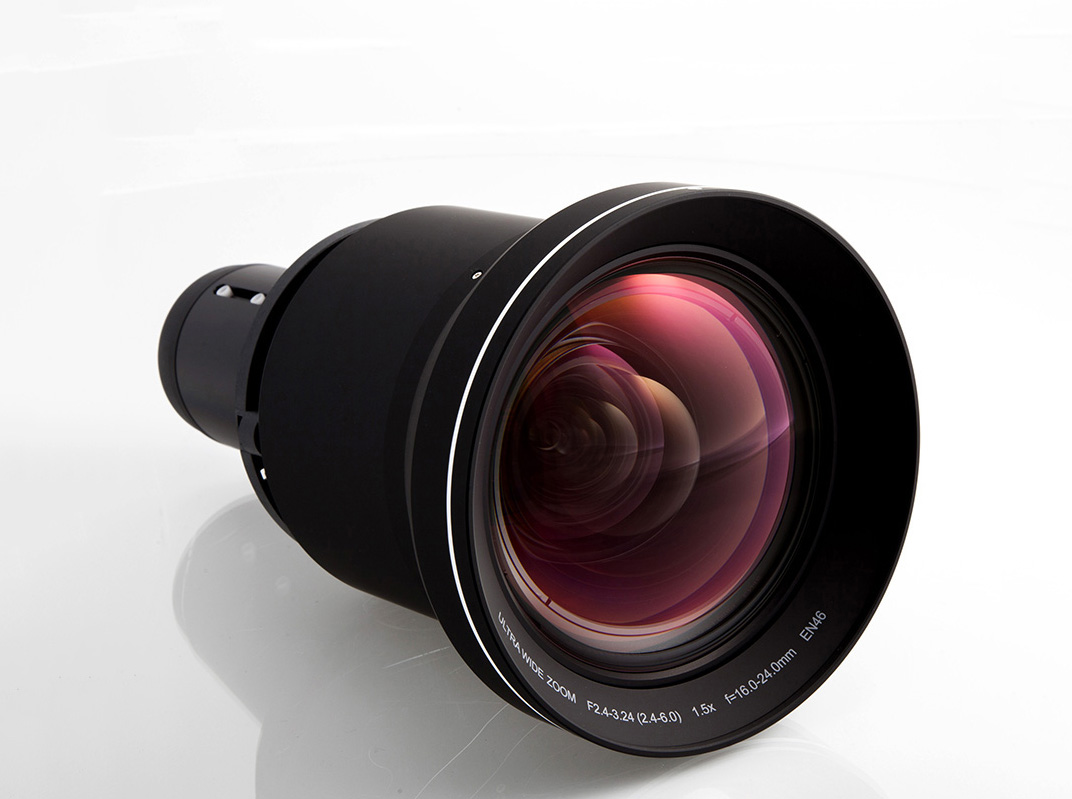

  FLD+ Short Focus 0.8 - 1.21 : 1 (EN46)




  0.75-1.13:1 (WUXGA) / 0.8-1.21:1 (WQXGA)




  Article number：R9801221



•

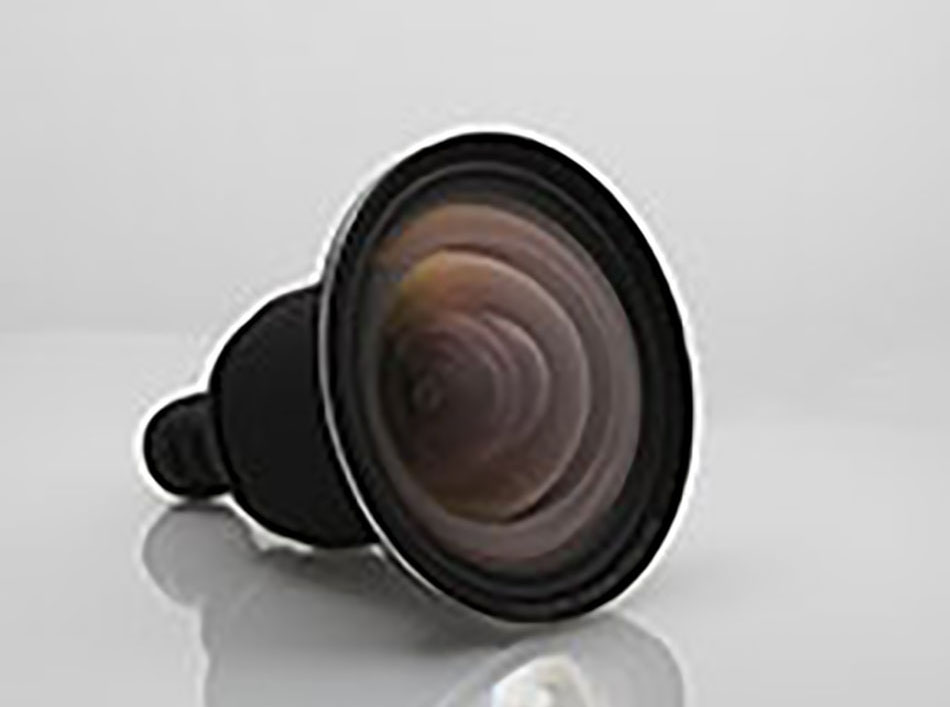

  FLD+ 0.65 : 1(EN47)




  0.61:1 (WUXGA) / 0.65:1 (WQXGA)




  Article number：R9801295




Product Manual

• F90-4K13.pdf
